I have a 1987 Camaro RS, I got for free. The people who gave it to me cut all the wires and pulled the v-6 out. Well ive got a 305 in it now and am having problems wiring it. The thing is I want all the stock gauges to work. I have no idea which colored wires go to the oil pressure, amp gauge, temp, and any other wires I have to hook up. if somebody could please e-mail me a wiring diagram or let me know what wires go when when putting a 305 where a v-6 goes. IM only 18 and im not complely faniler with this. please help so I can get my ride on the road.thank



This should help. All the wires you need will come out of the C100 connector which to the right of the brake booster. Thats if your 305 is going to be carbed.

http://92b4crs.tripod.com/86wiring/dia-pics/81-0.jpg



http://www.thirdgenparts.com/wiring/92TPIbulkhead_1.gif

http://www.thirdgenparts.com/wiring/92TPIbulkhead_2.gif

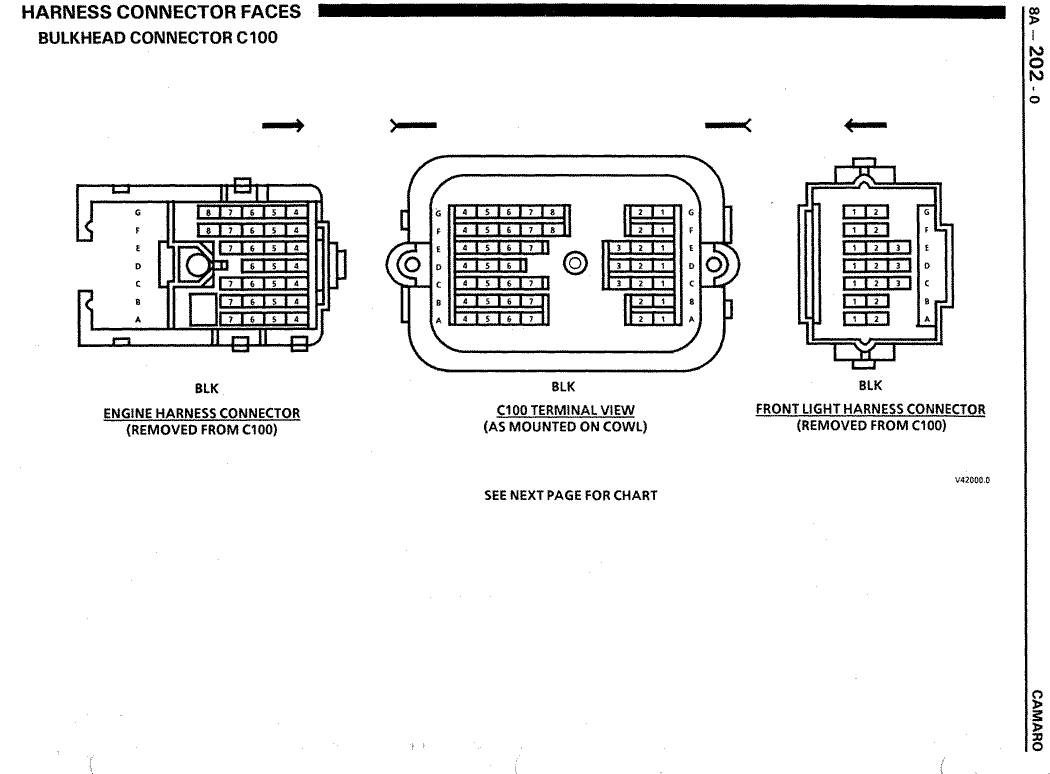

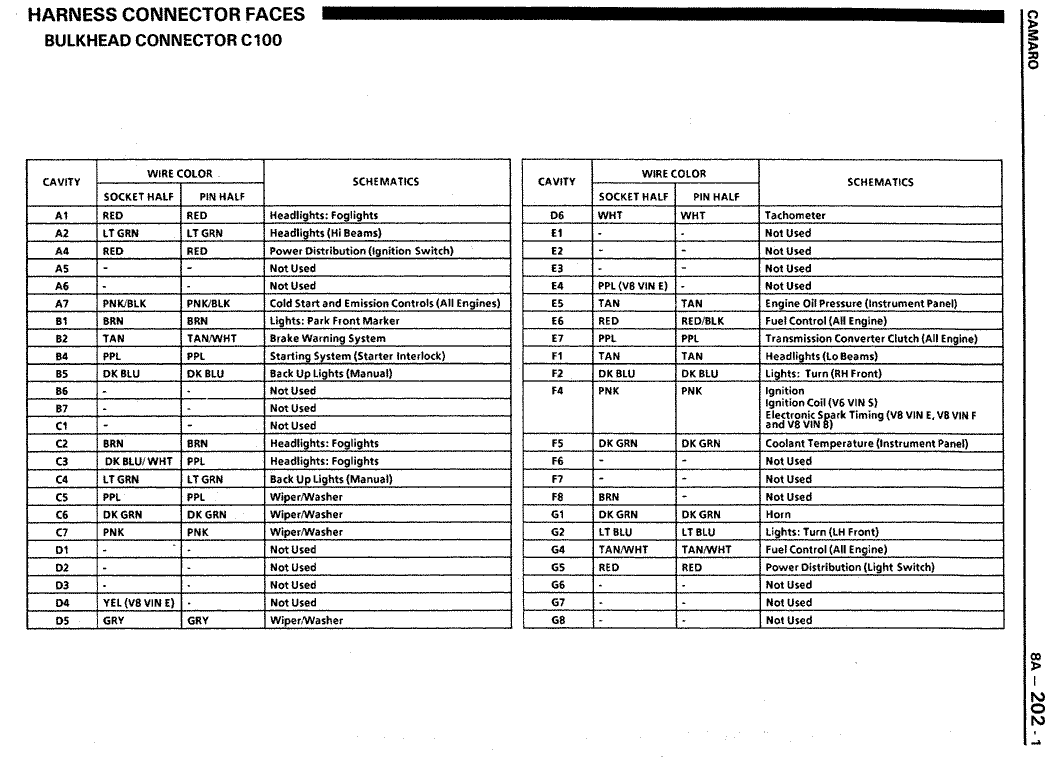

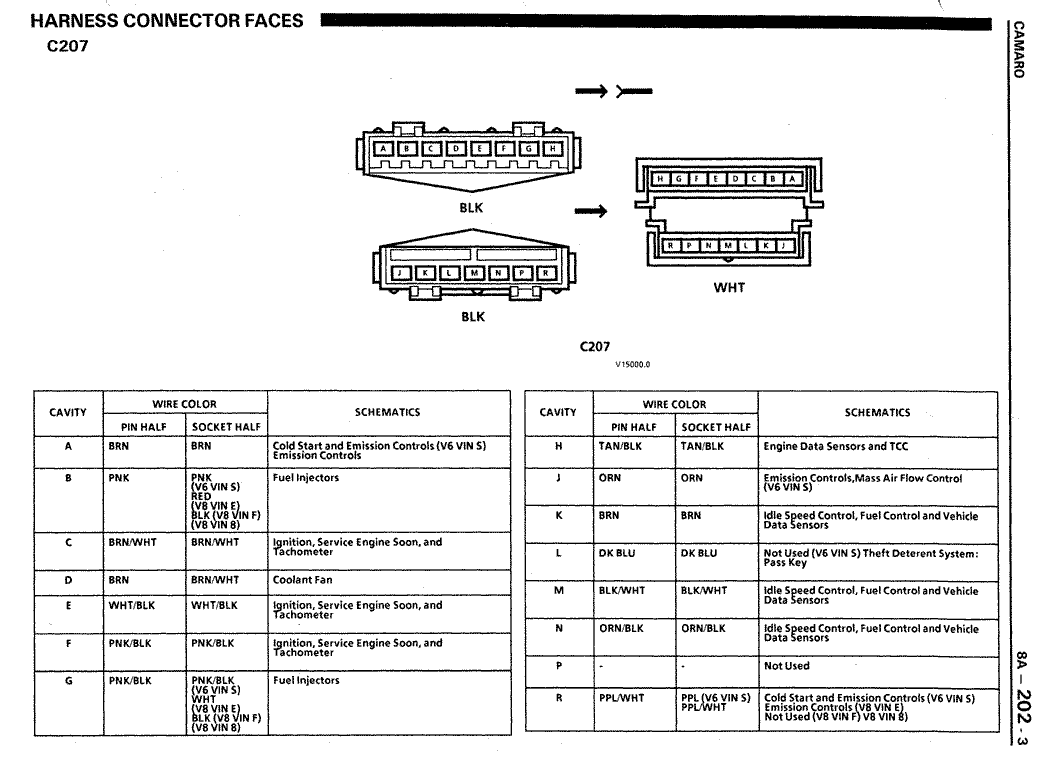

Here are some schematics of the two bulkhead connectors on the camaro. They are connector "C100" which is located on the driver side bulkhead and connector "C207" which is located on the passenger side bulkhead. Please note that these schematics are from a 1989 camaro GM service manual and are closer to the wiring requirements of your car than those of a 1992 camaro. The first two schematics are for connector "C100" and the third is for connector "C207"
