Re: 1992 "Firebird 400" swap and concept
Well It seems about time to start posting on this thread again. Have had a very busy year between buying my first house and losing my mother, and the Firebird moved to the back burner for a while. After moving into my home and getting my Bird up to my house, it's a new chapter for the thread here.
The Bird is home.
The Bird is home.
#108
Member
Thread Starter
Join Date: Jul 2011
Location: Billings, MT
Posts: 174
Likes: 0
Received 0 Likes
on
0 Posts
Car: 92 Firebird--02 Grand Prix GTP 2Dr
Engine: Poncho 400--3.8 Supercharged
Transmission: T56 6 Speed--4T65EHD
Axle/Gears: Open 10 bolt 3.42--Internal 2.93
Re: 1992 "Firebird 400" swap and concept
With this project sitting for so long, I had some rust in the tank. And my fuel tank was in a pretty sad state to begin with. So I ditched the factory tank and bought a 4th Gen tank from a 2000 Camaro 3.8 Liter. As of right now, I'm running a carburetor, so the 50-60 psi the 4th Gen pump would put out would be wayyyy too much. AND the fuel level sensor on the 4th gens read 40-250 ohms (I know this has been covered numerous times) when our 3rd gen gauges read 0-90 ohms. So I had to "engineer" my fuel pump together. I started with taking the whole pump apart.
Disassembled GM fuel pump module.
Disassembled GM fuel pump module.
Last edited by firechicken1992; 10-24-2015 at 01:14 PM.
#109
Member
Thread Starter
Join Date: Jul 2011
Location: Billings, MT
Posts: 174
Likes: 0
Received 0 Likes
on
0 Posts
Car: 92 Firebird--02 Grand Prix GTP 2Dr
Engine: Poncho 400--3.8 Supercharged
Transmission: T56 6 Speed--4T65EHD
Axle/Gears: Open 10 bolt 3.42--Internal 2.93
Re: 1992 "Firebird 400" swap and concept
To start with the actual pump portion, I bought a TBI 3rd Gen pump (it's specs said it's static pressure was like 13 PSI).
TBI pump fits perfect in the 4th Gen's rubber insulator.
TBI pump fits perfect in the 4th Gen's rubber insulator.
#110
Member
Thread Starter
Join Date: Jul 2011
Location: Billings, MT
Posts: 174
Likes: 0
Received 0 Likes
on
0 Posts
Car: 92 Firebird--02 Grand Prix GTP 2Dr
Engine: Poncho 400--3.8 Supercharged
Transmission: T56 6 Speed--4T65EHD
Axle/Gears: Open 10 bolt 3.42--Internal 2.93
Re: 1992 "Firebird 400" swap and concept
At this point, you may notice the 4th Gen pump has two lines coming out of it. One goes to the top of the module to feed to the motor. The other routes to the bottom of the module. This keeps the "pocket" full of fuel to prevent starvation. Well the lumbering 3rd Gen pump has only one output. This is where I had to get a 'lil creative.
I used a vacuum tee: 3/8x3/16x3/8 part number 717663 from O'Reillys to create the second feed for the pump module.
The part that connects to the bottom of the module needs a male connection, so I cut a portion of the original line to secure to the 3/16 hose.
The 3/16 hose going to the bottom of the module. With the pressure being so minor, I felt comfortable securing it with a good zip tie.
I used a vacuum tee: 3/8x3/16x3/8 part number 717663 from O'Reillys to create the second feed for the pump module.
The part that connects to the bottom of the module needs a male connection, so I cut a portion of the original line to secure to the 3/16 hose.
The 3/16 hose going to the bottom of the module. With the pressure being so minor, I felt comfortable securing it with a good zip tie.
#111
Member
Thread Starter
Join Date: Jul 2011
Location: Billings, MT
Posts: 174
Likes: 0
Received 0 Likes
on
0 Posts
Car: 92 Firebird--02 Grand Prix GTP 2Dr
Engine: Poncho 400--3.8 Supercharged
Transmission: T56 6 Speed--4T65EHD
Axle/Gears: Open 10 bolt 3.42--Internal 2.93
Re: 1992 "Firebird 400" swap and concept
Next I installed the pump into the top portion of the housing. Pretty straight forward, and fits perfect.
I put a 3rd Gen strainer on the bottom of the TBI pump.
I put a 3rd Gen strainer on the bottom of the TBI pump.
#112
Member
Thread Starter
Join Date: Jul 2011
Location: Billings, MT
Posts: 174
Likes: 0
Received 0 Likes
on
0 Posts
Car: 92 Firebird--02 Grand Prix GTP 2Dr
Engine: Poncho 400--3.8 Supercharged
Transmission: T56 6 Speed--4T65EHD
Axle/Gears: Open 10 bolt 3.42--Internal 2.93
Re: 1992 "Firebird 400" swap and concept
Now, mating the two together is perhaps the easiest part.
I had to trim and position the hose clamps in a way to make sure they wouldn't contact the wires when installed. Don't want them rubbing through the insulation.
Connected the 3/16 hose the the tee.
A new strainer for the 4th Gen module.
I had to trim and position the hose clamps in a way to make sure they wouldn't contact the wires when installed. Don't want them rubbing through the insulation.
Connected the 3/16 hose the the tee.
A new strainer for the 4th Gen module.
#113
Member
Thread Starter
Join Date: Jul 2011
Location: Billings, MT
Posts: 174
Likes: 0
Received 0 Likes
on
0 Posts
Car: 92 Firebird--02 Grand Prix GTP 2Dr
Engine: Poncho 400--3.8 Supercharged
Transmission: T56 6 Speed--4T65EHD
Axle/Gears: Open 10 bolt 3.42--Internal 2.93
Re: 1992 "Firebird 400" swap and concept
Now that I got my fuel pump ready to go, it's a necessity to know how much fuel I have while powering my gas hog carburetor and gas hog V8.
I bought a fuel level sensor from Ebay that reads the correct range. Its made by Herko. Part Number:GFC31.
I bought a fuel level sensor from Ebay that reads the correct range. Its made by Herko. Part Number:GFC31.
#114
Member
Thread Starter
Join Date: Jul 2011
Location: Billings, MT
Posts: 174
Likes: 0
Received 0 Likes
on
0 Posts
Car: 92 Firebird--02 Grand Prix GTP 2Dr
Engine: Poncho 400--3.8 Supercharged
Transmission: T56 6 Speed--4T65EHD
Axle/Gears: Open 10 bolt 3.42--Internal 2.93
Re: 1992 "Firebird 400" swap and concept
The 4th Gen pumps have two wires for the level sensor, a hi and lo signal. The 3rd Gens, of course, have one wire. This is an easy fix.

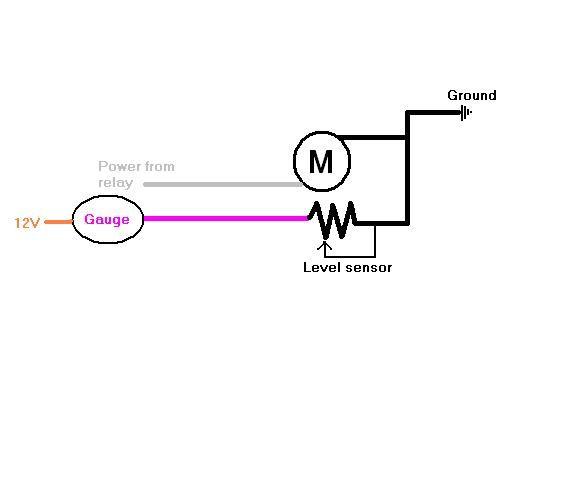

A quick 3rd Gen fuel pump and level sensor diagram. Note how the wire leaving the level sensor splices to the same ground wire as the pump. This then grounds out under the center console.
One of these tools is really handy to have to remove terminals from connectors. You may be able to achieve the same results with a micro screwdriver or small paper clip.
I simply removed the wire I wasn't going to use.
What I did with the wire leaving the level sensor, was combine it into the same terminal as the motor's ground wire. On the left is the motor's power wire. Not shown is the pink/purple level sensor input wire.
I bought the new terminals from NAPA. Part number: 725157.
A quick 3rd Gen fuel pump and level sensor diagram. Note how the wire leaving the level sensor splices to the same ground wire as the pump. This then grounds out under the center console.
One of these tools is really handy to have to remove terminals from connectors. You may be able to achieve the same results with a micro screwdriver or small paper clip.
I simply removed the wire I wasn't going to use.
What I did with the wire leaving the level sensor, was combine it into the same terminal as the motor's ground wire. On the left is the motor's power wire. Not shown is the pink/purple level sensor input wire.
I bought the new terminals from NAPA. Part number: 725157.
#115
Member
Thread Starter
Join Date: Jul 2011
Location: Billings, MT
Posts: 174
Likes: 0
Received 0 Likes
on
0 Posts
Car: 92 Firebird--02 Grand Prix GTP 2Dr
Engine: Poncho 400--3.8 Supercharged
Transmission: T56 6 Speed--4T65EHD
Axle/Gears: Open 10 bolt 3.42--Internal 2.93
Re: 1992 "Firebird 400" swap and concept
At this point, I'm glad I still had my 3rd Gen pump, as the connector to the actual pump is different on the 4th Gens. I used two more of those terminals from NAPA and recycled my connector from the original 3rd Gen pump
#116
Member
Thread Starter
Join Date: Jul 2011
Location: Billings, MT
Posts: 174
Likes: 0
Received 0 Likes
on
0 Posts
Car: 92 Firebird--02 Grand Prix GTP 2Dr
Engine: Poncho 400--3.8 Supercharged
Transmission: T56 6 Speed--4T65EHD
Axle/Gears: Open 10 bolt 3.42--Internal 2.93
Re: 1992 "Firebird 400" swap and concept
Fired the motor up. Im able to regulate it down to a nice 8-9 PSI and with 5 gallons of premium in the tank, my gauge reads spot on at a touch over 1/4 tank.
#117
#118
Member
Thread Starter
Join Date: Jul 2011
Location: Billings, MT
Posts: 174
Likes: 0
Received 0 Likes
on
0 Posts
Car: 92 Firebird--02 Grand Prix GTP 2Dr
Engine: Poncho 400--3.8 Supercharged
Transmission: T56 6 Speed--4T65EHD
Axle/Gears: Open 10 bolt 3.42--Internal 2.93
Re: 1992 "Firebird 400" swap and concept
Not recently unfortunately. Been tight on finances around my house and life has been kicking me in the rear. Hopefully as we pull out of spring I can get some more work done on it. Nearly there.
#120
Member
Thread Starter
Join Date: Jul 2011
Location: Billings, MT
Posts: 174
Likes: 0
Received 0 Likes
on
0 Posts
Car: 92 Firebird--02 Grand Prix GTP 2Dr
Engine: Poncho 400--3.8 Supercharged
Transmission: T56 6 Speed--4T65EHD
Axle/Gears: Open 10 bolt 3.42--Internal 2.93
Re: 1992 "Firebird 400" swap and concept
I am very much concerned hahahaha. Im hoping this will last for just the summer. I need to throw a driveline under it and a shifter and I should be good to roll, and I want to convert to EFI so I'll be able to use the higher pressure pump in the future with the 4th Gen tank. I'm hoping since it was rated for vapor it'll survive.....but I know liquid gas is a different animal.....
#122
Member
Thread Starter
Join Date: Jul 2011
Location: Billings, MT
Posts: 174
Likes: 0
Received 0 Likes
on
0 Posts
Car: 92 Firebird--02 Grand Prix GTP 2Dr
Engine: Poncho 400--3.8 Supercharged
Transmission: T56 6 Speed--4T65EHD
Axle/Gears: Open 10 bolt 3.42--Internal 2.93
Re: 1992 "Firebird 400" swap and concept
Nothing as of late. Been buried with life and house work.
Hoping to revive this thread this spring. When I started this project I cut a lot of corners. I've been going through the car and fixing anything janky I had previously done. Been accumulating parts to continue this project when I can.
Hoping to revive this thread this spring. When I started this project I cut a lot of corners. I've been going through the car and fixing anything janky I had previously done. Been accumulating parts to continue this project when I can.
#123
Member
Thread Starter
Join Date: Jul 2011
Location: Billings, MT
Posts: 174
Likes: 0
Received 0 Likes
on
0 Posts
Car: 92 Firebird--02 Grand Prix GTP 2Dr
Engine: Poncho 400--3.8 Supercharged
Transmission: T56 6 Speed--4T65EHD
Axle/Gears: Open 10 bolt 3.42--Internal 2.93
Re: 1992 "Firebird 400" swap and concept
So it's been quite a while since I've touched this car or this thread.
Some back story:
When I started this project I was 17. I had taken a few highschool shop classes and thought I had the knowledge to do an engine swap. Between looking at my past posts and undoing all the shortcuts I had taken....boy.....was I wrong.
Now having proper knowledge, technique and financial means, I'd like this to be my official start on this project. There is enough ratty and chopped up 3rd Gens, I don't need to add to it, especially when there are so many other skilled and knowledgeable owners on this forum.
So here is my first post as an educated and passionate gear head.
1992 Firebird Base
Pontiac 400 Swap with MPFI powered by Megasquirt. Just got my intake manifold. The Gold Box should be in next month.
Some back story:
When I started this project I was 17. I had taken a few highschool shop classes and thought I had the knowledge to do an engine swap. Between looking at my past posts and undoing all the shortcuts I had taken....boy.....was I wrong.
Now having proper knowledge, technique and financial means, I'd like this to be my official start on this project. There is enough ratty and chopped up 3rd Gens, I don't need to add to it, especially when there are so many other skilled and knowledgeable owners on this forum.
So here is my first post as an educated and passionate gear head.
1992 Firebird Base
Pontiac 400 Swap with MPFI powered by Megasquirt. Just got my intake manifold. The Gold Box should be in next month.
