Hey there guys. A few of you know I've been undergoing my first build for awhile now, and there's finally a light at the end of the tunnel.

****WARNING**** This thread will contain a LOT of pictures!

Back story: About 6-7 months ago on my way home from school I was pulled over (got out of the ticket, cop was very interested in my car) after speaking for about 10-15 when I was getting on the bridge to go home my RPM's shot from about 2-5k, and would not hit 3rd. by the time I got home in the city the car would not go into 3rd. and was slipping horribly. So while I was waiting to acquire a new 700r4 I was given a LT1 cam from my co workers 96 Z28. I started purchasing parts to swap the new Tranny, and cam when I decided the gains the LT1 cam would net me wouldnt come close to what I was expecting. therefore I decided to stay true to my "GO BIG OR GO HOME" method.

to date Ive acquired the following

062 Vortec heads
Alexs Parts .550 "ghetto grind Retainers" and springs, cut valve stems, Teflon valve seals, and hardened push rods
1.52 Pro Magnum RR's
Edelbrock Vortec TPI intake
SLP Runners
24lb Injectors
Southbay AFPR & Diaphragm
Lunati 60121 Cm .515 int/ .530 Exh
scat 383 crankshaft
Speedpro 383 Flat top 2v relief pistons
2300 Torque converter
MSD Streetfire Dizzy, ignition box w/ rev limiter, and an ignition coil.
8mm taylor wires
BBK Pulleys
corvette servo.
ARP connecting rod bolts, intake bolts, cylinder head bolts
new lifters,cloyes timing chain, all new sensors, oil pump gaskets, 160 thermo. I sure theres more but off top I cant remember..its been a LONG 6 months!

But without further adieu I give to you my attempt at a high revving 383 Vortec TPI.

comments and input are welcome!!!!

***ALSO*** Sorry for all the posts...I didnt feel like uploading every single pic to photbucket and linking them.

SR71BLKBRD

iTrader: (1)

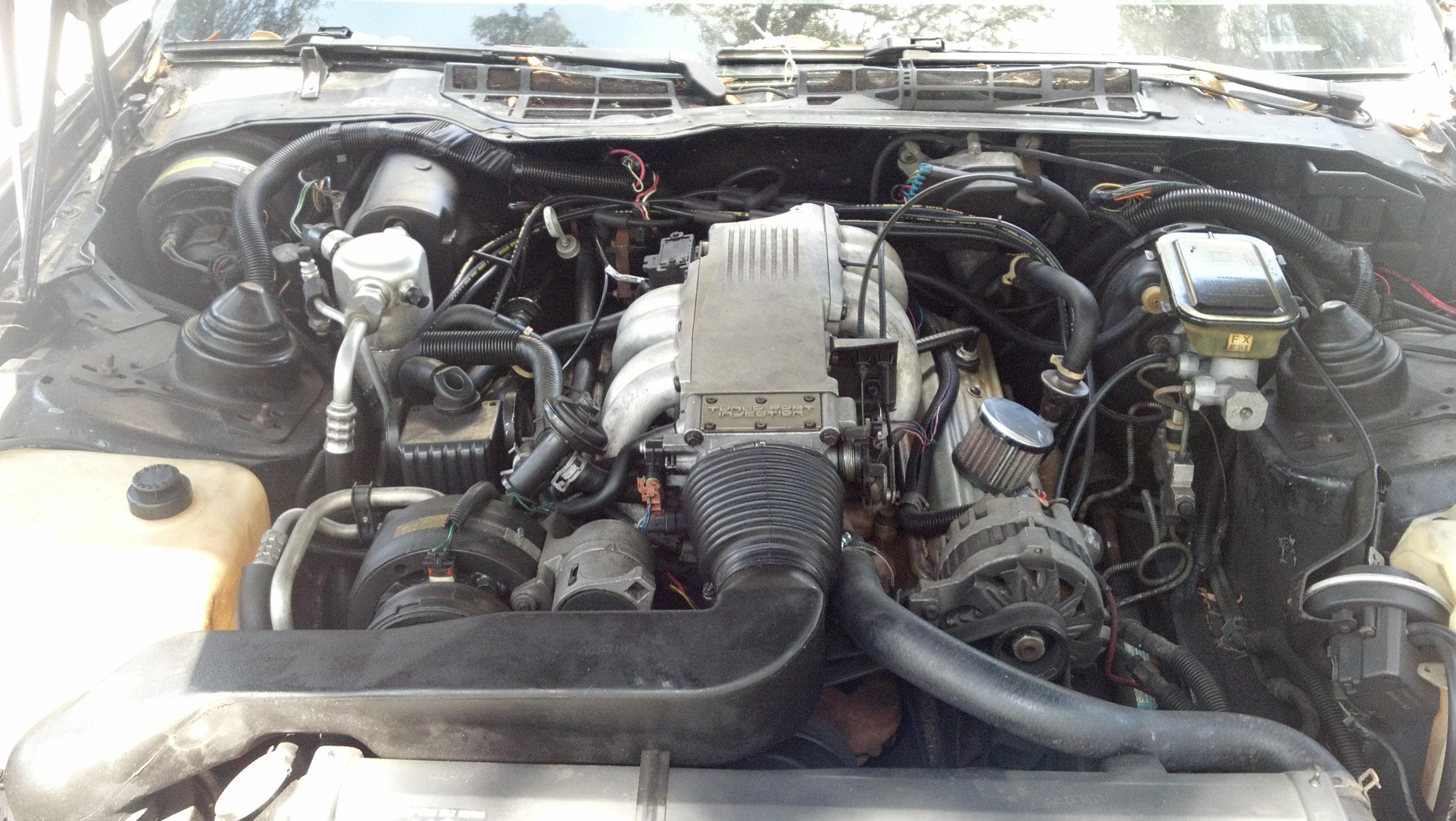

1.)The culprit. 91 GTA Trans am
2 & 3.) Before the teardown

SR71BLKBRD

iTrader: (1)

during the tear down.

SR71BLKBRD

iTrader: (1)

1.) Heres the Vortec Intake I picked up from a fellow member here on TGO got the intake and runners from him for a great price. (Rock861261) It was a little dirty when I got it as you can tell..
2.)After a quick bath in purple power and some tooth brush love she was getting there.
3.) Also this bolt was the reason I decided to go with a Vortec top end. The star key stripped out the bolt. After a week of failed attempts my buddy snapped the edge of the intake manifold off. Figured "ehh might as well get an aftermarket intake now"

SR71BLKBRD

iTrader: (1)

1 & 2.) Alexs parts springs, seals and retainers...forgot to take a pic of the cut valve stems packaged.
3.) Hot tanked heads fresh from the shop

SR71BLKBRD

iTrader: (1)

1.) Lunati 60121 advertised duration 270/278. duration @ .050 221/229.
.515 int/.530 exh. Range 1800-5800. LSA 112/106
2.)1.52 Pro Mag rockers (have a set of chrome stock style valve covers for them to go under. & Hardened push rods.
3.) 24lb/hr Fuel injectors & Southbay AFPR & Diaphragm

SR71BLKBRD

iTrader: (1)

1.) MSD Streetfire Distributor, Ignition Box, Ignition Coil. 8mm Taylor 90 Degree wires.
2.)BBK Pulleys
3.) Braided Hoses

SR71BLKBRD

iTrader: (1)

1.) Polished Combustion chambers
2.) Assembled.
3.)Final Product

SR71BLKBRD

iTrader: (1)

1.)Front of the plenu marked for porting.
2.)Side marked for porting
3.) Cut before shaping.

SR71BLKBRD

iTrader: (1)

1.)Cut and Shaped front, also removed the cross section across the front opening.
2.) Cut and Shaped Side
3.)Stock SLP Runnners

SR71BLKBRD

iTrader: (1)

1.) Marked and Started Porting...I dont think they came out to bad considering this is my first time porting anything. I headed everyones warning and took my time. no burning through edges and bends here!!
2.) Marked up
3.) Top opening before final porting and shaping.

SR71BLKBRD

iTrader: (1)

1.) Final results for my runners. Still have one to go. hopefully getting to that tomorrow morning.
2.) heres some back light
3.) Bottom opening to the intake.

SR71BLKBRD

iTrader: (1)

Also Started porting the Edelbrock base the other day. Hoping I get to finish this intake port tomorrow after the final runner before I have to head out to school.

SR71BLKBRD

iTrader: (1)

1.) Speed Pro 383 pistons unboxing
2.) Glamour Shot )
3.) Flat Top 2 valve Relief.

SR71BLKBRD

iTrader: (1)

1.) Before I started to take down the injector boss'
2.) Started shaping. yesss I know I ran the heck out of the intake...kinda got careless. :'(
3.) blurry close up lol

SR71BLKBRD

iTrader: (1)

1.) Scat 383 Crank 3.750 stroke

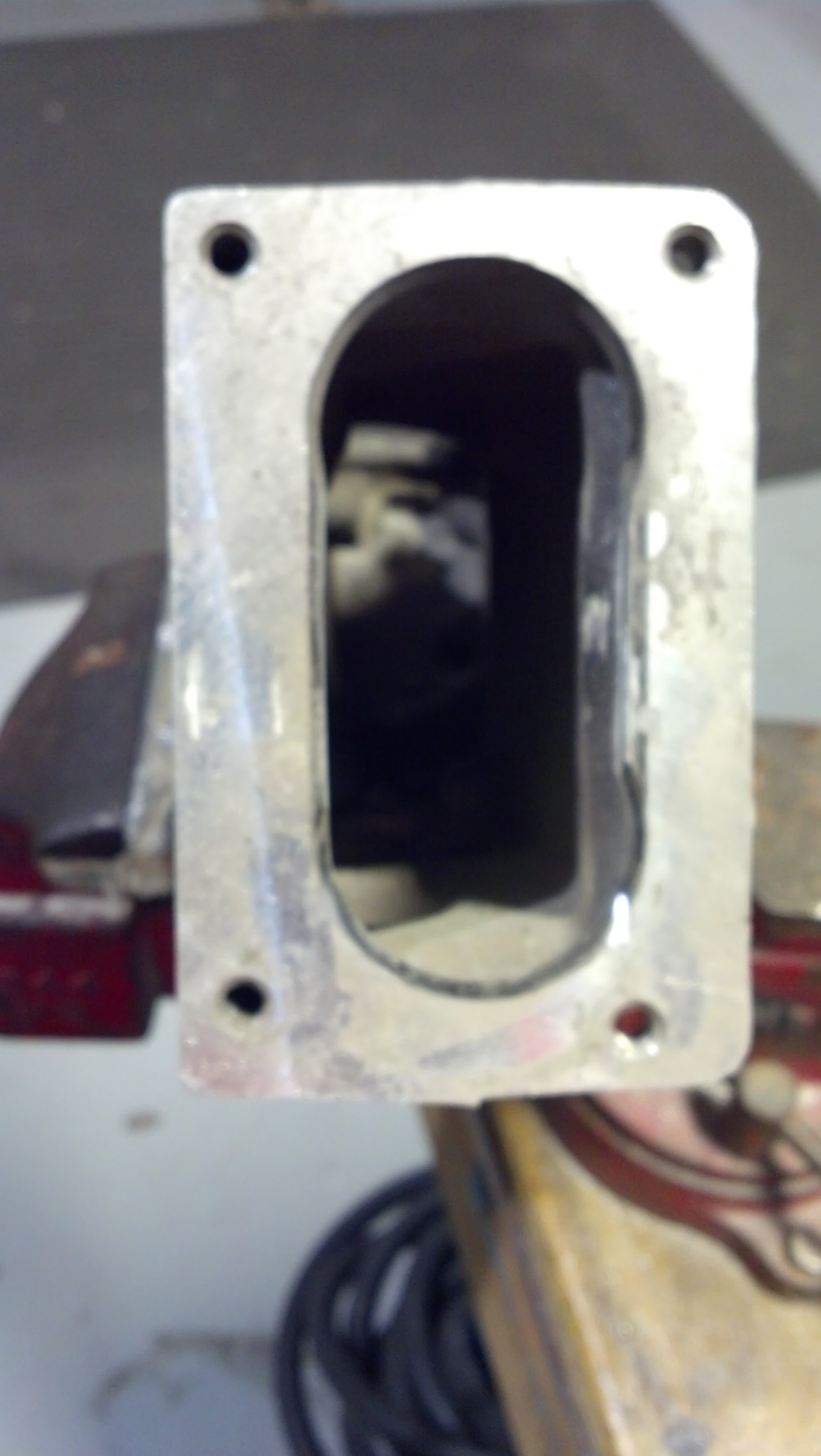

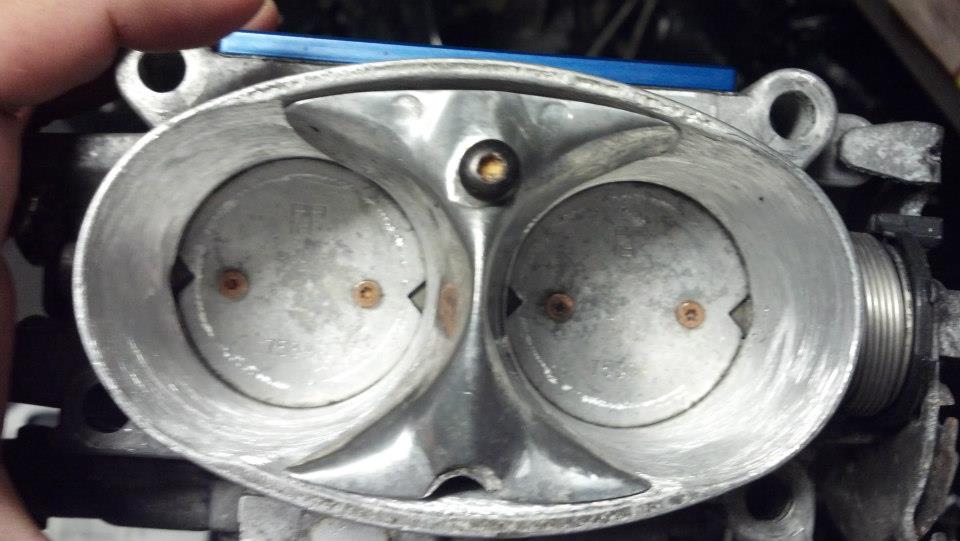

2.)Finished Ported throttle body
3.) Finished Rear

SR71BLKBRD

iTrader: (1)

a few weeks ago I wanted something to do seeing as I was waiting on funds so I decided the TPI was in need of some polishing, and painting. decided to strip off the black and blue paint scheme. I previously decided on. Chrome and Blue under the hood will be the final result

SR71BLKBRD

iTrader: (1)

1.) Even got my lady friend to help me on my other lady
2.) got kinda impatient and wanted a little teaser...resulted in a test mock up!
3.) I think its looking kinda sexy if I do say so myself.


I have a Bunch more Pics but I figure this is good for now since I just blew up the Engine swap thread. haha I dropped off the Block and rotating assembly last friday to a local machine shop to take the block 4.030 over, balance the rotating assembly, press in my rod bolts, and to tank the block and press in the bearings and plugs. hopefully im picking it up this upcoming week. or next. Also have my pcmforless stroker chip on order. Ill also be posting upates while I finish up my little odds and ends stuffs I have going on. Feel free to chime In guys.

SR71BLKBRD

iTrader: (1)

1.)Finished two more Intake and Exhaust ports today and yesterday...one more left and itll be taken down tomorrow.
2.)injector boss' cut down and shaped.
3.)Finished the second runner as well. only a little spine is left that runs down the center of the runners. as you can see I took a LOT of meat out of those bad boys.

SR71BLKBRD

iTrader: (1)

A not so good news update: recieved a phone call earlier today from the machince shop. They finished the over bore of the block and proceeded to press in the cam bearings I provided. Apparently the box of cam bearings I purchased was missing the number one bearing. They checked the scrap pile and no 2 whole number one cam bearings where present . Sooo they went ahead and pressed in the set of cam bearings they had. The other WONDERFUL news was that my brand new scat 383 crank had to be balanced with the Mallory metal raising the final cost of my total from roughly 500 to 800!!! Was not expecting that at all. So the completion date was pushed back for now.

can anyone explain the process of using Mallory alloy to balance a crankshaft? I've never heard of it before.

but on the bright side I finished porting the edelbrock vortec intake. I'll post some pics up later of the final product.

Chad85T/A

iTrader: (1)

*

IrocZ442

You can balance the crank for a 350 balancer to show under the bay a stocker. Or you can balance for a 400.. Yes 300.00 is what they charge.
You should have the 400 adapter that fits on the back of the crank block. It's a performance adapter for a stroker.

five7kid

iTrader: (14)

http://en.wikipedia.org/wiki/Mallory_metal

1gary

Depends on the bob wt used as to how much Mallory metal is needed.Sounds like they are trying to make this a internal balanced engine which from our point of view is a better performance combo.

SR71BLKBRD

iTrader: (1)

the crank specified it was for an internal balanced engine? If I would have known the overall cost I would have bought a balanced eagle kit.

1986Z28OWNER

iTrader: (1)

Most of the Scat 1 pc RMS 3.75" stroke crank ive balanced usually need a slug in the rear. Ive balanced them all as the factory did (ext on the rear, internal on the front. 300$ seem's really high to install mallory, We normally charge 60$ a slug to install(includes welding them) + the cost of the mallory. How many slugs did the install

Orr89RocZ

iTrader: (20)

Thats not a guarantee that it will be perfectly balanced either. Seen balanced kits still need some work. You did right by having all your components balanced together. $300 is about goin rate, and while seems pricey, its well worth it. Now for a lower rpm build it may not be as critical to have a high level of balance accuracy and maybe the factory balanced kits would have sufficed. But atleast you can rest your head knowing your bottom end is done properly

SR71BLKBRD

iTrader: (1)

@IrocZ442: It is being balanced with the 350 Damper. although under the bay wont really suggest stock. lol

@five7kid: Thank you. I guess I guess I could have done that

@1986Z28OWNER: Thats what I thought when I was told the price...When I recieved the cal to explain what needed to be done I didnt really have much time to talk, and wasnt in the best of moods so the news that an additional $375 was needed to finish I was kinda taken back. We didnt really get into it very much. when I pick up everything Ill be able to elaborate further on what was done.

@Orr89RocZ: I guess your right. I do plan on taking it to 6k, so better safe than sorry.

89fast5oh

Was the previous owner of the intake using it on regular style bolt pattern heads? The reason I ask is because in the pictures the intake has 12 bolt holes, vortec intakes and heads only have 8 bolts.

Chad85T/A

iTrader: (1)

I just noticed the same thing. The intake in the pics is definitely not a vortec intake. It has 12 holes w the center holes made for TBI and old style heads, but not vortec heads.

SR71BLKBRD

iTrader: (1)

WOW. I cant believe I overlooked that. FML! When we spoke I made it very clear I wanted a Vortec TPI intake. and that is what I thought I was buying. guess its my fault for overlooking it before I started. ohh well I posted my Vortecs on CL localy looking to make some cash for those bad boys so I can pick up a set of heads thatll work...hopefully some trick flows. had to find some positive in the situation.

89fast5oh

I would sell the base you have and get a vortec base. You have a lot into the vortec heads already, you might not get much money back out of them.

SR71BLKBRD

iTrader: (1)

I listed them both. I'd like to keep the heads but i guess we'll see what happens. I really don't want to port another intake lol that took some patience.

IrocZ442

Me and you are in the same boat. Trying to sell Vortecs that have a lot of money an labor in port work 3 angle etc.

If your Tpi base is nicely ported an you sell the heads. That's probably better.

But if you cant a Vortec base be the way to go an port it. So no matter what you have port work to do. Good Luck

SR71BLKBRD

iTrader: (1)

well guys I finally got rid of the intake setup...decided to go with a vortec stealth ram setup. also picking up my block and bottom end from the shop on monday...ill post again when I have my goodies in hand!

Chad85T/A

iTrader: (1)

Sweet! I wanna do a stealth ram someday too.

conlinj

iTrader: (3)

good call on the vortec stealth ram, I love mine. FYI there is a lot of room for porting

SR71BLKBRD

iTrader: (1)

that's what I was thinking. However I haven't really seen many pictures or flow data of ported stealth rams. I'd like to see what I'm working with. I also don't want to outflow my heads. I'm kinda worried that the 062's(alexs parts springs and retainers. And cut valve stems, pro mag 1.52 rockers) are going to hold me back as is.

1gary

Well if you read my signature,you get what I mean to say here.......

conlinj

iTrader: (3)

I ran a best of 12.5, consistent 12.7s with my stock heads on my 355. It had some more in it too, if you look at my post "vortec info". You can see pics of the intake stock and ported.

-Jim

SR71BLKBRD

iTrader: (1)

very nice. have you noticed a difference once you switched to the AFR Vortecs?
also would you happen to have an audio clip?

SR71BLKBRD

iTrader: (1)

Lookie what I picked up today!

SR71BLKBRD

iTrader: (1)

as you can see no time was waisted. Had the block on the stand within a few minutes of being home being prepped for paint.



Cleaned off the main caps and threw in the new bearings





got quite a bit done as you can see. didnt get to take as many pictures as I would have licked but I should have more updates and progress soon. Hopefully ill be throwing the connecting rods and pistons in tomorrow.

conlinj

iTrader: (3)

Only made one pass so far and the car picked up some, ran into some issues with the transmission leaking. It's pulling harder up top now, it wants more gear than the 3.75's that are in it now but with the th350 I'm not going any lower.


That's a video of the first fire-up, the heads or the intake porting didn't change the sound.

SR71BLKBRD

iTrader: (1)

oh my lanta! If my car sounds anything close to that I'll be a happy dude. But I think I'm going to ride out these 062's for awhile and see how they do. Got the rods and pistons in today along with the timing chain I'll try to get more pics up tomorrow after I drop the heads on.

conlinj

iTrader: (3)

Should sound close, your cam is a little bit smaller, probably could go to 1.6 rockers and make up the difference. What headers are you running? I wish I swapped out my crank for a stroker at the time, I would be in the 11's already. I bought someone out of their project while the parts were still at the machine shop, would have been the perfect time. Your project is definitely coming along nice, GL with the build. The 062's should work well for you I only went for the AFR's since I sold my 406 and had the extra cash.

SR71BLKBRD

iTrader: (1)

originally I had 1.6's to put on a stock LT1 cam to pick it up a little then i decided to go with the alexs parts springs which only cleared to .550 lift and this cam with 1.6 rockers was slightly over that(dont remember exact numbers) hopefully I see low 12's atleast that way I can justify the amount of time and money ive put into this

conlinj

iTrader: (3)

Ahh gotcha, I just gave the specs of my cam to the guy I had redo my heads. Only problem I had was the springs he installed were too weak to control the cam. I bought the replacement springs but never installed them, went straight to the AFR's with the 8019's. The XFI lobes beat up the valvetrain pretty good. I think you should be in the low 12's easy. What gears, tire size are you running?

SR71BLKBRD

iTrader: (1)

I'm still gunna run the stock 3.23 gears and r4 with the vette servo and 2300 torque converter. Atleast until I grenade them both then I'll probably bump it up to 4.42-73 gears. And possibly a t56 or a built r4. Hopefully I'll be in the marine corps by then and I'll be able to do the t56.

also I've been considering a few options on tires found a pair of 2654516 kunho for the rear or I might pick up a set of extra GTA's and a set of mt radials for when I feel like throwing down.

conlinj

iTrader: (3)

If you keep a 26" tall tire a 3.73/3.89 should be pretty good probably get you through the traps around 6-6500. That cam would like a higher stall too if you haven't bought it yet.
