Roll cage

Old 10-07-2012, 09:10 PM
  #1
Member
Thread Starter

Join Date: Feb 2012
Location: North Carolina
Posts: 132
Car: 88 IROC Clone
Engine: 305 TBI
Transmission: Auto
Roll cage

Looking for pics of t-top cars with roll cages in them that are still street able. Any help is greatly appreciated!! Thank you!!!
gsxrfann is offline
Old 10-07-2012, 09:51 PM
  #2
Supreme Member
iTrader: (6)

TTOP350's Avatar

Join Date: Oct 2001
Location: central Il USA
Posts: 9,875
Car: 1989-92 FORMULA350 305 92 Hawkclone
Engine: 4++,350 & 305 CIs
Transmission: 700R4 4800 vig 18th700R4 t56 ZF6 T5
Axle/Gears: 3.70 9"ford alum chunk,dana44,9bolt
Re: Roll cage

Name:  24771930009_large.jpg
Views: 338
Size:  79.7 KB

Name:  caged.jpg
Views: 1275
Size:  41.0 KB

Name:  Bigcagepic.jpg
Views: 329
Size:  197.2 KB

Name:  526098_10150831010961398_540821397_9797639_1057281127_n.jpg
Views: 959
Size:  138.9 KB
TTOP350 is online now
Old 10-07-2012, 10:56 PM
  #3
Moderator

AlkyIROC's Avatar

Join Date: Jul 1999
Location: 51N 114W, 3500'
Posts: 16,646
Car: 87 IROC L98
Engine: 588 Alcohol BBC
Transmission: Powerglide
Axle/Gears: Ford 9"/31 spline spool/4.86
Re: Roll cage

That's a roll bar, not a cage
AlkyIROC is offline
Old 10-07-2012, 10:57 PM
  #4
Member
Thread Starter

Join Date: Feb 2012
Location: North Carolina
Posts: 132
Car: 88 IROC Clone
Engine: 305 TBI
Transmission: Auto
Re: Roll cage

Is that nhra or ihra legal?
gsxrfann is offline
Old 10-08-2012, 12:12 AM
  #5
Supreme Member
iTrader: (1)

88gunmetalgta's Avatar

Join Date: Apr 2010
Posts: 1,013
Re: Roll cage

Based on that last pic, I wouldn't wanna drive that on the street. Doubtful you could survive a rear end collision.

How far behind the seat back is the main hoop permitted to be per NHRA rules for a roll bar like that?
88gunmetalgta is offline
Old 10-08-2012, 01:09 AM
  #6
Supreme Member
iTrader: (6)

TTOP350's Avatar

Join Date: Oct 2001
Location: central Il USA
Posts: 9,875
Car: 1989-92 FORMULA350 305 92 Hawkclone
Engine: 4++,350 & 305 CIs
Transmission: 700R4 4800 vig 18th700R4 t56 ZF6 T5
Axle/Gears: 3.70 9"ford alum chunk,dana44,9bolt
Re: Roll cage

Originally Posted by AlkyIROC View Post
That's a roll bar, not a cage
Yup, not finished... yet The seats are up a bit to high but they are factory. Its 99% street car.

Last edited by TTOP350; 10-08-2012 at 01:22 AM.
TTOP350 is online now
Old 10-08-2012, 01:19 AM
  #7
Supreme Member
iTrader: (6)

TTOP350's Avatar

Join Date: Oct 2001
Location: central Il USA
Posts: 9,875
Car: 1989-92 FORMULA350 305 92 Hawkclone
Engine: 4++,350 & 305 CIs
Transmission: 700R4 4800 vig 18th700R4 t56 ZF6 T5
Axle/Gears: 3.70 9"ford alum chunk,dana44,9bolt
Re: Roll cage

Originally Posted by 88gunmetalgta View Post
Based on that last pic, I wouldn't wanna drive that on the street. Doubtful you could survive a rear end collision.

How far behind the seat back is the main hoop permitted to be per NHRA rules for a roll bar like that?
The rear bars are right above the rear springs. Had to do work on the pass side because of the false floor area.
Y wouldn't I survive a rearend collision?
Thats where the main hoop is supposed to go.

It was a legal S&W race cars kit at the time of install (other than the 2 bars I didn't put in yet).
The only two bars from the kit I haven't put in are the ones going to the trans tunnel from the main hoop..

Last edited by TTOP350; 10-08-2012 at 01:49 AM.
TTOP350 is online now
Old 10-08-2012, 01:35 AM
  #8
Supreme Member
iTrader: (1)

88gunmetalgta's Avatar

Join Date: Apr 2010
Posts: 1,013
Re: Roll cage

It just looks like it would be easy enough to crack your skull on the main hoop. I'm quite a bit shorter, so doubt it would be as easy for me to hit my head on the top bar.

If I ever get to the point where I need a cage, it would be nice to keep the bars as far away from my head as possible! (while still meeting NHRA requirements of course)
88gunmetalgta is offline
Old 10-08-2012, 01:47 AM
  #9
Supreme Member
iTrader: (6)

TTOP350's Avatar

Join Date: Oct 2001
Location: central Il USA
Posts: 9,875
Car: 1989-92 FORMULA350 305 92 Hawkclone
Engine: 4++,350 & 305 CIs
Transmission: 700R4 4800 vig 18th700R4 t56 ZF6 T5
Axle/Gears: 3.70 9"ford alum chunk,dana44,9bolt
Re: Roll cage

Thats the catch 22 with the street car. Unless you bolt the seats directly to the floor without its tracks and run the bar out of the roof, there isnt much room to pack a old fat ars like mine in this small car.

I was leaning forward in the pic, the angle throws things off but my helmet still is close to hiting the TTOPS.

My car should only run in the mid to low 10s. When I push it more down the road its all coming out to be redone in CM and prepare it for low 9 ETs
TTOP350 is online now
Old 10-08-2012, 02:38 PM
  #10
Moderator

AlkyIROC's Avatar

Join Date: Jul 1999
Location: 51N 114W, 3500'
Posts: 16,646
Car: 87 IROC L98
Engine: 588 Alcohol BBC
Transmission: Powerglide
Axle/Gears: Ford 9"/31 spline spool/4.86
Re: Roll cage

Originally Posted by TTOP350 View Post
The seats are up a bit to high but they are factory. Its 99% street car.
Other than how high you're sitting, the rest of the roll bar looks fine. That's the way they're supposed to be installed. There's no requirement as to where the rear tubes have to go. Anywhere from beside the shock mounts to the very back will work. The longer the rear tubes are, the more extra bracing it should have like a vertical support about half way up.

The downside is that a basic roll bar needs to use 1-3/4" tubing for all the main tubes. If you go straight to making a roll cage, the main tubes are only 1-5/8". Many of the secondary tubes are 1-1/2" or 1-1/4". All the tubes need to be a minimum of 0.118" wall thickness to pass a certification. That means buying 0.120" DOM or 0.134 ERW tubing. Inexpensive tubing is only 0.095" and although it looks and works the same, won't pass a chassis cert. If you're building a full cage then you expect to go fast enough that it will need a certification. Might as well build it properly the first time.

To solve the driver height to fit under the main hoop, my seat is mounted very low and it's tilted back. I sit in a reclined position. It's the only way to get that clearance when wearing a helmet. My seat is also mounted to a tubular framework that's welded directly to the cage. My seat and seatbelt mounts are not mounted to the floor.
AlkyIROC is offline
Old 10-08-2012, 09:12 PM
  #11
Supreme Member
iTrader: (6)

TTOP350's Avatar

Join Date: Oct 2001
Location: central Il USA
Posts: 9,875
Car: 1989-92 FORMULA350 305 92 Hawkclone
Engine: 4++,350 & 305 CIs
Transmission: 700R4 4800 vig 18th700R4 t56 ZF6 T5
Axle/Gears: 3.70 9"ford alum chunk,dana44,9bolt
Re: Roll cage

Yeah, mine was just supposed to go mid/low 11s..
That all has changed over time. It will be redone properly, b4 the TT motor goes in..

Last edited by TTOP350; 10-09-2012 at 07:05 PM.
TTOP350 is online now
Old 10-09-2012, 04:55 AM
  #12
Supreme Member

Join Date: Jul 2007
Location: Howard Lake, MN
Posts: 1,265
Car: 86 Camaro
Engine: 355- hopefully a 5.3 this summer
Transmission: 700r4
Axle/Gears: 3.42
Re: Roll cage

Originally Posted by gsxrfann View Post
Looking for pics of t-top cars with roll cages in them that are still street able. Any help is greatly appreciated!! Thank you!!!
what kind of a cage are you interested in? an NHRA/IHRA drag race cage will be a lot different than something like an SCCA road racing cage.
novaderrik is offline
Old 10-09-2012, 07:02 AM
  #13
Supreme Member
iTrader: (8)

fireturd350's Avatar

Join Date: Jul 2001
Location: New Boston, IL, USA
Posts: 3,204
Car: '90 Formula 350
Engine: 383 SBC
Transmission: ProBuilt S/S 700-R4 & ACT 9" Stall
Axle/Gears: 10 bolt 3.23
Re: Roll cage

I don't see the bars inside the main hoop to the floor.

I believe the main hoop is suppose to be 3" above drivers head while wearing a helmet and seated properly.


TTOP350:

Was that a prefab kit? The main hoop doesn't look as wide as my S&W one, course could be I installed it where the rear seats are since I'm 6'4 and need all the room I can get it.

Do you have a pic of the side bar with the door shut from the inside? How close is it to your arm rest and cup holders?
fireturd350 is offline
Old 10-09-2012, 07:04 PM
  #14
Supreme Member
iTrader: (6)

TTOP350's Avatar

Join Date: Oct 2001
Location: central Il USA
Posts: 9,875
Car: 1989-92 FORMULA350 305 92 Hawkclone
Engine: 4++,350 & 305 CIs
Transmission: 700R4 4800 vig 18th700R4 t56 ZF6 T5
Axle/Gears: 3.70 9"ford alum chunk,dana44,9bolt
Re: Roll cage

Originally Posted by fireturd350 View Post
I don't see the bars inside the main hoop to the floor.
(as I stated above, I never installed them)

I believe the main hoop is suppose to be 3" above drivers head while wearing a helmet and seated properly.
(yes it is, my main hoop is only a half inch from the metal roof under the headliner)


TTOP350:

Was that a prefab kit? The main hoop doesn't look as wide as my S&W one, course could be I installed it where the rear seats are since I'm 6'4 and need all the room I can get it.
(yes, its a S&W kit)

Do you have a pic of the side bar with the door shut from the inside? How close is it to your arm rest and cup holders?
( I don't have a pic but its very close, almost touches the armrest)
I added to your post
TTOP350 is online now
Old 10-09-2012, 07:55 PM
  #15
Supreme Member
iTrader: (45)

articwhiteZ's Avatar

Join Date: Sep 2009
Location: Spokane WA
Posts: 3,269
Car: 92 Lingenfelter Z28 articwhite
Engine: Aluminum 615BBC
Transmission: 700R4/curri entps9" locker
Axle/Gears: 4.11
Re: Roll cage

TTOP350
your roll bar is fine for cars Running up to 9.99 (6 point is NHRA OK).

get the Battery into a sealed/vented Box.

and Dubble check to make sure with Helmet on. the main Hoop is not over 6" away from Helmet.
articwhiteZ is online now
Old 10-09-2012, 08:18 PM
  #16
Supreme Member
iTrader: (6)

TTOP350's Avatar

Join Date: Oct 2001
Location: central Il USA
Posts: 9,875
Car: 1989-92 FORMULA350 305 92 Hawkclone
Engine: 4++,350 & 305 CIs
Transmission: 700R4 4800 vig 18th700R4 t56 ZF6 T5
Axle/Gears: 3.70 9"ford alum chunk,dana44,9bolt
Re: Roll cage

Originally Posted by articwhiteZ View Post
TTOP350
your roll bar is fine for cars Running up to 9.99 (6 point is NHRA OK).

get the Battery into a sealed/vented Box.

and Dubble check to make sure with Helmet on. the main Hoop is not over 6" away from Helmet.
My batt doesn't have a cutoff switch or anything.. yet This is a "street car"
It does still have a factory 92batt inplace.
Name:  1989-pontiac-firebird-wheres-the-batt.jpg
Views: 370
Size:  31.5 KB

The hoop is less than 6" away from my helmet, however, my helmet is above the main hoop. I don't think I could get it under the hoop even if I sit on the floor of the car.
TTOP350 is online now
Old 10-10-2012, 12:12 AM
  #17
Supreme Member
iTrader: (45)

articwhiteZ's Avatar

Join Date: Sep 2009
Location: Spokane WA
Posts: 3,269
Car: 92 Lingenfelter Z28 articwhite
Engine: Aluminum 615BBC
Transmission: 700R4/curri entps9" locker
Axle/Gears: 4.11
Re: Roll cage

the battery needs to be in a sealed box if inside the car,with driver
(the one pic looks like it's Mt in the back)

dont know what to tell ya on the rollbar. im 6'4" and mine is at the top back of my helmet. im running Recaro Pofi seats with recaro seat brackets
ontop of GM low rails.. i think it's your TTop set up. they made your Rollbar a bit shorter to go under your Head liner.

i dont have T tops. but My seats are Tall. this shot show recaros on the right. and another Type of seat on the left.
Name:  sportsmen786.jpg
Views: 333
Size:  140.8 KB
the seats are down low and all the way Back. my back bar bows out back,and cups the back of my seats. with helmet on i still have 1" till i hit head liner.(they are set Low Low!) swing out side bars are not installed in this set of pics (made by S&W Race cars)
Name:  sportsmen795.jpg
Views: 341
Size:  133.3 KB
this shot ya sorta see how this rollbar go's past the upper widow seal before it starts it's bend.
non T Top car.
Name:  sportsmen006.jpg
Views: 313
Size:  181.1 KB
you can see how the cup the seats in this pic. (so i can sit all the way back)
Name:  z28400.jpg
Views: 385
Size:  92.7 KB
no T Tops bar looks taller, maby 1" ? the tubes just touch the black plastic inside(see small rub mark from install on tube)
Name:  Z28156.jpg
Views: 345
Size:  76.9 KB

Last edited by articwhiteZ; 10-10-2012 at 02:21 AM.
articwhiteZ is online now
Old 10-10-2012, 01:08 AM
  #18
Moderator

AlkyIROC's Avatar

Join Date: Jul 1999
Location: 51N 114W, 3500'
Posts: 16,646
Car: 87 IROC L98
Engine: 588 Alcohol BBC
Transmission: Powerglide
Axle/Gears: Ford 9"/31 spline spool/4.86
Re: Roll cage

My pictures wouldn't help. Although I have t-tops, I have no interior so the main hoop is pushed up as high as it will go. Like I said, my seats are mounted low and reclined so that my helmet is low and below the main hoop.

Not a great shot. I'm coming up to the timeslip booth and I'm not wearing my helmet but you can get an idea just how low I sit when sitting in a race position. I'm 5'8". It looks like I'm sitting much lower than normal but it's also the way the fiberglass doors look.

AlkyIROC is offline
Old 10-10-2012, 02:33 AM
  #19
Supreme Member
iTrader: (45)

articwhiteZ's Avatar

Join Date: Sep 2009
Location: Spokane WA
Posts: 3,269
Car: 92 Lingenfelter Z28 articwhite
Engine: Aluminum 615BBC
Transmission: 700R4/curri entps9" locker
Axle/Gears: 4.11
Re: Roll cage

by the looks of it Alky.. you have a ton of room.

i still dred getting dirt on my floor mats (factry mats) still
my OD is still under 54.000 miles cant bring myself to Gut it yet

Last edited by AlkyIROC; 10-10-2012 at 08:12 AM.
articwhiteZ is online now
Old 10-10-2012, 08:14 AM
  #20
Moderator

AlkyIROC's Avatar

Join Date: Jul 1999
Location: 51N 114W, 3500'
Posts: 16,646
Car: 87 IROC L98
Engine: 588 Alcohol BBC
Transmission: Powerglide
Axle/Gears: Ford 9"/31 spline spool/4.86
Re: Roll cage

But again, here I am sitting up and leaning forward so I can see over the nose of the car. Yes, the mufflers do just clear.

AlkyIROC is offline
Old 10-10-2012, 10:36 AM
  #21
Member
iTrader: (2)

Join Date: May 2005
Location: Palatine, IL
Posts: 334
Car: 87 iroc
Engine: 454 .030 over
Transmission: th-350
Axle/Gears: 9 bolt
Re: Roll cage


that is really close to my head if i dont wear a helmet, i had to lower the drivers seat, you can see it if you look closely
niceroc is offline
Old 10-10-2012, 04:01 PM
  #22
Member
Thread Starter

Join Date: Feb 2012
Location: North Carolina
Posts: 132
Car: 88 IROC Clone
Engine: 305 TBI
Transmission: Auto
Re: Roll cage

Not sure if I want to do this or not.....
gsxrfann is offline
Old 10-10-2012, 07:59 PM
  #23
Supreme Member
iTrader: (45)

articwhiteZ's Avatar

Join Date: Sep 2009
Location: Spokane WA
Posts: 3,269
Car: 92 Lingenfelter Z28 articwhite
Engine: Aluminum 615BBC
Transmission: 700R4/curri entps9" locker
Axle/Gears: 4.11
Re: Roll cage

it's easy. to lower your seats.Just get Fiero seat Rails. they will drop your seats almost 2" in the back and 1" in the front, and are Bolt in. no mods.
articwhiteZ is online now
Old 10-10-2012, 08:08 PM
  #24
Member

Join Date: Jan 2002
Location: Harrisburg PA
Posts: 200
Car: 1986 Z28 / 2003 S600
Engine: Big V / Medium V12
Transmission: T56 Magnum + GForce gears
Axle/Gears: Ford 9" 3.00's + Eaton Truetrac
Re: Roll cage

Here is an option for T-top cars, although I'll be the first to call it 'not a cage'. It depends on what your goals are; mine were chassis ridgidity, out of the way of T-tops, and a legal 4-6 point roll bar to satisfy hill climb requirements and some other racing tech. reqs. The roof bars are welded in to the A pillar and T top sheet metal, and everything is fit tight up against the body. The main hoop is welded into the 'arm rest' metal braces in the back of the car as well as plates to the floor, and sheet metal across the roof area. Notice I don't have a main hoop diagonal, so I don't really have a legal roll bar by many organizations' standards. I have 2 door bars, a lower one that is just above the sill plate, and a removable diagonal bar (between the elbow and shoulder.) I haven't had any trouble at drag strips (car can go over 135) or road racing time trial events (EMRA.) Hill climbs tech. would likely fail this design for lacking a main hoop diagonal, and organizations that scrutinize rollover protection would likely have concerns with the roof bars being in at the tops instead of out at the edge. However, the 'cage' is out of the way, strengthens the car, and in my opinion, provides more protection than if it weren't there at all.
Attached Thumbnails Roll cage-img_0543.jpg   Roll cage-img_0544.jpg   Roll cage-dcfn0004.jpg
Spifz is offline
Old 10-10-2012, 10:32 PM
  #25
Supreme Member
iTrader: (4)

Join Date: Dec 2005
Location: Macon, GA
Posts: 6,476
Car: 1992 Camaro RS
Engine: Vortec headed 355, xe262
Transmission: T56
Axle/Gears: 9-bolt 3.70
Re: Roll cage

Originally Posted by Spifz View Post
Here is an option for T-top cars, although I'll be the first to call it 'not a cage'. It depends on what your goals are; mine were chassis ridgidity, out of the way of T-tops, and a legal 4-6 point roll bar to satisfy hill climb requirements and some other racing tech. reqs. The roof bars are welded in to the A pillar and T top sheet metal, and everything is fit tight up against the body. The main hoop is welded into the 'arm rest' metal braces in the back of the car as well as plates to the floor, and sheet metal across the roof area. Notice I don't have a main hoop diagonal, so I don't really have a legal roll bar by many organizations' standards. I have 2 door bars, a lower one that is just above the sill plate, and a removable diagonal bar (between the elbow and shoulder.) I haven't had any trouble at drag strips (car can go over 135) or road racing time trial events (EMRA.) Hill climbs tech. would likely fail this design for lacking a main hoop diagonal, and organizations that scrutinize rollover protection would likely have concerns with the roof bars being in at the tops instead of out at the edge. However, the 'cage' is out of the way, strengthens the car, and in my opinion, provides more protection than if it weren't there at all.
Thats pretty cool, not so much if you're a competitive drag racer, but theres other racing beyond quarter mile stuff. For all the other reasons you listed i think it's great. Im guessing you dont have a headliner in the car anymore? Got any pictures iwth the interior in it... or is there no interior anymore? I wouldnt be quite as worried about crackng my skull open from a rear end collision with that either.
InfernalVortex is offline
Old 10-12-2012, 01:14 AM
  #26
Supreme Member
iTrader: (29)

watajob's Avatar

Join Date: Sep 1999
Location: Location, Location!
Posts: 1,410
Car: 92 T/A 'vert
Engine: Mild .040 over L98 4 bolt mains
Transmission: Mostly stock 700R4, 2600 Vigilante
Axle/Gears: LS1 3.42
Re: Roll cage

Us 'vert owners have to deal with this sh_it as slow as 13.49. At least a 4 pt bar for 11.00 - 13.49. I'm guessin' I'm gonna have to lose my rear seat. Though, there is no way I'm gonna' start hackin' up my tonneau/trunk lid.
watajob is offline
Old 10-14-2012, 12:22 AM
  #27
Senior Member
iTrader: (1)

Join Date: Dec 2000
Location: chicago
Posts: 689
Re: Roll cage

Name:  9F247B17-A152-40A0-9249-4EA98218F9E3-8493-0000138C09DA434C.jpg
Views: 327
Size:  269.8 KB

Name:  rollcage014.jpg
Views: 1067
Size:  122.3 KB
daverr is offline
Old 10-15-2012, 01:10 PM
  #28
Junior Member

thisjustaintme's Avatar

Join Date: Aug 2007
Location: Northwest INDIANA
Posts: 24
Re: Roll cage

Old Car More StreetAble

New Car Not Streetable
thisjustaintme is offline
Old 10-16-2012, 04:25 PM
  #29
Member

Join Date: Jan 2002
Location: Harrisburg PA
Posts: 200
Car: 1986 Z28 / 2003 S600
Engine: Big V / Medium V12
Transmission: T56 Magnum + GForce gears
Axle/Gears: Ford 9" 3.00's + Eaton Truetrac
Re: Roll cage

Originally Posted by InfernalVortex View Post
Im guessing you dont have a headliner in the car anymore? Got any pictures iwth the interior in it... or is there no interior anymore?

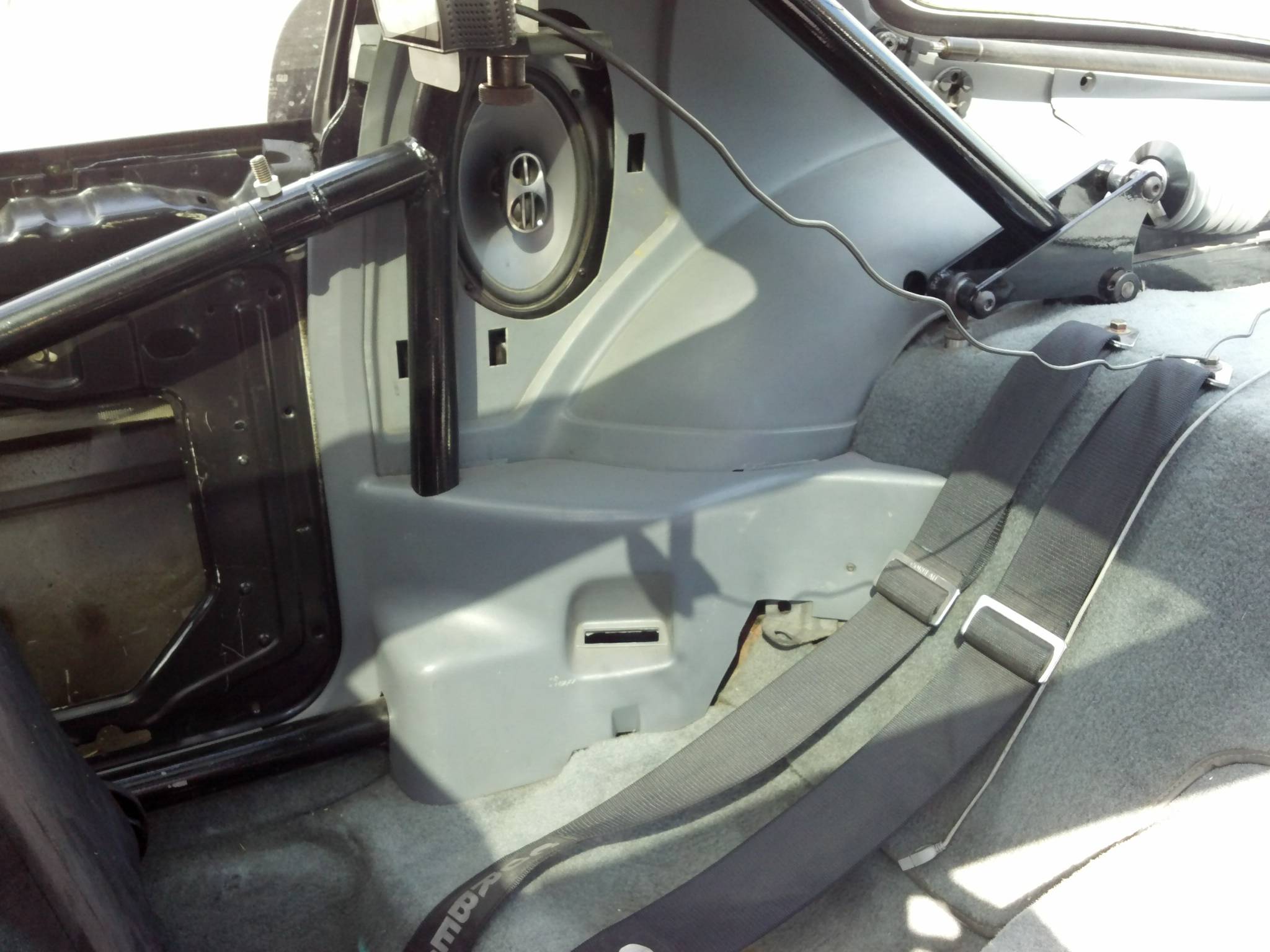

I don't have a headliner in the car, but originally planned on making one to cover the sheet metal between the roof bars, in the visor area, and behind the main hoop. All the other plastic goes in fine, and keeping the main hoop tighter to the sides of the car seemed to make it easier to modify the plastic that it passes through in that area, since you can cut in from the edge.
Attached Thumbnails Roll cage-rollcageinterior.jpg
Spifz is offline
Old 10-17-2012, 06:48 AM
  #30
Supreme Member
iTrader: (4)

Join Date: Dec 2005
Location: Macon, GA
Posts: 6,476
Car: 1992 Camaro RS
Engine: Vortec headed 355, xe262
Transmission: T56
Axle/Gears: 9-bolt 3.70
Re: Roll cage

Whats going on with your rear suspension? Is it IRS?
InfernalVortex is offline
Old 10-22-2012, 10:58 PM
  #31
Member

Join Date: Jan 2002
Location: Harrisburg PA
Posts: 200
Car: 1986 Z28 / 2003 S600
Engine: Big V / Medium V12
Transmission: T56 Magnum + GForce gears
Axle/Gears: Ford 9" 3.00's + Eaton Truetrac
Re: Roll cage

Originally Posted by InfernalVortex View Post
Whats going on with your rear suspension? Is it IRS?
Still a solid rear axle, just with pushrod actuated shocks/springs:

https://www.thirdgen.org/forums/fabr...ion-model.html
Spifz is offline
Old 11-04-2012, 08:49 PM
  #32
Member

Join Date: Feb 2008
Posts: 230
Re: Roll cage

Evidently this system works (and the looks are waayyyy cool as well), but I have a hard time understanding how it works properly with the pushrod mounting ahead of the LCA mounting hole. It seems like it would rotate the axle around itself on both bump and rebound and torque/braking. Maybe the torque arm holds it in place, but it seems like that would be loading that the TA is not designed for. And it also seems like it would induce rear axle steering when only one wheel moves through suspension travel.
basiccamaro is offline
Old 05-28-2018, 10:03 PM
  #33
Junior Member

Join Date: Apr 2017
Posts: 2
Re: Roll cage

just welded in 8 point rolecage/rolebar from Hawks in my 91 Camaro had car level on 4 jack stands got everything in driver's side door won't close. Is car junk or can it be adj
usted
Troy Metcalf is offline
Old 05-29-2018, 07:49 AM
  #34
Supreme Member
iTrader: (2)

83 Crossfire TA's Avatar

Join Date: Jun 2001
Location: DC Metro Area
Posts: 7,653
Car: 87TA 87Form 71Mach1 12SHO 04Cummins
Re: Roll cage

Originally Posted by AlkyIROC View Post
Other than how high you're sitting, the rest of the roll bar looks fine. That's the way they're supposed to be installed. There's no requirement as to where the rear tubes have to go. Anywhere from beside the shock mounts to the very back will work. The longer the rear tubes are, the more extra bracing it should have like a vertical support about half way up.

The downside is that a basic roll bar needs to use 1-3/4" tubing for all the main tubes. If you go straight to making a roll cage, the main tubes are only 1-5/8". Many of the secondary tubes are 1-1/2" or 1-1/4". All the tubes need to be a minimum of 0.118" wall thickness to pass a certification. That means buying 0.120" DOM or 0.134 ERW tubing. Inexpensive tubing is only 0.095" and although it looks and works the same, won't pass a chassis cert. If you're building a full cage then you expect to go fast enough that it will need a certification. Might as well build it properly the first time.

To solve the driver height to fit under the main hoop, my seat is mounted very low and it's tilted back. I sit in a reclined position. It's the only way to get that clearance when wearing a helmet. My seat is also mounted to a tubular framework that's welded directly to the cage. My seat and seatbelt mounts are not mounted to the floor.
Honestly, I think what works for you is atypical. I at one point posted a similar thread and remember that you replied and stated that you were something like 5'8" where a lot of us are over 6' (I'm 6'4" and 260#).

I've considered mounting the main hoop way back (closer to the hatch than the t-tops) and up has high into the sail panel as I can get it as far out of the way for street use as possible. I would just lean the seat back as far as I could and still drive it to pass tech. This would also let me mount the door bars a little lower so I could get in without any crazy gymnastics.

Originally Posted by TTOP350 View Post
My batt doesn't have a cutoff switch or anything.. yet This is a "street car"
It does still have a factory 92batt inplace.
Attachment 360689

The hoop is less than 6" away from my helmet, however, my helmet is above the main hoop. I don't think I could get it under the hoop even if I sit on the floor of the car.
What's in the battery? Is that an ignition box? Where is the battery?

Originally Posted by articwhiteZ View Post
the battery needs to be in a sealed box if inside the car,with driver
(the one pic looks like it's Mt in the back)

dont know what to tell ya on the rollbar. im 6'4" and mine is at the top back of my helmet. im running Recaro Pofi seats with recaro seat brackets
ontop of GM low rails.. i think it's your TTop set up. they made your Rollbar a bit shorter to go under your Head liner.

i dont have T tops. but My seats are Tall. this shot show recaros on the right. and another Type of seat on the left.
Attachment 360653
the seats are down low and all the way Back. my back bar bows out back,and cups the back of my seats. with helmet on i still have 1" till i hit head liner.(they are set Low Low!) swing out side bars are not installed in this set of pics (made by S&W Race cars)
Attachment 360654
this shot ya sorta see how this rollbar go's past the upper widow seal before it starts it's bend.
non T Top car.
Attachment 360655
you can see how the cup the seats in this pic. (so i can sit all the way back)
Attachment 360656
no T Tops bar looks taller, maby 1" ? the tubes just touch the black plastic inside(see small rub mark from install on tube)
Attachment 360657
I'm also 6'4, and I'm not sure I could get away with what you did. My Formula 350 was a hard top car and the first time I went to the track I jambed on my helmet pulling into the burnout box and found that I had my helmet stuck between the roof and the steering wheel I actually had to get out of the car to get it back off. I ended up cutting and welding the back of the seat rail supports so the bottom of the back of the seat was against the floor before I could wear a helmet in that car.

the 2 t-top cars I've had I've had the experience of going over a dip in an intersection and smaking my head into the t-tops...

Originally Posted by Spifz View Post
Here is an option for T-top cars, although I'll be the first to call it 'not a cage'. It depends on what your goals are; mine were chassis ridgidity, out of the way of T-tops, and a legal 4-6 point roll bar to satisfy hill climb requirements and some other racing tech. reqs. The roof bars are welded in to the A pillar and T top sheet metal, and everything is fit tight up against the body. The main hoop is welded into the 'arm rest' metal braces in the back of the car as well as plates to the floor, and sheet metal across the roof area. Notice I don't have a main hoop diagonal, so I don't really have a legal roll bar by many organizations' standards. I have 2 door bars, a lower one that is just above the sill plate, and a removable diagonal bar (between the elbow and shoulder.) I haven't had any trouble at drag strips (car can go over 135) or road racing time trial events (EMRA.) Hill climbs tech. would likely fail this design for lacking a main hoop diagonal, and organizations that scrutinize rollover protection would likely have concerns with the roof bars being in at the tops instead of out at the edge. However, the 'cage' is out of the way, strengthens the car, and in my opinion, provides more protection than if it weren't there at all.
Your setup looks sweet but it makes me cringe. I was in an accident where I got t-boned in one of these cars and smacked my head into the t-top bar causing a concussion. That setup would have screwed me up good.
83 Crossfire TA is offline
Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
Cam-aro
Camaros Wanted
2
11-12-2015 04:35 PM
BrianChevy
Wheels and Tires
5
10-13-2015 01:33 PM
FueledSoul
Engine/Drivetrain/Suspension Parts for Sale
3
09-30-2015 10:18 PM
FormulaEngland
Interior
2
09-30-2015 02:50 PM
tmork454
Transmissions and Drivetrain
0
09-29-2015 07:33 PM


Thread Tools
Search this Thread
Quick Reply: Roll cage


Advertising
Featured Sponsors
Vendor Directory

Contact Us Advertising Cookie Policy Privacy Statement Terms of Service

© 2018 MH Sub I, LLC dba Internet Brands

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.

  • Ask a Question
    Get answers from community experts
Question Title:
Description:
Your question will be posted in:
