Hidden nitrous under plenum on TPI
#1
Moderator
Thread Starter
Join Date: Feb 2000
Location: Schererville , IN
Posts: 7,015
Likes: 0
Received 1 Like
on
1 Post
Car: 91 GTA, 91 Formula, 89 TTA
Engine: all 225+ RWHP
Transmission: all OD
Axle/Gears: Always the good ones
Hidden nitrous under plenum on TPI
Thinking of dabbling with the bottle on my Formula once i finsih getting her dialed in, going for lowwwwwwww 13 high 12 on engine alone. thinking of a 100-15- shot for some easy 11's, make a heck of a sleeper since it looks almost stock under the hood as it sits.
Who has hidden nitrous on TPI setups and how did u do it? I was thinking of plumbing everything in under the plenum between my runners since i no longer use egr and it frees up some decent space. Im not going to go so far as to plumb it under the intake, just looking for more ways to hide it so i can pop the hood and then lol when they get spanked.
let me know if your sharing secrets
later
Jeremy
Who has hidden nitrous on TPI setups and how did u do it? I was thinking of plumbing everything in under the plenum between my runners since i no longer use egr and it frees up some decent space. Im not going to go so far as to plumb it under the intake, just looking for more ways to hide it so i can pop the hood and then lol when they get spanked.
let me know if your sharing secrets
later
Jeremy
#3
Member
Join Date: Dec 2002
Location: Auckland,New Zealand
Posts: 176
Likes: 0
Received 0 Likes
on
0 Posts
I'm doing exactly what you're talkin about as we speak...lines are under plenum and sol's are on the firewall with a bracket I made up behind brake booster, hidden under black plastic cover I made, bottle is in the tire well hidden behind standard cover, remote bottle opener switch opens it.Single nozzle tapped into under side of TB, and fuel is controlled by ECU wired into each injector.
I'll have it finished tomorrow.
I'll have it finished tomorrow.
#4
Junior Member
Join Date: Jan 2003
Location: LaVergne, TN
Posts: 34
Likes: 0
Received 0 Likes
on
0 Posts
Car: 91 GTA
Engine: L98
Transmission: 700R4

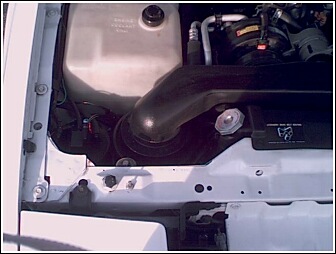

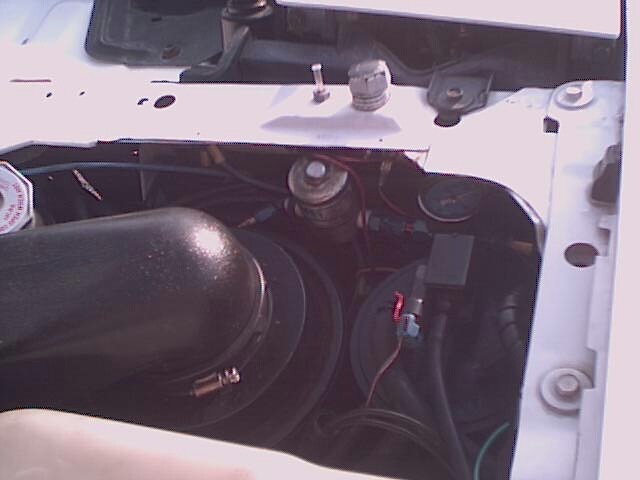

I have my solenoids mounted in front of the air filter under the lip behind the headlights. The nitrous and fuel lines are ran underneath the mounting plate for the airfilter and the charcoal cansiter. I drilled two small holes in the center of the plate where the air filter sits and ran the lines through the center of the filter, up the intake track, and custom made a bracket to hold the Annular Fogger-R Nozzle inside the bellows just before the TB. It fires straight into the airfoil and the TB. Completely stealth. The only thing you can see (if you try reallllly hard) is the TB mounted microswitch.
Good luck, it's pretty easy!
Good luck, it's pretty easy!
#5
Moderator
Thread Starter
Join Date: Feb 2000
Location: Schererville , IN
Posts: 7,015
Likes: 0
Received 1 Like
on
1 Post
Car: 91 GTA, 91 Formula, 89 TTA
Engine: all 225+ RWHP
Transmission: all OD
Axle/Gears: Always the good ones
lol now we're talking :-)
do either of u guys have any pics?
just trying to figure out different ways to do it and see which will work best on the current setup. it looks pretty much lke a stock tpi with headers, still got AC and AIR, etc lol
trying to keep it that way and make it even faster than it is now
thanks
jeremy
do either of u guys have any pics?
just trying to figure out different ways to do it and see which will work best on the current setup. it looks pretty much lke a stock tpi with headers, still got AC and AIR, etc lol
trying to keep it that way and make it even faster than it is now
thanks
jeremy
Trending Topics
#8
Supreme Member
iTrader: (-1)
Join Date: Mar 2002
Location: SE Michigan
Posts: 1,728
Likes: 0
Received 2 Likes
on
2 Posts
Car: Bright Red 91 GTA
Engine: CARBED LT4
Transmission: MK6
holy ****....that is the coolest thing ive ever seen!..
that other guys post about running the lines inside the air intake is freakin bad @ss to...
that other guys post about running the lines inside the air intake is freakin bad @ss to...
#9
Supreme Member
iTrader: (-1)
Join Date: Mar 2002
Location: SE Michigan
Posts: 1,728
Likes: 0
Received 2 Likes
on
2 Posts
Car: Bright Red 91 GTA
Engine: CARBED LT4
Transmission: MK6
holy ****....that is the coolest thing ive ever seen!..
that other guys post about running the lines inside the air intake is freakin bad @ss to...
that other guys post about running the lines inside the air intake is freakin bad @ss to...
#13
Supreme Member
Is it me or does the N20 and fuel spray to the opposite side of the intake valve? Is there a down side to that?
What the max you could spray like that?
Oh and did you make that yourself or did you buy it somwhere? how much did it cost you?
What the max you could spray like that?
Oh and did you make that yourself or did you buy it somwhere? how much did it cost you?
#18
TGO Supporter
Join Date: Jul 2001
Location: Cheyenne, Wyoming
Posts: 4,991
Likes: 0
Received 1 Like
on
1 Post
Car: 1992 B4C 1LE
Engine: Proaction 412, Accel singleplane
Transmission: built 700R4 w/custom converter
Axle/Gears: stock w/later 4th gen torsen pos
the TPI section of this forum has info for: "what cars do and which dont have to" redo the "bonnet" us yanks call it the hood here. you will find it there. https://www.thirdgen.org/techbb2/sho...hreadid=114308
#23
Senior Member
Join Date: Jan 2002
Location: orlando
Posts: 600
Likes: 0
Received 0 Likes
on
0 Posts
Car: 98 Camaro SS
Engine: LS1
Transmission: M6
Easiest way to spot a nitrous kit is the fuel hookup.
Anything coming off the shrader, and not going IMMEDIATELY to a gauge (with no T-offs) is a dead give away.
Anything coming off the shrader, and not going IMMEDIATELY to a gauge (with no T-offs) is a dead give away.
#25
Junior Member
Join Date: Jan 2003
Location: LaVergne, TN
Posts: 34
Likes: 0
Received 0 Likes
on
0 Posts
Car: 91 GTA
Engine: L98
Transmission: 700R4
It's a borrowed guage, I mounted it there just to check bottle pressure at the track. I will eventually get one for myself and mount it in the car. Do they make one like with an electrical sending unit? How about with a small digital (i.e. rectangular) display? Also, about the schrader valve..... see if you can find my fuel hook up
#26
Junior Member
Join Date: Jan 2003
Location: LaVergne, TN
Posts: 34
Likes: 0
Received 0 Likes
on
0 Posts
Car: 91 GTA
Engine: L98
Transmission: 700R4

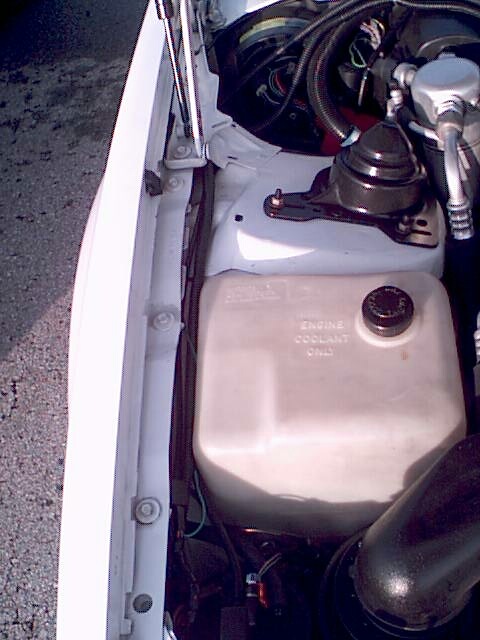

I know it's hard to see in that photo, but the MAP sensor covers up the 90 degree fitting, and I have black plastic conduit covering the entire fuel line, all the way up to the AN fitting. You absolutely cannot see it on the car!! This is how I ran the conduit/fuel line to the solenoid, it's directly behind the coolant overflow tank, and ran under the hood strut brace. Looks like the factory put it there!
#27
Junior Member
Join Date: Jan 2003
Location: LaVergne, TN
Posts: 34
Likes: 0
Received 0 Likes
on
0 Posts
Car: 91 GTA
Engine: L98
Transmission: 700R4
I know it's hard to see in that photo, but the MAP sensor covers up the 90 degree fitting, and I have black plastic conduit covering the entire fuel line, all the way up to the AN fitting. You absolutely cannot see it on the car!! This is how I ran the conduit/fuel line to the solenoid, it's directly behind the coolant overflow tank, and ran under the hood strut brace. Looks like the factory put it there!
#28
Senior Member
Join Date: Jan 2002
Location: orlando
Posts: 600
Likes: 0
Received 0 Likes
on
0 Posts
Car: 98 Camaro SS
Engine: LS1
Transmission: M6
It's still plain as day if you know what to look for.
The trick is to not use gasoline as the secondary fuel.
Propane is amazing.
Clean install, but that setup can be spotted a mile away. First place I look is the fuel rail for any fittings/line. Unless you're an avid $$ racer... It's kind of pointless to hide.. But yours does look nice.
The trick is to not use gasoline as the secondary fuel.
Propane is amazing.
Clean install, but that setup can be spotted a mile away. First place I look is the fuel rail for any fittings/line. Unless you're an avid $$ racer... It's kind of pointless to hide.. But yours does look nice.
#29
Supreme Member
maybe but for most of us (including me) and especially people not familiar with TPI or EFI in general thats a very very hard to spot n20 install.
i think its amazing, but thats just my personal opinion.
very very nice 1fastgta! I want somthing similar for mine when i actually get it up and running. cheaper than a procharger and just as fun!
i think its amazing, but thats just my personal opinion.
very very nice 1fastgta! I want somthing similar for mine when i actually get it up and running. cheaper than a procharger and just as fun!
#31
Moderator
Thread Starter
Join Date: Feb 2000
Location: Schererville , IN
Posts: 7,015
Likes: 0
Received 1 Like
on
1 Post
Car: 91 GTA, 91 Formula, 89 TTA
Engine: all 225+ RWHP
Transmission: all OD
Axle/Gears: Always the good ones
1FastGTA,
Im definitely interested in doing it something along the lines of your setup.. u got part numbers of what pieces u used. Gonna be awhile yet for i head that route, but gonna figure it all out now
thanks
Jeremy
Im definitely interested in doing it something along the lines of your setup.. u got part numbers of what pieces u used. Gonna be awhile yet for i head that route, but gonna figure it all out now
thanks
Jeremy
#32
Supreme Member
iTrader: (2)
Originally posted by 12 Sec GTA
Easiest way to spot a nitrous kit is the fuel hookup.
Anything coming off the shrader, and not going IMMEDIATELY to a gauge (with no T-offs) is a dead give away.
Easiest way to spot a nitrous kit is the fuel hookup.
Anything coming off the shrader, and not going IMMEDIATELY to a gauge (with no T-offs) is a dead give away.
On a TPI, the easiest way to hide it is to cut the stock feed at the frame rail, it will be regulated to the same pressure as what the injectors see, and you can empty out the cruise control solenoid and mount the fuel solenoid. There’s enough wiring and tubing in that area that it’s easy to hide the lines and wiring in that area (inside the plastic snap together conduit in along the frame rail you can completely hide anything, or if you want to go into the frame rail you can easily run as much stuff in there as you want with an easy outlet infront of the radiator). You could also run that fuel line, wiring, N2O line, mount the solenoids… into the driver’s fender behind the horns, with the lines to the nozzle running under the radiator support. It would be completely hidden. I’ve done something like that in my 4th gen, not so much because I wanted to hide it, but more because I couldn’t get them mounted in a way that I thought looked good.
You can eliminate the throttle position switch by taping into the tps sensor signal at the ECM and building a little voltage level triggered circuit that turns on at someplace over 4VDC.
#33
Junior Member
Join Date: Jan 2003
Location: LaVergne, TN
Posts: 34
Likes: 0
Received 0 Likes
on
0 Posts
Car: 91 GTA
Engine: L98
Transmission: 700R4
3.8TransAm
Here's a parts list I used, some with part#'s. Hope this helps. I also put together an installation guide, but I did not include it.
1. Standard 10lbs. bottle, with brackets 2. 20ft. of -4AN nitrous line (I recommend 16-18ft), (JEG’s) part# 741-15305
3. (2) 4ft. -3AN nitrous and fuel line (one of each) 4. (1) Power Shot Nitrous solenoid 5. (1) Power Shot Fuel solenoid
6. (1) 6ft. -4AN fuel line (JEG’s) part# 741-15260
7. (1) micro switch, throttle body, with mounting bracket, (Summit) part #NOS-15640
8. (1) Illuminated rocker switch, 12V (Radio Shack part# 275-712) 9. (1) 12v, 30A automotive relay (any car parts store)
10. 24ft of 14guage insulated wire (any car parts store)
11. 8ft of 12guage insulated wire (any car parts store)
12. (4) 1/8 NPT to -4AN fittings 13. (1) annular fogger R nozzle, (Summit) part #NOS-13700R 14. (1) 90 degree -4AN male to -4AN female swivel fitting, (Summit) part #NOS-17535
15. 12ft of black wire conduit 16. An assortment of nitrous and fuel jets
1. Standard 10lbs. bottle, with brackets 2. 20ft. of -4AN nitrous line (I recommend 16-18ft), (JEG’s) part# 741-15305
3. (2) 4ft. -3AN nitrous and fuel line (one of each) 4. (1) Power Shot Nitrous solenoid 5. (1) Power Shot Fuel solenoid
6. (1) 6ft. -4AN fuel line (JEG’s) part# 741-15260
7. (1) micro switch, throttle body, with mounting bracket, (Summit) part #NOS-15640
8. (1) Illuminated rocker switch, 12V (Radio Shack part# 275-712) 9. (1) 12v, 30A automotive relay (any car parts store)
10. 24ft of 14guage insulated wire (any car parts store)
11. 8ft of 12guage insulated wire (any car parts store)
12. (4) 1/8 NPT to -4AN fittings 13. (1) annular fogger R nozzle, (Summit) part #NOS-13700R 14. (1) 90 degree -4AN male to -4AN female swivel fitting, (Summit) part #NOS-17535
15. 12ft of black wire conduit 16. An assortment of nitrous and fuel jets
#34
Senior Member
Join Date: Jan 2002
Location: orlando
Posts: 600
Likes: 0
Received 0 Likes
on
0 Posts
Car: 98 Camaro SS
Engine: LS1
Transmission: M6
Originally posted by 83 Crossfire TA
On a TPI, the easiest way to hide it is to cut the stock feed at the frame rail, it will be regulated to the same pressure as what the injectors see, and you can empty out the cruise control solenoid and mount the fuel solenoid. There’s enough wiring and tubing in that area that it’s easy to hide the lines and wiring in that area (inside the plastic snap together conduit in along the frame rail you can completely hide anything, or if you want to go into the frame rail you can easily run as much stuff in there as you want with an easy outlet infront of the radiator). You could also run that fuel line, wiring, N2O line, mount the solenoids… into the driver’s fender behind the horns, with the lines to the nozzle running under the radiator support. It would be completely hidden. I’ve done something like that in my 4th gen, not so much because I wanted to hide it, but more because I couldn’t get them mounted in a way that I thought looked good.
You can eliminate the throttle position switch by taping into the tps sensor signal at the ECM and building a little voltage level triggered circuit that turns on at someplace over 4VDC.
On a TPI, the easiest way to hide it is to cut the stock feed at the frame rail, it will be regulated to the same pressure as what the injectors see, and you can empty out the cruise control solenoid and mount the fuel solenoid. There’s enough wiring and tubing in that area that it’s easy to hide the lines and wiring in that area (inside the plastic snap together conduit in along the frame rail you can completely hide anything, or if you want to go into the frame rail you can easily run as much stuff in there as you want with an easy outlet infront of the radiator). You could also run that fuel line, wiring, N2O line, mount the solenoids… into the driver’s fender behind the horns, with the lines to the nozzle running under the radiator support. It would be completely hidden. I’ve done something like that in my 4th gen, not so much because I wanted to hide it, but more because I couldn’t get them mounted in a way that I thought looked good.
You can eliminate the throttle position switch by taping into the tps sensor signal at the ECM and building a little voltage level triggered circuit that turns on at someplace over 4VDC.
The WOT circuit is exactly what I'm currently using.
As far as your statement on cutting the fuel line at the frame level & tapping it.. Not unless you have another pressure regulator at that level.
It will be at a VERY high pressure because the last thing it saw was the fuel pump, and it's still BEFORE the AFPR on the rail.
#35
Supreme Member
iTrader: (2)
Originally posted by 12 Sec GTA
As far as your statement on cutting the fuel line at the frame level & tapping it.. Not unless you have another pressure regulator at that level.
It will be at a VERY high pressure because the last thing it saw was the fuel pump, and it's still BEFORE the AFPR on the rail.
As far as your statement on cutting the fuel line at the frame level & tapping it.. Not unless you have another pressure regulator at that level.
It will be at a VERY high pressure because the last thing it saw was the fuel pump, and it's still BEFORE the AFPR on the rail.
#36
Senior Member
Join Date: Jan 2002
Location: orlando
Posts: 600
Likes: 0
Received 0 Likes
on
0 Posts
Car: 98 Camaro SS
Engine: LS1
Transmission: M6
Then why is the fuel rail AFTER the AFPR... I fail to see how something before a metering device will be regulated to what it's set at...
#37
Supreme Member
iTrader: (1)
Join Date: Jun 2001
Location: Dale City, VA
Posts: 1,668
Likes: 0
Received 0 Likes
on
0 Posts
Car: 91 GTA and 85 IROC
Engine: 355
Transmission: gear jammer
Axle/Gears: 4.11
b/c the fpr determines how much fuel returns to the tank. It took me a long time to understand this, but eventuall I did. If you blow into a straw w/ your finger over one end the pressure inside the straw increases to that of how much your blowing. If you poke a small hole in the straw you will only be able to build up a certain amount of pressure. Poke a bigger hole in the straw and even less pressure can build in the line/rail.
#38
Supreme Member
iTrader: (2)
Originally posted by 12 Sec GTA
Then why is the fuel rail AFTER the AFPR... I fail to see how something before a metering device will be regulated to what it's set at...
Then why is the fuel rail AFTER the AFPR... I fail to see how something before a metering device will be regulated to what it's set at...
There are cars with the fuel rail after the fpr (mostly '99 and up, where the fpr is in the tank/done electronically), but not on anything that we're discussing.
#39
Senior Member
Join Date: Jan 2002
Location: orlando
Posts: 600
Likes: 0
Received 0 Likes
on
0 Posts
Car: 98 Camaro SS
Engine: LS1
Transmission: M6
Uh, the AFPR on my car is before the rail.
The fuel travels into the AFPR, through the rail, into injectors, then excess fuel is sent via return line to the tank.
I agree the return line will be a similiar pressure to AFPR pressure (small variance based on engine load..) But I don't see how the fuel line between the intank pump & AFPR will be the pressure set by the AFPR.
The fuel travels into the AFPR, through the rail, into injectors, then excess fuel is sent via return line to the tank.
I agree the return line will be a similiar pressure to AFPR pressure (small variance based on engine load..) But I don't see how the fuel line between the intank pump & AFPR will be the pressure set by the AFPR.
#40
Supreme Member
iTrader: (2)
Originally posted by 12 Sec GTA
Uh, the AFPR on my car is before the rail.
The fuel travels into the AFPR, through the rail, into injectors, then excess fuel is sent via return line to the tank.
I agree the return line will be a similiar pressure to AFPR pressure (small variance based on engine load..) But I don't see how the fuel line between the intank pump & AFPR will be the pressure set by the AFPR.
Uh, the AFPR on my car is before the rail.
The fuel travels into the AFPR, through the rail, into injectors, then excess fuel is sent via return line to the tank.
I agree the return line will be a similiar pressure to AFPR pressure (small variance based on engine load..) But I don't see how the fuel line between the intank pump & AFPR will be the pressure set by the AFPR.
The fpr is AFTER THE FUEL RAILS. Follow the inlet (the larger 3/8” hose) you’ll see that it goes to the rails, then the fuel pressure test fitting/shrader valve, to the fpr and finally out the return (smaller 5/16” hose). On a TBI car the inlet is connected to the chamber around the injector, then the fpr relieves pressure into the return line.
#41
Senior Member
Join Date: Jan 2002
Location: orlando
Posts: 600
Likes: 0
Received 0 Likes
on
0 Posts
Car: 98 Camaro SS
Engine: LS1
Transmission: M6
No need to start flaming. That's totally uncalled for.
I was asking a question because I didn't understand it. No need to become a total dick over it. :nono:
I was asking a question because I didn't understand it. No need to become a total dick over it. :nono:
#42
Supreme Member
iTrader: (2)
You know, you got 2 (3 if you count the original) polite responses clearly stating how it works. For my effort I got effectively “this is how it works (incorrectly), and based on that you make no sense.”
No, you were not asking a question, you were stating incorrectly that I was wrong. And no, I was not flaming, I was stating fact.
I apologize that I’ve got an issue with wanting to teach people something where there is clearly something to be taught. Apparently, in your case it involves beating you over the head with it.
Don’t worry, I won’t waste my time the next time
No, you were not asking a question, you were stating incorrectly that I was wrong. And no, I was not flaming, I was stating fact.
I apologize that I’ve got an issue with wanting to teach people something where there is clearly something to be taught. Apparently, in your case it involves beating you over the head with it.
Don’t worry, I won’t waste my time the next time
#43
Junior Member
Join Date: Jan 2003
Location: LaVergne, TN
Posts: 34
Likes: 0
Received 0 Likes
on
0 Posts
Car: 91 GTA
Engine: L98
Transmission: 700R4
12SEC,
Just open any Haynes or Chiltons for most GM vehicle and you will see that the fuel rail is pressurized first, determined by the backpressure created by the FPR. The excess is returned back to the tank. It's hard to accept things when you are strong about theories on "how stuff works", but allway keep and open mind. I've worked on my car for 4 years now, and I'm still learning new stuff. But unless you are absolutely sure on the way things work, don't shut someone down when they're trying to help. That's what this message board is for.
Just open any Haynes or Chiltons for most GM vehicle and you will see that the fuel rail is pressurized first, determined by the backpressure created by the FPR. The excess is returned back to the tank. It's hard to accept things when you are strong about theories on "how stuff works", but allway keep and open mind. I've worked on my car for 4 years now, and I'm still learning new stuff. But unless you are absolutely sure on the way things work, don't shut someone down when they're trying to help. That's what this message board is for.
#46
Senior Member
Join Date: Sep 2007
Location: Chicagoland Area
Posts: 617
Likes: 0
Received 0 Likes
on
0 Posts
Car: '89 GTA/'86 TA/98 TA
Engine: 350/350/LS1
Transmission: R4/T5/4L60E
Axle/Gears: 3.23/2.77/3.73
Re: Hidden nitrous under plenum on TPI
Lets revive this shall we.
Anyone have any updates what else to do with this
Anyone have any updates what else to do with this
Thread
Thread Starter
Forum
Replies
Last Post
Sanjay
Engine/Drivetrain/Suspension Parts for Sale
1
08-12-2015 03:41 PM
