Another single turbo build
I sold my procharger, and am now reconfiguring things for a single turbo setup.
motor is a:
412" SBC
Hurricane singleplane EFI intake
Edelbrock 3848 elbow, 95MM
LS2 cable driven throttle body, 94MM
AFR 210 heads, 9.3:1 compression
NX276HR cam
Hydroboost (astro style)
Intercooler is all in place from the procharger, but will require some minor re-routing as I flipped the throttle body to the driver side since the turbo will be on the passenger side. I'm happier this way also because I have more room on the driver side for my PS pump tank, and by turning the throttle body over I have enough room to get the valve covers off. (IAC pointing up, hood bulge allows clearance).
I just need to modify the passenger serp bracket, perhaps with a smaller idler/ac delete pulley and some cutting.
Thinking of a T70 to start with.
-- Joe
motor is a:
412" SBC
Hurricane singleplane EFI intake
Edelbrock 3848 elbow, 95MM
LS2 cable driven throttle body, 94MM
AFR 210 heads, 9.3:1 compression
NX276HR cam
Hydroboost (astro style)
Intercooler is all in place from the procharger, but will require some minor re-routing as I flipped the throttle body to the driver side since the turbo will be on the passenger side. I'm happier this way also because I have more room on the driver side for my PS pump tank, and by turning the throttle body over I have enough room to get the valve covers off. (IAC pointing up, hood bulge allows clearance).
I just need to modify the passenger serp bracket, perhaps with a smaller idler/ac delete pulley and some cutting.
Thinking of a T70 to start with.
-- Joe
#2
Supreme Member
iTrader: (1)
Join Date: Apr 2008
Location: Utah
Posts: 10,401
Likes: 0
Received 2 Likes
on
2 Posts
Car: 89 RS 89 iroc 87 firebird
Engine: 3.1 Turbo/ 355 twin turbo
Transmission: a4 w/ 4500 stall/ a4 / t5
Axle/Gears: strange s60 /w 3:42's
Re: Another single turbo build
which t70 were u looking at ? if its an ebay unit id start off with the larger units
on a side note i did some more digging around as per the pm's and the gt45 will max at 600 , not 550 like i originally said
on a side note i did some more digging around as per the pm's and the gt45 will max at 600 , not 550 like i originally said
#3
TGO Supporter/Moderator
Thread Starter
iTrader: (12)
Join Date: Jul 1999
Location: SALEM, NH
Posts: 11,724
Likes: 0
Received 89 Likes
on
75 Posts
Car: '88 Formula, '94 Corvette, '95 Bird
Engine: LC9, 355" LT1, LT1
Transmission: T5, Zf6, 4L60E
Axle/Gears: 3.42, Dana44 3.45, 3.23
Re: Another single turbo build
http://www.poweraddersolutions.com/f...bocharger.html
What are your impressions?
My motor pretty much flat lines at 5500, so my biggest concern is having something spool as early as possible. I'll probably be shifting at 6k, and if everything works the way I want it to i'll be crossing the traps between 5800 - 6200.
-- Joe
#4
Supreme Member
iTrader: (1)
Join Date: Apr 2008
Location: Utah
Posts: 10,401
Likes: 0
Received 2 Likes
on
2 Posts
Car: 89 RS 89 iroc 87 firebird
Engine: 3.1 Turbo/ 355 twin turbo
Transmission: a4 w/ 4500 stall/ a4 / t5
Axle/Gears: strange s60 /w 3:42's
Re: Another single turbo build
I was actually thinking about the On3 T70:
http://www.poweraddersolutions.com/f...bocharger.html
What are your impressions?
My motor pretty much flat lines at 5500, so my biggest concern is having something spool as early as possible. I'll probably be shifting at 6k, and if everything works the way I want it to i'll be crossing the traps between 5800 - 6200.
-- Joe
http://www.poweraddersolutions.com/f...bocharger.html
What are your impressions?
My motor pretty much flat lines at 5500, so my biggest concern is having something spool as early as possible. I'll probably be shifting at 6k, and if everything works the way I want it to i'll be crossing the traps between 5800 - 6200.
-- Joe
also notice the 3 different pictures of the turbo in the page
if u do buy it make sure pas will honor the warranty on it
edit though reading it again it doesnt look like there is any warranty on it
#6
Supreme Member
iTrader: (1)
Join Date: Apr 2008
Location: Utah
Posts: 10,401
Likes: 0
Received 2 Likes
on
2 Posts
Car: 89 RS 89 iroc 87 firebird
Engine: 3.1 Turbo/ 355 twin turbo
Transmission: a4 w/ 4500 stall/ a4 / t5
Axle/Gears: strange s60 /w 3:42's
Re: Another single turbo build
at that price id go right for the ebay gt45 it has a solid track record , theres a 100+ page thread on the turbo forums about the ebay gt45
#7
TGO Supporter/Moderator
Thread Starter
iTrader: (12)
Join Date: Jul 1999
Location: SALEM, NH
Posts: 11,724
Likes: 0
Received 89 Likes
on
75 Posts
Car: '88 Formula, '94 Corvette, '95 Bird
Engine: LC9, 355" LT1, LT1
Transmission: T5, Zf6, 4L60E
Axle/Gears: 3.42, Dana44 3.45, 3.23
Re: Another single turbo build
I'm not really worried about a unit breaking and needing to throw it away, I'm more concerned about a failure causing metal to go into the intake. I suspect their also might be an issue of metal shavings in the drain.
For $200-300 if I ate a turbo a year I'd be cool with it. Not willing to take out the motor though..
-- Joe
For $200-300 if I ate a turbo a year I'd be cool with it. Not willing to take out the motor though..
-- Joe
Trending Topics
#8
Supreme Member
iTrader: (1)
Join Date: Apr 2008
Location: Utah
Posts: 10,401
Likes: 0
Received 2 Likes
on
2 Posts
Car: 89 RS 89 iroc 87 firebird
Engine: 3.1 Turbo/ 355 twin turbo
Transmission: a4 w/ 4500 stall/ a4 / t5
Axle/Gears: strange s60 /w 3:42's
Re: Another single turbo build
the on3 70mm is 70mm compressor and 94mm exducer
the gt45 is 70/102
the on3 has a nicer turbine option
without anything else i would be worried about the on3 turbo because it is a standard shaft turbo , basically the same size shaft u find on the t3/t4 hybrids
the ebay gt45 and the larger t72+ turbos are all large shaft turbos
if u stick with an on3 turbo get the 76mm as im pretty sure its also a large shaft unit
the gt45 is 70/102
the on3 has a nicer turbine option
without anything else i would be worried about the on3 turbo because it is a standard shaft turbo , basically the same size shaft u find on the t3/t4 hybrids
the ebay gt45 and the larger t72+ turbos are all large shaft turbos
if u stick with an on3 turbo get the 76mm as im pretty sure its also a large shaft unit
#9
TGO Supporter/Moderator
Thread Starter
iTrader: (12)
Join Date: Jul 1999
Location: SALEM, NH
Posts: 11,724
Likes: 0
Received 89 Likes
on
75 Posts
Car: '88 Formula, '94 Corvette, '95 Bird
Engine: LC9, 355" LT1, LT1
Transmission: T5, Zf6, 4L60E
Axle/Gears: 3.42, Dana44 3.45, 3.23
Re: Another single turbo build
the on3 70mm is 70mm compressor and 94mm exducer
the gt45 is 70/102
the on3 has a nicer turbine option
without anything else i would be worried about the on3 turbo because it is a standard shaft turbo , basically the same size shaft u find on the t3/t4 hybrids
the ebay gt45 and the larger t72+ turbos are all large shaft turbos
if u stick with an on3 turbo get the 76mm as im pretty sure its also a large shaft unit
the gt45 is 70/102
the on3 has a nicer turbine option
without anything else i would be worried about the on3 turbo because it is a standard shaft turbo , basically the same size shaft u find on the t3/t4 hybrids
the ebay gt45 and the larger t72+ turbos are all large shaft turbos
if u stick with an on3 turbo get the 76mm as im pretty sure its also a large shaft unit
-- Joe
#12
Re: Another single turbo build
i doubt that turbos exhaust wheel could come close to working with a 400" motor. the "gt45" is a t4 type (slightly different) inlet with a 87mm x 77mm exhaust wheel and that would be a better fit in an inexpensive turbo as well as be more adaptable to other turbos later.
#13
TGO Supporter/Moderator
Thread Starter
iTrader: (12)
Join Date: Jul 1999
Location: SALEM, NH
Posts: 11,724
Likes: 0
Received 89 Likes
on
75 Posts
Car: '88 Formula, '94 Corvette, '95 Bird
Engine: LC9, 355" LT1, LT1
Transmission: T5, Zf6, 4L60E
Axle/Gears: 3.42, Dana44 3.45, 3.23
Re: Another single turbo build
This might be a stupid quetion, but I don't have much experience with turbos. How do you tell a T4 from a T6? Like, I know they all say "T4 flange", but when Orr talks about a GT45 that is a T6 vs a T4, how does one tell?
-- Joe
-- Joe
#14
Supreme Member
iTrader: (1)
Join Date: Apr 2008
Location: Utah
Posts: 10,401
Likes: 0
Received 2 Likes
on
2 Posts
Car: 89 RS 89 iroc 87 firebird
Engine: 3.1 Turbo/ 355 twin turbo
Transmission: a4 w/ 4500 stall/ a4 / t5
Axle/Gears: strange s60 /w 3:42's
Re: Another single turbo build
the t6 flange is huge compared to a t4 flange , none of the ebay gt45's come with t6 flanges
#18
TGO Supporter/Moderator
Thread Starter
iTrader: (12)
Join Date: Jul 1999
Location: SALEM, NH
Posts: 11,724
Likes: 0
Received 89 Likes
on
75 Posts
Car: '88 Formula, '94 Corvette, '95 Bird
Engine: LC9, 355" LT1, LT1
Transmission: T5, Zf6, 4L60E
Axle/Gears: 3.42, Dana44 3.45, 3.23
Re: Another single turbo build

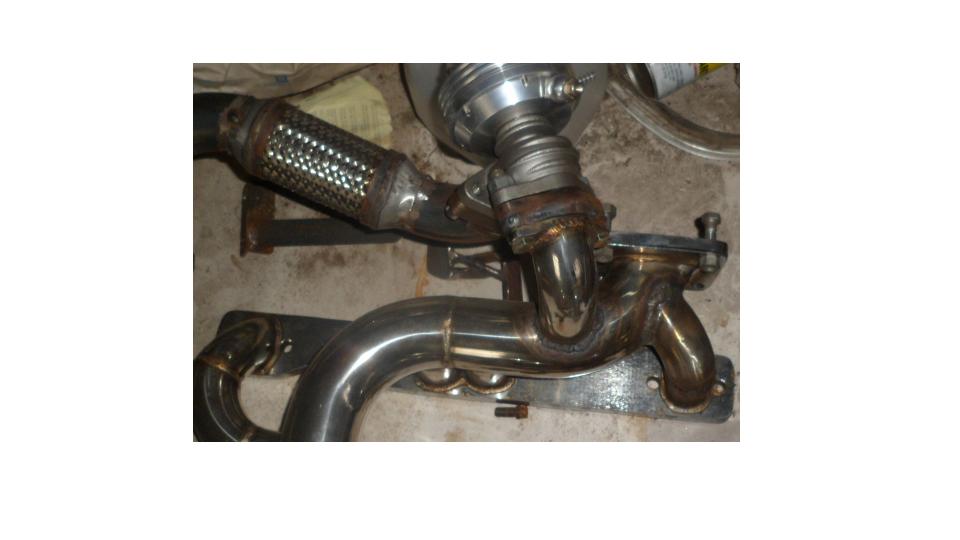

I got my XS-power single turbo header(s).
So to clarify, this is the chinesium parts. Impressions? Well, I'm not a turbo expert but I am pretty good at fabricating and welding. These appear to be made out of stainless, and are tig welded. The primaries on the TURBO header are 1.75" as advertised. The inside of all ports is ported/ground down for smooth flow transitions. The welds have ample penetration with no pinholes. The flanges are .400 thick, and the primaries appear to be around .060" which is 16 gauge. This is a square port flange, not round.
They look better made than most hedman/hooker headers I've seen. They are stainless.. I think they will work out just fine.
The driver side header is everything the turbo side is, except that it's 1.6" primary, and from what I understand it won't clear the steering shaft (in stock form) for a thirdgen. I'll use my SLP 1 3/4" driver side header.
The crossover tube is 16 gauge as well. But welded in the center, and the weld looks good.
I realize that these are made in China, and supposedly they are knock off BBS headers. But honestly whoever welds these in China is a pro! And the price.. $210 shipped in 3 days..
-- Joe
So to clarify, this is the chinesium parts. Impressions? Well, I'm not a turbo expert but I am pretty good at fabricating and welding. These appear to be made out of stainless, and are tig welded. The primaries on the TURBO header are 1.75" as advertised. The inside of all ports is ported/ground down for smooth flow transitions. The welds have ample penetration with no pinholes. The flanges are .400 thick, and the primaries appear to be around .060" which is 16 gauge. This is a square port flange, not round.
They look better made than most hedman/hooker headers I've seen. They are stainless.. I think they will work out just fine.
The driver side header is everything the turbo side is, except that it's 1.6" primary, and from what I understand it won't clear the steering shaft (in stock form) for a thirdgen. I'll use my SLP 1 3/4" driver side header.
The crossover tube is 16 gauge as well. But welded in the center, and the weld looks good.
I realize that these are made in China, and supposedly they are knock off BBS headers. But honestly whoever welds these in China is a pro! And the price.. $210 shipped in 3 days..
-- Joe
#19
Supreme Member
iTrader: (1)
Join Date: Jan 2002
Location: garage
Posts: 4,432
Likes: 0
Received 1 Like
on
1 Post
Engine: 3xx ci tubo
Transmission: 4L60E & 4L80E
Re: Another single turbo build
I think the engine specs are geared more toward a high HP engine vs high torque engine. With that, I would lean toward a T6 flange and not be afraid to run a decent sized A/R turbine. Something like the BW400S75CW with 1.39 A/R T6.
The china GT45 will spool probably at 2000 RPM and run out of wind up top. A very fun street setup.
Best bet is to design the exhaust for at T6 flange and room for the T6 turbo. Then put a T6 to T4 spacer on it if you want to run the T4 GT45 first to experiment with it.
Ideal situation, I would run a BW400S80CW and 1.39 A/R T6 on that engine. A decent / scary street setup and a 9 second race setup.
The china GT45 will spool probably at 2000 RPM and run out of wind up top. A very fun street setup.
Best bet is to design the exhaust for at T6 flange and room for the T6 turbo. Then put a T6 to T4 spacer on it if you want to run the T4 GT45 first to experiment with it.
Ideal situation, I would run a BW400S80CW and 1.39 A/R T6 on that engine. A decent / scary street setup and a 9 second race setup.
#20
Supreme Member
iTrader: (1)
Join Date: Jan 2002
Location: garage
Posts: 4,432
Likes: 0
Received 1 Like
on
1 Post
Engine: 3xx ci tubo
Transmission: 4L60E & 4L80E
Re: Another single turbo build
I got my XS-power single turbo header(s).
So to clarify, this is the chinesium parts. Impressions? Well, I'm not a turbo expert but I am pretty good at fabricating and welding. These appear to be made out of stainless, and are tig welded. The primaries on the TURBO header are 1.75" as advertised. The inside of all ports is ported/ground down for smooth flow transitions. The welds have ample penetration with no pinholes. The flanges are .400 thick, and the primaries appear to be around .060" which is 16 gauge. This is a square port flange, not round.
They look better made than most hedman/hooker headers I've seen. They are stainless.. I think they will work out just fine.
The driver side header is everything the turbo side is, except that it's 1.6" primary, and from what I understand it won't clear the steering shaft (in stock form) for a thirdgen. I'll use my SLP 1 3/4" driver side header.
The crossover tube is 16 gauge as well. But welded in the center, and the weld looks good.
I realize that these are made in China, and supposedly they are knock off BBS headers. But honestly whoever welds these in China is a pro! And the price.. $210 shipped in 3 days..
-- Joe
So to clarify, this is the chinesium parts. Impressions? Well, I'm not a turbo expert but I am pretty good at fabricating and welding. These appear to be made out of stainless, and are tig welded. The primaries on the TURBO header are 1.75" as advertised. The inside of all ports is ported/ground down for smooth flow transitions. The welds have ample penetration with no pinholes. The flanges are .400 thick, and the primaries appear to be around .060" which is 16 gauge. This is a square port flange, not round.
They look better made than most hedman/hooker headers I've seen. They are stainless.. I think they will work out just fine.
The driver side header is everything the turbo side is, except that it's 1.6" primary, and from what I understand it won't clear the steering shaft (in stock form) for a thirdgen. I'll use my SLP 1 3/4" driver side header.
The crossover tube is 16 gauge as well. But welded in the center, and the weld looks good.
I realize that these are made in China, and supposedly they are knock off BBS headers. But honestly whoever welds these in China is a pro! And the price.. $210 shipped in 3 days..
-- Joe
They driver's side may fit in your application. Would allow you to use the crossover as is. Probably will need a small starter to fit the crossover supplied.
If you went with this header then I think you are stuck with a T4 sized frame turbo. The second gen has less hood clearance up front than a thirdgen. Something to keep in mind when choosing a turbo / compresor side wheel and A/R. Putting a T6 adapter and T6 in there probably won't fit.
The wastegate arrangement is strange in that all of cyl2 is relieved and all other cyls are relieved down the cyl2 pipe. Strange, but works I guess.
#21
Supreme Member
iTrader: (1)
Join Date: Apr 2008
Location: Utah
Posts: 10,401
Likes: 0
Received 2 Likes
on
2 Posts
Car: 89 RS 89 iroc 87 firebird
Engine: 3.1 Turbo/ 355 twin turbo
Transmission: a4 w/ 4500 stall/ a4 / t5
Axle/Gears: strange s60 /w 3:42's
Re: Another single turbo build
I got my XS-power single turbo header(s).
So to clarify, this is the chinesium parts. Impressions? Well, I'm not a turbo expert but I am pretty good at fabricating and welding. These appear to be made out of stainless, and are tig welded. The primaries on the TURBO header are 1.75" as advertised. The inside of all ports is ported/ground down for smooth flow transitions. The welds have ample penetration with no pinholes. The flanges are .400 thick, and the primaries appear to be around .060" which is 16 gauge. This is a square port flange, not round.
They look better made than most hedman/hooker headers I've seen. They are stainless.. I think they will work out just fine.
The driver side header is everything the turbo side is, except that it's 1.6" primary, and from what I understand it won't clear the steering shaft (in stock form) for a thirdgen. I'll use my SLP 1 3/4" driver side header.
The crossover tube is 16 gauge as well. But welded in the center, and the weld looks good.
I realize that these are made in China, and supposedly they are knock off BBS headers. But honestly whoever welds these in China is a pro! And the price.. $210 shipped in 3 days..
-- Joe
So to clarify, this is the chinesium parts. Impressions? Well, I'm not a turbo expert but I am pretty good at fabricating and welding. These appear to be made out of stainless, and are tig welded. The primaries on the TURBO header are 1.75" as advertised. The inside of all ports is ported/ground down for smooth flow transitions. The welds have ample penetration with no pinholes. The flanges are .400 thick, and the primaries appear to be around .060" which is 16 gauge. This is a square port flange, not round.
They look better made than most hedman/hooker headers I've seen. They are stainless.. I think they will work out just fine.
The driver side header is everything the turbo side is, except that it's 1.6" primary, and from what I understand it won't clear the steering shaft (in stock form) for a thirdgen. I'll use my SLP 1 3/4" driver side header.
The crossover tube is 16 gauge as well. But welded in the center, and the weld looks good.
I realize that these are made in China, and supposedly they are knock off BBS headers. But honestly whoever welds these in China is a pro! And the price.. $210 shipped in 3 days..
-- Joe
the gt45 is a big heavy turbo and if u go that route some extra bracing would be a good idea , also no matter what turbo u do go with , cut the x over in half and weld in a flex pipe. that alone will help with all the flexxing the stainless does and will make the header last alot longer
i have first hand experiance with those headers and adding in a flex pipe makes a huge difference
#22
Supreme Member
iTrader: (1)
Join Date: Apr 2008
Location: Utah
Posts: 10,401
Likes: 0
Received 2 Likes
on
2 Posts
Car: 89 RS 89 iroc 87 firebird
Engine: 3.1 Turbo/ 355 twin turbo
Transmission: a4 w/ 4500 stall/ a4 / t5
Axle/Gears: strange s60 /w 3:42's
Re: Another single turbo build
If you cut it apart, you would see that the welds are gone over at the end to pretty them up. You can see inside they were not back purged or had any sheilding applied during welding. Some say they will fall apart. I say it depends on the application. I think in your case it will be fine.
They driver's side may fit in your application. Would allow you to use the crossover as is. Probably will need a small starter to fit the crossover supplied.
If you went with this header then I think you are stuck with a T4 sized frame turbo. The second gen has less hood clearance up front than a thirdgen. Something to keep in mind when choosing a turbo / compresor side wheel and A/R. Putting a T6 adapter and T6 in there probably won't fit.
The wastegate arrangement is strange in that all of cyl2 is relieved and all other cyls are relieved down the cyl2 pipe. Strange, but works I guess.
They driver's side may fit in your application. Would allow you to use the crossover as is. Probably will need a small starter to fit the crossover supplied.
If you went with this header then I think you are stuck with a T4 sized frame turbo. The second gen has less hood clearance up front than a thirdgen. Something to keep in mind when choosing a turbo / compresor side wheel and A/R. Putting a T6 adapter and T6 in there probably won't fit.
The wastegate arrangement is strange in that all of cyl2 is relieved and all other cyls are relieved down the cyl2 pipe. Strange, but works I guess.
i was going to suggest a t6 turbo for him first turbo i started on my car was a tv7512 basically a 76mm t6 turbo , with the header he has i dont think it would clear the hood, the t6 turbo is slightly larger ( depending on what compressor cover) then the gt45 and that just fits on that header
#23
Supreme Member
iTrader: (1)
Join Date: Jan 2002
Location: garage
Posts: 4,432
Likes: 0
Received 1 Like
on
1 Post
Engine: 3xx ci tubo
Transmission: 4L60E & 4L80E
Re: Another single turbo build
i was going to suggest a t6 turbo for him first turbo i started on my car was a tv7512 basically a 76mm t6 turbo , with the header he has i dont think it would clear the hood, the t6 turbo is slightly larger ( depending on what compressor cover) then the gt45 and that just fits on that header
I like the SSAC single setup and GT45 combo for 600-700HP so it will be interesting how it works on a 412" engine that is already up there.
#24
Supreme Member
iTrader: (1)
Join Date: Apr 2008
Location: Utah
Posts: 10,401
Likes: 0
Received 2 Likes
on
2 Posts
Car: 89 RS 89 iroc 87 firebird
Engine: 3.1 Turbo/ 355 twin turbo
Transmission: a4 w/ 4500 stall/ a4 / t5
Axle/Gears: strange s60 /w 3:42's
Re: Another single turbo build
TV7512 76mm CW and .96 A/R-T6 would work great too. Right in the middle of the BW and the GT45. The good thing about the T6 series is that the compressor A/R fits the wheel better than an over-stuffed T4 comp housing. But then there is less room.
I like the SSAC single setup and GT45 combo for 600-700HP so it will be interesting how it works on a 412" engine that is already up there.
I like the SSAC single setup and GT45 combo for 600-700HP so it will be interesting how it works on a 412" engine that is already up there.
anyways heres some pics with a ruller across a gt45 so u can see its actual size
#27
Supreme Member
iTrader: (16)
Re: Another single turbo build
Originally Posted by anesthes
So to clarify, this is the chinesium parts. Impressions?
#28
Supreme Member
iTrader: (1)
Join Date: Apr 2008
Location: Utah
Posts: 10,401
Likes: 0
Received 2 Likes
on
2 Posts
Car: 89 RS 89 iroc 87 firebird
Engine: 3.1 Turbo/ 355 twin turbo
Transmission: a4 w/ 4500 stall/ a4 / t5
Axle/Gears: strange s60 /w 3:42's
Re: Another single turbo build
Joe, my buddy Paul used to run the Chinese headers for a backup as a quick fix when a crack became prevalent during competition in his GN. They held good up until a point until they too succumbed to cracking, which was after a few 30-psi runs, but by that time he had the others rewelded. They should workout well for you at lower boost levels...
#29
Supreme Member
iTrader: (16)
Re: Another single turbo build
Originally Posted by project89
i remeber that the xover tube split down the seam...
#30
TGO Supporter/Moderator
Thread Starter
iTrader: (12)
Join Date: Jul 1999
Location: SALEM, NH
Posts: 11,724
Likes: 0
Received 89 Likes
on
75 Posts
Car: '88 Formula, '94 Corvette, '95 Bird
Engine: LC9, 355" LT1, LT1
Transmission: T5, Zf6, 4L60E
Axle/Gears: 3.42, Dana44 3.45, 3.23
Re: Another single turbo build
If you cut it apart, you would see that the welds are gone over at the end to pretty them up. You can see inside they were not back purged or had any sheilding applied during welding. Some say they will fall apart. I say it depends on the application. I think in your case it will be fine.
They driver's side may fit in your application. Would allow you to use the crossover as is. Probably will need a small starter to fit the crossover supplied.
If you went with this header then I think you are stuck with a T4 sized frame turbo. The second gen has less hood clearance up front than a thirdgen. Something to keep in mind when choosing a turbo / compresor side wheel and A/R. Putting a T6 adapter and T6 in there probably won't fit.
The wastegate arrangement is strange in that all of cyl2 is relieved and all other cyls are relieved down the cyl2 pipe. Strange, but works I guess.
They driver's side may fit in your application. Would allow you to use the crossover as is. Probably will need a small starter to fit the crossover supplied.
If you went with this header then I think you are stuck with a T4 sized frame turbo. The second gen has less hood clearance up front than a thirdgen. Something to keep in mind when choosing a turbo / compresor side wheel and A/R. Putting a T6 adapter and T6 in there probably won't fit.
The wastegate arrangement is strange in that all of cyl2 is relieved and all other cyls are relieved down the cyl2 pipe. Strange, but works I guess.
I actually sold the second gen 2 years ago (after I finished it) and now have a thirdgen. Basically did a frame off (as much as you could) on this one, mediablast, paint, etc. 20k in receipts since March 2012 and I did all the labor . Probably worth a good $6k
Anyhow, I vaguely remember someone telling me you're supposed to backfill the tubes with 70/30 before welding stainless but I can't for the life of me remember why. I suspect these were welded up in china, then gone over by someone here in the US. Every inch of every port has been smoothed and transitioned. Anyway, my point was that the welding is better than *I* can do, and I've been welding since the early 90s. Then again, maybe I still suck.
Anyway, yeah WG is the only odd part. (same merge as BBS header). Would drilling a 1.5" hole on the hot side of the turbo and welding a WG flange there be a bad idea? (assuming their was enough room for such a thing).
-- Joe
#31
TGO Supporter/Moderator
Thread Starter
iTrader: (12)
Join Date: Jul 1999
Location: SALEM, NH
Posts: 11,724
Likes: 0
Received 89 Likes
on
75 Posts
Car: '88 Formula, '94 Corvette, '95 Bird
Engine: LC9, 355" LT1, LT1
Transmission: T5, Zf6, 4L60E
Axle/Gears: 3.42, Dana44 3.45, 3.23
Re: Another single turbo build
care to take some pics , last time i had a set in my hands they looked ok but actually werent , im curious to see if anything has changed on them
the gt45 is a big heavy turbo and if u go that route some extra bracing would be a good idea , also no matter what turbo u do go with , cut the x over in half and weld in a flex pipe. that alone will help with all the flexxing the stainless does and will make the header last alot longer
i have first hand experiance with those headers and adding in a flex pipe makes a huge difference
the gt45 is a big heavy turbo and if u go that route some extra bracing would be a good idea , also no matter what turbo u do go with , cut the x over in half and weld in a flex pipe. that alone will help with all the flexxing the stainless does and will make the header last alot longer
i have first hand experiance with those headers and adding in a flex pipe makes a huge difference
Anyway, here is some pictures I just took. My tig is setup for alum right now, but I suppose I just need to change my consumables and heat and I can weld up a bracket to connect the front of the head to the flange to anchor it down a little better. I'm honestly more concerned about pulling the threads out of my alum AFR heads.
What is the deal with the #6 plug on these? I don't get why they didn't merge the #8 primary into the crossover higher up rather than that drop down...?
http://members.cisdi.com/~anesthes/turbo/
-- Joe
#32
Supreme Member
iTrader: (20)
Re: Another single turbo build
The wastegate arrangement is strange in that all of cyl2 is relieved and all other cyls are relieved down the cyl2 pipe. Strange, but works I guess.
#33
Supreme Member
iTrader: (16)
Re: Another single turbo build
Originally Posted by anesthes
What is the deal with the #6 plug on these? I don't get why they didn't merge the #8 primary into the crossover higher up rather than that drop down...?
#35
Supreme Member
iTrader: (16)
Re: Another single turbo build
Originally Posted by anesthes
I'm tempted to cut off the WG flange and do it differently. Any suggestions?
#36
TGO Supporter/Moderator
Thread Starter
iTrader: (12)
Join Date: Jul 1999
Location: SALEM, NH
Posts: 11,724
Likes: 0
Received 89 Likes
on
75 Posts
Car: '88 Formula, '94 Corvette, '95 Bird
Engine: LC9, 355" LT1, LT1
Transmission: T5, Zf6, 4L60E
Axle/Gears: 3.42, Dana44 3.45, 3.23
Re: Another single turbo build
I'm pulling a motor out of a boat this weekend (siezed) which I'll use to mock this up on the stand. Gonna need some serious serpentine bracket reworking I suspect at least.
I was gonna wire up a GM WG solenoid to my megasquirt, and just use the MS to control the wastegate.
-- Joe
#37
Senior Member
Join Date: May 2010
Location: Alamogordo, NM
Posts: 848
Likes: 0
Received 0 Likes
on
0 Posts
Car: '86 Grand National
Engine: LZ9????
Transmission: 2004R
Axle/Gears: 3.42
#38
TGO Supporter/Moderator
Thread Starter
iTrader: (12)
Join Date: Jul 1999
Location: SALEM, NH
Posts: 11,724
Likes: 0
Received 89 Likes
on
75 Posts
Car: '88 Formula, '94 Corvette, '95 Bird
Engine: LC9, 355" LT1, LT1
Transmission: T5, Zf6, 4L60E
Axle/Gears: 3.42, Dana44 3.45, 3.23
Re: Another single turbo build
Yeah I remember now, to keep the back side of the weld corroding. The inside of the headers where all the welds are is brown, which indicates they didn't backpurge.
Which means that creates a weak point in the stainless I guess. I'd be willing to bet my SLP's were done the same way, except the welds on the SLP's look like they were done with a coat hanger and a car battery.
-- Joe
Which means that creates a weak point in the stainless I guess. I'd be willing to bet my SLP's were done the same way, except the welds on the SLP's look like they were done with a coat hanger and a car battery.
-- Joe
#39
Supreme Member
iTrader: (16)
Re: Another single turbo build
Got a picture for reference?
I'm pulling a motor out of a boat this weekend (siezed) which I'll use to mock this up on the stand. Gonna need some serious serpentine bracket reworking I suspect at least.
I was gonna wire up a GM WG solenoid to my megasquirt, and just use the MS to control the wastegate.
-- Joe
I'm pulling a motor out of a boat this weekend (siezed) which I'll use to mock this up on the stand. Gonna need some serious serpentine bracket reworking I suspect at least.
I was gonna wire up a GM WG solenoid to my megasquirt, and just use the MS to control the wastegate.
-- Joe
#40
Supreme Member
iTrader: (1)
Join Date: Jan 2002
Location: garage
Posts: 4,432
Likes: 0
Received 1 Like
on
1 Post
Engine: 3xx ci tubo
Transmission: 4L60E & 4L80E
Re: Another single turbo build
The T76 wheel would work great.
Yes, back purging or shielding with solar flux allows the weld to flow without impurities. It doesn't look snotty on the backside.
I removed cyl #2 pipe and installed a 90* pipe going straight into the log at the T4 flange. Then installed a pipe off of the log for the WG. I know I have pics and will look for them this weekend to post. The welds are not Harbor Freight fluxcore welds so I will post instead of hiding in a PM.
Yes, back purging or shielding with solar flux allows the weld to flow without impurities. It doesn't look snotty on the backside.
I removed cyl #2 pipe and installed a 90* pipe going straight into the log at the T4 flange. Then installed a pipe off of the log for the WG. I know I have pics and will look for them this weekend to post. The welds are not Harbor Freight fluxcore welds so I will post instead of hiding in a PM.
#41
TGO Supporter/Moderator
Thread Starter
iTrader: (12)
Join Date: Jul 1999
Location: SALEM, NH
Posts: 11,724
Likes: 0
Received 89 Likes
on
75 Posts
Car: '88 Formula, '94 Corvette, '95 Bird
Engine: LC9, 355" LT1, LT1
Transmission: T5, Zf6, 4L60E
Axle/Gears: 3.42, Dana44 3.45, 3.23
Re: Another single turbo build
The T76 wheel would work great.
Yes, back purging or shielding with solar flux allows the weld to flow without impurities. It doesn't look snotty on the backside.
I removed cyl #2 pipe and installed a 90* pipe going straight into the log at the T4 flange. Then installed a pipe off of the log for the WG. I know I have pics and will look for them this weekend to post. The welds are not Harbor Freight fluxcore welds so I will post instead of hiding in a PM.
Yes, back purging or shielding with solar flux allows the weld to flow without impurities. It doesn't look snotty on the backside.
I removed cyl #2 pipe and installed a 90* pipe going straight into the log at the T4 flange. Then installed a pipe off of the log for the WG. I know I have pics and will look for them this weekend to post. The welds are not Harbor Freight fluxcore welds so I will post instead of hiding in a PM.
But yeah pics would be appreciated.
Can I use my mig with 100% argon? I've got a full bottle on my tig, which will take me two seconds to move over to my mig, and I can pick up 2lbs of whatever wire is recommended for stainless. I'm assuming a low carbon .023" ?
-- Joe
#42
Supreme Member
iTrader: (1)
Join Date: Jan 2002
Location: garage
Posts: 4,432
Likes: 0
Received 1 Like
on
1 Post
Engine: 3xx ci tubo
Transmission: 4L60E & 4L80E
Re: Another single turbo build
Sounds good. I'm about 100% certain I'm going to at min cut off this WG flange and move it. I'm tempted to weld it to the hot side housing.
But yeah pics would be appreciated.
Can I use my mig with 100% argon? I've got a full bottle on my tig, which will take me two seconds to move over to my mig, and I can pick up 2lbs of whatever wire is recommended for stainless. I'm assuming a low carbon .023" ?
-- Joe
But yeah pics would be appreciated.
Can I use my mig with 100% argon? I've got a full bottle on my tig, which will take me two seconds to move over to my mig, and I can pick up 2lbs of whatever wire is recommended for stainless. I'm assuming a low carbon .023" ?
-- Joe
You can weld it with your MIG. I would use your MIG 75/25 gas before using 100 Argon.
Read this one page doc: http://www.lincolnelectric.com/en-us...t-welders.aspx
The last paragraph talks about gas choice and loss of corrosion resistance and weld impurities. I don't see that as a big deal for your application and parts. The weld will probably not be that pretty.
Some exhaust shops will weld 409 with 70S6 wire in the MIG. Is it right? No. Does it last a while? Yes
Last edited by junkcltr; 12-06-2013 at 11:48 AM.
#46
Supreme Member
iTrader: (1)
Join Date: Jan 2002
Location: garage
Posts: 4,432
Likes: 0
Received 1 Like
on
1 Post
Engine: 3xx ci tubo
Transmission: 4L60E & 4L80E
Re: Another single turbo build
I agree with Orr. The SSAC copied the original crossover that appears to be designed for a mini starter. I had to cut up the crossover to fit with a stock starter, but there was enough room to go around the starter in my application.
#47
TGO Supporter/Moderator
Thread Starter
iTrader: (12)
Join Date: Jul 1999
Location: SALEM, NH
Posts: 11,724
Likes: 0
Received 89 Likes
on
75 Posts
Car: '88 Formula, '94 Corvette, '95 Bird
Engine: LC9, 355" LT1, LT1
Transmission: T5, Zf6, 4L60E
Axle/Gears: 3.42, Dana44 3.45, 3.23
Re: Another single turbo build
I think I'll redo the #2 primary like you did, but I think I'm gonna put the WG flange on the hot side housing. Been doing a lot of reading on the forums, and by putting it in the stream or on the housing itself is a lot more effective than 90* . Because of the way this header is designed it doesn't leave a lot of room, in fact, it looks like this design is more for an internal WG.
-- Joe
#49
TGO Supporter/Moderator
Thread Starter
iTrader: (12)
Join Date: Jul 1999
Location: SALEM, NH
Posts: 11,724
Likes: 0
Received 89 Likes
on
75 Posts
Car: '88 Formula, '94 Corvette, '95 Bird
Engine: LC9, 355" LT1, LT1
Transmission: T5, Zf6, 4L60E
Axle/Gears: 3.42, Dana44 3.45, 3.23
Re: Another single turbo build
The On3 T76 showed up today. The hot side was full of oil (machining oil?) but otherwise, both housings measure properly and both wheels are spot on measurement wise. So far at least I got what I paid for. Now to find out how long it lasts.
-- Joe
-- Joe
#50
Supreme Member
iTrader: (1)
Join Date: Apr 2008
Location: Utah
Posts: 10,401
Likes: 0
Received 2 Likes
on
2 Posts
Car: 89 RS 89 iroc 87 firebird
Engine: 3.1 Turbo/ 355 twin turbo
Transmission: a4 w/ 4500 stall/ a4 / t5
Axle/Gears: strange s60 /w 3:42's
Re: Another single turbo build
take the housings off check for machining burrs , and blow air threw the center cartridge and make sure not metal chips are in it , be sure to prelube turbo before first startup , pulling the coil wire and cranking for a few seconds is usually enough to preoil the turbo
witht he cheap turbos after doing that this is my routine
start engine , lelt it get to temp shut off , let everything cool and do it 1-2 more times
next time i take it for a drive and boost lightly 2-4 psi and let it cool fully
basically i heat cycle the turbo a few times ive always done this and never had an ebay/china turbo fail , except for one turbine oil seal , which was my fault and not the turbos
