Intake Vacuum Fitting

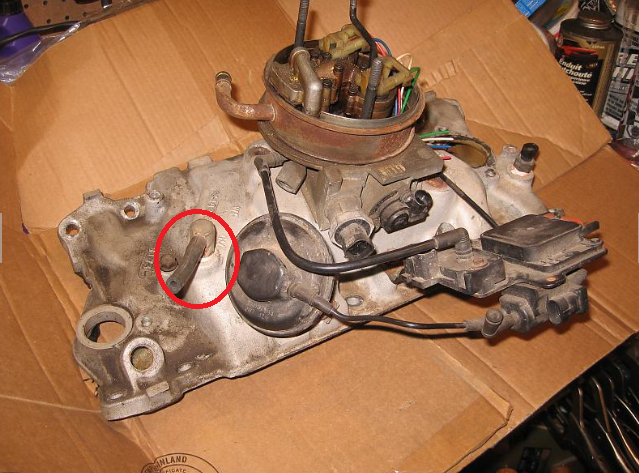

It's been a couple years since I pulled the TBI motor out of my firebird and now I am working on installing it into an S-10. I am trying to remember what the fitting in the back of the manifold behind the TBI hooks to. Attached is a picture with the fitting I am talking about circled in red.
Thanks for the help.
Attached Thumbnails Intake Vacuum Fitting-intake-fitting.png
Reply
Old Nov 30, 2013 | 09:13 PM
  #2
Jersey89GTA's Avatar
Senior Member
10 Year Member
iTrader: (1)

Joined: Feb 2012
Posts: 709
Likes: 2
From: S.New Jersey
Car: 90 Iroc Vert
Engine: 5.0L
Transmission: 700R4
Axle/Gears: 3.73
Re: Intake Vacuum Fitting

A guess- since i'm a TPI guy, but hose size looks like it goes to master break cylinder.
Reply
Old Nov 30, 2013 | 10:01 PM
  #3
Schurkey's Avatar
Supreme Member
10 Year Member

Joined: Feb 2011
Posts: 1,589
Likes: 89
Re: Intake Vacuum Fitting

Originally Posted by Jersey89GTA
it goes to master break cylinder.
Huh?

Brake master cylinder isn't vacuum-operated.
Reply
Old Dec 1, 2013 | 01:39 AM
  #4
Ron U.S.M.C.'s Avatar
Supreme Member

Joined: Apr 2006
Posts: 4,482
Likes: 10
From: Northern, CA
Car: 1989 Iroc-Z Camaro
Engine: TBI,5.0
Transmission: Automatic 700R4
Axle/Gears: Eaton Posi,3.42,LPW Ultimate Cover
Re: Intake Vacuum Fitting

I have one of those and mine is the main vacuum supply for the cruise control.
I was concerned about the missing vacuum ball and the hoses on top of the cruise control unit. I was looking for a vacuum leak and in the process found it. I don't use cruise control so I found that with a small piece of hose and a screw in the end of it.

A large and small hose fitting are on top of the cruise control unit .That goes on the large one and the other to the vacuum ball.
This link shows you mine.

http://imageshack.us/a/img20/6540/hyzj.jpg

Last edited by Ron U.S.M.C.; Dec 1, 2013 at 02:28 AM.
Reply
Old Dec 1, 2013 | 08:33 AM
  #5
Jersey89GTA's Avatar
Senior Member
10 Year Member
iTrader: (1)

Joined: Feb 2012
Posts: 709
Likes: 2
From: S.New Jersey
Car: 90 Iroc Vert
Engine: 5.0L
Transmission: 700R4
Axle/Gears: 3.73
Re: Intake Vacuum Fitting

Originally Posted by Schurkey
Huh?

Brake master cylinder isn't vacuum-operated.

Opps, meant to say Break Booster (connects to master).
Attached Thumbnails Intake Vacuum Fitting-imagescacnj7c8.jpg
