Can someone help? Got some hoses and lines, and don't know where to put them...
Thread Starter
Junior Member
Joined: Sep 2004
Posts: 60
Likes: 0
From: Guetersloh, D
Car: 1982 Chevrolet Camaro Z28,
Engine: 5,0l
Transmission: TH 350
Can someone help? Got some hoses and lines, and don't know where to put them...
Hey,
I got some lines and hoses where I don't know where they belong.
I guess some of you know where they from. So I think I post them.
I got some lines and hoses where I don't know where they belong.
I guess some of you know where they from. So I think I post them.
Joined: Mar 2000
Posts: 43,187
Likes: 46
From: Littleton, CO USA
Car: 82 Berlinetta/57 Bel Air
Engine: L92/LQ4 (both w/4" stroke)
Transmission: 4L80E/4L80E
Axle/Gears: 12B-3.73/9"-3.89
First, check out the vacuum diagram thread on the FAQ forum. It's a little hard to tell what a hose is just from seeing the end of it. I would guess the first one goes to the intake manifold, and the 2nd one to the carb, but that's purely a WAG.
2nd, the 4-pole square connector goes to the transmission for torque converter lock-up. I'm not sure what the other one is.
2nd, the 4-pole square connector goes to the transmission for torque converter lock-up. I'm not sure what the other one is.
Last edited by five7kid; May 17, 2006 at 11:53 AM.
Joined: Sep 2005
Posts: 28,023
Likes: 2,496
Car: Yes
Engine: Usually
Transmission: Sometimes
Axle/Gears: Behind me somewhere

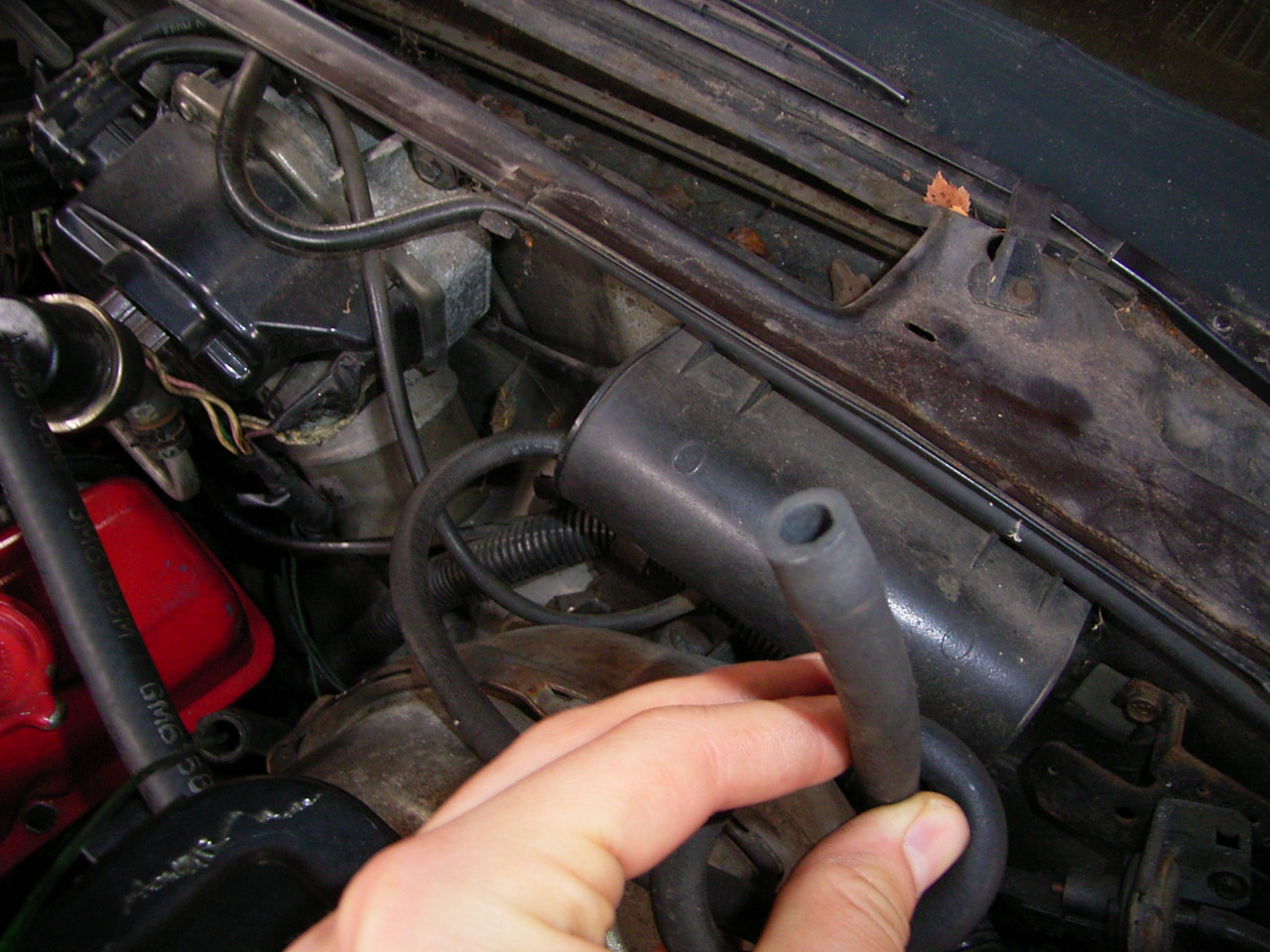

The fitting behind the carb should have a hose that goes to the vacuum accumulator (the large black thing on the firewall in the 1st pic).
The gray connector on a blue wire is for the electric choke.
The gray connector on a blue wire is for the electric choke.
