Hey guys, im new here. I've got a 1987 IROC-Z with a 305 TPI and an A4. Im not a noob but i've got a pretty good noobish question. Soo, the iroc is my project car, and the power steering pump needed to be replaced, so i ordered all the parts, and while i was waiting for them to be delivered, i decided it would be a great idea to take off the power steering pump and all the brackets and disassemble everything...figuring id remember which brackets and bolts went where, seemed simple, so i just threw everything in a pile till the new parts arrived. A week passed, and i got my parts..and now im totally lost as to what bolts up where, lol. Ive googled this to death and cannot find a single clear picture on the entire internet of an 87 iroc's steering setup, and my haynes manual says zilch about it. It would be AMAZING if one of you guys could run outside and snap me a clear picture of your power steering pump and where the belts go and everything. I have the individual belt drive accessories, not the serpentine setup. Thanks so much, ill see you all around, ill be a usual around here in no time.

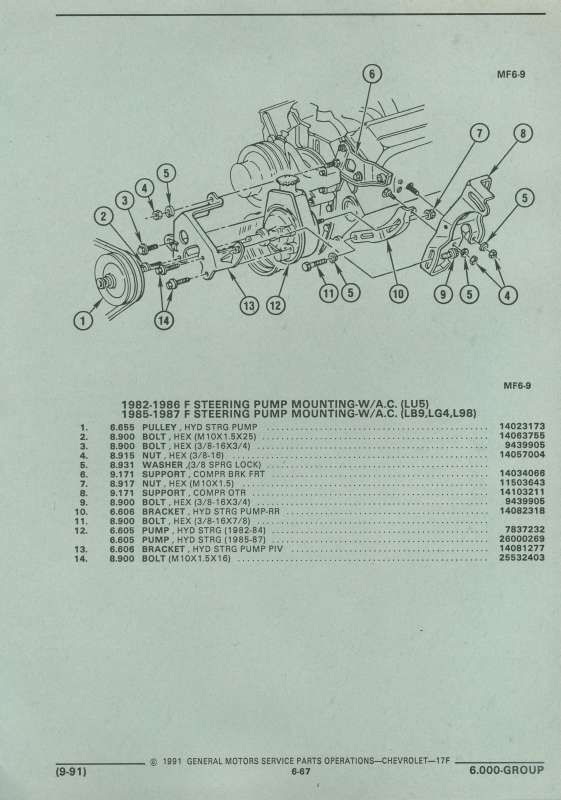

With A/C



Without A/C



thanks so much, i couldnt find it anywhere
