Ha, the ONE thing I don't take pictures of and document...

I pulled the crank pulley off like 2 months ago now, I thought I put the right bolts in a zip lock bag and labeled it, I go to put it back on today, and the center bolt doesn't reach the threads.

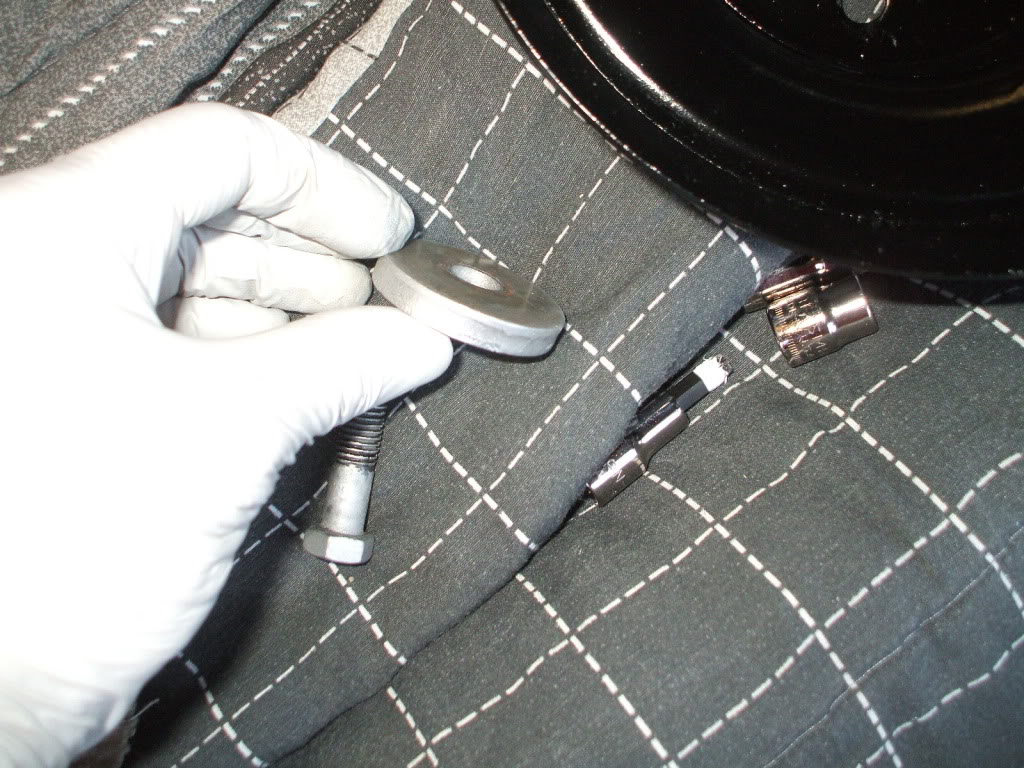

Sneak a peek at the pics:




I'm putting everything on in the order shown in the picture (bolt-->small washer-->big washer.)
I referred to the service manual, and it says nothing about the large washer (it's about .5" thick.) But I remember that big washer being there, and is needed to help mount the pulley (along with the 3 other bolts)

Am I missing something?
I'm half in freak-out mode, I hope I didn't royally mess something up.
Any help is much appreciated. Thanks.



The washers look correct, But not the bolt, that should be a fine thread. 7/16 #20

Good thing it didn't reach the threads! Lol


Carl



holy cow you're right.

I screwed up labeling my zip lock bags of bolts.
Thanks for your help.

Mods can lock this up.
