jfox55

Hey, just wanted to see if I could get some pictures of all those bad *** camaro motors out there. Fuel injected or carborator doesn't matter, just want to see some nice pics of engines.:hail: :hail:

2vmodular

speaking of motors i want a ride in this car:

http://home.earthlink.net/~atomhart/galaxie.htm

Kingtal0n

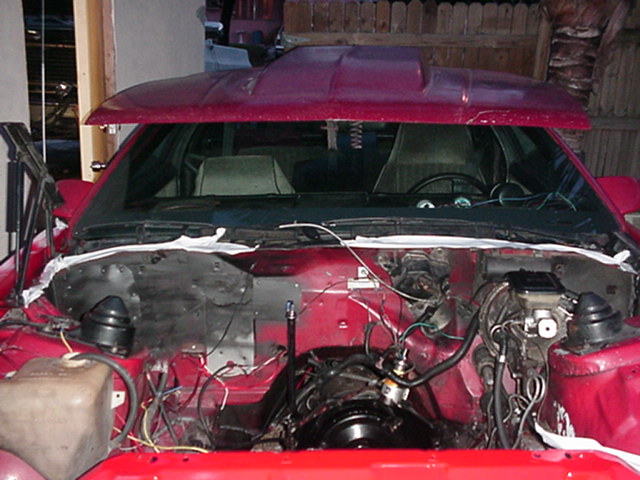

ok here it is sitting waiting for the rotating assembly to come back from the machine shop....

nesluopetan

Here is my ride, I can always get more pics if you want, better views... also, only post your rides, lets not post every's cousins friends rides ok?

Nate

Kingtal0n

Almost mistook that for my car!!! dont they look similar on the inside?

Zepher

iTrader: (1)

Here is my old and new setup,

rocky383

Here's mine.

:hail:

Dustin Mustangs

iTrader: (1)

Here's mine right after we swaped in the new engine. It is pretty much stock, but sharp eyed veiwers will spot some ceramic coated headers.

Swapmaster

My baby.

Vader

Go ahead. You'll only see the rear license plate of THIS car:



Yes, that IS a 502 BBC in that Impala, and yes it DOES run 10.82/128.2MPH quarters - with NO blower, turbo, or "Viagra" bottle... And yes, it DOES have a cage.

Maybe the Ford guys should quit wasting their time - they're still eight years behind.

a73camaro

Stir the pot, since we have a 'vette and Impala now.

70 Duster, 11.01 at 122 MPH at 5800' altitude

jcb999

http://cis.tamu.edu/~jcb9392/idle.MPG
http://cis.tamu.edu/~jcb9392/MOV00003.MPG

it an't much to look at (but i like it that way)


http://cis.tamu.edu/~jcb9392/MOV00002.MPG

Vader

That is VERY good at that altitude! I'll bet she idles "very nicely" with that tunnel ram.

Any ideas about corrected ET? You might be pushing single-digits.

rocc4u

Here she is"For Now"..

Stroked-Z

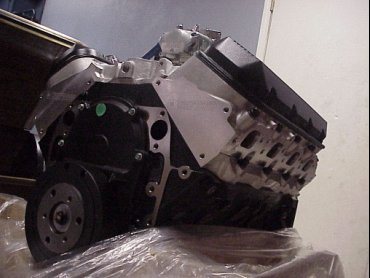

Here is the 383 shortblock in the buildup process.

Stroked-Z

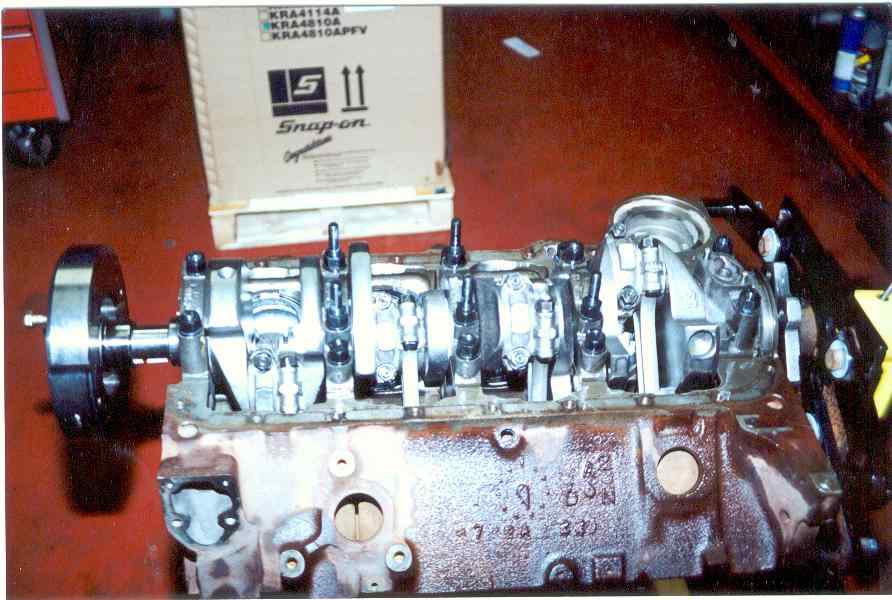

Here it is underneath still in the building stages

Stroked-Z

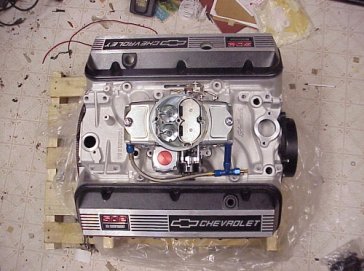

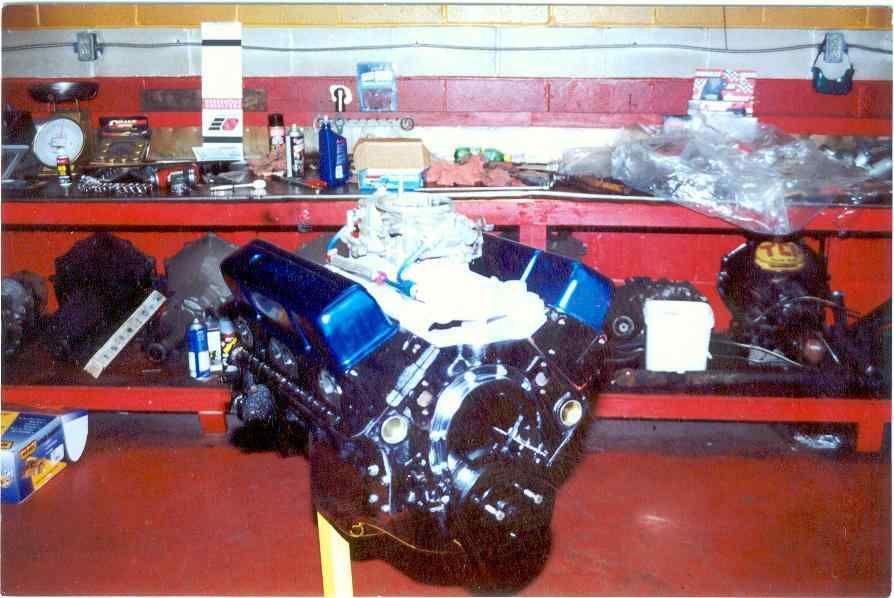

COMPLETE!!!!!!!!!!!

a73camaro

Tunnle ram Vader?

It is a single plane Torker. At a glance and the angle, it could be mistaken for a tunnel ram.

It will idle at 1500-1700 RPM, but put her in gear and forget about it!!!! So the idle is set to about 2000 RPM.

Strangly enough, I put on a tunnle ram for a test night, two Holley 600 vacuum secondaries. Idled about the same, ran about the same....

The correction factor put the car at 10.4 at sea level. I plan on heading out to a friends in Iowa in May/June.

I'm also installing a 150 hp of NOS. I would love to do the final run and crack single digits! And quickly get booted off the track!

johnsjj2

Here's mine:

johnsjj2

Last one:

jfox55

Those are some bad *** looking engines!!! Lets see some more, who's got the badest engine out there???:hail: :hail: :hail:

Markolc

Mark A Shields

Check out the Appearance board and search for engine pics, I did one post got about 80 replies, there are some bad @ss motors on there. Here's mine.

Mark A Shields

Anoter one.

Mark A Shields

Anoter one. Not mine.

jfox55

That's one bad *** engine!!!!! Wonder how much horsepower that thing puts out?? Like to have that in my car. talk about single digits

jfox55

Here I am asking for engine pics and forgot to post mine, well here it is

Engineboy

Here is my boring engine shot....

No4NJunk

oh what the hell. Here ya go...it isn't the greatest but its my pride and joy.

Blackened

Here's mine.... slowly getting there !

JP84Z430HP

I guess I need to take the digital camera with me to the shop tomorrow to get a pic of my engine. I just wish it was in the car and not on the stand! Signature tells the story.

I'm not gonna waste my time posting a pic of the LG4, and when I'm done it will just look like any other Tuned Port car, basically.

This is cool, I may have gotten a couple ideas just from the pics I've seen here!

firbird

:lala:

firbird

.....................

JP84Z430HP

Awww man. why'd have have to go and do that? I', itchin for a big block to put in the 80 Z, but i just can't afford to buy one! That thing sure does look schweet though!

Matt87GTA

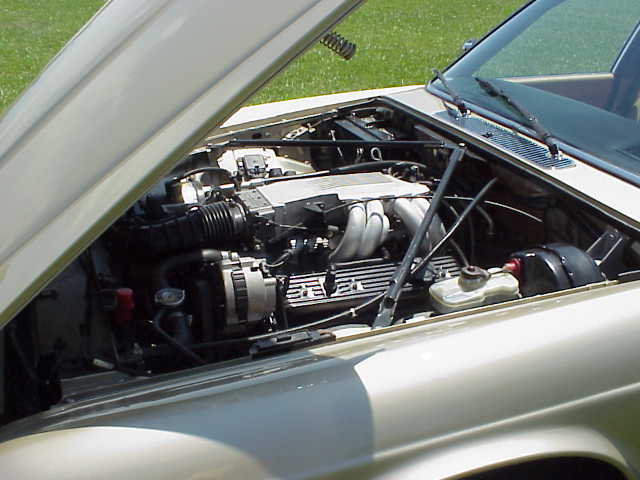

Here are a couple of shots of mine, but it isn't a Camaro :







I've done a few mods since these, but there it is...... :lala: :lala:

TRAXION

What? No MiniRams? Hehe ...




Tim

johnsjj2

Blackened,
Your sig mentioned a 408, the block in the pic, thats not a 400 block is it? It doesn't have the steam holes. My point is, you also mentioned a WC 5spd. Is this the WC T-5? If so, how has it held up to the 408. If I am all bass ackwards here, just let me know.

Thanks,

Scott_92RS

First of all, that is VERY nice. Second.. I've got a couple questions

1. Are These the valve covers that you have?

2. Is that an MSD on the driver side where the washer fluid tank used to be? Does the rain bother it at all?

3. Did you relocate the washer fluid tank?

4. What is on top of the MSD?

Thanks!

TRAXION

1. Are These the valve covers that you have?

Yes.

2. Is that an MSD on the driver side where the washer fluid tank used to be? Does the rain bother it at all?

Yes. Don't know because the car is never driven in the rain.

3. Did you relocate the washer fluid tank?

No. Just took it out. Never used the wiper fluid so I put the space to better use. Still have the wipers and wiper motor intact in case I ever get caught in the rain.

4. What is on top of the MSD?

Adjustable Rev Control. Instead of using pills you can buy a box and rotate the **** to the appropriate RPM. Makes it easier to adjust.

Tim

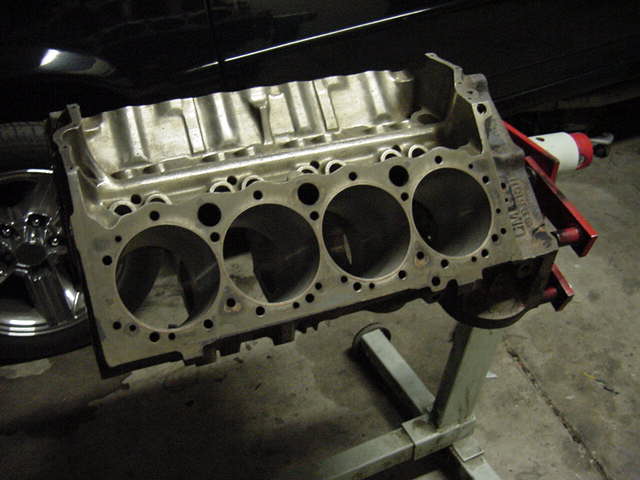

Blackened

Hehe! I was wondering is someone is going to say that. Yeah... that's an odd 400. Someone I guess plugged the steam holes in the deck for some reason. I'll have to redrill them when I put it back toghether. The WC will be fine I'm sure. I dont powershift or drop clutches. It's been fine for almost a year behind my 400 horse 350.

p.s. This picture shows it IS the real thing

TRAXION

The deck was plugged for a reason ... it strengthens the deck and the surrounding areas. You will NOT want to totally drill them out. Most people will plug the deck and then redrill with smaller holes.

Tim

johnsjj2

I have only seen the big holes at the top of the deck plugged, not the steam holes. Were the steam holes completely plugged off?

heavy_chevy29

heres mine. nothin special.

deadtrend1

iTrader: (1)

Mines nothing special, just holding me over for a few more months till i get my 350 in there. Since the pic i've removed the emissions system and i have headers in my garage i gotta put on.

Blackened

Yes they were completely plugged off. Maybe I wont drill them out at all and leave it like it is. I heard they crack easily around those holes anyway... I'm just wondering how cool it's gonna say when 100+ weather comes around :/

fiream

76 Formula 400

jfox55

Need more engines!!!!!!!! Let's see what you got. WHo's got the most horsepower and the best time????? Lets see some more engines. Don't be sceered!!!!!!!!!:rockon: :rockon: :rockon: :rockon: :rockon:

WaynesRS

Man you have your plugwires fixed up nice . I like a clean set-up of plugwires like that . Very clean and good looking engine also .

DM91RS

One

DM91RS

Two
