HELP TPS Adjustment Problems Picture Inside
Thread Starter
Junior Member
Joined: Mar 2005
Posts: 50
Likes: 0
HELP TPS Adjustment Problems Picture Inside
All I can get from the tps is .0 voltage. Am I doing something wrong? I tried switching terminals on the volt meter and still nothing. I have the ignition on and still nothing. Any ideas guys? The car is an 87 transam with a 305 tpi. Thanks - Justin
Member
Joined: Aug 2003
Posts: 282
Likes: 0
From: Jeffersonville, In (Louisville, Ky)
Car: 92 Z28
Engine: 305 TPI, Edelbrock headers, 3in Flowmaster exhaust
Transmission: 700R4
Do you have the key in the on position? I think you do to check the TPS. And are you checking the right terminals?
Supreme Member
Joined: Jul 1999
Posts: 5,183
Likes: 42
From: Oakdale, Ca
Car: 89 IrocZ
Engine: L98-ish
Transmission: 700R4
Couple of things to check...probe your blue wire and verify 5v's.
Verify your grounds on the meter and the wire you added for the center terminal (assume it's ECM ground?)
Verify continuity from the ground you added to the center of the plug on the harness.
Verify your grounds on the meter and the wire you added for the center terminal (assume it's ECM ground?)
Verify continuity from the ground you added to the center of the plug on the harness.
Supreme Member
Joined: Jul 1999
Posts: 5,183
Likes: 42
From: Oakdale, Ca
Car: 89 IrocZ
Engine: L98-ish
Transmission: 700R4

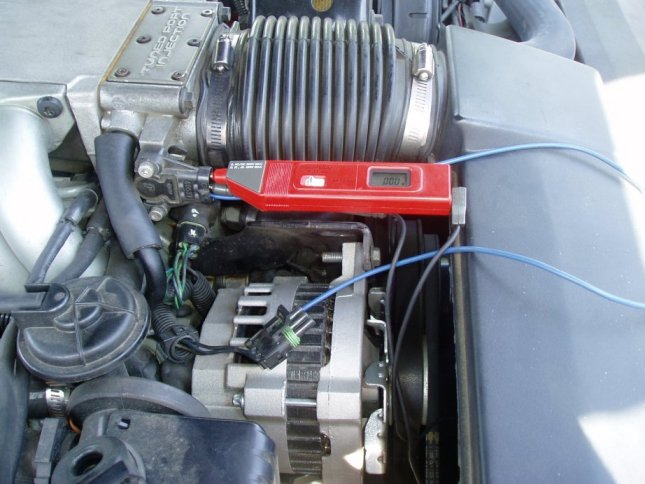

I just took a closer look at your pic...
The probe you have in the center hole on the TPS...is that coming from your meter?
If so, that's your problem....you have no difference of potential....
Run another jumper from the harness connector (center hole) to the middle one on the TPS. This (assuing you pinouts are correct) gives you 5v and ground at the TPS.
Then ground the meter and check output on the top pin of the TPS.
The probe you have in the center hole on the TPS...is that coming from your meter?
If so, that's your problem....you have no difference of potential....
Run another jumper from the harness connector (center hole) to the middle one on the TPS. This (assuing you pinouts are correct) gives you 5v and ground at the TPS.
Then ground the meter and check output on the top pin of the TPS.
Supreme Member
Joined: Aug 2001
Posts: 2,136
Likes: 2
From: Costal Alabama
Car: 1989 Iroc-Z
Engine: 350, ZZ4 equivalent
Transmission: Pro-Built Road Race 700R4
Axle/Gears: 3.23 Dana 44
Like 8Mike9 said you are not completing the circuit. The sensor must have 5v and ground to complete the circuit. Run another wire for ground to the sensor.
Trending Topics
Thread Starter
Junior Member
Joined: Mar 2005
Posts: 50
Likes: 0
Well I tried it the way you guys said and it worked perfect. The setting it was at before was something like .35 I have it adjusted to .546 now what are you guys usually running it at? Also I was wondering if anyone could help me out with another small problem I was having the car kind of stumbles and almost stalls when driving under a quarter throttle. It surges then when I let off of the gas it tries to catch up and almost stalls. Well I disconnected the egr valve to see if that would do anything and the car doesnt stall or stumble anymore. Could this be a bad egr valve or could it be a bad sensor that is kicking the egr valve in to early? Thanks - Justin
