Would this work?
#1
Senior Member
Thread Starter
Join Date: Oct 2003
Location: LaGrange (10min from Poughkeepsie), NY
Posts: 942
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1992 Camaro RS - not real slow anymore...
Engine: SPDC 360 MAF EFI /w a Holley Stealth Ram
Transmission: T5 untill it blows up from to much torque
Axle/Gears: Ford 9" /w auburn pro & 3.89's
Would this work?

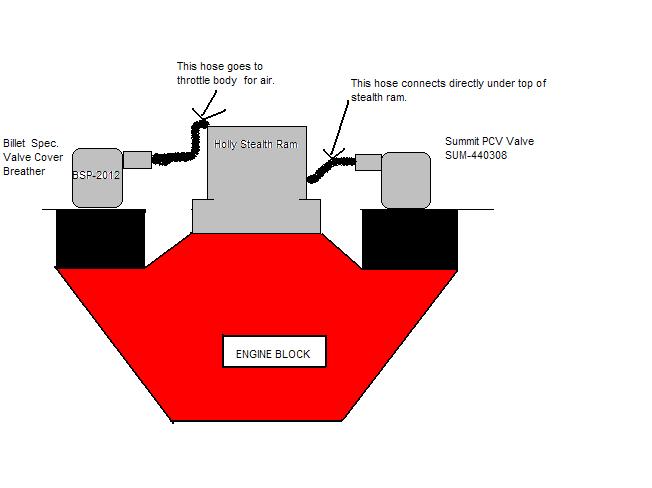

I'm trying to set up a pcv and breather system for my maf operated TPi system. Any thought or suggestions? In the diagram below, i was going to route the pcvline to the underside of the top of the stealth ram where there is a hole tapped for i think 1 1/2" fitting. The breather line I was going to run to the throttle body. Doesn't one of those fitting produce air and not vacuum?
Billest Specialties Breather #BSP-20120
Diameter (in): 2.491
Height (in): 2.500
Valve Cover Breather Attachment: Push-in
Notes: Designed to fit 1.250 in. valve cover opening.
Summit PCV Valve #SUM-440308
PCV Angle: 90 degree
Inlet Attachment: Hose barb
Inlet Size: 3/8 in.
Grommet Included: Yes
1.22 in. O.D
Please give me your thoughts/changes!
Billest Specialties Breather #BSP-20120
Diameter (in): 2.491
Height (in): 2.500
Valve Cover Breather Attachment: Push-in
Notes: Designed to fit 1.250 in. valve cover opening.
Summit PCV Valve #SUM-440308
PCV Angle: 90 degree
Inlet Attachment: Hose barb
Inlet Size: 3/8 in.
Grommet Included: Yes
1.22 in. O.D
Please give me your thoughts/changes!
Last edited by Dirtbik3r; 01-05-2006 at 12:15 AM.
#2
Senior Member
Thread Starter
Join Date: Oct 2003
Location: LaGrange (10min from Poughkeepsie), NY
Posts: 942
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1992 Camaro RS - not real slow anymore...
Engine: SPDC 360 MAF EFI /w a Holley Stealth Ram
Transmission: T5 untill it blows up from to much torque
Axle/Gears: Ford 9" /w auburn pro & 3.89's
TTT
#3
Senior Member
Thread Starter
Join Date: Oct 2003
Location: LaGrange (10min from Poughkeepsie), NY
Posts: 942
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1992 Camaro RS - not real slow anymore...
Engine: SPDC 360 MAF EFI /w a Holley Stealth Ram
Transmission: T5 untill it blows up from to much torque
Axle/Gears: Ford 9" /w auburn pro & 3.89's

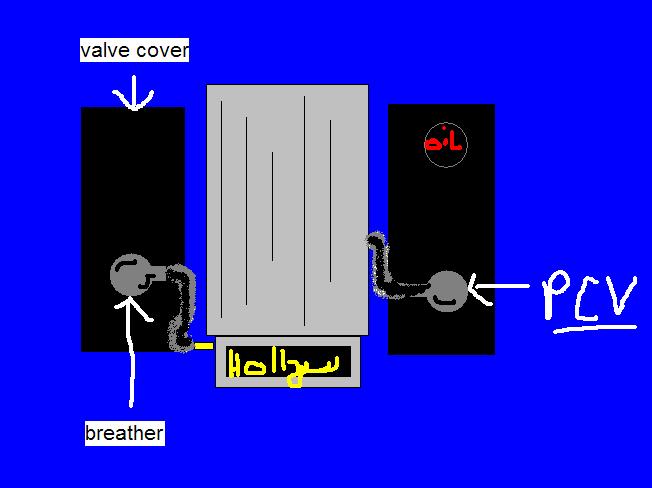

Maybe this will help... Ya, I know I spelled holley wrong.
#4
Moderator
Join Date: Feb 2000
Location: Schererville , IN
Posts: 7,015
Likes: 0
Received 1 Like
on
1 Post
Car: 91 GTA, 91 Formula, 89 TTA
Engine: all 225+ RWHP
Transmission: all OD
Axle/Gears: Always the good ones
I dont quite understand why your still asking about this? did I miss something?
The top line on the TB will be the on for the breather. The second one down should be for the CCP if your car is still so equipped.(double check this I am going from memory, vader and i have both posted the correct ones if u search.)
I would rather see u install a stock type delco pcv valve. On the breather side, u could use the breather or just a line like originally came from the factory.
Either way u should have a pcv setup on any street type car, helps out with crankcase pollution and doesnt let the pressure build up in the actual engine itself.
later
Jeremy
The top line on the TB will be the on for the breather. The second one down should be for the CCP if your car is still so equipped.(double check this I am going from memory, vader and i have both posted the correct ones if u search.)
I would rather see u install a stock type delco pcv valve. On the breather side, u could use the breather or just a line like originally came from the factory.
Either way u should have a pcv setup on any street type car, helps out with crankcase pollution and doesnt let the pressure build up in the actual engine itself.
later
Jeremy
#5
Senior Member
Thread Starter
Join Date: Oct 2003
Location: LaGrange (10min from Poughkeepsie), NY
Posts: 942
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1992 Camaro RS - not real slow anymore...
Engine: SPDC 360 MAF EFI /w a Holley Stealth Ram
Transmission: T5 untill it blows up from to much torque
Axle/Gears: Ford 9" /w auburn pro & 3.89's
Alright, I got it. It has been so long since started this swap that I forgot how the vacuum lines were routed. I needed the memory refreshment. I'll go to NAPA tomorrow and pick up some grommets, vacuum hoses, and a pcv valve. Thanks again Jeremy.
In case anybody is doing a search and needed this information.
Top Port = Air
Lower Port = Vacuum

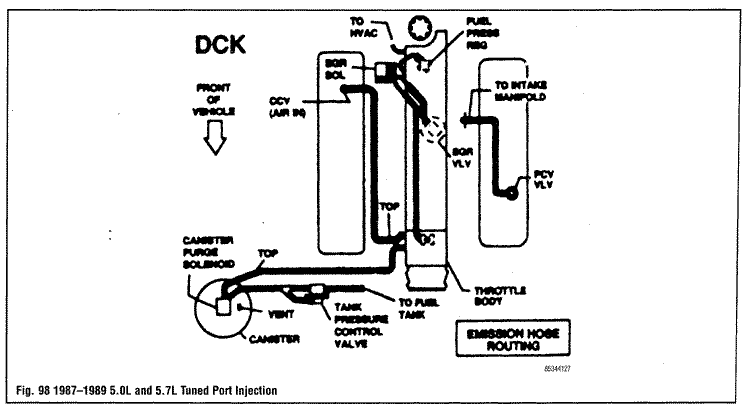

Found this picture to help me out (courtesy of Trickster):
In case anybody is doing a search and needed this information.
Top Port = Air
Lower Port = Vacuum
Found this picture to help me out (courtesy of Trickster):
Last edited by Dirtbik3r; 01-05-2006 at 10:41 PM.
#6
Moderator
Join Date: Feb 2000
Location: Schererville , IN
Posts: 7,015
Likes: 0
Received 1 Like
on
1 Post
Car: 91 GTA, 91 Formula, 89 TTA
Engine: all 225+ RWHP
Transmission: all OD
Axle/Gears: Always the good ones
lol
When in doubt, get it as close as u can to the factory way.
U gonna do your own prom tuning on that thing?
later
Jeremy
When in doubt, get it as close as u can to the factory way.
U gonna do your own prom tuning on that thing?
later
Jeremy
#7
Senior Member
Thread Starter
Join Date: Oct 2003
Location: LaGrange (10min from Poughkeepsie), NY
Posts: 942
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1992 Camaro RS - not real slow anymore...
Engine: SPDC 360 MAF EFI /w a Holley Stealth Ram
Transmission: T5 untill it blows up from to much torque
Axle/Gears: Ford 9" /w auburn pro & 3.89's
Originally posted by 3.8TransAM
Thread
Thread Starter
Forum
Replies
Last Post
Terrell351
Engine/Drivetrain/Suspension Parts for Sale
5
06-13-2021 01:13 PM
