Re: MAF relay differences. They are not all the same

Quote:
Originally Posted by fastgascar View Post
Bringing this one back, can someone please assist. I pulled a code 36 so I started poking around the relays, I have a 1988 Chevy Iroc Z 5.7 and I have these exact colors on my relays listed in the quote, however the relay I think is the fuel pump has part # 10094701(rectangle), the other two are 14089936(round). I have the fuel pump relay out of the car and the car still starts. I disconnected all three relays and the car starts, of course the idle is rough. If the MAF power and MAF burnoff relay are supposed to be different then, why do I have two of the same. These are factory? Never been taken out of the car. The car has been in my family the last 24 years, so I know it was never swapped around.
With all the relays disconnected, especially the fuel pump relay, the car shouldn't start at all. When the the key is turned, it energizes the FP relay, which will send current to the oil pressure switch that is "open". When you crank the engine, the oil pressure rises and "closes" the switch which will then send a continues current to power the FP. Without the relay, there is no power to the oil pressure switch. That is how my 86 IROC is wired. I'm not too sure how your electrical system is wired so it may be different.
Chevy86 IROC-Z is offline   Reply With Quote
Old 10-09-2013, 08:59 PM   #102
Senior Member

y84pauloflondon's Avatar

Join Date: May 2008
Location: London, Ont, Canada
Posts: 833
Car: 87 T-Top GTA
Engine: 350 TPI
Transmission: 700R4
Axle/Gears: 3.27

Re: MAF relay differences. They are not all the same

Quote:
Originally Posted by Chevy86 IROC-Z View Post
With all the relays disconnected, especially the fuel pump relay, the car shouldn't start at all. When the the key is turned, it energizes the FP relay, which will send current to the oil pressure switch that is "open". When you crank the engine, the oil pressure rises and "closes" the switch which will then send a continues current to power the FP. Without the relay, there is no power to the oil pressure switch. That is how my 86 IROC is wired. I'm not too sure how your electrical system is wired so it may be different.
Hey Chevy86, love the fact ur still helping out guys on a thread that was started in 07. That's Love!!!
y84pauloflondon is offline   Reply With Quote
Old 10-19-2013, 10:52 PM   #103
Junior Member

Join Date: Sep 2013
Location: RI
Posts: 21
Engine: 305 TPI
Transmission: 700R4
Axle/Gears: 10 bolt 2.73 posi

Re: MAF relay differences. They are not all the same

I just want to put it out there because I just fixed this issue with my car. I would not use these interchangeably. My car had the power relay and the burnoff relay swapped around, and with them connected like this it caused the D terminal on the MAF connector to be powered with 12v, ran like garbage, and threw a code 33. So there must be something different where the relay is switched internally as the problem was fixed by connecting the right relays to the right plugs.

This was a 1987 with a TPI 305, both relays were from OE parts from AC DELCO.
The_AntiPirate is offline   Reply With Quote
Old 10-20-2013, 07:19 AM   #104
Supreme Member

rusty vango's Avatar

Join Date: Jun 2011
Location: knoxville tn
Posts: 2,035
Car: 86 IROC
Engine: 5.0 TPI
Transmission: 700-R-4
Axle/Gears: 2.73 open

Re: MAF relay differences. They are not all the same

Quote:
Originally Posted by resinlake View Post
ok here, is one more question, who would be the best source for a replacement Maf Burnoff and Maf Power Harness ends/plugs? Mine have exposed wires and move around too much. I think that is half if not the whole problem I'm having with mine. Thanks
NAPA and o reilleys have the wiring plugs
rusty vango is offline   Reply With Quote
Old 10-20-2013, 07:30 AM   #105
Supreme Member

rusty vango's Avatar

Join Date: Jun 2011
Location: knoxville tn
Posts: 2,035
Car: 86 IROC
Engine: 5.0 TPI
Transmission: 700-R-4
Axle/Gears: 2.73 open

Re: MAF relay differences. They are not all the same

Quote:
Originally Posted by Chevy86 IROC-Z View Post
Actually, yes, I just read the post. I should hit myself huh? .....There we go. No problem. No offense taken.
it shouldn't matter how old a post is.every day un suspecting people buy these cars .and THEN the trouble starts.the smart ones come to TGO looking for info for their particular TPI hell. the not so smart ones go from garage to garage HOPING to find a "technician" that knows about our cars .only to find that the techs are younger than our cars and NO body knows anything.when it comes to 3rd gen Camaros we appear to be own our own
rusty vango is offline   Reply With Quote
Old 10-20-2013, 04:11 PM   #106
Supreme Member
iTrader: (17)

Chevy86 IROC-Z's Avatar

Join Date: May 2009
Location: Far West
Posts: 4,781
Car: 1986 Camaro Z28 IROC-Z
Engine: 350 Tuned Port Injection, for now.
Transmission: 700R4
Axle/Gears: Posi - 3.23

Re: MAF relay differences. They are not all the same

Quote:
Originally Posted by rusty vango View Post
it shouldn't matter how old a post is.every day un suspecting people buy these cars .and THEN the trouble starts.the smart ones come to TGO looking for info for their particular TPI hell. the not so smart ones go from garage to garage HOPING to find a "technician" that knows about our cars .only to find that the techs are younger than our cars and NO body knows anything.when it comes to 3rd gen Camaros we appear to be own our own
Well said.
If your gonna look for a mechanic, it better be an old guy. They more than likely know about old vehicles and the basics.
Chevy86 IROC-Z is offline   Reply With Quote
Old 10-28-2013, 04:39 PM   #107
Junior Member

Join Date: Mar 2013
Location: Amsterdam, NY
Posts: 97
Car: 1988 Chevrolet Camaro IROC-Z
Engine: 305 TPI
Transmission: T5
Axle/Gears: 3.73 10-Bolt Posi

Re: MAF relay differences. They are not all the same

So what are the current part numbers for these relays? I'm having a fluctuating idle and car craps out at 3600. Switched the two relays and the problem went away for a little while.

Both my relays are the oval ones, part number 14089936. 1988 IROC, 305TPI.
Zeifer is offline   Reply With Quote
Old 10-28-2013, 09:53 PM   #108
Supreme Member

rusty vango's Avatar

Join Date: Jun 2011
Location: knoxville tn
Posts: 2,035
Car: 86 IROC
Engine: 5.0 TPI
Transmission: 700-R-4
Axle/Gears: 2.73 open

Re: MAF relay differences. They are not all the same

Quote:
Originally Posted by resinlake View Post
ok here, is one more question, who would be the best source for a replacement Maf Burnoff and Maf Power Harness ends/plugs? Mine have exposed wires and move around too much. I think that is half if not the whole problem I'm having with mine. Thanks
napa & oreilleys both have the "pigtails" in question, however ,i must point out that they must be soldered in, NOT crimped. the idea being that theres less resistance/heat in a soldered connection than a crimped one
rusty vango is offline   Reply With Quote
Old 09-01-2014, 06:09 PM   #109
Junior Member

Join Date: Aug 2014
Posts: 21
Car: would like to drive this 1987 iroc
Engine: 5.7 bored .030 over
Transmission: 700r4

Re: MAF relay differences. They are not all the same

Quote:
Originally Posted by pandin View Post
This info comes off the AutoZone Web Page

MR82


MAF burn off
Part Number: MR82
Weight: 0.154 lbs.
Note: O.E.M. #10038792, 10094701, 14078907, 14078979

Gp-Sorensen / Relay - Anti-Lock Brake
MR82
Gp-Sorensen / Relay - Fuel Pump
MR82
Gp-Sorensen / Relay - Throttle Control
MR82
Gp-Sorensen / Relay - Fast Idle
MR82
Gp-Sorensen / Relay - Mass Air Flow Sensor
MR82
Gp-Sorensen / Relay - A/C Compressor Control
MR82
Gp-Sorensen / Relay - Radiator Cooling Fan Motor
MR82

MR22
https://www.thirdgen.org/forums/atta...1&d=1216175175

MAF power
Part Number: MR22
Weight: 0.15 lbs.
Application: With 4 terminals

Note: O.E.M. #10067925, 14039663, 14073412, 14078915

Gp-Sorensen / Relay - Fast Idle
MR22
Gp-Sorensen / Relay - Blower Motor Cutout
MR22
Gp-Sorensen / Relay - Fuel Pump
MR22
Gp-Sorensen / Relay - EFE Control
MR22
Gp-Sorensen / Relay - Air Pump
MR22
Gp-Sorensen / Relay - Upshift
MR22
Gp-Sorensen / Relay - A/C Compressor Control
MR22
Gp-Sorensen / Relay - Mass Air Flow Sensor
MR22 Note: Optional
Gp-Sorensen / Relay - Throttle Control
MR22
Gp-Sorensen / Relay - A.I.R. Control
MR22


MR5
https://www.thirdgen.org/forums/atta...1&d=1216175175

Fuel pump
Part Number: MR5
Weight: 0.149 lbs.
Note: O.E.M. #14078902 (14078914)

Gp-Sorensen / Relay - Amplifier
MR5
Gp-Sorensen / Relay - Aux. Engine Cooling Fan
MR5
Gp-Sorensen / Relay - Radiator Cooling Fan Motor
MR5
Gp-Sorensen / Relay - Fuel Pump
MR5
Gp-Sorensen / Relay - Anti Diesel
MR5

Notice all three will run fuel pumps (large inrush and large magnetic cutoff, EMF) , and the MR82 weights the most.

The MR82 has larger relay contacts then the MR22, and did not see the extra resistors in the GP relays.
any way any of you can give me a hand with my tps voltage issue? I'm not even to sure if i have all the right relays in their location and I'm starting to think i have two different halts of wiring harnesses :S
Tri'all is offline   Reply With Quote
Old 12-23-2014, 12:00 PM   #110
Member

Join Date: Dec 2007
Location: the jerzy shore
Posts: 132
Car: i want an IROC!!!

Re: MAF relay differences. They are not all the same

Hey guys, Im getting confused with all the part numbers for the different relays getting thrown around.. For my 88 iroc, what are the correct part numbers for my fuel pump,mass air power and mass air burnoff relays? Thanks
silverstang84 is offline   Reply With Quote
Old 01-02-2015, 02:10 PM   #111
Member

Join Date: Jul 2011
Location: Los Angeles
Posts: 167
Car: 1987 IROC-Z Camaro
Engine: 305 LB9
Transmission: 700r4

Re: MAF relay differences. They are not all the same

Who sells relays these days that work?
penguinpanda0 is offline   Reply With Quote
Old 01-02-2015, 04:31 PM   #112
Member

Join Date: Dec 2007
Location: the jerzy shore
Posts: 132
Car: i want an IROC!!!

Re: MAF relay differences. They are not all the same

^ I'd like to know as well
silverstang84 is offline   Reply With Quote
Old 01-02-2015, 10:28 PM   #113
Supreme Member

rusty vango's Avatar

Join Date: Jun 2011
Location: knoxville tn
Posts: 2,035
Car: 86 IROC
Engine: 5.0 TPI
Transmission: 700-R-4
Axle/Gears: 2.73 open

Re: MAF relay differences. They are not all the same

Quote:
Originally Posted by silverstang84 View Post
^ I'd like to know as well
I buy oreilleys relays, admittadely they last only a 8 month average . but they beat the hell out of auto zone and advance that fail or are the wrong ones right out of the box. BWD -671 MAF power, and BWD -3009 burn off. I cross refrenced these from the GM relay numbers. they work for 86-89 Camaro and trans ams.with the 8th digit of the VIN being "F". or as in the TPI cars. they are our best bet considering
rusty vango is offline   Reply With Quote
Old 01-03-2015, 01:14 AM   #114
Member

Join Date: Dec 2007
Location: the jerzy shore
Posts: 132
Car: i want an IROC!!!

Re: MAF relay differences. They are not all the same

I'm assuming we can't get AC DELCO or GM relays anymore?
silverstang84 is offline   Reply With Quote
Old 01-03-2015, 07:57 AM   #115
Supreme Member

rusty vango's Avatar

Join Date: Jun 2011
Location: knoxville tn
Posts: 2,035
Car: 86 IROC
Engine: 5.0 TPI
Transmission: 700-R-4
Axle/Gears: 2.73 open

Re: MAF relay differences. They are not all the same

Quote:
Originally Posted by silverstang84 View Post
I'm assuming we can't get AC DELCO or GM relays anymore?
no, GM considers them obsolete
rusty vango is offline   Reply With Quote
Old 01-03-2015, 08:03 AM   #116
Member

Join Date: Dec 2007
Location: the jerzy shore
Posts: 132
Car: i want an IROC!!!

Re: MAF relay differences. They are not all the same

Well, that's sucks
silverstang84 is offline   Reply With Quote
Old 01-03-2015, 09:22 AM   #117
Supreme Member

rusty vango's Avatar

Join Date: Jun 2011
Location: knoxville tn
Posts: 2,035
Car: 86 IROC
Engine: 5.0 TPI
Transmission: 700-R-4
Axle/Gears: 2.73 open

Re: MAF relay differences. They are not all the same

Quote:
Originally Posted by silverstang84 View Post
Well, that's sucks
ah, it aint all bad. the BWD select relays are pretty good. the trick is to not get fooled into being told that "MAF relays are all the same". they are NOT. and doing the research to make sure you get the correct relays for your application. we find that buying a quality MAF and relays is half the battle with a TPI car. it took quite a bit of time and effort to compile the GM part numbers for these components. IMHO its the only way to be certain
rusty vango is offline   Reply With Quote
Old 01-03-2015, 02:03 PM   #118
Member

Join Date: Dec 2007
Location: the jerzy shore
Posts: 132
Car: i want an IROC!!!

Re: MAF relay differences. They are not all the same

That's what I'm trying to figure out.. I've read this thread but in still a little confused. What are the right lets numbers for my 88, 350 TPI iroc?
silverstang84 is offline   Reply With Quote
Old 01-03-2015, 10:30 PM   #119
Supreme Member

rusty vango's Avatar

Join Date: Jun 2011
Location: knoxville tn
Posts: 2,035
Car: 86 IROC
Engine: 5.0 TPI
Transmission: 700-R-4
Axle/Gears: 2.73 open

Re: MAF relay differences. They are not all the same

Quote:
Originally Posted by silverstang84 View Post
That's what I'm trying to figure out.. I've read this thread but in still a little confused. What are the right lets numbers for my 88, 350 TPI iroc?
R-671 and R-3009 are the BWD part numbers. they work on any TPI car from 86-89. I do not recommend any other brand of relays ,although you may cross reference these numbers. I find I have tried them all, and I find BWD to be the highest quality
rusty vango is offline   Reply With Quote
Old 01-03-2015, 11:30 PM   #120
Member

Join Date: Dec 2007
Location: the jerzy shore
Posts: 132
Car: i want an IROC!!!

Re: MAF relay differences. They are not all the same

Quote:
Originally Posted by rusty vango View Post
R-671 and R-3009 are the BWD part numbers. they work on any TPI car from 86-89. I do not recommend any other brand of relays ,although you may cross reference these numbers. I find I have tried them all, and I find BWD to be the highest quality
Thank you sir. Those 2 number you have me are for the mass air power and burnoff relays?
silverstang84 is offline   Reply With Quote
Old 01-04-2015, 01:07 AM   #121
Supreme Member

rusty vango's Avatar

Join Date: Jun 2011
Location: knoxville tn
Posts: 2,035
Car: 86 IROC
Engine: 5.0 TPI
Transmission: 700-R-4
Axle/Gears: 2.73 open

Re: MAF relay differences. They are not all the same

Quote:
Originally Posted by silverstang84 View Post
Thank you sir. Those 2 number you have me are for the mass air power and burnoff relays?
yes, as mentioned they work on the 86-89 TPI cars
rusty vango is offline   Reply With Quote
Old 01-09-2015, 08:30 PM   #122
Senior Member
iTrader: (2)

Join Date: May 2013
Location: Milford, CT
Posts: 998
Car: 86 Trans Am
Engine: 383 stroker
Transmission: 700r4
Axle/Gears: 2.77 9 bolt for now

Re: MAF relay differences. They are not all the same

I went to autozone and got PO#19844 for the burnoff relay and PO#010469 for the power relay. I'm sure someones gonna say these aren't the correct part numbers and I know that they aren't the best choice but they have worked fine for me with no issues.
TylerSteez is offline   Reply With Quote
Old 01-10-2015, 10:54 AM   #123
Supreme Member

rusty vango's Avatar

Join Date: Jun 2011
Location: knoxville tn
Posts: 2,035
Car: 86 IROC
Engine: 5.0 TPI
Transmission: 700-R-4
Axle/Gears: 2.73 open

Re: MAF relay differences. They are not all the same

Quote:
Originally Posted by TylerSteez View Post
I went to autozone and got PO#19844 for the burnoff relay and PO#010469 for the power relay. I'm sure someones gonna say these aren't the correct part numbers and I know that they aren't the best choice but they have worked fine for me with no issues.
let alone the best choice, they aren't even the correct relays. but ,hey its your money
rusty vango is offline   Reply With Quote
Old 01-10-2015, 02:39 PM   #124
Senior Member
iTrader: (2)

Join Date: May 2013
Location: Milford, CT
Posts: 998
Car: 86 Trans Am
Engine: 383 stroker
Transmission: 700r4
Axle/Gears: 2.77 9 bolt for now

Re: MAF relay differences. They are not all the same

Quote:
Originally Posted by rusty vango View Post
let alone the best choice, they aren't even the correct relays. but ,hey its your money
They are working fine for me, and for thirty bucks I'm not gonna cry and complain if I need to switch, thanks for the attitude though
TylerSteez is offline   Reply With Quote
Old 01-10-2015, 03:12 PM   #125
Supreme Member

rusty vango's Avatar

Join Date: Jun 2011
Location: knoxville tn
Posts: 2,035
Car: 86 IROC
Engine: 5.0 TPI
Transmission: 700-R-4
Axle/Gears: 2.73 open

Re: MAF relay differences. They are not all the same

Quote:
Originally Posted by TylerSteez View Post
They are working fine for me, and for thirty bucks I'm not gonna cry and complain if I need to switch, thanks for the attitude though
hey, im not tryin to be a bitc$. my goal here is to help. and if the mystery relays work for you ,great. im trying to share what I have learned with others who need advice and part numbers. nothing more .or less.
rusty vango is offline   Reply With Quote
Old 02-03-2015, 03:17 PM   #126
Member

Join Date: Dec 2007
Location: the jerzy shore
Posts: 132
Car: i want an IROC!!!

Re: MAF relay differences. They are not all the same

Quote:
Originally Posted by rusty vango View Post
yes, as mentioned they work on the 86-89 TPI cars
Hey man. I just got my car out of storage and I'm tackling this relay problem.. I have a question. If the 88-89 cars had the one square relay,2 oval relays, how can the parts numbers you gave me work on 86-89?
silverstang84 is offline   Reply With Quote
Old 02-03-2015, 06:35 PM   #127
Supreme Member

rusty vango's Avatar

Join Date: Jun 2011
Location: knoxville tn
Posts: 2,035
Car: 86 IROC
Engine: 5.0 TPI
Transmission: 700-R-4
Axle/Gears: 2.73 open

Re: MAF relay differences. They are not all the same

Quote:
Originally Posted by silverstang84 View Post
Hey man. I just got my car out of storage and I'm tackling this relay problem.. I have a question. If the 88-89 cars had the one square relay,2 oval relays, how can the parts numbers you gave me work on 86-89?
I have seen different styles of them. its not what the housing looks like that matters. its what is inside that counts.and according to the GM catalog the relays from 86-89 are the same
rusty vango is offline   Reply With Quote
Old 02-03-2015, 08:06 PM   #128
Member

Join Date: Dec 2007
Location: the jerzy shore
Posts: 132
Car: i want an IROC!!!

Re: MAF relay differences. They are not all the same

According to the pictures, these telays are the flat square type. My Maf burnoff and maf power are the rounded type. They're not interchangeable.

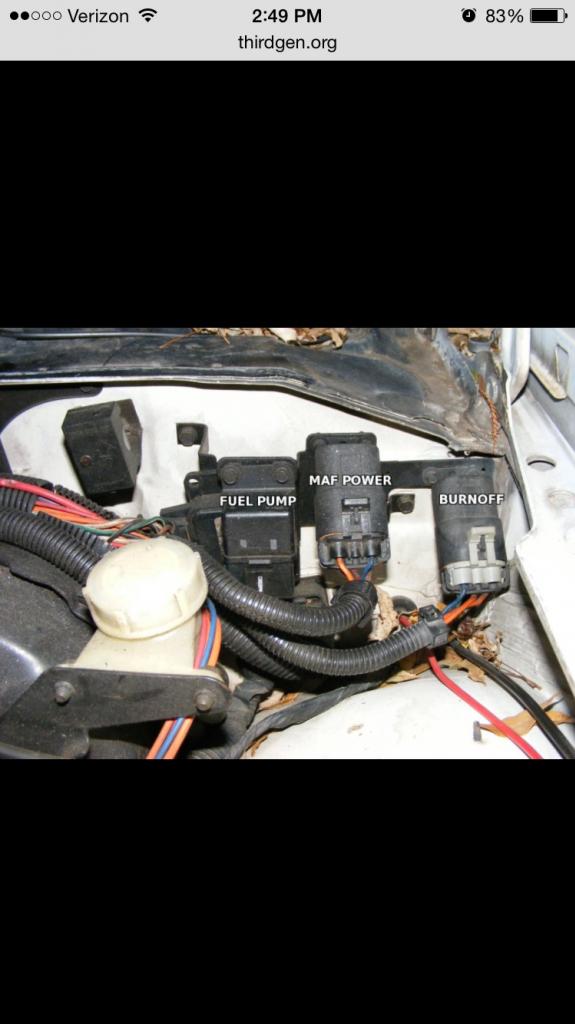

These are what my relays look like. Fuel pump on the left, mad power in middle, maf burnoff on right

Name:  image-17.jpg
Views: 434
Size:  54.4 KB
silverstang84 is offline   Reply With Quote
Old 02-03-2015, 08:41 PM   #129
Supreme Member

rusty vango's Avatar

Join Date: Jun 2011
Location: knoxville tn
Posts: 2,035
Car: 86 IROC
Engine: 5.0 TPI
Transmission: 700-R-4
Axle/Gears: 2.73 open

Re: MAF relay differences. They are not all the same

Quote:
Originally Posted by silverstang84 View Post
According to the pictures, these telays are the flat square type. My Maf burnoff and maf power are the rounded type. They're not interchangeable.

These are what my relays look like. Fuel pump on the left, mad power in middle, maf burnoff on right

while it is true that none of the relays are interchangeable. you have to rule out if anyone has moved things around previously. on the bracket . you can check this with a test light. you cant rule anything out as POs may have changed things around . your best and only weapon is going to be a factory service manual for your car. that and us here on TGO
rusty vango is offline   Reply With Quote
Old 02-26-2015, 03:33 AM   #130
Junior Member

Join Date: Jan 2010
Location: Vancouver BC, area
Posts: 10
Car: Camaro IROC-Z28
Engine: 5.0/305
Transmission: 5 Speed

Re: MAF relay differences. They are not all the same

Quote:
Originally Posted by rusty vango View Post
while it is true that none of the relays are interchangeable. you have to rule out if anyone has moved things around previously. on the bracket . you can check this with a test light. you cant rule anything out as POs may have changed things around . your best and only weapon is going to be a factory service manual for your car. that and us here on TGO
That;s not entirley true as the tread "say they are not all the same", but couple if the them are interchangeable depends on the year and type for example up to year 87 the Fuel Pump relay and MAF burn Off Relay got to use the same part number (GM PART#10094701) or BW R3009 where the MAF power needs BW R671 for the same year.(I have listed the correct parts numbers from different vendors in my previous post).... 1988 year still used the (GM PART#10094701) for the fuel pump relay, but has different oval shape relays for power and burn off and I believe some one said they were not interchangeable, but that I don't know
judoka_ca is offline   Reply With Quote
Old 02-26-2015, 10:50 AM   #131
Supreme Member

rusty vango's Avatar

Join Date: Jun 2011
Location: knoxville tn
Posts: 2,035
Car: 86 IROC
Engine: 5.0 TPI
Transmission: 700-R-4
Axle/Gears: 2.73 open

Re: MAF relay differences. They are not all the same

Quote:
Originally Posted by judoka_ca View Post
That;s not entirley true as the tread "say they are not all the same", but couple if the them are interchangeable depends on the year and type for example up to year 87 the Fuel Pump relay and MAF burn Off Relay got to use the same part number (GM PART#10094701) or BW R3009 where the MAF power needs BW R671 for the same year.(I have listed the correct parts numbers from different vendors in my previous post).... 1988 year still used the (GM PART#10094701) for the fuel pump relay, but has different oval shape relays for power and burn off and I believe some one said they were not interchangeable, but that I don't know
while its very good to post up the info you did. my point was that POs can and do some strange things. its best to not assume anything is correct until you check.
rusty vango is offline   Reply With Quote
Old 09-09-2015, 06:56 PM   #132
Junior Member

Johnstonxj's Avatar

Join Date: Mar 2013
Location: Derry PA
Posts: 33
Car: 1988 GTA
Engine: 5.0 TPI
Transmission: 700R4
Axle/Gears: 3:90

Re: MAF relay differences. They are not all the same

Here's a picture from the 1988 service manual I have. I just ordered the part #10094701 burn off relay. However, like everyone said, these cars are different. Funny that this pic shows it different from others of the same year on here.


Johnstonxj is offline   Reply With Quote
Old 09-21-2015, 03:31 PM   #133
Junior Member

Join Date: Jan 2010
Location: Vancouver BC, area
Posts: 10
Car: Camaro IROC-Z28
Engine: 5.0/305
Transmission: 5 Speed

Re: MAF relay differences. They are not all the same

[QUOTE=Johnstonxj;5959862]Here's a picture from the 1988 service manual I have. I just ordered the part #10094701 burn off relay. However, like everyone said, these cars are different. Funny that this pic shows it different from others of the same year on here.

I agree 100% I have compared the few diagrams for Fuel, MAF-Burn off and MAF-Power relays and noted different collours going to different terminals all diagrams claimed to be for 5.0 and 5.7 TPI engines

I have 87 IROC-Z28 5.0 TPI 5 SPEED F body and my MAF power relay wires are in reverese order as previoulsy posted by scubbasteve..in post 19

I compared my MAF power relay wires and they go as follows

MAF POWER RELAY
A-RED
B-BLK/WHT
C-TAN/WHT
D-GRN
D-ORG

FUEL PUMP RELAY
A-BLU
B-BLK
C-ORG
D-N/A
E-ORG

FUEL PUMP RELAY
A-TAN/WHT
B-BLK/WHT
C-GRN/WHT
D-ORG 16Gauge
E-ORG 12

Could any one who has 87 IROC-Z 28 5.0 5speed confirm Their wires and terminals especially for MAF-POWER RELAY.
PO of my IROC removed the MAF power relay and cut the wires for some reason.
I bought an after market one and reconnected it all to their corresponding collours but the she doesnt drive quite right and now am not sure seeing all the different diagrams that all my wires go to their correct terminals
Attached Thumbnails
MAF relay differences. They are not all the same-scan.jpg
judoka_ca is offline   Reply With Quote
Old 09-22-2015, 12:45 AM   #134
Junior Member

Join Date: Jan 2010
Location: Vancouver BC, area
Posts: 10
Car: Camaro IROC-Z28
Engine: 5.0/305
Transmission: 5 Speed

Re: MAF relay differences. They are not all the same

Quote:
Originally Posted by rusty vango View Post
while its very good to post up the info you did. my point was that POs can and do some strange things. its best to not assume anything is correct until you check.
yes I agree with you Rusty all the way my post was merely FYI only
judoka_ca is offline   Reply With Quote
Old 02-22-2016, 09:25 AM   #135
Junior Member

FireballXL5's Avatar

Join Date: Mar 2012
Posts: 23

Re: MAF relay differences. They are not all the same

[QUOTE=rusty vango;5873574]I have seen different styles of them. its not what the housing looks like that matters. its what is inside that counts.and according to the GM catalog the relays from 86-89 are the same[/QUOTE

All though that might be true, still can't use it if the connector won't or can't connect to the relay because they won't match up. Common sense here.
FireballXL5 is offline   Reply With Quote
Old 02-26-2016, 02:57 PM   #136
Junior Member

FireballXL5's Avatar

Join Date: Mar 2012
Posts: 23

Re: MAF relay differences. They are not all the same

Quote:
Originally Posted by rusty vango View Post
NAPA and o reilleys have the wiring plugs
All depends on the relays you want to install, some are different, if you want the choice of which ones you need, check Hawks 3rd gen.com
FireballXL5 is offline   Reply With Quote
Old 02-26-2016, 03:13 PM   #137
Junior Member

FireballXL5's Avatar

Join Date: Mar 2012
Posts: 23

Re: MAF relay differences. They are not all the same

Quote:
Originally Posted by judoka_ca View Post
That;s not entirley true as the tread "say they are not all the same", but couple if the them are interchangeable depends on the year and type for example up to year 87 the Fuel Pump relay and MAF burn Off Relay got to use the same part number (GM PART#10094701) or BW R3009 where the MAF power needs BW R671 for the same year.(I have listed the correct parts numbers from different vendors in my previous post).... 1988 year still used the (GM PART#10094701) for the fuel pump relay, but has different oval shape relays for power and burn off and I believe some one said they were not interchangeable, but that I don't know
Look at the wiring, for one, two have 5 wires and one has 4, so one of the relays is not interchangable, as for as the different types of relays you might have to change the connectors to fit the relay, as one type might not be on the market anymore. Which is what I am finding out the hard way.
FireballXL5 is offline   Reply With Quote
Old 02-26-2016, 03:15 PM   #138
Junior Member

FireballXL5's Avatar

Join Date: Mar 2012
Posts: 23

Re: MAF relay differences. They are not all the same

Quote:
Originally Posted by silverstang84 View Post
According to the pictures, these telays are the flat square type. My Maf burnoff and maf power are the rounded type. They're not interchangeable.

These are what my relays look like. Fuel pump on the left, mad power in middle, maf burnoff on right


This is the same set up I have in mine the FP relay is rectangle while the MAF relays are the other type.
FireballXL5 is offline   Reply With Quote
Old 02-26-2016, 03:26 PM   #139
Junior Member

FireballXL5's Avatar

Join Date: Mar 2012
Posts: 23

Re: MAF relay differences. They are not all the same

Quote:
Originally Posted by Zeifer View Post
So what are the current part numbers for these relays? I'm having a fluctuating idle and car craps out at 3600. Switched the two relays and the problem went away for a little while.

Both my relays are the oval ones, part number 14089936. 1988 IROC, 305TPI.
There is a difference in the relays if your using the same for both the burn off and power it will not run right
FireballXL5 is offline   Reply With Quote
Old 02-26-2016, 03:27 PM   #140
Junior Member

FireballXL5's Avatar

Join Date: Mar 2012
Posts: 23

Re: MAF relay differences. They are not all the same

Quote:
Originally Posted by rusty vango View Post
R-671 and R-3009 are the BWD part numbers. they work on any TPI car from 86-89. I do not recommend any other brand of relays ,although you may cross reference these numbers. I find I have tried them all, and I find BWD to be the highest quality
Auto zone does not sell these any more
FireballXL5 is offline   Reply With Quote
Old 04-04-2016, 01:19 PM   #141
Junior Member

Join Date: Apr 2015
Location: Phoenix, AZ
Posts: 15
Car: 1987 Firebird Formula
Engine: 305 TPI
Transmission: T-5

Re: MAF relay differences. They are not all the same

Hey guys, can someone explain specifically what the difference is in the MAF power and MAF burnoff relays? I've repaired some funky wiring by the previous owner and I just used off-the-shelf 12V 30A electrical relays. I had no idea they would be unsuitable, I wasn't trying to cheap-out. The MAF sensor is working (it used to throw code 33 & 36) but now the burnoff cycle is not happening (still throws code 36). If I replace them with the correct relays I'll have to source the pigtails as well since previous owner had done unmentionable things to the relays/wiring. So anyway, I'd love to save $50 - $60 and a couple of hours of work if the debate about correct v. incorrect relays is more about superstition or originality than concrete electrical specifications.
Thanks
Zarathustra is offline   Reply With Quote
Old 05-07-2016, 08:05 PM   #142
Member
iTrader: (-1)

Join Date: Jun 2013
Location: Newmanstown, PA
Posts: 190
Car: '87 Flame Red/Carmine Red GTA
Engine: 350
Transmission: 700r4

Re: MAF relay differences. They are not all the same

I don't know why the power relay needs that resistor in '87 but not on the newer years. The MAFs are the same.
ramicio is offline   Reply With Quote
Old 06-16-2016, 11:48 PM   #143
Junior Member

Join Date: Feb 2012
Location: Northern California
Posts: 75
Car: 1987 Iroc Z28 Camaro
Engine: 5.7 TPI
Transmission: 700R4

Re: MAF relay differences. They are not all the same

So, I've been going through my relays trying to fix a no start issue and, have a 4th 5 pin (only 4 wires on it) box behind the 3 relays on the firewall. It is mounted on a bracket that is directly behind the Fuel Pump Relay. Can't seen to find what it is in any of the books. Any thoughts?
hilltop530 is offline   Reply With Quote
Old 09-03-2016, 03:10 PM   #144
Member
iTrader: (2)

banksGTA's Avatar

Join Date: Jul 2010
Location: Athens, Tn
Posts: 159
Car: 87 GTA
Engine: 350
Transmission: 700r4
Axle/Gears: 3.42 posi

Re: MAF relay differences. They are not all the same

Any ideas after replacing both relays and maf? Still getting code 36 and it idles ruff an typically goes up and down between 400-550 rpm while in drive. Thanks for any help.
banksGTA is offline   Reply With Quote
Old 10-28-2016, 09:31 PM   #145
Junior Member

Join Date: Oct 2016
Location: California
Posts: 2

Re: MAF relay differences. They are not all the same

#14089936 relay can be found as AC-Delco #15-8240

called 88-91 Corvette over drive relay.
TA89TPI305 is offline   Reply With Quote
Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
LS Swap quick fuel power questions thunder57 LTX and LSX 1 11-07-2015 03:28 PM
TPI went lean all of a sudden? Mark_ZZ3 TPI 12 10-13-2015 08:49 AM
TPS sensor and other problems racereese Tech / General Engine 14 10-03-2015 04:46 PM
Is there a difference between pre-90 tpi intake and 90-92? remltr TPI 1 09-30-2015 08:44 PM
Was trying to find fuel pump relay. Now, no oil pressure j00sh TPI 1 09-27-2015 10:49 AM


Go Back   Third Generation F-Body Message Boards >

Tags
14078907, 14078915, 85, 89, air, camaro, firebird, flow, gm, located, mass, number, part, relay, sensor

Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off


Advertising
Featured Sponsors
Vendor Directory

1982 Camaro '82 || 1983 Camaro '83 || 1984 Camaro '84 || 1985 Camaro '85 || 1986 Camaro '86 || 1987 Camaro '87 || 1988 Camaro '88 || 1989 Camaro '89 || 1990 Camaro '90 || 1991 Camaro '91 || 1992 Camaro '92


All times are GMT -5. The time now is 08:06 AM.


All content copyright 1997 - 2014 ThirdGen.org. All rights reserved. No part of this website may be reproduced without the expressed, documented, and written consent of ThirdGen.org's Administrators. We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.

  • Ask a Question
    Get answers from community experts
Question Title:
Description:
Your question will be posted in:
