Re: My 3.4/3x00 hybrid build.
Some progress on the engine build. The block and internals are currently at the shop. I was going to get the block acid dipped to remove the old paint and clean out the coolant passages as this was a high mileage 3.4, but the shop guy said that he would have to re-hone the cylinders after the dip and that might make them too big for my cylinders.
The internals are all getting balanced.
Any ideas on how to best clean out the coolant passages or is it not a big deal?
Once I get it home, I am going to reassemble it with either a 272/284 grind cam or WOT-tech.com's "Little Thumper" 283/275 grind cam and some custom port/polished 3.1 heads(for this year). I might build a turbo set up yet, but I want the car ready to take on the Power Tour again in June so I'm not sure on that.
The internals are all getting balanced.
Any ideas on how to best clean out the coolant passages or is it not a big deal?
Once I get it home, I am going to reassemble it with either a 272/284 grind cam or WOT-tech.com's "Little Thumper" 283/275 grind cam and some custom port/polished 3.1 heads(for this year). I might build a turbo set up yet, but I want the car ready to take on the Power Tour again in June so I'm not sure on that.
#52
Supreme Member
iTrader: (2)
Join Date: Mar 2011
Location: Northwest Ohio
Posts: 6,273
Likes: 0
Received 23 Likes
on
18 Posts
Car: 1991 Camaro RS
Engine: BBC 509 Merlin ii 9.6:1 pump gas
Transmission: ATI pro th350 sfi case. TSI 5500 st
Axle/Gears: Strange S60 4:10s
Re: My 3.4/3x00 hybrid build.
Did i hear a possible hybrid turbo set up? Nice. If you ever do go that route just look at my sig and that will show you the potential of a set up like that. Mines just a 3.1/3100 though not a 3.4.
Just wondering but have you ever considered a delta cam? I got my 270 split custom cam for 140 bucks shipped to the door with the comp cam lifter set. Not sure what WOT cams cost but i'm guessing the delta would save you some cash and you could toss that somewhere else. Might be worth a call to see what they recommend and can offer you. But then again if you stay NA and dont intend to go with a turbo down the road that will cause you to want a much different set up cam wise then me. But they are very good as asking lots of questions to make sure you get the right cam for your set up(stall speed, comp ratio, gears,...exc) and not one that someone off of a forum suggested.
When I did my hybrid build 2 years back, they hot dipped it and it did seem to clean out the coolant passages quite well. Now i run mainly water only(and water wetter) in my car as i'm at the track so much that they really do frown at ethe. or prop. glycol based coolent. And to be honest if I do mess up the track id rather it just be water everywhere..lol So i get a lot of oxidation anyways from that and corrosion from the dissimilar metals. But I wouldn't be too worried about it. Let them hot dip the block to clean it all up and that should do you fine.
Just wondering but have you ever considered a delta cam? I got my 270 split custom cam for 140 bucks shipped to the door with the comp cam lifter set. Not sure what WOT cams cost but i'm guessing the delta would save you some cash and you could toss that somewhere else. Might be worth a call to see what they recommend and can offer you. But then again if you stay NA and dont intend to go with a turbo down the road that will cause you to want a much different set up cam wise then me. But they are very good as asking lots of questions to make sure you get the right cam for your set up(stall speed, comp ratio, gears,...exc) and not one that someone off of a forum suggested.
When I did my hybrid build 2 years back, they hot dipped it and it did seem to clean out the coolant passages quite well. Now i run mainly water only(and water wetter) in my car as i'm at the track so much that they really do frown at ethe. or prop. glycol based coolent. And to be honest if I do mess up the track id rather it just be water everywhere..lol So i get a lot of oxidation anyways from that and corrosion from the dissimilar metals. But I wouldn't be too worried about it. Let them hot dip the block to clean it all up and that should do you fine.
#53
Member
Thread Starter
Re: My 3.4/3x00 hybrid build.
Did i hear a possible hybrid turbo set up? Nice. If you ever do go that route just look at my sig and that will show you the potential of a set up like that. Mines just a 3.1/3100 though not a 3.4.
Just wondering but have you ever considered a delta cam? I got my 270 split custom cam for 140 bucks shipped to the door with the comp cam lifter set. Not sure what WOT cams cost but i'm guessing the delta would save you some cash and you could toss that somewhere else. Might be worth a call to see what they recommend and can offer you. But then again if you stay NA and dont intend to go with a turbo down the road that will cause you to want a much different set up cam wise then me. But they are very good as asking lots of questions to make sure you get the right cam for your set up(stall speed, comp ratio, gears,...exc) and not one that someone off of a forum suggested.
When I did my hybrid build 2 years back, they hot dipped it and it did seem to clean out the coolant passages quite well. Now i run mainly water only(and water wetter) in my car as i'm at the track so much that they really do frown at ethe. or prop. glycol based coolent. And to be honest if I do mess up the track id rather it just be water everywhere..lol So i get a lot of oxidation anyways from that and corrosion from the dissimilar metals. But I wouldn't be too worried about it. Let them hot dip the block to clean it all up and that should do you fine.
Just wondering but have you ever considered a delta cam? I got my 270 split custom cam for 140 bucks shipped to the door with the comp cam lifter set. Not sure what WOT cams cost but i'm guessing the delta would save you some cash and you could toss that somewhere else. Might be worth a call to see what they recommend and can offer you. But then again if you stay NA and dont intend to go with a turbo down the road that will cause you to want a much different set up cam wise then me. But they are very good as asking lots of questions to make sure you get the right cam for your set up(stall speed, comp ratio, gears,...exc) and not one that someone off of a forum suggested.
When I did my hybrid build 2 years back, they hot dipped it and it did seem to clean out the coolant passages quite well. Now i run mainly water only(and water wetter) in my car as i'm at the track so much that they really do frown at ethe. or prop. glycol based coolent. And to be honest if I do mess up the track id rather it just be water everywhere..lol So i get a lot of oxidation anyways from that and corrosion from the dissimilar metals. But I wouldn't be too worried about it. Let them hot dip the block to clean it all up and that should do you fine.
As far as the cam goes, I was planning on talking to Delta once I get my refund check. The real reason I was looking at the cam size from WOT is because of the sound and because of what the dyno estimator said it would make over the Comp Cams 260-260, 272-284 cams that I used for comparison. I did see that it is way bigger than what anyone else was talking about running. is is what it sounds like:
#54
Member
Thread Starter
Re: My 3.4/3x00 hybrid build.
When I did my hybrid build 2 years back, they hot dipped it and it did seem to clean out the coolant passages quite well. Now i run mainly water only(and water wetter) in my car as i'm at the track so much that they really do frown at ethe. or prop. glycol based coolent. And to be honest if I do mess up the track id rather it just be water everywhere..lol So i get a lot of oxidation anyways from that and corrosion from the dissimilar metals. But I wouldn't be too worried about it. Let them hot dip the block to clean it all up and that should do you fine.
He also expressed concernsome about the hypereutectic pistons the package I have came with. He said he has seen enough of them shatter in race and boosted street engines that he refuses to use them in any motor he fully builds. I have heard a guy talk about the pistons in his boosted big block shattering but nothing anywhere else. Has anyone else ever had issues with the hypereutectic pistons shattering in a v6?
#56
Supreme Member
iTrader: (2)
Join Date: Mar 2011
Location: Northwest Ohio
Posts: 6,273
Likes: 0
Received 23 Likes
on
18 Posts
Car: 1991 Camaro RS
Engine: BBC 509 Merlin ii 9.6:1 pump gas
Transmission: ATI pro th350 sfi case. TSI 5500 st
Axle/Gears: Strange S60 4:10s
Re: My 3.4/3x00 hybrid build.
I run hyper pistons as well with Moly rings. No problems here. 2 full years now of alot of track times with the hybrid set up. Trust me when I say I have pushed my engine to the limit when it comes to the stock parts and hyper pistons but I stay away from kr. And my timing is pretty mild for having alum heads.
Last edited by fasteddi; 02-02-2016 at 05:38 AM.
#57
Member
Thread Starter
Re: My 3.4/3x00 hybrid build.
Ok, thank you
#58
Member
Thread Starter
Re: My 3.4/3x00 hybrid build.
Ok. So I know usually necroposting is frowned upon, but I've got a good reason lol.
6 years after the purchase of the engine and 4 years after sending the block out to get forged pistons and get the caps line honed for the stud kit, I'm FINALLY actually building the block.
We started with the removal of the worn (~200kiles) 3.1.
We then pulled the wiring harness apart to remove the MAF and EGR related wiring. Were in the process of tucking the harness out of sight.
I'm going to splice in a large part of the ecm harness from a 91 firebird as well as much of the engine harness from an 04 Grand Am.
6 years after the purchase of the engine and 4 years after sending the block out to get forged pistons and get the caps line honed for the stud kit, I'm FINALLY actually building the block.
We started with the removal of the worn (~200kiles) 3.1.
We then pulled the wiring harness apart to remove the MAF and EGR related wiring. Were in the process of tucking the harness out of sight.
I'm going to splice in a large part of the ecm harness from a 91 firebird as well as much of the engine harness from an 04 Grand Am.
#59
Member
Thread Starter
Re: My 3.4/3x00 hybrid build.
Pics so far.
#61
Member
Thread Starter
Re: My 3.4/3x00 hybrid build.
Some more progress pics. Were creating custom wiring harnesses to better hide the wiring.
Heads and intake installed for mockup purposes
These three holes in the lifter valley all get plugged, right?
Heads and intake installed for mockup purposes
These three holes in the lifter valley all get plugged, right?
#62
Moderator
iTrader: (2)
Re: My 3.4/3x00 hybrid build.
Yes, you should be able to shine a light into those holes and/or use some sort of rod/poker and/or use pressurized air to see that they go to the oil galleys. IIRC the two small ones go to the mains, and the large one is coming from the oil filter location.
#63
Member
Thread Starter
Re: My 3.4/3x00 hybrid build.
Ok. Thank you
#64
Member
Thread Starter
Re: My 3.4/3x00 hybrid build.
Update time again!!
got my heads back from the machine shop. Sent them to get looked over and have the seals replaced. Also did a valve job.
Got the oil pump and pan on the block. Also got the cam, timing set and timing cover/ water pump on. Heads are installed for the last time.
Now we're waiting for custom pushrods.
got my heads back from the machine shop. Sent them to get looked over and have the seals replaced. Also did a valve job.
Got the oil pump and pan on the block. Also got the cam, timing set and timing cover/ water pump on. Heads are installed for the last time.
Now we're waiting for custom pushrods.
#65
Member
Thread Starter
Re: My 3.4/3x00 hybrid build.
Holy crap am I behind on my updates lol.
here's what I've been up to the last month.
Block, pan, motor mounts, lower intake, and oil filter mount all cleaned, painted and installed. New o rings on the injectors, injector rail installed.
2 of the 3 accessory mounts modified and awaiting paint:
alternator bracket is a modified bracket off 95 3.4L
A/C bracket is a modified 3rd gen bracket with a boss cut off and extendedP/S pump mount is also a modified 3rd gen bracket with all the smaller holes slotted
What the final product will look like
Best picture of how far the boss had to move to line up with the aluminum head
here's what I've been up to the last month.
Block, pan, motor mounts, lower intake, and oil filter mount all cleaned, painted and installed. New o rings on the injectors, injector rail installed.
2 of the 3 accessory mounts modified and awaiting paint:
alternator bracket is a modified bracket off 95 3.4L
A/C bracket is a modified 3rd gen bracket with a boss cut off and extendedP/S pump mount is also a modified 3rd gen bracket with all the smaller holes slotted

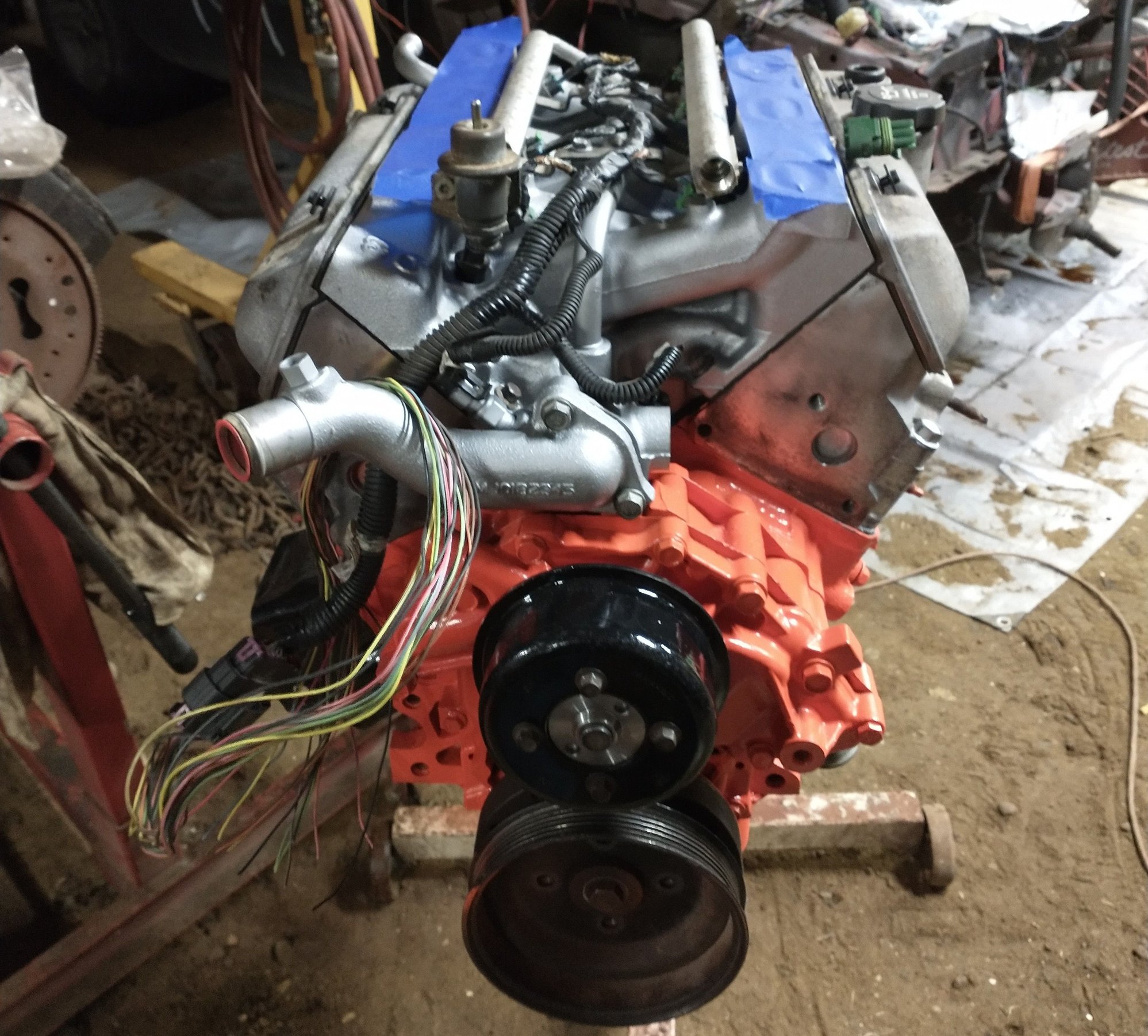

What the final product will look like
Best picture of how far the boss had to move to line up with the aluminum head
