Engine Lift Points
I know this subject has been beat to death, but there are too many inconsistencies so I'm going to ask here. I'm installing my small block with aluminum heads, FIRST intake, and T-56 attached into my car soon. I'm worried about lifting all that weight on the aluminum head threads. Here are the choices I see for attaching my load leveler lift chains:
Let me know what you guys suggest I attach to? Also, how long may it take to drop it in and have the engine on the motor mounts?
- Attach to water pump bolt holes in the front, bellhousing to engine bolts in the rear (red circles).
- Aluminum head front and rear threads. (Bluish circles)
- Front and rear intake manifold to head bolts. (brownish circles)

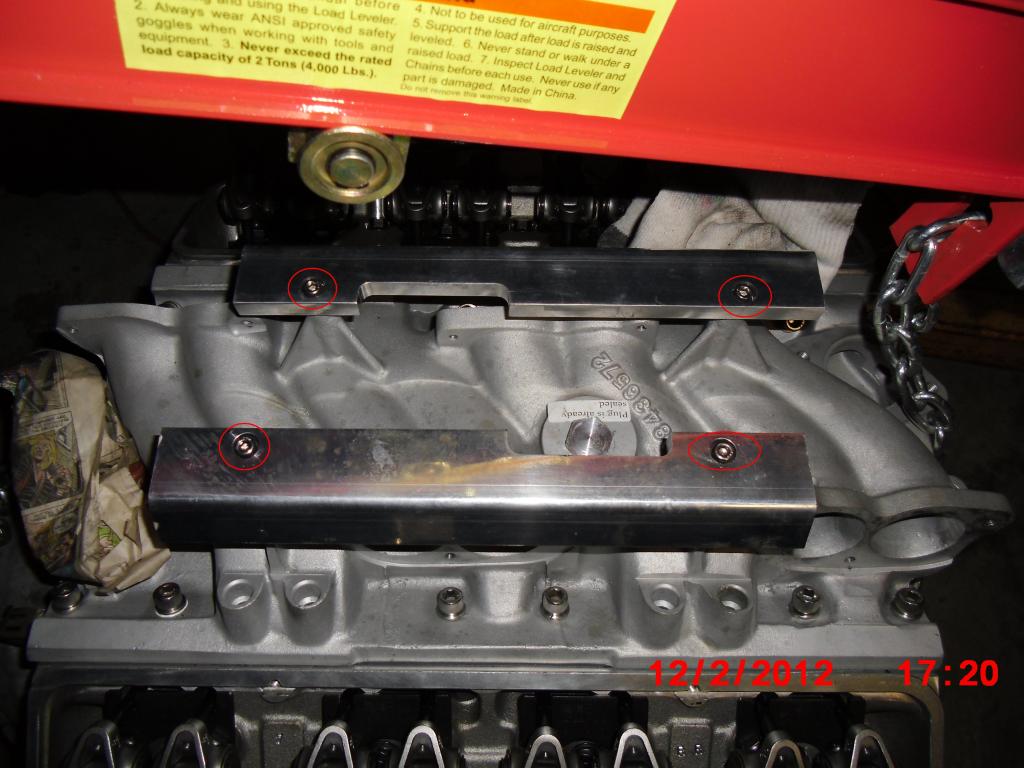

- Remove fuel rails and attach to those bolt holes. (red circles)
Let me know what you guys suggest I attach to? Also, how long may it take to drop it in and have the engine on the motor mounts?
#4
Supreme Member
Join Date: Jul 2007
Location: Howard Lake, MN
Posts: 1,293
Likes: 0
Received 4 Likes
on
4 Posts
Car: 86 Camaro
Engine: 355- hopefully a 5.3 this summer
Transmission: 700r4
Axle/Gears: 3.42
Re: Engine Lift Points
any holes with 3/8" tapped threads will do... or even 5/16" tapped threads..
i've never done a TPI engine, but i use a lift plate that bolts in place of the carb whenever i do a carbed engine.
i've never done a TPI engine, but i use a lift plate that bolts in place of the carb whenever i do a carbed engine.
#5
Supreme Member
iTrader: (2)
Join Date: Jan 2002
Location: Moorestown, NJ
Posts: 9,962
Likes: 0
Received 3 Likes
on
3 Posts
Car: 88 Camaro SC
Engine: SFI'd 350
Transmission: TKO 500
Axle/Gears: 9-bolt w/ 3.23's
Re: Engine Lift Points
Be very careful if your using the heads as a lift point. You will need some plastic backing plates or something else to prevent damage to the aluminum. If you just bolt a chain to them it will gall the hell out of the heads.
As for the manifold, it should never be used, especially on a TPI engine. Maybe for lifting the engine by itself, but with the trans it will be too heavy.
As for the manifold, it should never be used, especially on a TPI engine. Maybe for lifting the engine by itself, but with the trans it will be too heavy.
#6
Member
Thread Starter
iTrader: (9)
Join Date: Aug 2006
Location: Los Angeles
Posts: 216
Likes: 0
Received 0 Likes
on
0 Posts
Car: 88 Iroc-Z
Engine: 355 AFR-195 FIRST Fuel Inj.
Transmission: T56
Axle/Gears: ??
Re: Engine Lift Points
Thanks all, I feel much more confident in making the lift from the heads. I will definitely use some plastic washers and cloth between the chains and anything they may come in contact with.
#7
Senior Member
iTrader: (1)
Join Date: Sep 2003
Location: St. Louis, Missouri
Posts: 988
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1989 Firebird Formula
Engine: 383 Stealth Ram
Transmission: 700R4
Axle/Gears: 3.73 9 bolt Posi
Re: Engine Lift Points
I installed my engine recently and chose option #1. I would rather take my chances with cast iron threads than aluminum. I also recommend putting something (towel, cardboard, etc) around the ends of the heads to keep the chain from potentially scratching them up.
Just my 2 cents. Hope this helps!
Just my 2 cents. Hope this helps!
Trending Topics
#8
Member
Thread Starter
iTrader: (9)
Join Date: Aug 2006
Location: Los Angeles
Posts: 216
Likes: 0
Received 0 Likes
on
0 Posts
Car: 88 Iroc-Z
Engine: 355 AFR-195 FIRST Fuel Inj.
Transmission: T56
Axle/Gears: ??
Re: Engine Lift Points
I ended up using new bolts in the aluminum heads (option 2 above), no problems whatsoever with the install. I did put some old rags between the chains and the motor to avoid scratch/gouging the hell out of it.
