Best strut mount?

I've been looking at aftermarket strut mounts for a while. From personal experience or even an engineering standpoint, who offers the best strut mount? Spohn or J&M (also known as the Hotpart strut mount) Quality, performance and fitment wise. If you've tried any of these, please say how it worked out.

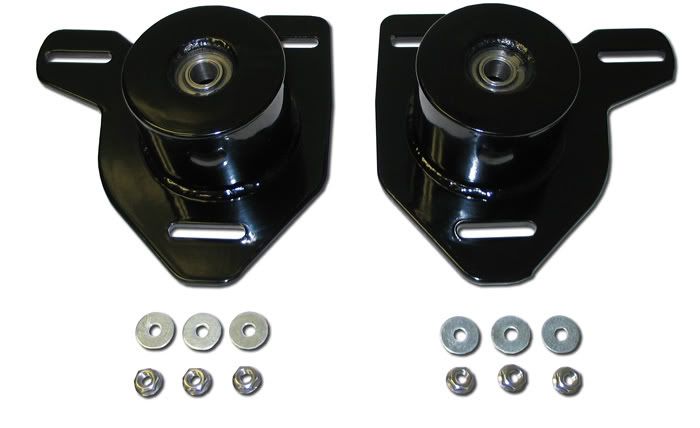

The Spohn mount:
Click the image to open in full size.

Directly from their website:

"These fabricated steel upper strut mounts for the 1982-1992 F-Body feature a QA1 chrome moly spherical bearing with a Teflon®/Kevlar® self lubricating race. We have also built an extra 1/4" of negative camber adjustment into the mounts. The mounts feature CNC machined components and are precision welded. We even include stainless steel mounting nuts!

The mounts are 1" taller than stock to provide extra strut travel for lowered and non-lowered cars. A must for those looking to do some serious corner carving, and you can't beat the trick look they provide to your engine bay!

Specifications:

CNC cut 1/4" steel base plate
4" DOM steel tubing
CNC cut 3/16" steel top hat
CNC machined bearing mount tube - TIG welded
High quality QA1 chrome moly spherical bearing with a Teflon®/Kevlar® self lubricating race
Underside of strut mount includes a coil over spring mount as a std. feature.
Powder coated gloss black for a brilliant and durable finish"

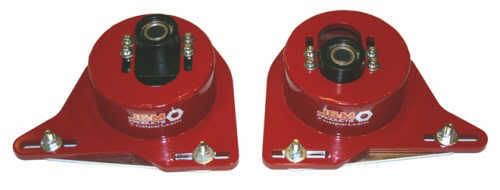

The J&M mount:
Click the image to open in full size.

Directly from Hawks:

"Needing to take control of your Camaro or Firebirds front suspension. Do it by using a set of J&M Products adjustable caster and camber plates. J&M plates replace the stock rubber strut mount bushings with a spherical bearing, allowing you full control of the suspension geometry. Whether you want your alignment set for track, street, or strip, these plates will allow you to fine tune your suspension so you can get the most out of your car. The bearing mounts are completely adjustable and are 100% Pulse Mig welded for the ultimate in strength, durability, and fit. They also feature a special chrome moly replaceable teflon lined spherical bearing for a noise free quality ride. Now coming with a LIFETIME WARRANTY from craftsmanship and defects. That is right if you are the original owner can bend the plates or wear out the bearings they will be fixed or replaced for free.

J&M Products plates include the following features:

LIFETIME GUARANTEE against bearing failure and main plate bending or breaking.
Slots for adjusting caster and camber independently.
Easy adjustment for Street and Race applications.
Replaceable highest strength chrome moly teflon-lined spherical bearings for noise free performance.
Powder coated for great looks and long lasting protection."

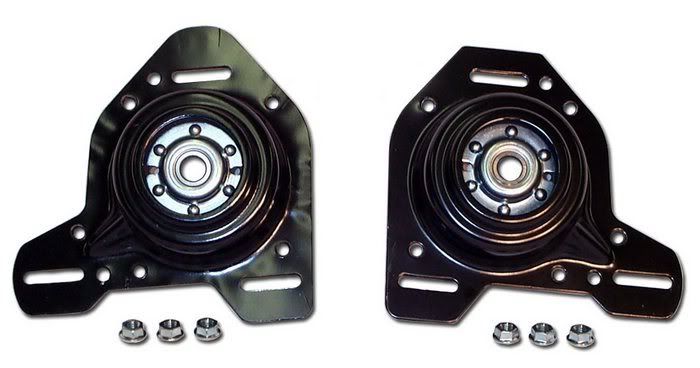

Factory mounts for reference:
Click the image to open in full size.

How do the Spohn mounts offer more adjustability than the factory parts? They just look like stronger factory mounts. Not a bad thing, but I don't see how they offer more adustability. On the other hand, it's easy to see how the J&M mounts are more adustable than the original mounts. Spohn says it's mount provides an extra inch of strut travel for lowered cars. My car isn't lowered, and it probably never will be. Will this negatively affect handling? I'll be using Tokico Illumina struts. Are there any known compatability issues with either type of mount and these struts?

Thanks for the input,
Mike
__________________
mike_c is offline vBGarage Page   Reply With Quote
Old 01-11-2008, 12:36 AM   #2
Supreme Member

customblackbird's Avatar

Join Date: Feb 2007
Location: northern jerz
Posts: 2,992
Car: heavily modded formula
Engine: 521cuin big block ford!
Transmission: bullet proof ford C-6
Axle/Gears: ford 8.8, 3.55 gears

Classifieds Rating: (10)
Re: Best strut mount?

these are good if u have lowered the car and are willing to put the $$ down to make it handle better, not to mention its better for the car. the adustability im not sure. maybe they meant they where built with the 1/4" neg camber adjustability already set... who knows. call them or email them.

the J&M mount shows alot more adjustability and looks more trick but idk if i trust those 4 lil bolts to hold the top adjustability.

u dont need these unless u have lowered the car bc lowering the car pushes the strut piston farther into the strut/shock bc the stance is lower and the rod is already farther down, this also limits the travel of the rod and easily can bottom out and destroy a new strut easily. this gives the strut rod/piston the extra inch of travel that u take away when lowering. both look like good peices but theres no need for yours if u havent lowered it. save ur money
customblackbird is offline vBGarage Page   Reply With Quote
Old 01-11-2008, 12:47 AM   #3
Member

Join Date: Feb 2002
Posts: 155

Classifieds Rating: (0)

Re: Best strut mount?

I have the Spohn Strut Mounts on my 1991 Camaro Z28. So far I've had them for a year now with no noise issues. The only thing I remember the from J&M is that their strut mounts wouldn't fit on Bilstein struts, which I'm using on my car. My car is street/daily driver. I would call J&M directly to find out if it will work on you Tokico gas shocks. Their number is 805-239-1558. J&M offers a lifetime warranty on their product vs Spohn offering no warranty. But I chose Spohn because I was using Bilstein struts. The spohn strut mounts are taller than oem to allow for more strut travel and will accomodate a coil-over setup. The feel was like night and day my car feels really good with excellent steering response. Also installing the rear panhard bar and rear lower control made a difference too in handling. Hope this helps
steve's Z28 is offline vBGarage Page   Reply With Quote
Old 01-11-2008, 06:56 PM   #4
Supreme Member

krisb410's Avatar

Join Date: Nov 2005
Location: Baltimore, MD
Posts: 2,323
Car: 91 RS Camaro
Engine: LO3, 350 in the works
Transmission: 700R4 Probuilt Automatics Road Race
Axle/Gears: 4th gen 3.23 posi/LS1 discs

Classifieds Rating: (9)
Send a message via AIM to krisb410
Re: Best strut mount?

I bought the Spohn mounts because they are made taller, to allow for more strut travel on lowered cars.
__________________
20x,xxx miles

My vbgarage
My Cardomain Page
My Fquick Page
krisb410 is offline vBGarage Page   Reply With Quote
Old 01-11-2008, 08:24 PM   #5
Senior Member

goomaan's Avatar

Join Date: Jun 2007
Location: www.nythirdgen.com
Posts: 744
Car: 1991 Z28
Engine: 305 TPI
Transmission: 700R Auto
Axle/Gears: Eaton POSI 4.10

Classifieds Rating: (2)
Send a message via AIM to goomaan
Re: Best strut mount?

I am all stock and need new Strut mounts where can I get a good buy on the Spohn mount?

Thanks
G
__________________
1991 Z28 Sold 4/15/2011

Live in the tri-state area check us out!
www.nythirdgen.com
goomaan is offline vBGarage Page   Reply With Quote
Old 01-11-2008, 08:49 PM   #6
Junior Member

Join Date: Mar 2004
Location: Paso Robles, CA
Posts: 32

Classifieds Rating: (0)
Re: Best strut mount?

Quote:
Originally Posted by steve's Z28 View Post
I have the Spohn Strut Mounts on my 1991 Camaro Z28. So far I've had them for a year now with no noise issues. The only thing I remember the from J&M is that their strut mounts wouldn't fit on Bilstein struts, which I'm using on my car. My car is street/daily driver. I would call J&M directly to find out if it will work on you Tokico gas shocks. Their number is 805-239-1558. J&M offers a lifetime warranty on their product vs Spohn offering no warranty. But I chose Spohn because I was using Bilstein struts. The spohn strut mounts are taller than oem to allow for more strut travel and will accomodate a coil-over setup. The feel was like night and day my car feels really good with excellent steering response. Also installing the rear panhard bar and rear lower control made a difference too in handling. Hope this helps
The J&M mounts work with any strut including the bilstein.

Quote:
Originally Posted by customblackbird
the J&M mount shows alot more adjustability and looks more trick but idk if i trust those 4 lil bolts to hold the top adjustability.
Those four little screws are the same size that the factory uses to hold down the whole camber plate assembly to keep it from moving and they are only using 3 of them. There is a difference because we also use 180,000 psi bolts instead of grade 10.9 which are only 150,000 bolts. We have never had one move on a street car or the race cars that use our plates.

Last edited by hotpart; 01-11-2008 at 08:58 PM.
hotpart is offline vBGarage Page   Reply With Quote
Old 01-11-2008, 08:55 PM   #7
Moderator

JamesC's Avatar

Join Date: Aug 1999
Location: Lawrence, KS
Posts: 18,261
Car: Met. Silver 85 IROC
Engine: 350 HO Deluxe (350ci/330hp)
Transmission: T-5 (Non-WC)
Axle/Gears: Limited Slip 3.23's

Classifieds Rating: (5)

Re: Best strut mount?

Quote:
Originally Posted by goomaan View Post
I am all stock and need new Strut mounts where can I get a good buy on the Spohn mount?
From Spohn's website?

JamesC
__________________
"There are more things in heaven and earth, Horatio, / Than are dreamt of in your philosophy." Hamlet

"Convictions are more dangerous enemies of truth than lies." Nietzsche
JamesC is offline vBGarage Page   Reply With Quote
Old 01-12-2008, 11:42 PM   #8
Senior Member

racing geek's Avatar

Join Date: Aug 2007
Location: Milwaukee, Wisconsin
Posts: 1,525
Car: 1987 IROC-Z
Engine: 305TPI
Transmission: 700r4
Axle/Gears: 3.42

Classifieds Rating: (5)
Re: Best strut mount?

I plan on putting some koni yellows on my car and replacing the strut mounts and springs. I'm torn between Spohn and J&M. I like the fact that Spohn offers the extra inch to compinsate for lowered cars but I also like the fact that J&M is willing to give a lifetime warrenty. If someone could find out what benefit the 1/4" of negative camber gives/means that would be great. I guess so far I'm leaning toward J&M just because of the warrenty.
__________________
Suspension - far from stock, Brakes - far from stock
Drivetrain - upgraded, Engine - bolt ons
racing geek is offline vBGarage Page   Reply With Quote
Old 01-13-2008, 12:55 AM   #9
On Probation

Join Date: Feb 2005
Location: So Cal
Posts: 1,992
Car: 87 IROC-Z
Engine: LsX
Transmission: MN12 6speed
Axle/Gears: 3:42

Classifieds Rating: (9)
Send a message via AIM to TPI TERR
Re: Best strut mount?

Thought i would add some input, I was concerned with daily drive use and ride quality,here's some info and great points...


Quote:
Originally Posted by BobItzaboy View Post
Thats a loaded question and I'll explain why.
Ride quality is in the eyes of the beholder. You want soft Cadillac forgiving ride then keep your older worn out factory strut mounts because that old worn rubber will absorb some of the initial bump impact undampered and give a bit more feely until the rubber flexes to a point where the strut begins to damper.

Handling wise and performance? It takes out all the undampered slop that causes the chassis to bounce freely in a tad bit of up and down no mans land of rubber bushing defection. Your tires can travel up and down as much as 1 full inch undampered if those factory mounts are than worn. Replacing them with solid mounts and then bouncing on the fender of the same car will make it much more firm.

Now as for taking out thhe basket ball dribble after a bump? Yes that does help eliminate this undampered travel and smooth the car back to a settled chassis quicker. Its a give and take opinion.
My question is, does the added 1 inch travel of Pshon's units compensate for better comfort/ride quality vs. the dampening/absorbing effect the OEM?rubber mounts have?
TPI TERR is offline vBGarage Page   Reply With Quote
Old 01-14-2008, 10:55 PM   #10
Senior Member

RU-QWIK's Avatar

Join Date: Feb 2002
Location: Central Coast Calif.
Posts: 2,635
Car: 91' Camaro
Engine: 383 ci
Transmission: T-56
Axle/Gears: 9 bolt / 3:70

Classifieds Rating: (3)

Re: Best strut mount?

I have J&M's on my Camaro ( Thank you Brian !! ) He used my car to do the mock up for prototyping these things. He has since revised them and they are even better than the old version I have... The version I have is far better than factory, so the newer, shown above, will assure you a great part!

If it matters, I am running Koni red struts on the front...

Jason
__________________
[SIGPIC][/SIGPIC]
http://www.fquick.com/RU-QWIK

1991 Camaro RS/Z28 weekend playtoy...
1969 Camaro SS ...454/ muncie 4 speed 12 bolt w/ 4:11's
1997 Yukon, Supercharged , 12" Cognito Motorsports lift , Chameleon pearl ghost flames, too much to list..
2005 Lexus IS300
1957 Chevy 150 Pro Touring ride
1994 Chevy 2500 4x4
RU-QWIK is offline vBGarage Page   Reply With Quote
Old 01-15-2008, 08:22 AM   #11
EGG
Junior Member

Join Date: Oct 2006
Location: perth, aus
Posts: 62
Car: 88 Trans Am
Engine: 305 TPI

Classifieds Rating: (0)
Re: Best strut mount?

I have the J&M strut mounts, but yet to go on the car. Might be a job for this weekend, so I'll post how it goes if I get onto it.
EGG is offline vBGarage Page   Reply With Quote
Old 01-15-2008, 10:45 AM   #12
Supreme Member

TheScaryOne's Avatar

Join Date: Aug 2006
Location: Tucson, Arizona
Posts: 1,436
Car: 1987 IROC-Z Camaro
Engine: L98 5.7L TPI
Transmission: 700-R4
Axle/Gears: 3.27 BW

Classifieds Rating: (3)
Send a message via ICQ to TheScaryOne Send a message via AIM to TheScaryOne Send a message via MSN to TheScaryOne Send a message via Yahoo to TheScaryOne
Re: Best strut mount?

If I remember Dean is running the Spohn mounts currently, and is switching over to the J&M ones. He pokes around here once in a while, and will probably comment. I think he mentioned something about it in another thread. Lemme look.

Edit: Found the thread.

Linky: http://www.thirdgen.org/techboard/su...rut-mount.html (Spohn upper strut mount, yes I searched)
TheScaryOne is offline vBGarage Page   Reply With Quote
Old 01-18-2008, 08:35 PM   #13
Senior Member

goomaan's Avatar

Join Date: Jun 2007
Location: www.nythirdgen.com
Posts: 744
Car: 1991 Z28
Engine: 305 TPI
Transmission: 700R Auto
Axle/Gears: Eaton POSI 4.10

Classifieds Rating: (2)
Send a message via AIM to goomaan
Re: Best strut mount?

Ok you guys I am sold and went with the J&Ms. I will post as soon as I get them in.

Hmmmm maybe now I will go for new struts tooo... WHy can't one thing not lead to another arggggggggggggggggg
goomaan is offline vBGarage Page   Reply With Quote
Old 01-19-2008, 01:45 PM   #14
Supreme Member

Join Date: Jan 2004
Location: p'cola FL
Posts: 2,301
Car: 88 iroc-z/28
Engine: 408 lsx
Transmission: 5800 stall
Axle/Gears: 4.71

Classifieds Rating: (3)

Send a message via AIM to stage20
Re: Best strut mount?

ive seen where PA racing is also selling a set of mounts as well.
they are decently priced, but ive seen some pics..... welds are not up to par with what id want on my car. not saying his welds wont hold, they just arent show quality.

i chose the spohn versions based on his coilover kit.
dont think you can go wrong either way. quality pieces.
stage20 is offline vBGarage Page   Reply With Quote
Old 01-19-2008, 03:17 PM   #15
Senior Member

Join Date: Oct 2001
Location: west coast
Posts: 333

Classifieds Rating: (1)

Re: Best strut mount?

why does the J&Ms use spacers where the spohns mount flat like the stockers??
SLP_GTA is offline vBGarage Page   Reply With Quote
Old 01-19-2008, 06:30 PM   #16
Senior Member

racing geek's Avatar

Join Date: Aug 2007
Location: Milwaukee, Wisconsin
Posts: 1,525
Car: 1987 IROC-Z
Engine: 305TPI
Transmission: 700r4
Axle/Gears: 3.42

Classifieds Rating: (5)
Re: Best strut mount?

Quote:
Originally Posted by SLP_GTA View Post
why does the J&Ms use spacers where the spohns mount flat like the stockers??
Maybe that is their way of raising it up so it can be like the 1in taller than stock Spohn mounts.
racing geek is offline vBGarage Page   Reply With Quote
Old 01-19-2008, 07:57 PM   #17
Supreme Member

//<86TA>\\'s Avatar

Join Date: Aug 2006
Location: Central NJ
Posts: 11,483
Car: 86 Trans Am, 92 Firebird
Engine: 408 sbc, 3.1L of raw power
Transmission: TKO600, T5
Axle/Gears: Moser 9", 3:70 trutac, 3:23 torsion

Classifieds Rating: (12)
Re: Best strut mount?

Quote:
Originally Posted by SLP_GTA View Post
why does the J&Ms use spacers where the spohns mount flat like the stockers??
the old style J+M plates use the spacers cause they are made out of a piece of flat plate. the new ones, along with the spohn pieces, have a raised cylinder in the center to accommodate the shock and raise the mount to the required height
//<86TA>\\ is offline vBGarage Page   Reply With Quote
Old 01-20-2008, 05:36 PM   #18
Supreme Member

krisb410's Avatar

Join Date: Nov 2005
Location: Baltimore, MD
Posts: 2,323
Car: 91 RS Camaro
Engine: LO3, 350 in the works
Transmission: 700R4 Probuilt Automatics Road Race
Axle/Gears: 4th gen 3.23 posi/LS1 discs

Classifieds Rating: (9)
Send a message via AIM to krisb410
Re: Best strut mount?

But the Spohn mounts are about 1 inch taller. Just to point out details
__________________
20x,xxx miles

My vbgarage
My Cardomain Page
My Fquick Page
krisb410 is offline vBGarage Page   Reply With Quote
Old 01-20-2008, 10:45 PM   #19
Junior Member

Join Date: Mar 2004
Location: Paso Robles, CA
Posts: 32

Classifieds Rating: (0)
Re: Best strut mount?

I have never seen a Spohn piece other than photos. I am going to point out to look at the location of the bearings. The way that Spohns bearing is mounted it reduces the amount of travel gained by raising it. The bearing and bearing housing will take up space (aprox. 1 inch give or take). Again I do not know the dimension of theirs so this is just an observation.
hotpart is offline vBGarage Page   Reply With Quote
Old 01-21-2008, 11:59 AM   #20
Supreme Member

krisb410's Avatar

Join Date: Nov 2005
Location: Baltimore, MD
Posts: 2,323
Car: 91 RS Camaro
Engine: LO3, 350 in the works
Transmission: 700R4 Probuilt Automatics Road Race
Axle/Gears: 4th gen 3.23 posi/LS1 discs

Classifieds Rating: (9)
Send a message via AIM to krisb410
Re: Best strut mount?

How would it reduce travel by raising the bearing an inch or so. I would think it would increase the travel, especially when you lower the car with lowering springs. I would think if you lower the car about an inch with springs, that the taller Spohn strut mount would give you that inch of travel back. Please explain, am I missing something?
__________________
20x,xxx miles

My vbgarage
My Cardomain Page
My Fquick Page
krisb410 is offline vBGarage Page   Reply With Quote
Old 01-21-2008, 12:26 PM   #21
Junior Member

Join Date: Mar 2004
Location: Paso Robles, CA
Posts: 32

Classifieds Rating: (0)
Re: Best strut mount?

Quote:
Originally Posted by krisb410 View Post
How would it reduce travel by raising the bearing an inch or so. I would think it would increase the travel, especially when you lower the car with lowering springs. I would think if you lower the car about an inch with springs, that the taller Spohn strut mount would give you that inch of travel back. Please explain, am I missing something?
What I am saying is to look at the how the bearing is placed on the Spohn mounts in relation to ours. Theirs is mounted underneath the top bearing plate which will reduce the clearance of the strut to bearing by the amount of their bearing housing length. Ours is mounted above our top caster mounting plate so you do not loose the clearance gained by making the main tube longer. You will not gain any bump travel with either plate when you lower your car if you do not trim your bumpstop. Hope this makes sense.
hotpart is offline vBGarage Page   Reply With Quote
Old 01-21-2008, 01:07 PM   #22
Supreme Member

I H8 WWD's Avatar

Join Date: Aug 2006
Location: Cleveland, Ohio
Posts: 2,405
Car: 89' IROC-Z
Engine: LO3
Transmission: 700R4
Axle/Gears: 10-Bolt/2.73

Classifieds Rating: (5)
Send a message via Skype™ to I H8 WWD
Re: Best strut mount?

I kind of skimmed through this topic but read most so if I mention something already dicussed or answered please just post the answer..thank you.

Okay, I was looking to do a coil-over for my camaro as it will be drift/ daily driver. Thing is I wanted spohn as they have the coil-over setup, thats bolt in and no need of mods, now could I get these coil-overs (which use QA1 crap I guess) and match them to hotpart's mounts?

Also since hotpart say QA1 is crap, what coil-overs would you recommend to get to help me with my drifting possibilities?

Also, does the hotpart's mounts provide the extra 1" or not or some sort of extra travel. I WILL be lowering my car on coil-overs (and racecraft 2" drop spindles) as soon as i find out which CO's are best. Thanks for all info.
I H8 WWD is offline vBGarage Page   Reply With Quote
Old 01-21-2008, 06:27 PM   #23
Supreme Member

Join Date: Jan 2004
Location: p'cola FL
Posts: 2,301
Car: 88 iroc-z/28
Engine: 408 lsx
Transmission: 5800 stall
Axle/Gears: 4.71

Classifieds Rating: (3)

Send a message via AIM to stage20
Re: Best strut mount?

here lots of good things about hypercoils, but all drag oriented. im not sure they offer stiff springs or not. never checked into the higher rates.
you dont need the spohn kit if you know how to work with steel plate(or know someone) spohns plates are really nice. im sure its not failsafe, even with the bracing, but its better than nothing. strut tower brace is a must as well if you are roadracing it.
you can get all the coilover specific parts or kit off afcos website.
summit stocks most of it too, but the price is near the same.
depends on who ships it faster i guess.
buy all the hard parts from afco, then source springs elsewhere.
stage20 is offline vBGarage Page   Reply With Quote
Old 01-22-2008, 02:04 AM   #24
Supreme Member

krisb410's Avatar

Join Date: Nov 2005
Location: Baltimore, MD
Posts: 2,323
Car: 91 RS Camaro
Engine: LO3, 350 in the works
Transmission: 700R4 Probuilt Automatics Road Race
Axle/Gears: 4th gen 3.23 posi/LS1 discs

Classifieds Rating: (9)
Send a message via AIM to krisb410
Re: Best strut mount?

Quote:
Originally Posted by hotpart View Post
What I am saying is to look at the how the bearing is placed on the Spohn mounts in relation to ours. Theirs is mounted underneath the top bearing plate which will reduce the clearance of the strut to bearing by the amount of their bearing housing length. Ours is mounted above our top caster mounting plate so you do not loose the clearance gained by making the main tube longer. You will not gain any bump travel with either plate when you lower your car if you do not trim your bumpstop. Hope this makes sense.
I realize that the bearing is mounted underneath, but it's a lot taller than your product, so I would think that if Spohn states that increases their product increases travel by 1 inch, that the mount is 1 inch taller + the width of the bearing, therefore, still allowing the extra inch of travel. Would it help if I measured the overall height of it so you have a comparison?
__________________
20x,xxx miles

My vbgarage
My Cardomain Page
My Fquick Page
krisb410 is offline vBGarage Page   Reply With Quote
Old 01-22-2008, 09:17 AM   #25
Junior Member

Join Date: Mar 2004
Location: Paso Robles, CA
Posts: 32

Classifieds Rating: (0)
Re: Best strut mount?

There are several critical measurements the first is from the bottom of the camber plate or the top of the strut tower to the bottom of the bearing mount inside the tube. The second is the total height of the bearing from the strut tower to see how much droop travel loss there is. The last would be how much extra strut housing to upper mount clearance is needed if any do you need with how much your bumpstop is trimmed. I can tell you that our upper camber plates are used on most of the CMC cars with no bumpstops and we do not have a clearance issue.
hotpart is offline vBGarage Page   Reply With Quote
Old 01-22-2008, 10:02 AM   #26
Supreme Member

I H8 WWD's Avatar

Join Date: Aug 2006
Location: Cleveland, Ohio
Posts: 2,405
Car: 89' IROC-Z
Engine: LO3
Transmission: 700R4
Axle/Gears: 10-Bolt/2.73

Classifieds Rating: (5)
Send a message via Skype™ to I H8 WWD
Re: Best strut mount?

Quote:
Originally Posted by stage20 View Post
here lots of good things about hypercoils, but all drag oriented. im not sure they offer stiff springs or not. never checked into the higher rates.
you dont need the spohn kit if you know how to work with steel plate(or know someone) spohns plates are really nice. im sure its not failsafe, even with the bracing, but its better than nothing. strut tower brace is a must as well if you are roadracing it.
you can get all the coilover specific parts or kit off afcos website.
summit stocks most of it too, but the price is near the same.
depends on who ships it faster i guess.
buy all the hard parts from afco, then source springs elsewhere.
Im going to ask a performance shop by me if they would like to sponsor my car for drifting...as I know they are a new company and still have yet to hit the drifting scene, that and because they came end of summer so this coming summer Im having them do everything on my car...so why not get them into hooking me up with a custom coil-over setup.....Ill keep tabs on here and see what hotpart says would be a good Coil-Over setup for his mounts....as I would like to get those J&M's but wouldnt mind the extra 1"...which I dont think the J&M's have...

Remember, I will be purchasing 2" drop spindles sometime end of 2008. I want my car nearly slammed on 18's or 17's with thicker tires. But still be possible to drive on the road (where the coil-overs would come in handy)

EDIT: Looking at ground control kits right now, they offer caster camber plates with extra travel. Kit is $459 and C/C plates are $249

Last edited by I H8 WWD; 01-22-2008 at 10:08 AM.
I H8 WWD is offline vBGarage Page   Reply With Quote
Old 01-22-2008, 11:06 AM   #27
Supreme Member

krisb410's Avatar

Join Date: Nov 2005
Location: Baltimore, MD
Posts: 2,323
Car: 91 RS Camaro
Engine: LO3, 350 in the works
Transmission: 700R4 Probuilt Automatics Road Race
Axle/Gears: 4th gen 3.23 posi/LS1 discs

Classifieds Rating: (9)
Send a message via AIM to krisb410
Re: Best strut mount?

I emailed Spohn about this. They replied back

"The bearing is located 1" higher than the factory strut mount, the bearing width is .75"
__________________
20x,xxx miles

My vbgarage
My Cardomain Page
My Fquick Page
krisb410 is offline vBGarage Page   Reply With Quote
Old 01-31-2008, 11:30 AM   #28
Member

Join Date: Apr 2003
Location: Canyon Country, CA
Posts: 133

Classifieds Rating: (0)

Re: Best strut mount?

Do any coil-over kits fit the J&M mounts?
FerrMaro is offline vBGarage Page   Reply With Quote
Old 01-31-2008, 12:03 PM   #29
Supreme Member

I H8 WWD's Avatar

Join Date: Aug 2006
Location: Cleveland, Ohio
Posts: 2,405
Car: 89' IROC-Z
Engine: LO3
Transmission: 700R4
Axle/Gears: 10-Bolt/2.73

Classifieds Rating: (5)
Send a message via Skype™ to I H8 WWD
Re: Best strut mount?

Will both of these fit the GC kits?

http://www.ground-control-store.com/...hp/II=20/CA=86
I H8 WWD is offline vBGarage Page   Reply With Quote
Old 01-31-2008, 12:37 PM   #30
Junior Member

Join Date: Mar 2004
Location: Paso Robles, CA
Posts: 32

Classifieds Rating: (0)
Re: Best strut mount?

Any kit that is designed to work with a factory or modified factory strut mount will work our camber/caster plates.
hotpart is offline vBGarage Page   Reply With Quote
Old 01-31-2008, 01:22 PM   #31
Supreme Member

TheScaryOne's Avatar

Join Date: Aug 2006
Location: Tucson, Arizona
Posts: 1,436
Car: 1987 IROC-Z Camaro
Engine: L98 5.7L TPI
Transmission: 700-R4
Axle/Gears: 3.27 BW

Classifieds Rating: (3)
Send a message via ICQ to TheScaryOne Send a message via AIM to TheScaryOne Send a message via MSN to TheScaryOne Send a message via Yahoo to TheScaryOne
Re: Best strut mount?

If you do a coil over kit on these cars, BRACE EVERYTHING! Those strut towers are only supported by sheet metal, and adding coilovers can punch through worn/rusty/fatigued strut towers.
TheScaryOne is offline vBGarage Page   Reply With Quote
Old 01-31-2008, 01:38 PM   #32
Supreme Member

I H8 WWD's Avatar

Join Date: Aug 2006
Location: Cleveland, Ohio
Posts: 2,405
Car: 89' IROC-Z
Engine: LO3
Transmission: 700R4
Axle/Gears: 10-Bolt/2.73

Classifieds Rating: (5)
Send a message via Skype™ to I H8 WWD
Re: Best strut mount?

Quote:
Originally Posted by TheScaryOne View Post
If you do a coil over kit on these cars, BRACE EVERYTHING! Those strut towers are only supported by sheet metal, and adding coilovers can punch through worn/rusty/fatigued strut towers.
I will be having these guys www.FTKUSTOMZ.com do my install. I will be sure to let them know whats needed per other camaro drivers statements. Thanks. BRACE BRACE BRACE!!! Gotcha
I H8 WWD is offline vBGarage Page   Reply With Quote
Old 01-31-2008, 01:47 PM   #33
Supreme Member

TheScaryOne's Avatar

Join Date: Aug 2006
Location: Tucson, Arizona
Posts: 1,436
Car: 1987 IROC-Z Camaro
Engine: L98 5.7L TPI
Transmission: 700-R4
Axle/Gears: 3.27 BW

Classifieds Rating: (3)
Send a message via ICQ to TheScaryOne Send a message via AIM to TheScaryOne Send a message via MSN to TheScaryOne Send a message via Yahoo to TheScaryOne
Re: Best strut mount?

Even with bracing it can be a bad idea. The domed structure of our shock towers aren't very well suited to a large vertical force. For struts they're fine, but put the whole load of the front of the car up there....

Look through the forums. There's a few people with strut towers that are now misshapen because of coil overs.
TheScaryOne is offline vBGarage Page   Reply With Quote
Old 01-31-2008, 02:21 PM   #34
Supreme Member

I H8 WWD's Avatar

Join Date: Aug 2006
Location: Cleveland, Ohio
Posts: 2,405
Car: 89' IROC-Z
Engine: LO3
Transmission: 700R4
Axle/Gears: 10-Bolt/2.73

Classifieds Rating: (5)
Send a message via Skype™ to I H8 WWD
Re: Best strut mount?

Im confused then. If the J&M mounts work with Coil-overs why would the bracing be needed? Since this will fit in the stock location why wouldnt the strut towers hold up now?
I H8 WWD is offline vBGarage Page   Reply With Quote
Old 01-31-2008, 04:13 PM   #35
Senior Member

racing geek's Avatar

Join Date: Aug 2007
Location: Milwaukee, Wisconsin
Posts: 1,525
Car: 1987 IROC-Z
Engine: 305TPI
Transmission: 700r4
Axle/Gears: 3.42

Classifieds Rating: (5)
Re: Best strut mount?

Quote:
Originally Posted by I H8 WWD View Post
If the J&M mounts work with Coil-overs why would the bracing be needed?
Reread what you just wrote and you have the answer to this question. J&M and other companies say it will work with coil-overs, but they do not claim all you need is their product to safely run a coil-over setup. You do want to keep you and your car safe... right?

Quote:
Originally Posted by I H8 WWD View Post
Since this will fit in the stock location why wouldn't the strut towers hold up now?
Before a coil-over setup, the weight of the front of the vehicle was placed on the springs which were under the massive hunk of metal known as the K-member. Now, when you move the springs to the struts in a coil-over conversion, you are replacing the beefy K-member with a piece of sheet metal. Now do you really think the sheet metal will not warp/bend/stretch when it is under load (weight of the front of your vehicle) and working its @$$ off as you tear through corners?

Story explaining why in a real life example:
Ok, this may be a little out there in comparison, but it might help you understand the reason. Lets say you are putting together a metal bench (imagine it as the stock K-member). Since it is metal, it will be a strong piece that will last a long time. You also wouldn't need to use washers (the extra bracing) either because the metal is strong enough to go without. Now it has been a while, but you get tired of sitting on a cold metal bench all the time and you decide to make another one out of wood (picture these as the strut mounts). The wood is the more attractive choice because it looks and feels better. Now as your assembling it you remember when you were putting together the metal bench. You see the washers and say heck with it and continue. A month later you sit on it and fall to the floor. Now why would that happen? The washer (bracing) was not there to increase the surface area, which meant the load was not spread out while holding the pieces together. The small surface area of the bolt allowed it to be pulled through the wood due to carelessness. Now the same would happen with the coil-over. Without the proper bracing, over time the strut tower will bend the sheet metal until it rips and shoots through your hood (of course that is the extreme but I think you get it...).


Mike
__________________
Suspension - far from stock, Brakes - far from stock
Drivetrain - upgraded, Engine - bolt ons

Last edited by racing geek; 01-31-2008 at 04:18 PM.
racing geek is offline vBGarage Page   Reply With Quote
Old 01-31-2008, 07:32 PM   #36
Senior Member

slow_90firebird's Avatar

Join Date: Jul 2007
Location: Manchester, CT + Nashua, NH
Posts: 1,461
Car: 90 Firebird Formula
Engine: LO3
Transmission: T5
Axle/Gears: 3.08 one wheel peel

Classifieds Rating: (0)
Re: Best strut mount?

In case it does rip through the hood, you might want to fit some of those little caps like a Dodge Stealth
slow_90firebird is offline vBGarage Page   Reply With Quote
Old 05-20-2008, 08:13 AM   #37
Senior Member

goomaan's Avatar

Join Date: Jun 2007
Location: www.nythirdgen.com
Posts: 744
Car: 1991 Z28
Engine: 305 TPI
Transmission: 700R Auto
Axle/Gears: Eaton POSI 4.10

Classifieds Rating: (2)
Send a message via AIM to goomaan
Re: Best strut mount?

I finally decided to go with the J&M strut mount I have installed them with the KYB adjustable struts.

The problem that I am having now is when I hit a bump the front is too stiff there is no give. At first I thought I had a broken strut so I got the KYBs. Is there some type of adjustment to make these looser? or are the installed wrong?

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Thanks for you help
goomaan is offline vBGarage Page   Reply With Quote
Old 05-20-2008, 11:49 PM   #38
Senior Member

racing geek's Avatar

Join Date: Aug 2007
Location: Milwaukee, Wisconsin
Posts: 1,525
Car: 1987 IROC-Z
Engine: 305TPI
Transmission: 700r4
Axle/Gears: 3.42

Classifieds Rating: (5)
Re: Best strut mount?

What you installed is the old style which uses spacers. Maybe it is rough because you dont have any spacers in there.
racing geek is offline vBGarage Page   Reply With Quote
Old 05-21-2008, 08:07 AM   #39
Senior Member

goomaan's Avatar

Join Date: Jun 2007
Location: www.nythirdgen.com
Posts: 744
Car: 1991 Z28
Engine: 305 TPI
Transmission: 700R Auto
Axle/Gears: Eaton POSI 4.10

Classifieds Rating: (2)
Send a message via AIM to goomaan
Re: Best strut mount?

Quote:
Originally Posted by racing geek View Post
What you installed is the old style which uses spacers. Maybe it is rough because you dont have any spacers in there.
Yeah I noticed that. When I check the car my mechanic isntalled them underneath.

Would that make a difference?
goomaan is offline vBGarage Page   Reply With Quote
Old 05-21-2008, 09:11 PM   #40
Supreme Member

Join Date: Jan 2004
Location: p'cola FL
Posts: 2,301
Car: 88 iroc-z/28
Engine: 408 lsx
Transmission: 5800 stall
Axle/Gears: 4.71

Classifieds Rating: (3)

Send a message via AIM to stage20
Re: Best strut mount?

you might be bottoming out the strut depending on ride height.
the spacers will allow the piston to ride higher in the body of the shock if you use the spacers in the correct space.
stage20 is offline vBGarage Page   Reply With Quote
Old 05-21-2008, 09:18 PM   #41
Senior Member

goomaan's Avatar

Join Date: Jun 2007
Location: www.nythirdgen.com
Posts: 744
Car: 1991 Z28
Engine: 305 TPI
Transmission: 700R Auto
Axle/Gears: Eaton POSI 4.10

Classifieds Rating: (2)
Send a message via AIM to goomaan
Re: Best strut mount?

Great...

I am riding at stock height did not lower the car any.

I am going to buy some KYB mounts and call it a day. I got these before I put the car away for the winter with a ton of other crap and am not sure who the vendor was the f...ed me over and sent me the old ones...
goomaan is offline vBGarage Page   Reply With Quote
Old 05-21-2008, 09:40 PM   #42
Supreme Member

krisb410's Avatar

Join Date: Nov 2005
Location: Baltimore, MD
Posts: 2,323
Car: 91 RS Camaro
Engine: LO3, 350 in the works
Transmission: 700R4 Probuilt Automatics Road Race
Axle/Gears: 4th gen 3.23 posi/LS1 discs

Classifieds Rating: (9)
Send a message via AIM to krisb410
Re: Best strut mount?

Why not keep those nice mounts you already have????? Just reinstall them putting the spacers in the right place.
krisb410 is offline vBGarage Page   Reply With Quote
Old 05-21-2008, 10:13 PM   #43
Senior Member

goomaan's Avatar

Join Date: Jun 2007
Location: www.nythirdgen.com
Posts: 744
Car: 1991 Z28
Engine: 305 TPI
Transmission: 700R Auto
Axle/Gears: Eaton POSI 4.10

Classifieds Rating: (2)
Send a message via AIM to goomaan
Re: Best strut mount?

I will try that first. But I am just really annoyed. They changed the design drastically for a reason....
Why?
goomaan is offline vBGarage Page   Reply With Quote
Old 05-21-2008, 10:35 PM   #44
Supreme Member

krisb410's Avatar

Join Date: Nov 2005
Location: Baltimore, MD
Posts: 2,323
Car: 91 RS Camaro
Engine: LO3, 350 in the works
Transmission: 700R4 Probuilt Automatics Road Race
Axle/Gears: 4th gen 3.23 posi/LS1 discs

Classifieds Rating: (9)
Send a message via AIM to krisb410
Re: Best strut mount?

Who knows, maybe to make it compatible with coil overs? It's just the natual progression of things. Designs get improved.
krisb410 is offline vBGarage Page   Reply With Quote
Old 05-21-2008, 11:59 PM   #45
Member

Join Date: Mar 2008
Location: DC area
Posts: 117

Classifieds Rating: (3)
Re: Best strut mount?

i would be curious to know how the kyb mounts perform
eeeeeefirebird is offline vBGarage Page   Reply With Quote
Old 05-22-2008, 05:49 PM   #46
Supreme Member

krisb410's Avatar

Join Date: Nov 2005
Location: Baltimore, MD
Posts: 2,323
Car: 91 RS Camaro
Engine: LO3, 350 in the works
Transmission: 700R4 Probuilt Automatics Road Race
Axle/Gears: 4th gen 3.23 posi/LS1 discs

Classifieds Rating: (9)
Send a message via AIM to krisb410
Re: Best strut mount?

They look like direct copies of the stockers. So they would be better than old ones, but if your using a STB, they would make the STB pointless.
krisb410 is offline vBGarage Page   Reply With Quote
Old 05-22-2008, 06:46 PM   #47
Supreme Member

TheScaryOne's Avatar

Join Date: Aug 2006
Location: Tucson, Arizona
Posts: 1,436
Car: 1987 IROC-Z Camaro
Engine: L98 5.7L TPI
Transmission: 700-R4
Axle/Gears: 3.27 BW

Classifieds Rating: (3)
Send a message via ICQ to TheScaryOne Send a message via AIM to TheScaryOne Send a message via MSN to TheScaryOne Send a message via Yahoo to TheScaryOne
Re: Best strut mount?

If the Kyb are the same as stock, Moog, and Monroe, then they all suffer from having a rubber bushing where they should be using a bearing. The Spohn and J&M mounts both use a high load bearing here, and the J&M units have a lifetime warranty.
TheScaryOne is offline vBGarage Page   Reply With Quote
Old 05-24-2008, 06:39 PM   #48
Senior Member

goomaan's Avatar

Join Date: Jun 2007
Location: www.nythirdgen.com
Posts: 744
Car: 1991 Z28
Engine: 305 TPI
Transmission: 700R Auto
Axle/Gears: Eaton POSI 4.10

Classifieds Rating: (2)
Send a message via AIM to goomaan
Re: Best strut mount?

Ok I am happy now... Had the J&Ms installed correctly today. After what appeared to be the longest wheel alignment ever the car is perfect again.
goomaan is offline vBGarage Page   Reply With Quote
Old 05-24-2008, 10:08 PM   #49
Supreme Member

Join Date: Jan 2004
Location: p'cola FL
Posts: 2,301
Car: 88 iroc-z/28
Engine: 408 lsx
Transmission: 5800 stall
Axle/Gears: 4.71

Classifieds Rating: (3)

Send a message via AIM to stage20
Re: Best strut mount?

Quote:
Originally Posted by goomaan View Post
Ok I am happy now... Had the J&Ms installed correctly today. After what appeared to be the longest wheel alignment ever the car is perfect again.
was it busy or the guy an idiot, or did the mounts cause them to take longer?
maybe a combination in todays world.

glad you got it straightend out.(pun)
stage20 is offline vBGarage Page   Reply With Quote
Old 05-24-2008, 10:20 PM   #50
Senior Member

goomaan's Avatar

Join Date: Jun 2007
Location: www.nythirdgen.com
Posts: 744
Car: 1991 Z28
Engine: 305 TPI
Transmission: 700R Auto
Axle/Gears: Eaton POSI 4.10

Classifieds Rating: (2)
Send a message via AIM to goomaan
Re: Best strut mount?

Quote:
Originally Posted by stage20 View Post
was it busy or the guy an idiot, or did the mounts cause them to take longer?
maybe a combination in todays world.

glad you got it straightend out.(pun)

It was the mounts.. old design mounts are a pain in the a$$
goomaan is offline vBGarage Page   Reply With Quote
Old 05-24-2008, 10:20 PM
ThirdGen
1992 Camaro




Paid Advertisement


Reply

Go Back   Third Generation F-Body Message Boards > Tech Boards > Aftermarket Product Review

Tags
1991, aftermarket, body, camaro, car, daily, drive, hat, is300, jm, member, mounts, shock, strut, suspension, top, travel, z28
Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off




1982 Camaro '82 || 1983 Camaro '83 || 1984 Camaro '84 || 1985 Camaro '85 || 1986 Camaro '86 || 1987 Camaro '87 || 1988 Camaro '88 || 1989 Camaro '89 || 1990 Camaro '90 || 1991 Camaro '91 || 1992 Camaro '92


All times are GMT -5. The time now is 04:28 AM.


Powered by vBulletin® Version 3.7.5
Copyright ©2000 - 2014, Jelsoft Enterprises Ltd.
All content copyright © 1997 - 2014 ThirdGen.org. All rights reserved. No part of this website may be reproduced without the expressed, documented, and written consent of ThirdGen.org's Administrators.

Emails & Contact Details
