a/c compressor clutch plug (where does the black wire go?)
02-23-2011, 05:15 PM
#1
Member
Thread Starter
iTrader: (3)
Join Date: Nov 2009
Location: Saint Louis, MO
Posts: 453
Likes: 0
Received 0 Likes
on
0 Posts
Car: 86 Firebird LG4
Engine: 350
Transmission: 700r4
Axle/Gears: 3.23 limited slip
a/c compressor clutch plug (where does the black wire go?)
86 lg4 carbureted

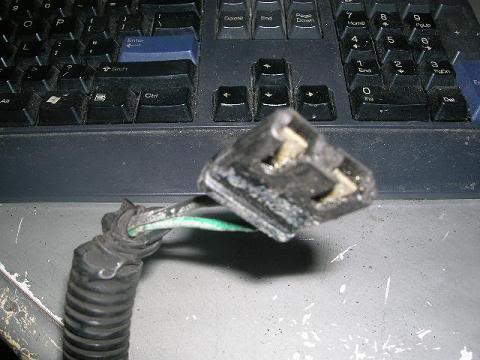

this plug goes into the air conditioner clutch.
mine is hanging by itself.
I looked at this diagraam and circled where it goes to and it goes to a diode and a high pressure switch apparently... does anyone know where those 2 things are or have a picture of them?
this plug goes into the air conditioner clutch.
mine is hanging by itself.
I looked at this diagraam and circled where it goes to and it goes to a diode and a high pressure switch apparently... does anyone know where those 2 things are or have a picture of them?
02-23-2011, 05:33 PM
#2
Supreme Member
Join Date: Sep 2002
Location: Cary, North Carolina
Posts: 9,192
Likes: 0
Received 16 Likes
on
16 Posts
Car: 1992 RS
Engine: Carbed 350
Transmission: 700R4
Axle/Gears: 3.42 posi
Re: a/c compressor clutch plug (where does the black wire go?)
plugs right into the A/C compressor
02-23-2011, 06:34 PM
#3
Member
Thread Starter
iTrader: (3)
Join Date: Nov 2009
Location: Saint Louis, MO
Posts: 453
Likes: 0
Received 0 Likes
on
0 Posts
Car: 86 Firebird LG4
Engine: 350
Transmission: 700r4
Axle/Gears: 3.23 limited slip
Re: a/c compressor clutch plug (where does the black wire go?)
I know where the plug goes, Im trying to figure out where that black wire leads to (the one i'm holding).
02-23-2011, 06:37 PM
#4
Supreme Member
iTrader: (24)
Join Date: Jun 2005
Location: NC
Posts: 7,883
Likes: 0
Received 58 Likes
on
42 Posts
Car: 92 Firebird
Engine: Supercharged 6.0
Transmission: T56
Axle/Gears: 8.8 3.73
Re: a/c compressor clutch plug (where does the black wire go?)
According to the diagram it goes to the AC high pressure switch then ground
02-23-2011, 06:52 PM
#5
Member
Thread Starter
iTrader: (3)
Join Date: Nov 2009
Location: Saint Louis, MO
Posts: 453
Likes: 0
Received 0 Likes
on
0 Posts
Car: 86 Firebird LG4
Engine: 350
Transmission: 700r4
Axle/Gears: 3.23 limited slip
Re: a/c compressor clutch plug (where does the black wire go?)
I don't know what an A/C high pressure switch is, is it one of those pieces on the passenger side firewall somewhere?
02-23-2011, 08:03 PM
#6
Supreme Member
iTrader: (24)
Join Date: Jun 2005
Location: NC
Posts: 7,883
Likes: 0
Received 58 Likes
on
42 Posts
Car: 92 Firebird
Engine: Supercharged 6.0
Transmission: T56
Axle/Gears: 8.8 3.73
Re: a/c compressor clutch plug (where does the black wire go?)
Should be the round connector on the rear of the compressor
02-25-2011, 05:13 PM
#7
Member
Thread Starter
iTrader: (3)
Join Date: Nov 2009
Location: Saint Louis, MO
Posts: 453
Likes: 0
Received 0 Likes
on
0 Posts
Car: 86 Firebird LG4
Engine: 350
Transmission: 700r4
Axle/Gears: 3.23 limited slip
Re: a/c compressor clutch plug (where does the black wire go?)
I'm just going to ground it. There's no connector on the pressure switch it's just got a black cap over it. Plus there is no wire on the other end.
Trending Topics
09-26-2023, 02:07 PM
#9
Junior Member
Join Date: Sep 2023
Posts: 1
Likes: 0
Received 0 Likes
on
0 Posts
Re: a/c compressor clutch plug (where does the black wire go?)
do you happen to have a pic of the connector that goes from the engine harness to the ac harness? That connector has a green wire that goes into the connector that joins the 2 harness together. I’m trying to find a picture of where ac compressor connectors go into that ac harnesses since mine were rated by mice.
