Need help wiring up power mirrors...

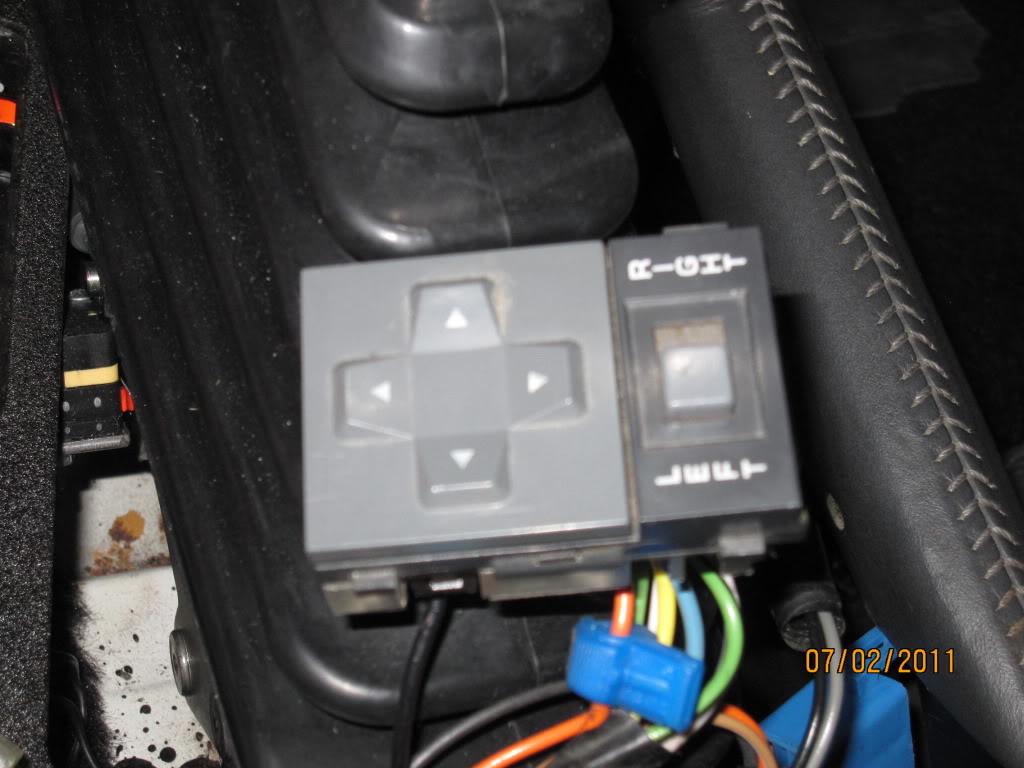

I am having a problem wiring up my power mirrors. the mirrors work as they were tested on the battery itself and I can get the mirrors to work either up/down or in/out but not in all 4 motions. I have this switch as shown. The power switch wires are green/blk and white which switches the morroe to either the left or right position, The power witch had black, orange, yellow and blue wires.

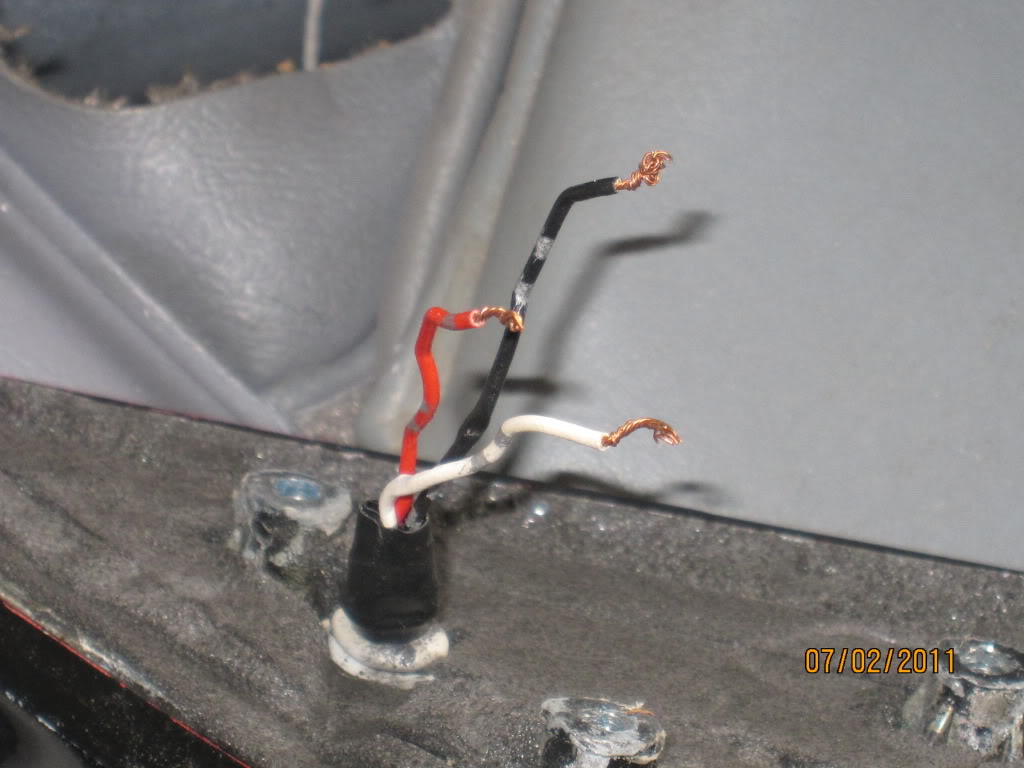

My connector has white/blk, blue/blk, green/blk and yellow black ( female end) going to blue, yellow, green and white on the male end. When the ends are mated they are as such: white female to blue male, blue/blk female to yelow male, yellow/blk female to white male, green/blk femal to green male. The issue is that my mirror only has 3 wires. How do I wire this up so that all positions work? Thanks

Name:  IMG_3533.jpg
Views: 18
Size:  98.1 KB

Name:  IMG_3540.jpg
Views: 14
Size:  72.4 KB



Name:  IMG_3546.jpg
Views: 16
Size:  84.9 KB



Name:  IMG_3543.jpg
Views: 19
Size:  100.4 KB

Last edited by mrrman; Jul 4, 2011 at 08:09 AM.
