Starter wire pic

I took my starter out when I replaced my engine and forgot to mark the wires now I'm stuck. Can anybody post a pic of a starter that's hooked up. Thanks. It's for my 91z

May 7, 2013 | 03:24 PM

pjp209

Thread Starter

Junior Member

Joined: Feb 2010

Posts: 89

Likes: 1

From: stockton California

Car: Gone

Re: Starter wire pic

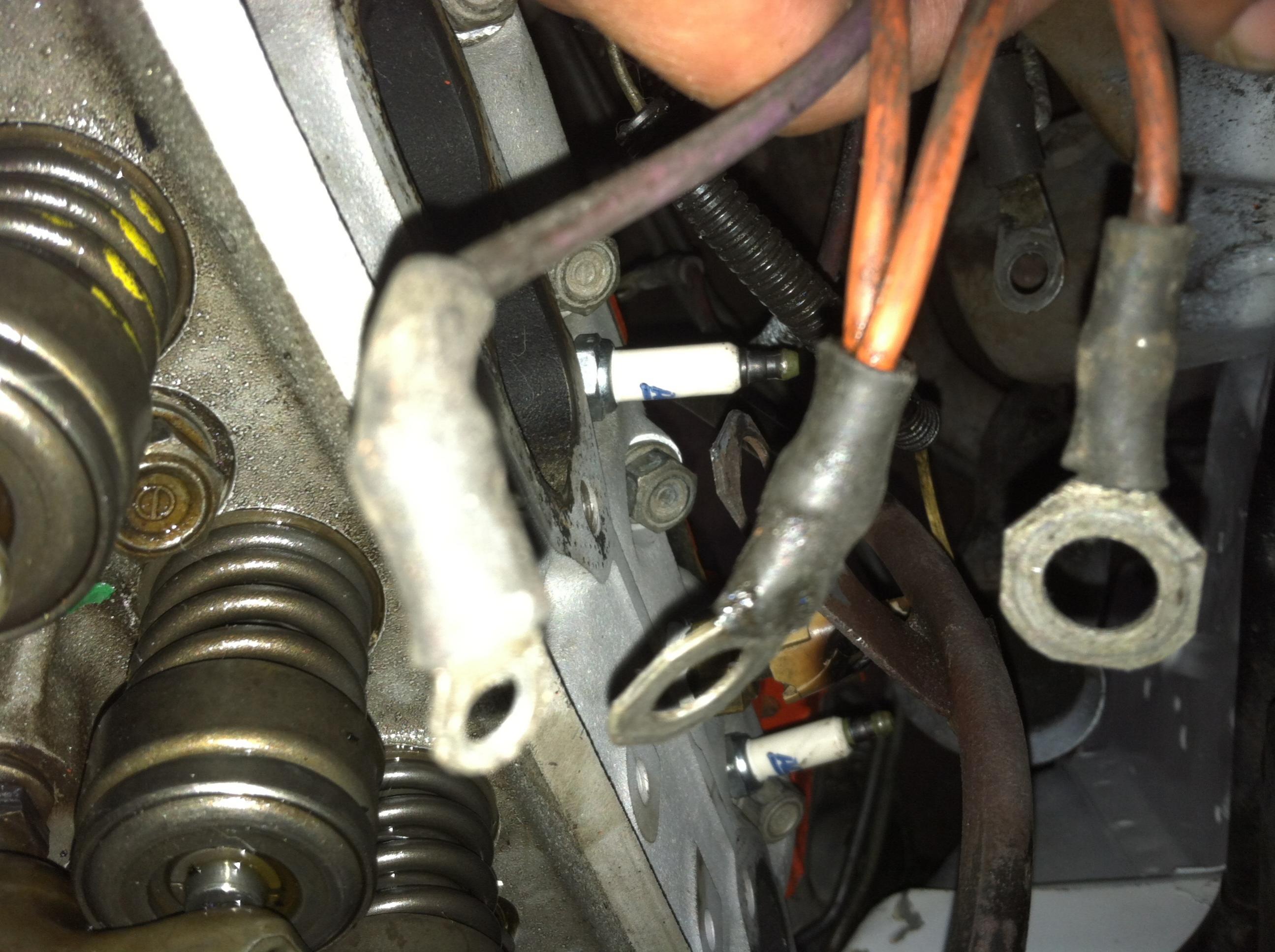

I took some pic of the wires and starter

Attached Thumbnails

Last edited by pjp209; May 7, 2013 at 04:13 PM. Reason: Pic

May 7, 2013 | 05:33 PM

Veaceonee

Senior Member

iTrader: (1)

Joined: Dec 2012

Posts: 808

Likes: 5

From: Tucson, AZ

Car: 88 GTA Notchback

Engine: 350 TPI

Transmission: 700R4

Axle/Gears: don't know

Re: Starter wire pic

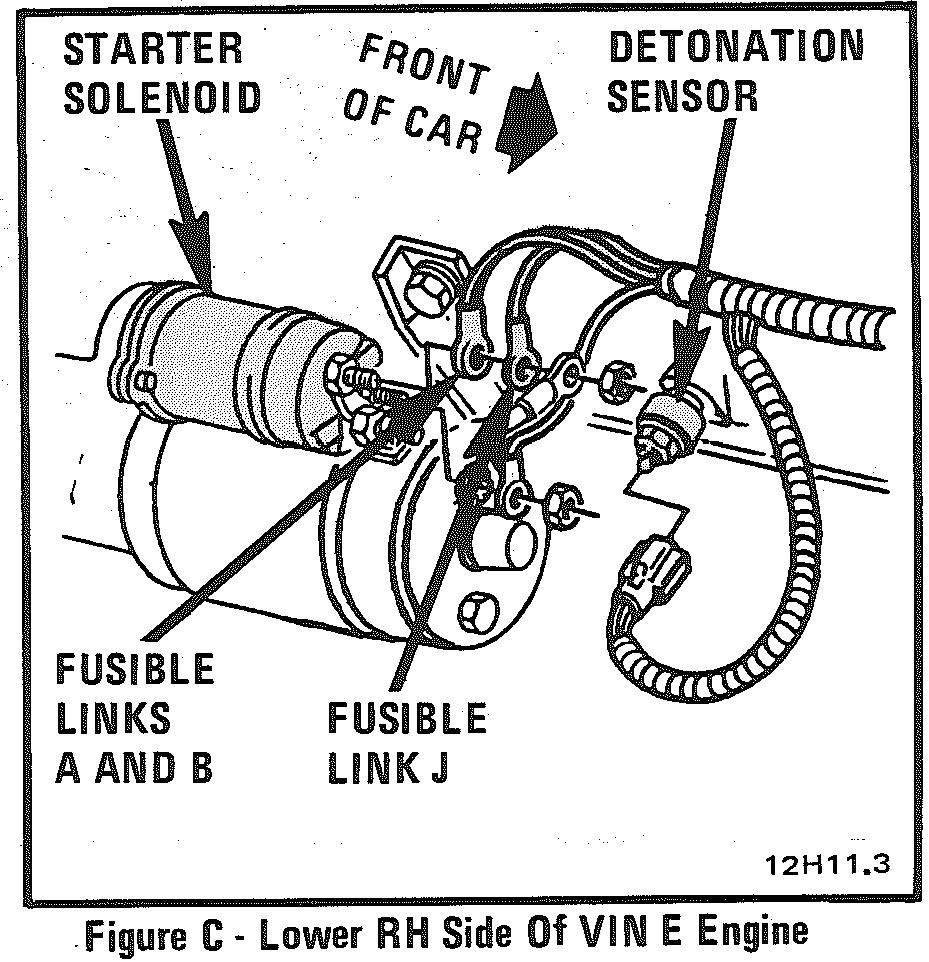

Here is a schematic for an 88. Should be roughly the same.

Attached Thumbnails

May 7, 2013 | 10:53 PM

antares57

Senior Member

iTrader: (8)

Joined: Aug 2011

Posts: 661

Likes: 7

From: Texas

Car: 91 Firebird/88 Firebird/91 Formula

Engine: V6 3.1/V8 5.0/V8 5.0

Transmission: 4L60/700R4/4L60

Axle/Gears: 3.23/2.73/2.73

Re: Starter wire pic

Maybe these will help also. Looks like the purple wire goes to the "S" contact pole and the other three go to the "B" contact pole. Good luck.

Attached Thumbnails

May 7, 2013 | 11:03 PM

pjp209

Thread Starter

Junior Member

Joined: Feb 2010

Posts: 89

Likes: 1

From: stockton California

Car: Gone

Re: Starter wire pic

Thanks

May 7, 2013 | 11:05 PM

Guest

Guest

Posts: n/a

Re: Starter wire pic

Those 2 wires on the right are missing a buddy, and the little wire is for the switch.

May 8, 2013 | 10:30 AM

pjp209

Thread Starter

Junior Member

Joined: Feb 2010

Posts: 89

Likes: 1

From: stockton California

Car: Gone

Re: Starter wire pic

Are you talking about the battery wire
