82 temp gauge not working.
#1
Junior Member
Thread Starter
Join Date: Nov 2013
Location: Oregon
Posts: 51
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1982 Camaro Berlinetta
Engine: Chevy Performance 350
Transmission: Turbo 350
82 temp gauge not working.
Edit: I took some pictures of the setup my car has right now. It's very different from what I've been reading on here. Here is the album:
http://imgur.com/a/WFVWV
I'm thinking about just getting an oil and temperature gauge set online and going aftermarket. If done right they are more accurate and reliable anyway, though look more tacky. Should I get temp and oil gauges online with all the wiring and adapters in a pack? Do they even come in a pack?
My '82 350 Berlinetta temperature gauge does not work. When I bought the car the PO told me the temp gauge didn't work because the needle was stuck all the way "hot" and did not move at all. He installed a really crappy aftermarket temp gauge on the passenger side of the interior, under the dash where passengers feet belong.
Soon after purchasing the vehicle the factory temp gauge needle must have loosened up or something, because it fell down to a new "cold" (like the engine is off) position. As far as I've seen the stupid aftermarket gauge doesn't even work right anyway.
So I'm here because I don't know where the temp gauge wire is supposed to plug into the motor to get its measurements, and I need to diagnose the factory gauge to see if it in fact works. I do not know how to do this.
It's been getting over 90 F here lately so I'm not comfortable having a car that may or may not be running hot.
Any advice? Thanks!
http://imgur.com/a/WFVWV
I'm thinking about just getting an oil and temperature gauge set online and going aftermarket. If done right they are more accurate and reliable anyway, though look more tacky. Should I get temp and oil gauges online with all the wiring and adapters in a pack? Do they even come in a pack?
My '82 350 Berlinetta temperature gauge does not work. When I bought the car the PO told me the temp gauge didn't work because the needle was stuck all the way "hot" and did not move at all. He installed a really crappy aftermarket temp gauge on the passenger side of the interior, under the dash where passengers feet belong.
Soon after purchasing the vehicle the factory temp gauge needle must have loosened up or something, because it fell down to a new "cold" (like the engine is off) position. As far as I've seen the stupid aftermarket gauge doesn't even work right anyway.
So I'm here because I don't know where the temp gauge wire is supposed to plug into the motor to get its measurements, and I need to diagnose the factory gauge to see if it in fact works. I do not know how to do this.
It's been getting over 90 F here lately so I'm not comfortable having a car that may or may not be running hot.
Any advice? Thanks!
Last edited by JuggernautOfWar; 07-21-2014 at 11:51 AM.
#2
Supreme Member
iTrader: (4)
Join Date: Sep 2004
Location: MN
Posts: 2,069
Likes: 0
Received 3 Likes
on
3 Posts
Car: 85 SC, 86 Berlinetta
Engine: V6, V8
Transmission: 700r4, 700r4
Re: 82 temp gauge not working.
The temp sensor is located on the drivers side between the first and second spark plug (#76 in image below).
You will need the correct sending unit for the factory gauge to work. I would check the gauge before paying for a new sending unit. Unfortunately, I don't recall how to test the gauge off hand but it should be fairly straight forward and/or you can find it by searching here, Google or Youtube.
You can either get an infrared temp gun to check right away, or you can grab another after-market gauge for $10-$20 that will be more accurate than the factory one. The one I have was tested before installing so I know it's accurate.
You will need the correct sending unit for the factory gauge to work. I would check the gauge before paying for a new sending unit. Unfortunately, I don't recall how to test the gauge off hand but it should be fairly straight forward and/or you can find it by searching here, Google or Youtube.
You can either get an infrared temp gun to check right away, or you can grab another after-market gauge for $10-$20 that will be more accurate than the factory one. The one I have was tested before installing so I know it's accurate.
#3
Junior Member
Thread Starter
Join Date: Nov 2013
Location: Oregon
Posts: 51
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1982 Camaro Berlinetta
Engine: Chevy Performance 350
Transmission: Turbo 350
Re: 82 temp gauge not working.
Alright so I need to check the sensor, gauge, and sending unit. I figured the sending unit and sensor would be in the same component.
I'd prefer to maintain the stock gauges for the time being and take out the crappy aftermarket gauge the PO installed. It may not be accurate down to the degree, but it tells me if the engine is overheating which is what I need. Eventually long down the road I'd like to replace the whole gauge cluster with something higher quality, but for now factory stock is what I'm doing.
I've been doing some reading on here and one gentleman suggested "removing the wire from the temp sensor in the head and touch it to the block. Then watch what the gauge does. If nothing your temp gauge is faulty or the wire from the temp sender unit to the gauge is damaged." To me this doesn't make sense since the wire itself is not a sensor so it cannot not relay any information without the sensor.
I'd prefer to maintain the stock gauges for the time being and take out the crappy aftermarket gauge the PO installed. It may not be accurate down to the degree, but it tells me if the engine is overheating which is what I need. Eventually long down the road I'd like to replace the whole gauge cluster with something higher quality, but for now factory stock is what I'm doing.
I've been doing some reading on here and one gentleman suggested "removing the wire from the temp sensor in the head and touch it to the block. Then watch what the gauge does. If nothing your temp gauge is faulty or the wire from the temp sender unit to the gauge is damaged." To me this doesn't make sense since the wire itself is not a sensor so it cannot not relay any information without the sensor.
Last edited by JuggernautOfWar; 07-19-2014 at 01:13 PM.
#4
Supreme Member
iTrader: (4)
Join Date: Sep 2004
Location: MN
Posts: 2,069
Likes: 0
Received 3 Likes
on
3 Posts
Car: 85 SC, 86 Berlinetta
Engine: V6, V8
Transmission: 700r4, 700r4
Re: 82 temp gauge not working.
I actually picked up mechanical temp and oil gauges at Walmart. lol I'm not sure if they still carry them though. I had an engine built and didn't trust the factory ones (or the after-market one I got at first) so I tested it in boiling water to be sure. I installed it temporarily in the inside corner up by the center console (see below), but ended up leaving it there since I haven't had a reason to remove it. I used a single screw already there to mount the gauge so it doesn't affect anything if/when I ever remove it.
This looks similar, I can't tell you for sure if it's the same brand or not. I paid closer to $10, this one is probably closer to the cost of a sending unit so it's up to you.
http://www.walmart.com/ip/Equus-2-El...Gauge/17470860
If you haven't looked, here are a couple of videos that I found quick that should explain things. I didn't have time to watch them and it would be better with an '80's Thirdgen but it should give you an idea on the basics and what to search for on youtube.
Edit: I noticed he used 12v from the battery which is way to high from what I remember. I recall the gauges work on 5v so I would want to try 3-5 volts on the gauge instead.
http://www.youtube.com/watch?feature...MZSXoCXwDQ#t=0
http://www.youtube.com/watch?feature...xV6M7Ror5c#t=0
This looks similar, I can't tell you for sure if it's the same brand or not. I paid closer to $10, this one is probably closer to the cost of a sending unit so it's up to you.
http://www.walmart.com/ip/Equus-2-El...Gauge/17470860
If you haven't looked, here are a couple of videos that I found quick that should explain things. I didn't have time to watch them and it would be better with an '80's Thirdgen but it should give you an idea on the basics and what to search for on youtube.
Edit: I noticed he used 12v from the battery which is way to high from what I remember. I recall the gauges work on 5v so I would want to try 3-5 volts on the gauge instead.
http://www.youtube.com/watch?feature...MZSXoCXwDQ#t=0
http://www.youtube.com/watch?feature...xV6M7Ror5c#t=0
#5
Supreme Member
iTrader: (4)
Join Date: Sep 2004
Location: MN
Posts: 2,069
Likes: 0
Received 3 Likes
on
3 Posts
Car: 85 SC, 86 Berlinetta
Engine: V6, V8
Transmission: 700r4, 700r4
Re: 82 temp gauge not working.
I've been doing some reading on here and one gentleman suggested "removing the wire from the temp sensor in the head and touch it to the block. Then watch what the gauge does. If nothing your temp gauge is faulty or the wire from the temp sender unit to the gauge is damaged." To me this doesn't make sense since the wire itself is not a sensor so it cannot not relay any information without the sensor.
Edit: That's the part I would have to check into. I'm not sure how the gauge is grounded and whether to send voltage to the gauge or ground it. That's why I didn't describe that part. The video I posted said to do the opposite, but that's a'90's version GM cluster.
Last edited by Scorpner; 07-19-2014 at 02:11 PM.
#6
Supreme Member
iTrader: (4)
Join Date: Sep 2004
Location: MN
Posts: 2,069
Likes: 0
Received 3 Likes
on
3 Posts
Car: 85 SC, 86 Berlinetta
Engine: V6, V8
Transmission: 700r4, 700r4
Re: 82 temp gauge not working.

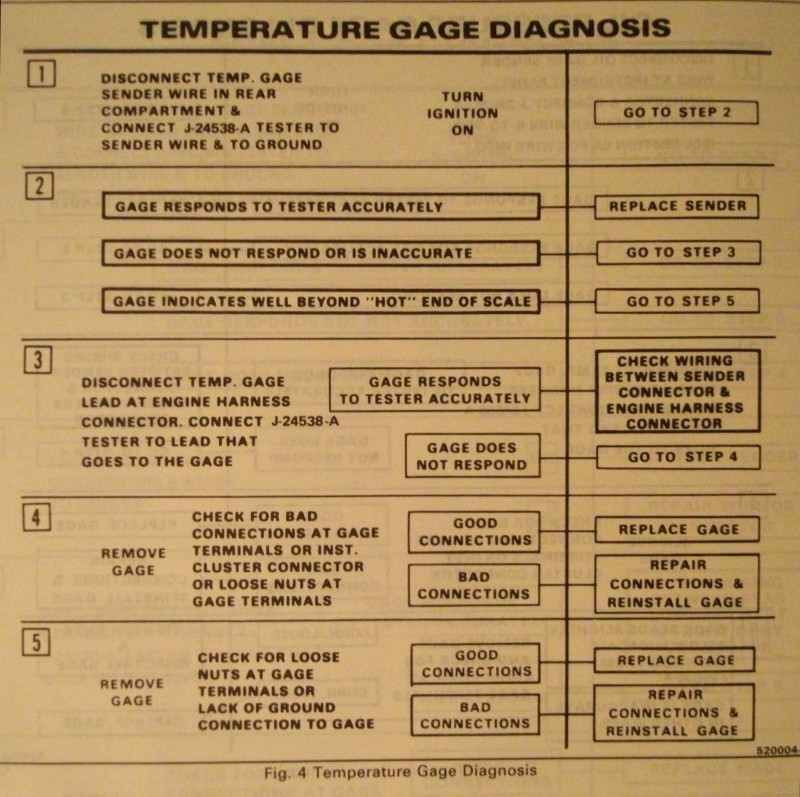

Here is a diag for an '86 Firebird. That's as close as I can get. The problem is they just describe a "Jxxxx" tester which you don't have, but it's the same principle of sending 0-5 volts (iirc) to the gauge. BTW, I agree with keeping it stock, it depends on what your goals are.
I had to reduce the image size to upload it. I hope you can see it.
I had to reduce the image size to upload it. I hope you can see it.
#7
Junior Member
Thread Starter
Join Date: Nov 2013
Location: Oregon
Posts: 51
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1982 Camaro Berlinetta
Engine: Chevy Performance 350
Transmission: Turbo 350
Re: 82 temp gauge not working.
Thanks for all the awesome advice guys! I just let my car warm up quite a bit and checked the installed aftermarket gauge. It never moved at all. Additionally, the mount is bent and the bulb for the gauge is missing. So basically my passenger side installed temp gauge needs to go.
I took some pictures of the setup my car has right now. It's very different from what I've been reading on here. Here is the album:
http://imgur.com/a/WFVWV
I'm thinking about just getting an oil and temperature gauge set online and going aftermarket. If done right they are more accurate and reliable anyway, though look more tacky. Should I get temp and oil gauges online with all the wiring and adapters in a pack? Do they even come in a pack?
I took some pictures of the setup my car has right now. It's very different from what I've been reading on here. Here is the album:
http://imgur.com/a/WFVWV
I'm thinking about just getting an oil and temperature gauge set online and going aftermarket. If done right they are more accurate and reliable anyway, though look more tacky. Should I get temp and oil gauges online with all the wiring and adapters in a pack? Do they even come in a pack?
