Can anyone identify this connector?

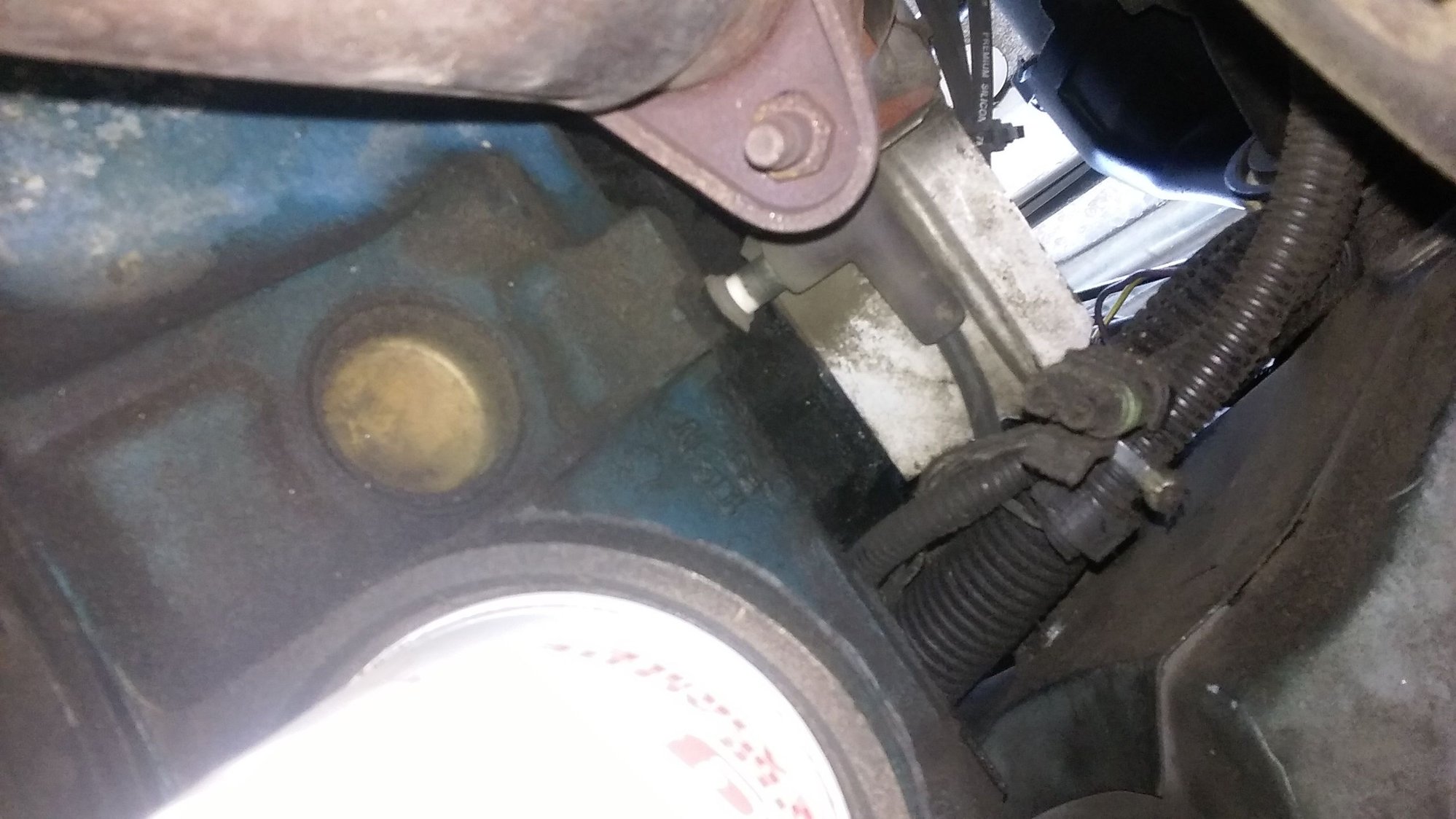

It has been disconnected since i got my car a few years ago. I have a 305 LG4 engine and this sits on the driver side near the exhaust.




Reply
Old Jul 21, 2015 | 09:20 AM
  #2
Wife'sCar's Avatar
Senior Member
iTrader: (1)

Joined: Jun 2014
Posts: 538
Likes: 0
From: Southeast VA
Car: 91 Camaro RS T-Top
Engine: 5.0 Tbi
Transmission: 700r4
Axle/Gears: 3.42
Re: Can anyone identify this connector?

Will poke at wife's car when she gets home from work, I don't remember it off hand, is there anything not working correctly by chance? Gauges acting funny, warning lights on, anything like that?
Reply
Old Jul 22, 2015 | 04:07 PM
  #3
middian's Avatar
Thread Starter
Junior Member

Joined: May 2014
Posts: 70
Likes: 0
From: Los Angeles
Car: 1987 Camaro LT
Engine: 305 5.0 LG4
Transmission: 700r4
Axle/Gears: ?
Re: Can anyone identify this connector?

haha thanks for the help!
Well a few things but i dont think they made be related.
for one my temperature gauge doesnt wanna work. and my fuel gauge doesnt really work either. Ive replaced the temp sensor and temp sending unit and nothing budges. also my car idles a little high sometimes and it diesels out when i turn it off. but i believe thats my TPS acting up
Reply
Old Jul 23, 2015 | 05:26 PM
  #4
Wife'sCar's Avatar
Senior Member
iTrader: (1)

Joined: Jun 2014
Posts: 538
Likes: 0
From: Southeast VA
Car: 91 Camaro RS T-Top
Engine: 5.0 Tbi
Transmission: 700r4
Axle/Gears: 3.42
Re: Can anyone identify this connector?

What color are the wires? I can't find a plug that resembles that one on that side of the motor. The temp sensor is a spade connector style, and I'm pretty sure it's unrelated to the fuel gauge.
Reply
Old Jul 23, 2015 | 06:28 PM
  #5
paulo57509's Avatar
Supreme Member
25 Year Member
Liked
Loved
Community Favorite

Joined: Jan 2000
Posts: 3,178
Likes: 48
From: Tracy, CA
Car: '87 IROC
Engine: LB9
Transmission: TH700R4
Re: Can anyone identify this connector?

I recall some cars came with a P/S pressure switch. The sensors output would tell the ECM to bump up the idle when the P/S system would load the engine.

http://www.rockauto.com/catalog/x,ca...,parttype,7408

Last edited by paulo57509; Jul 23, 2015 at 06:31 PM. Reason: Link added.....
Reply
Old Jul 24, 2015 | 12:24 PM
  #6
middian's Avatar
Thread Starter
Junior Member

Joined: May 2014
Posts: 70
Likes: 0
From: Los Angeles
Car: 1987 Camaro LT
Engine: 305 5.0 LG4
Transmission: 700r4
Axle/Gears: ?
Re: Can anyone identify this connector?

Originally Posted by paulo57509
I recall some cars came with a P/S pressure switch. The sensors output would tell the ECM to bump up the idle when the P/S system would load the engine.

http://www.rockauto.com/catalog/x,ca...,parttype,7408
any idea where i could locate the switch? I dont have an issue when parking or anything so id think my switch is working properly?
Reply
Old Jul 24, 2015 | 05:54 PM
  #7
deadbird's Avatar
TGO Supporter

Joined: Sep 2000
Posts: 6,775
Likes: 27
From: So.west IN
Car: 87 Formula/ 00 Xtreme
Engine: TPI 305/ v6
Transmission: struggling t-5/ 4l60E
Axle/Gears: 3.08/ 3.23
Re: Can anyone identify this connector?

An 87 block would normally have an oil pressure switch right there above the oil filter. Tan/white and orange wires.
Reply
Old Jul 25, 2015 | 03:43 PM
  #8
middian's Avatar
Thread Starter
Junior Member

Joined: May 2014
Posts: 70
Likes: 0
From: Los Angeles
Car: 1987 Camaro LT
Engine: 305 5.0 LG4
Transmission: 700r4
Axle/Gears: ?
Re: Can anyone identify this connector?

Originally Posted by deadbird
An 87 block would normally have an oil pressure switch right there above the oil filter. Tan/white and orange wires.

my oil pressure gauge works just fine.... hmm
Reply
Old Jul 25, 2015 | 06:37 PM
  #9
deadbird's Avatar
TGO Supporter

Joined: Sep 2000
Posts: 6,775
Likes: 27
From: So.west IN
Car: 87 Formula/ 00 Xtreme
Engine: TPI 305/ v6
Transmission: struggling t-5/ 4l60E
Axle/Gears: 3.08/ 3.23
Re: Can anyone identify this connector?

Oil pressure switch has nothing to do with the gauge.

It was already asked but, I'll repeat it. What are the wire colors going to that plug?
Reply
Old Jul 26, 2015 | 04:57 AM
  #10
middian's Avatar
Thread Starter
Junior Member

Joined: May 2014
Posts: 70
Likes: 0
From: Los Angeles
Car: 1987 Camaro LT
Engine: 305 5.0 LG4
Transmission: 700r4
Axle/Gears: ?
Re: Can anyone identify this connector?

Originally Posted by deadbird
Oil pressure switch has nothing to do with the gauge.

It was already asked but, I'll repeat it. What are the wire colors going to that plug?

Ill check in the AM
Reply
Old Jul 28, 2015 | 02:45 PM
  #11
Wife'sCar's Avatar
Senior Member
iTrader: (1)

Joined: Jun 2014
Posts: 538
Likes: 0
From: Southeast VA
Car: 91 Camaro RS T-Top
Engine: 5.0 Tbi
Transmission: 700r4
Axle/Gears: 3.42
Re: Can anyone identify this connector?

Originally Posted by deadbird
Oil pressure switch has nothing to do with the gauge.

It was already asked but, I'll repeat it. What are the wire colors going to that plug?
Tell that to my pressure gauge......


But as I have asked and had been asked again colors would make this a lot faster.
Reply
