What's this plug?

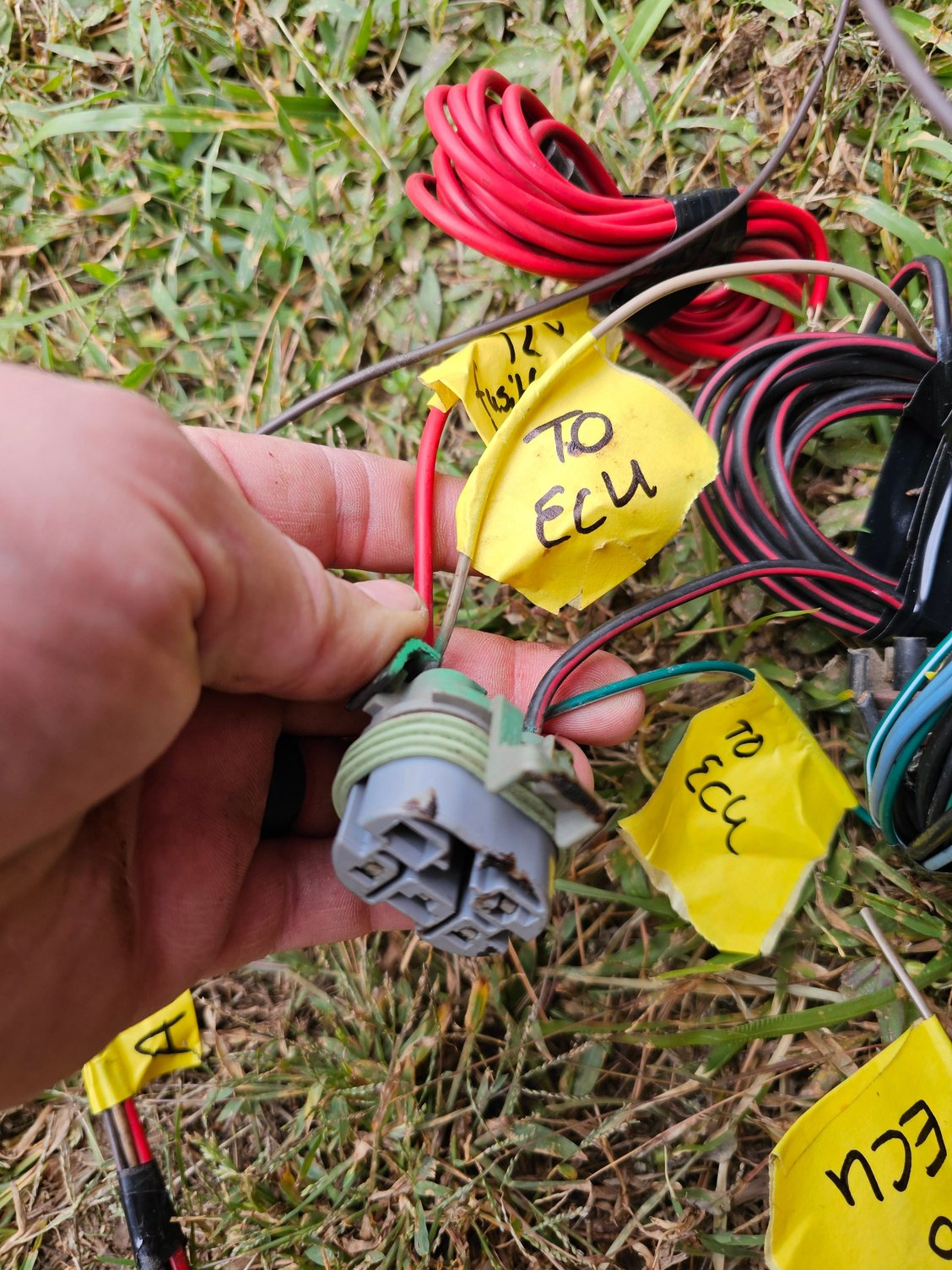

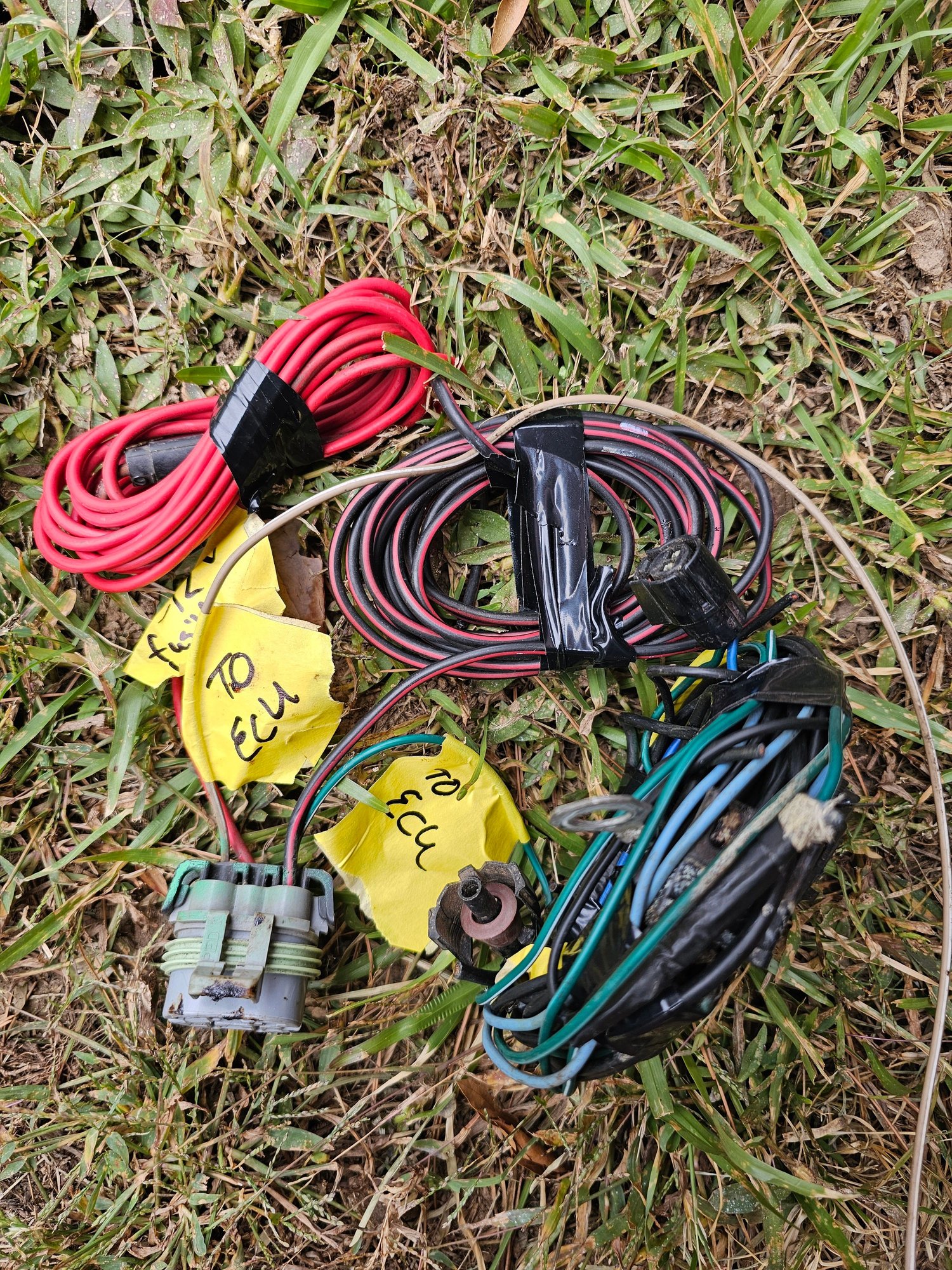

What's this grey plug for? Tan wire runs from it to the alt plug and back to the ECU.
88 TBI camaro harness.


Reply
0
Old Oct 26, 2025 | 11:22 AM
Share
  #2
Tuned Performance's Avatar
Tuned Performance
Sponsor
20 Year Member
Community Builder
Community Influencer
Community Favorite
iTrader: (94)

Joined: Dec 2004
Posts: 16,753
Likes: 996
From: Mile High Country !!!
Car: 1967 Camaro, 91 z28
Engine: Lb9
Transmission: M20
Axle/Gears: J65 pbr on stock posi 10bolt
Re: What's this plug?
Looks like temp head switch controlled fan relay
Reply
0
Old Oct 26, 2025 | 12:31 PM
Share
  #3
sofakingdom's Avatar
sofakingdom
Supreme Member
20 Year Member
Community Builder
iTrader: (1)

Joined: Sep 2005
Posts: 27,893
Likes: 2,436
Car: Yes
Engine: Usually
Transmission: Sometimes
Axle/Gears: Behind me somewhere
Re: What's this plug?
fan relay
​​​​​​​
Reply
0
Old Oct 26, 2025 | 12:32 PM
Share
  #4
Ndb270's Avatar
Ndb270
Thread Starter
Junior Member

Joined: Oct 2024
Posts: 47
Likes: 4
Re: What's this plug?
Why would that have anything to do with the alternator though?
Reply
0
Old Oct 26, 2025 | 12:49 PM
Share
  #5
Tuned Performance's Avatar
Tuned Performance
Sponsor
20 Year Member
Community Builder
Community Influencer
Community Favorite
iTrader: (94)

Joined: Dec 2004
Posts: 16,753
Likes: 996
From: Mile High Country !!!
Car: 1967 Camaro, 91 z28
Engine: Lb9
Transmission: M20
Axle/Gears: J65 pbr on stock posi 10bolt
Re: What's this plug?

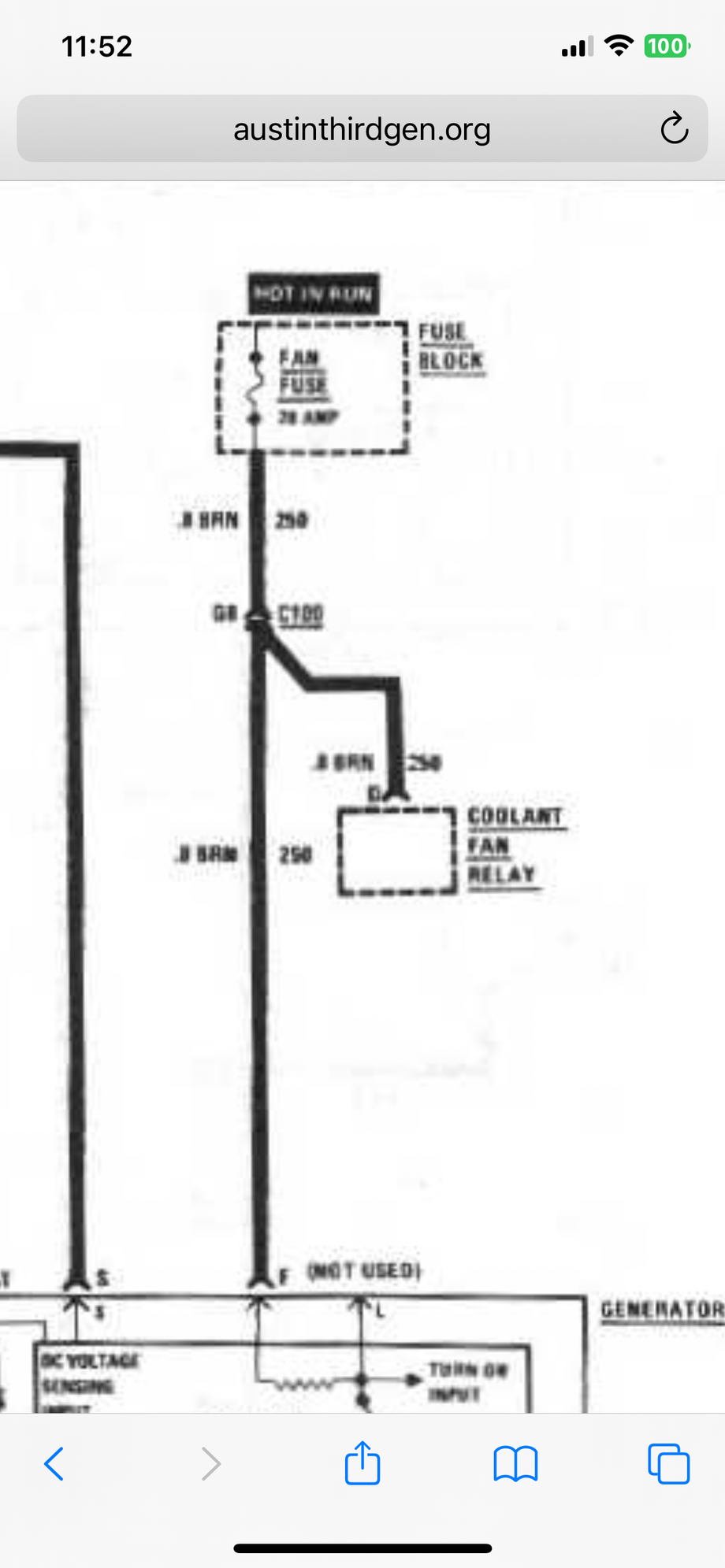

see schematic below
Last edited by Tuned Performance; Oct 26, 2025 at 12:53 PM.
Reply
0
Old Oct 26, 2025 | 12:53 PM
Share
  #6
Tuned Performance's Avatar
Tuned Performance
Sponsor
20 Year Member
Community Builder
Community Influencer
Community Favorite
iTrader: (94)

Joined: Dec 2004
Posts: 16,753
Likes: 996
From: Mile High Country !!!
Car: 1967 Camaro, 91 z28
Engine: Lb9
Transmission: M20
Axle/Gears: J65 pbr on stock posi 10bolt
Re: What's this plug?

Reply
0
Old Oct 26, 2025 | 02:01 PM
Share
  #7
Ndb270's Avatar
Ndb270
Thread Starter
Junior Member

Joined: Oct 2024
Posts: 47
Likes: 4
Re: What's this plug?
10 4 didn't know they shared a fuse. Thanks all!
