Hi Everyone,

My name is Braven, I'm an electrical engineer. I've been slowly building my side business over the last few years and I'm just beginning to mass produce my designs. My first products are vehicle specific sequential tail light modules. I have custom designed each one specifically to make installation as simple as possible. For Camaro and Formula owners, there is no longer a need to modify your tail light housings to upgrade your 194 bulbs to a dual filament 1157 bulb. My modules are designed to make the 194 bulbs function like dual filament bulbs.

To further aid in the installation process, I have taken the time to create detailed installations guides for each vehicle.

I have modules for: Camaro, Firebird, Trans Am/GTA, Formula, and 91-92 Trans Am/GTA

**Price is $180.00 Canadian shipped. With the current exchange rate, they are about $130.00 USD

I will ship anywhere in the world. Shipping charges may need to be adjusted slightly.


I am continuing to design new, unique products. The money from every item I sell is reinvested back into my R&D work. I hope to eventually create a relatively large business that is dedicated to designing custom vehicle modifications.

If you're interested in purchasing or have questions, please email me at: bravendirk@gmail.com

Upcoming designs are:
- Custom sequential LED front turn signals / daytime running lights for Trans Am and Camaro. These will have a 4 position switch to allow you to easily change between pre-programmed turn signal sequences.
- Touch pad "gesture" control system for your electric windows,door locks,mirrors, and rear hatch release. These may eventually include wireless controls. Switch delete cover plates will be provided with the kit.

Thank you very much for your time.




Braven



So will the DRL/sequential turn signals be a separate module or would it be an addon to your current sequential turn signal module?



@AstroFirebird



Hi there,

The sequential tail light module will be separate from the sequential front turn signals.

The rear module is simply a "splice in" circuit that manipulates your factory tail lights.

The front turn signal / Daytime running lights are actually a complete replacement for your front turn signals. I have custom designed the LED panel and light housings for them.


Please let me know if you have any other questions.



Looks great. I'll probably bite once I get a few other projects polished up this month. Are these ready to ship? Is this using the incandescent bulbs or LEDs? Is there load handling for swapping to LEDs? Any other pointers or suggestions to modify while splicing wiring, or bulbs to use?



@cradled


The lights were upgraded to LEDs. You'll just need to install an electronic signal light flasher relay, if you're using LEDs. I don't have a preference for LEDs. I've used Philips brand. Others have used super bright.

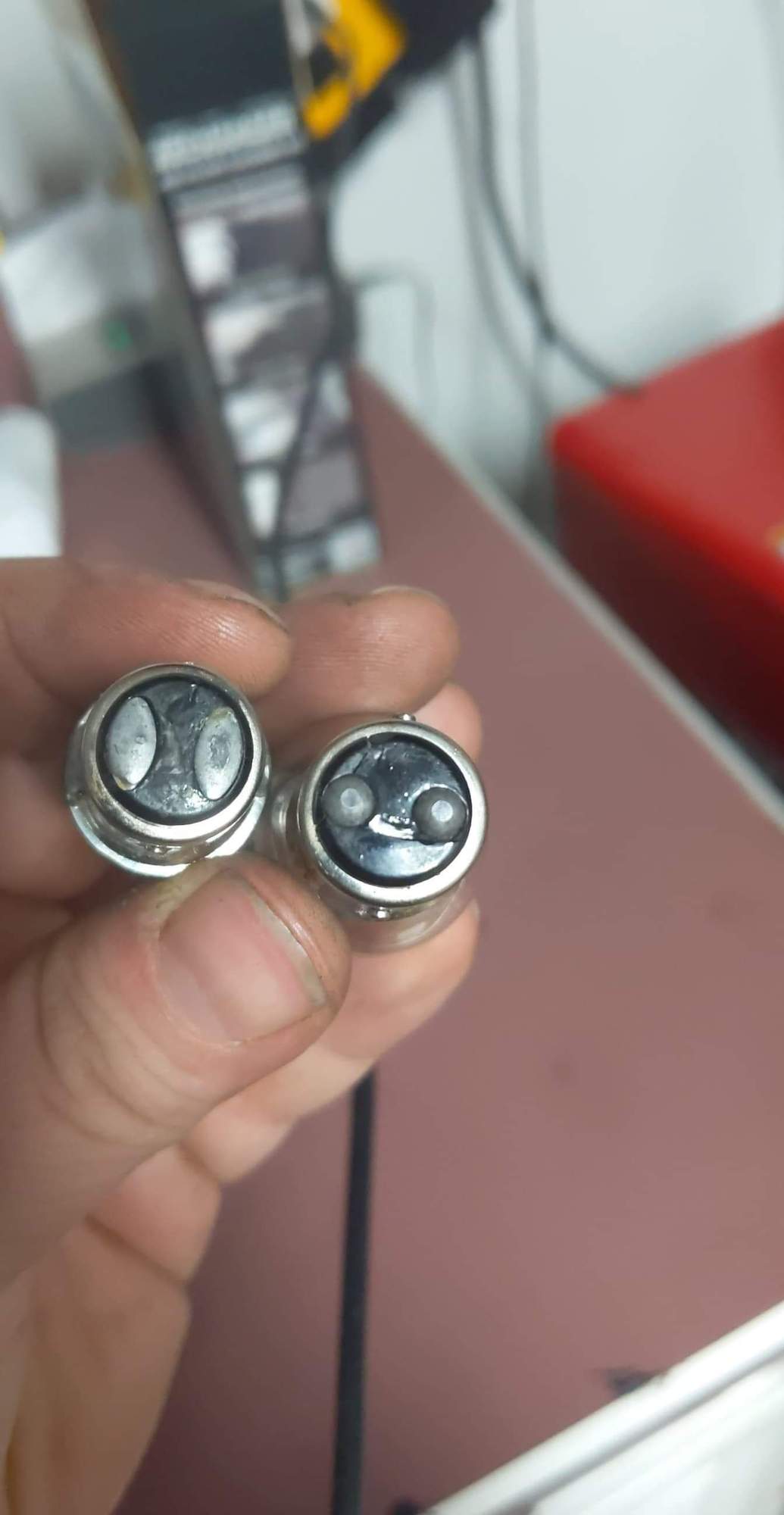

One thing I've noticed is that some LED bulbs have larger than factory electrical contact pads. They actually manage to bridge the gap between the factory socket electrical contacts. This causes the high beam and low beams to always be on at the same time. It's just something to look out for.



I'm in! Interested in the fronts too if they're ready. Can you DM me more details about this and the ease of installation? Thanks.



@@Lauper84
​
Hi there


I'll DM you,

I'd add to add some new updated videos for anyone else that stumbles upon this thread.

NEW FEATURES:
​​​​​-I now offer plug and play versions.
- I have designed a custom Show Off Mode. This is for car shows. The system will continually sequence through a custom light show until you deactivate the mode.
- I have made custom programs for people that would like to relocate their reverse lights and now have 4 signal lights per side.

- Plug and play versions for Camaro, Trans Am, GTA are $450 Canadian Shipped. Areas outside of Canada and the United States will need some shipping cost adjustments.

- Plug and play for formula style tail lights and custom "4 bulb" styles are $500 Canadian shipped.

- If you want to upgrade the system to a selectable sequence version (you can flip a switch to change the type of tail light sequence) there will be an additional $50 Canadian, added to the cost.



Custom Front Signal Lights (Selectable sequences) $500 Canadian shipped: Microcontroller installation, if you want to purchase custom programs, after already installing a sequential module: Custom 4 Bulb Camaro Sequential (Similar to Formula style): 3 Bulb Trans Am-Plug and Play-Switchable-Show Off $500 Canadian shipped:

​​



91-92 installation guide:

Formula installation guide:
