ATTENTION: Shift indicator with 4th Gen manual console and auto 3rd Gen trans...
Ok, I'm one of the many thirdgeneers with a 4th gen center console in my 3rd gen. I have the stock auto trans. I decided to go with the an auto 4th gen trans console. Which I was able to successfully fit, but since the shifter is bigger on the 3rd gen, the console was higher and forward than the stock piece...which means my stock radio pod was not an option. For the longest time, I just made a makeshift... and undesireable... looking radio pod. So now that were in the middle of carshow/event season, I finally got tired and embarrassed of my crappy, non stock radio "box".
So I broke down and got a 5 speed upper console from a 4th gen. The main thing (and main reason I went with 4th gen auto console) is the gear indicator. Knowing which gear I was on is nice. I know exactly what gear and what position the shifter is in by the position of the shifter, but on the rare occasion another person drove my car, I didn't want them accidentally putting it in reverse and smashing my car... So I thought of a way to put a gear indicator on my dash bezel. I got a regular gear indicator from a Sunbird or some other 90's Pontiac from the boneyard (since the backlighting is orange to match the dash) and cut out the appropriate section and the light isolator from the back. I installed an LED right behind each of the 7 indications and wired one end to ign positive (to come on when the key is in) and I put the negative on the shifter. I made sure the shift-shaft was grounded and then put a parallel plate that has the 7 contact points that corresponds to each indication. So every time its in a gear, the correct light would be grounded and light up. I know, its not the most professional looking thing, but there are plenty of Firebird bezels from the junkyard I can work on to make it better. The "mechanism" itself is nicely hidden bellow the shifter boot. I must say the interior looks much better and neater with the stock radio pod and correct height of the center console than previously. Let me know what you think of any tips to make it work better...
So I broke down and got a 5 speed upper console from a 4th gen. The main thing (and main reason I went with 4th gen auto console) is the gear indicator. Knowing which gear I was on is nice. I know exactly what gear and what position the shifter is in by the position of the shifter, but on the rare occasion another person drove my car, I didn't want them accidentally putting it in reverse and smashing my car... So I thought of a way to put a gear indicator on my dash bezel. I got a regular gear indicator from a Sunbird or some other 90's Pontiac from the boneyard (since the backlighting is orange to match the dash) and cut out the appropriate section and the light isolator from the back. I installed an LED right behind each of the 7 indications and wired one end to ign positive (to come on when the key is in) and I put the negative on the shifter. I made sure the shift-shaft was grounded and then put a parallel plate that has the 7 contact points that corresponds to each indication. So every time its in a gear, the correct light would be grounded and light up. I know, its not the most professional looking thing, but there are plenty of Firebird bezels from the junkyard I can work on to make it better. The "mechanism" itself is nicely hidden bellow the shifter boot. I must say the interior looks much better and neater with the stock radio pod and correct height of the center console than previously. Let me know what you think of any tips to make it work better...
#2
Senior Member
Thread Starter
iTrader: (5)
Join Date: Dec 2006
Location: Augusta, Ga
Posts: 2,212
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1987 Trans Am
Engine: 355ci L98 soon to be turbo'd
Transmission: 700R4
Axle/Gears: 2.73 posi
Re: ATTENTION: Shift indicator with 4th Gen manual console and auto 3rd Gen trans...

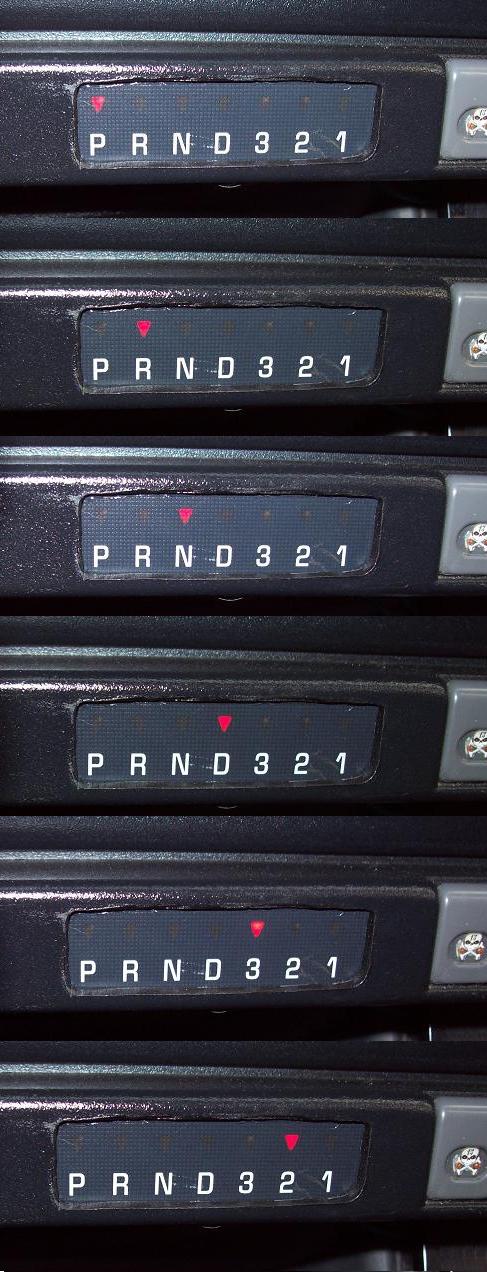

A few more pics of the indicator...
*edit* I know, I forgot 1st gear on the last pic, but you get the picture
*edit* I know, I forgot 1st gear on the last pic, but you get the picture
Last edited by HCR13; 08-09-2008 at 10:51 PM.
#3
Supreme Member
iTrader: (10)
Join Date: Oct 2007
Location: Fl.
Posts: 1,881
Likes: 0
Received 2 Likes
on
2 Posts
Car: 83 Trans Am / 96 Jeep XJ
Engine: 355 / 4.0 I6
Transmission: TH350 / Auto
Axle/Gears: 3.23 10-bolt / 4wd
Re: ATTENTION: Shift indicator with 4th Gen manual console and auto 3rd Gen trans...
I REALLY like this mod you did. I was thinking about doing something likethis to my firebird, but never got around to it I think now I am going to have to, seeing as how straight forward it is. Great job!!
#4
Senior Member
Thread Starter
iTrader: (5)
Join Date: Dec 2006
Location: Augusta, Ga
Posts: 2,212
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1987 Trans Am
Engine: 355ci L98 soon to be turbo'd
Transmission: 700R4
Axle/Gears: 2.73 posi
Re: ATTENTION: Shift indicator with 4th Gen manual console and auto 3rd Gen trans...
thanks for the compliment. I think there have been a few threads on here talking about such mod, but I think mainly for manual trannys... The thing that also helped ALOT is the fact that I had 5-wire cable laying around. So the brown cable (where the colors are coming out of) is very easy to route. The other two where just wrapped around the cable...
#5
Supreme Member
iTrader: (2)
Join Date: Dec 2000
Location: Buffalo, NY
Posts: 2,361
Likes: 0
Received 2 Likes
on
1 Post
Car: 1984 Trans Am
Engine: LT1
Transmission: T56
Axle/Gears: 10 bolt w/ 4.10 gears
Re: ATTENTION: Shift indicator with 4th Gen manual console and auto 3rd Gen trans...
Please don't take this personally against what you did because I think it's very creative, but I see this kind of topic in threads a lot and I just have to ask a question. Can't guys with automatics that want to use a 4th gen center console relocate their original shifter so it lines up with the 4th gen automatic console? It can't be that hard to fabricate a relocation bracket for it. If I went auto, i'd never want to live with a shifter boot and no indicator for what gear i'm in. It just seems like the lazy way out and makes it harder for guys that want to find a manual tranny 4th gen center console. Am I missing something in my thinking?
Just to be clear that I'm not knocking your work in any way, I do realize that you now have a gear indicator, so you've found a very creative way around one of the drawbacks of using a manual shifter boot. I just don't see how relocating the original shifter to line up, or using a 4th gen shifter assembly located to line up with the center console, could possibly be more work than what you did.
Just to be clear that I'm not knocking your work in any way, I do realize that you now have a gear indicator, so you've found a very creative way around one of the drawbacks of using a manual shifter boot. I just don't see how relocating the original shifter to line up, or using a 4th gen shifter assembly located to line up with the center console, could possibly be more work than what you did.
Last edited by JeremyNYR; 08-12-2008 at 11:37 AM.
#6
Banned
iTrader: (12)
Join Date: Jul 1999
Location: Bertram (outside Austin), TX
Posts: 12,212
Likes: 0
Received 10 Likes
on
10 Posts
Car: 87 GTA
Engine: L98
Transmission: 700R4
Axle/Gears: Dana M78 3.27 posi
Re: ATTENTION: Shift indicator with 4th Gen manual console and auto 3rd Gen trans...
Please don't take this personally against what you did because I think it's very creative, but I see this kind of topic in threads a lot and I just have to ask a question. Can't guys with automatics that want to use a 4th gen center console relocate their original shifter so it lines up with the 4th gen automatic console? It can't be that hard to fabricate a relocation bracket for it. If I went auto, i'd never want to live with a shifter boot and no indicator for what gear i'm in. It just seems like the lazy way out and makes it harder for guys that want to find a manual tranny 4th gen center console. Am I missing something in my thinking?
Just to be clear that I'm not knocking your work in any way, I do realize that you now have a gear indicator, so you've found a very creative way around one of the drawbacks of using a manual shifter boot. I just don't see how relocating the original shifter to line up, or using a 4th gen shifter assembly located to line up with the center console, could possibly be more work than what you did.
Just to be clear that I'm not knocking your work in any way, I do realize that you now have a gear indicator, so you've found a very creative way around one of the drawbacks of using a manual shifter boot. I just don't see how relocating the original shifter to line up, or using a 4th gen shifter assembly located to line up with the center console, could possibly be more work than what you did.
I could use this idea to make mine light up too.
#7
Senior Member
Join Date: Jul 2007
Location: Corner Brook, NL
Posts: 1,305
Likes: 0
Received 1 Like
on
1 Post
Car: 1984 Z28 HT,2006 2500HD
Engine: 5.7L, 6.6Llbz dmax
Transmission: 700R4, 6 speed allison
Axle/Gears: worn out 3.73 posi
Re: ATTENTION: Shift indicator with 4th Gen manual console and auto 3rd Gen trans...
that is cool as **** i gotta say dont be surprised if i steal this idea from you even though ive got my original console id like it to light up what gear im in cuz its hard to tell at night so im doin the "over drive to neutral boogie" to see what gear im in which sucks
Trending Topics
#8
Senior Member
Thread Starter
iTrader: (5)
Join Date: Dec 2006
Location: Augusta, Ga
Posts: 2,212
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1987 Trans Am
Engine: 355ci L98 soon to be turbo'd
Transmission: 700R4
Axle/Gears: 2.73 posi
Re: ATTENTION: Shift indicator with 4th Gen manual console and auto 3rd Gen trans...
Please don't take this personally against what you did because I think it's very creative, but I see this kind of topic in threads a lot and I just have to ask a question. Can't guys with automatics that want to use a 4th gen center console relocate their original shifter so it lines up with the 4th gen automatic console? It can't be that hard to fabricate a relocation bracket for it. If I went auto, i'd never want to live with a shifter boot and no indicator for what gear i'm in. It just seems like the lazy way out and makes it harder for guys that want to find a manual tranny 4th gen center console. Am I missing something in my thinking?
Just to be clear that I'm not knocking your work in any way, I do realize that you now have a gear indicator, so you've found a very creative way around one of the drawbacks of using a manual shifter boot. I just don't see how relocating the original shifter to line up, or using a 4th gen shifter assembly located to line up with the center console, could possibly be more work than what you did.
Just to be clear that I'm not knocking your work in any way, I do realize that you now have a gear indicator, so you've found a very creative way around one of the drawbacks of using a manual shifter boot. I just don't see how relocating the original shifter to line up, or using a 4th gen shifter assembly located to line up with the center console, could possibly be more work than what you did.
Like Stephen, my 87 didn't have an actual indicator on it, just a label of the gears. I thought it was broken until I saw the bottom and realized there was no provisioning for the indicator...needle. I don't mind if anybody uses the idea, I'm glad if people do because I'm sure someone will find a better, cleaner way to do it
I actually wanted to find a smaller gear indicator panel since I wanted something that would fit bellow the turn signal/highbeam indicators on the bezel, that would be great spot, but I don't think GM makes a dash with font that small...
#9
Member
iTrader: (1)
Join Date: May 2003
Location: NC
Posts: 457
Likes: 0
Received 1 Like
on
1 Post
Car: '91 Camaro Z28
Engine: 383 Vortec HSR
Transmission: Pro-Built 700-R4;Vig 4000 stall
Axle/Gears: Moser M9 9" / 3.89
Re: ATTENTION: Shift indicator with 4th Gen manual console and auto 3rd Gen trans...
Neat concept. I'm in the process of installing a 4th gen manual console with a Hurst Pro-matic 2 shifter. I like the looks of a shift boot rather than a regular automatic console. I'm having to remove the brackets that the stock shifter rests on for the Hurst shifter, and I had hoped to somehow use the Hurst gear indicator through the shift boot without it looking crappy. I started looking at other cars that came from the factory with a shift boot and a gear indicator to get some ideas. I found that the C5 vette automatics came with one, but have yet to see one up close to see how the indicator works.
#10
Supreme Member
Join Date: Jan 2001
Location: Pittsburgh, PA
Posts: 1,374
Likes: 0
Received 1 Like
on
1 Post
Car: 06 SRM M6 GTO, 98 Grand Prix GTP
Re: ATTENTION: Shift indicator with 4th Gen manual console and auto 3rd Gen trans...
thats really slick! I dont really mind not knowing what gear I'm in, but thats definitely handy. Are you gonna trim that out, where your cut marks are?
#11
Senior Member
Thread Starter
iTrader: (5)
Join Date: Dec 2006
Location: Augusta, Ga
Posts: 2,212
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1987 Trans Am
Engine: 355ci L98 soon to be turbo'd
Transmission: 700R4
Axle/Gears: 2.73 posi
Re: ATTENTION: Shift indicator with 4th Gen manual console and auto 3rd Gen trans...
yeah, I going to go to the junkyard and find another firebird gauge bezel and take my time and make it look clean...
#12
Supreme Member
Join Date: Jan 2002
Posts: 1,122
Likes: 0
Received 2 Likes
on
2 Posts
Car: 1984 Trans Am 15th anniversary
Engine: L69
Transmission: 700r
Axle/Gears: 3:73
Re: ATTENTION: Shift indicator with 4th Gen manual console and auto 3rd Gen trans...
Very nice. I am in a similar situation but I am molding 2000ish caddie auto shift bezel into my 6spd console top. I also may consider trying to get the gated shifter from a OLDSMOBILE aurora in there. But that's another story.
#13
Junior Member
iTrader: (2)
Join Date: Nov 2008
Location: manchester, NH
Posts: 63
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1998 grand cherokee, 1988 iroc z
Engine: 350 tpi
Transmission: 700r4
Axle/Gears: ???
Re: ATTENTION: Shift indicator with 4th Gen manual console and auto 3rd Gen trans...
just a quick question on fitting, I have a 85 z28, the radio pod and console is one piece, will the radio pod from a third gen TA bolt in along with the forth gen center console?
I have been thinking about doing the swap and finding that most of these conversions are with TA's and firebirds.
I have been thinking about doing the swap and finding that most of these conversions are with TA's and firebirds.
Last edited by mattyc; 01-11-2009 at 10:42 AM. Reason: typo
#14
Junior Member
iTrader: (2)
Re: ATTENTION: Shift indicator with 4th Gen manual console and auto 3rd Gen trans...
That gear selector looks great,keeping the pontiac orange lighting is awsome too.I was wondering how you got these pics up.When I try to post a pic it says the file exceeds the forum 1.00mb bytes limit and youre pics are a lot more than that,how did you get youre pics up?
#15
Senior Member
Thread Starter
iTrader: (5)
Join Date: Dec 2006
Location: Augusta, Ga
Posts: 2,212
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1987 Trans Am
Engine: 355ci L98 soon to be turbo'd
Transmission: 700R4
Axle/Gears: 2.73 posi
Re: ATTENTION: Shift indicator with 4th Gen manual console and auto 3rd Gen trans...
I'm not 100% sure on the fitment on for Camaros. But I have seen it plenty of times with the Firebird radio pod. I'd do a search.
#16
Senior Member
Join Date: Nov 2002
Location: Orange County, CA
Posts: 645
Likes: 0
Received 1 Like
on
1 Post
Car: 86 TA
Engine: 305 TPI
Transmission: 700R4 - 2200 stall
Axle/Gears: 3.42 posi
Re: ATTENTION: Shift indicator with 4th Gen manual console and auto 3rd Gen trans...
Ive thought about this problem, but never got around to getting a 4th gen console. I owned a 3rd gen console at one time without the indicators, and it drove me crazy.
Being somewhat a nerd, I have a few things to propose.
First is using some non-contact method of sensing what gear position you are in. This could be accomplished by using magnetic switches or opto-beam-breaking. Would be more reliable it seems to me.
Second would be using a single dot-matrix or 13 segment display to show the gear, it would say "N", "D", etc and change accordingly. Its a little pricey, but could also use this http://www.sparkfun.com/commerce/pro...oducts_id=8492
All of which would require less footprint or cutout on the dash etc.
If a bunch of people are interested, I could look at fabbing up a circuit.
Being somewhat a nerd, I have a few things to propose.
First is using some non-contact method of sensing what gear position you are in. This could be accomplished by using magnetic switches or opto-beam-breaking. Would be more reliable it seems to me.
Second would be using a single dot-matrix or 13 segment display to show the gear, it would say "N", "D", etc and change accordingly. Its a little pricey, but could also use this http://www.sparkfun.com/commerce/pro...oducts_id=8492
All of which would require less footprint or cutout on the dash etc.
If a bunch of people are interested, I could look at fabbing up a circuit.
#17
Senior Member
Thread Starter
iTrader: (5)
Join Date: Dec 2006
Location: Augusta, Ga
Posts: 2,212
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1987 Trans Am
Engine: 355ci L98 soon to be turbo'd
Transmission: 700R4
Axle/Gears: 2.73 posi
Re: ATTENTION: Shift indicator with 4th Gen manual console and auto 3rd Gen trans...
Hell, I'd be interested! I'm not sure about the magnetic switches reason being that my shifter (which will be replaced by a megashifter) is not as tight as it was when it first came off the assembly line. There is a little bit of wiggle room on the shifter when in a gear (as in a few millimeters, nothing drastic). I'm working on making something smaller and more precise, but this has been working good so far... But I would love to know more about the dot-matrix display and/or 13 segment display...
#18
Senior Member
Join Date: Nov 2002
Location: Orange County, CA
Posts: 645
Likes: 0
Received 1 Like
on
1 Post
Car: 86 TA
Engine: 305 TPI
Transmission: 700R4 - 2200 stall
Axle/Gears: 3.42 posi
Re: ATTENTION: Shift indicator with 4th Gen manual console and auto 3rd Gen trans...
Yeah I havent look at the mechanics of the shifter in quite some time. This is what the slotted optical switch looks like
http://parts.digikey.com/1/parts/121...-opb815wz.html
So when an opaque object passes thru it breaks the infrared beam and acts as a switch. You can usually pull the two sides apart for installation if need be.
This is two examples of the displays.
http://parts.digikey.com/1/parts/121...-opb815wz.html
So when an opaque object passes thru it breaks the infrared beam and acts as a switch. You can usually pull the two sides apart for installation if need be.
This is two examples of the displays.
#19
Senior Member
Join Date: Nov 2002
Location: Orange County, CA
Posts: 645
Likes: 0
Received 1 Like
on
1 Post
Car: 86 TA
Engine: 305 TPI
Transmission: 700R4 - 2200 stall
Axle/Gears: 3.42 posi
Re: ATTENTION: Shift indicator with 4th Gen manual console and auto 3rd Gen trans...
example magnetic reed switch
http://parts.digikey.com/1/parts/957...-ri-23aaa.html
http://parts.digikey.com/1/parts/957...-ri-23aaa.html
#20
Senior Member
Thread Starter
iTrader: (5)
Join Date: Dec 2006
Location: Augusta, Ga
Posts: 2,212
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1987 Trans Am
Engine: 355ci L98 soon to be turbo'd
Transmission: 700R4
Axle/Gears: 2.73 posi
Re: ATTENTION: Shift indicator with 4th Gen manual console and auto 3rd Gen trans...
If I had the $$ I would definitely do a reed switch settup... I would love doing an LED settup...
#21
Member
Join Date: Oct 2006
Location: Phenix City, AL
Posts: 140
Likes: 0
Received 0 Likes
on
0 Posts
Car: 91Z, 97RS, 99Z, 02Z
Engine: TPI 383 Vortec, 3800, LS1, LS1
Transmission: T56, 700R4, T56, 4L60E
Axle/Gears: 3.73, 3.43, 3.42, ?.??
Re: ATTENTION: Shift indicator with 4th Gen manual console and auto 3rd Gen trans...
This info may be to late but when I first installed my 4th gen dash and console I still had an auto. So I replaced the 3rd gen shifter with the 4th gen shifter. The TV cable and the steering wheel lock cable attached the same even the wires for the reverse lights were the same IIRC.
#22
Member
Join Date: Feb 2001
Location: Cape Girardeau,MO
Posts: 276
Likes: 0
Received 0 Likes
on
0 Posts
Car: 85&95 Trans am
Engine: 85-LT1 95-LT1
Transmission: 4l60e & 4l60e
Axle/Gears: 3.23 & 3.23
Re: ATTENTION: Shift indicator with 4th Gen manual console and auto 3rd Gen trans...
Would you be able to take a dremel and just cut out the area on the auto 4th gen console to make the 3rd gen shifter work. Then put a leather boot back on it, but still have the gear indicator?
#23
Senior Member
Join Date: Apr 2007
Location: Terre Haute, IN
Posts: 261
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1991 RS Camaro
Engine: 350 0.060" over
Transmission: 700r4
Re: ATTENTION: Shift indicator with 4th Gen manual console and auto 3rd Gen trans...
That's really cool looking, nice job.
#25
Senior Member
Thread Starter
iTrader: (5)
Join Date: Dec 2006
Location: Augusta, Ga
Posts: 2,212
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1987 Trans Am
Engine: 355ci L98 soon to be turbo'd
Transmission: 700R4
Axle/Gears: 2.73 posi
Re: ATTENTION: Shift indicator with 4th Gen manual console and auto 3rd Gen trans...
thank you
#26
Junior Member
Join Date: Sep 2009
Location: oakdale/st paul mn
Posts: 90
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1991 Trans Am vert
Engine: tpi
Transmission: 700r4
#27
Supreme Member
Join Date: Oct 2007
Location: Ventura County, California
Posts: 1,078
Likes: 0
Received 0 Likes
on
0 Posts
Car: 2002 GS300 Sport Design
Engine: 3.0L 2JZGE
Transmission: 5-Speed Shiftable Automatic
Re: ATTENTION: Shift indicator with 4th Gen manual console and auto 3rd Gen trans...
This something I wouldnt mind trying on my ride.
Tony.
Tony.
#28
Supreme Member
Join Date: Oct 2007
Location: Ventura County, California
Posts: 1,078
Likes: 0
Received 0 Likes
on
0 Posts
Car: 2002 GS300 Sport Design
Engine: 3.0L 2JZGE
Transmission: 5-Speed Shiftable Automatic
Re: ATTENTION: Shift indicator with 4th Gen manual console and auto 3rd Gen trans...
Hey back again i'm gonna try do domething like this if i get a chance to. For the reason is that my car came with an auto and I got the 5 speed shifter plate so for people that needs to my car would need to know what gear there in like what you said. Of course I know right of the back. Do you know of other cars that came with something like this?
Tony.
Tony.
#29
Senior Member
Thread Starter
iTrader: (5)
Join Date: Dec 2006
Location: Augusta, Ga
Posts: 2,212
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1987 Trans Am
Engine: 355ci L98 soon to be turbo'd
Transmission: 700R4
Axle/Gears: 2.73 posi
Re: ATTENTION: Shift indicator with 4th Gen manual console and auto 3rd Gen trans...
what exactly are you referring to? I mainly got my influence from alot of the newer cars that have the gear selector right on the dash in the gauges.
Thread
Thread Starter
Forum
Replies
Last Post
1992 Trans Am
History / Originality
27
05-10-2023 07:19 PM
