fabrication of a/c delete box
#1
Junior Member
Thread Starter
Join Date: Dec 2013
Location: Massachusetts
Posts: 34
Likes: 0
Received 0 Likes
on
0 Posts
Car: 88 Camaro
Engine: 305 TBI
Transmission: 700r4
fabrication of a/c delete box
Taking the a/c out of 88 third gen.. has anyone tried to make an a/c delete box like hawks has for $150. i plan on making one out of sheet metal to maintain my factory blower.. just need to make a shout into the cabin intake.. not sure if gonna use a one piece design or weld or seal..
anyone done this before? and i heard i want to keep the resistor.. which is the 1 plug with 4 prongs and the coils on the other side of it?
here is the link to one from hawks.
(http://www.hawksthirdgenparts.com/pr...iberglass.html)
anyone done this before? and i heard i want to keep the resistor.. which is the 1 plug with 4 prongs and the coils on the other side of it?
here is the link to one from hawks.
(http://www.hawksthirdgenparts.com/pr...iberglass.html)
#2
Member
Join Date: Oct 2010
Location: Wilmington, NC
Posts: 322
Likes: 0
Received 0 Likes
on
0 Posts
Car: 3rd gen!
Engine: SBC
Transmission: yes
Axle/Gears: yes
Re: fabrication of a/c delete box
The resistor controls the 3-low speeds while the blower relay is for the fan's high-speed. I think the high-speed is a little excessive so I got rid of the relay on my RS and just kept the fan usable on the 3 lower settings.
On my Z28, I made a big steel plate and covered the entire passenger side of the firewall. I put a small fan in the cowl duct so air is always blowing from the cowl into the car. For heat, I'm using a small electric heater.
On my Z28, I made a big steel plate and covered the entire passenger side of the firewall. I put a small fan in the cowl duct so air is always blowing from the cowl into the car. For heat, I'm using a small electric heater.
#3
Junior Member
Thread Starter
Join Date: Dec 2013
Location: Massachusetts
Posts: 34
Likes: 0
Received 0 Likes
on
0 Posts
Car: 88 Camaro
Engine: 305 TBI
Transmission: 700r4
Re: fabrication of a/c delete box
The resistor controls the 3-low speeds while the blower relay is for the fan's high-speed. I think the high-speed is a little excessive so I got rid of the relay on my RS and just kept the fan usable on the 3 lower settings.
On my Z28, I made a big steel plate and covered the entire passenger side of the firewall. I put a small fan in the cowl duct so air is always blowing from the cowl into the car. For heat, I'm using a small electric heater.
On my Z28, I made a big steel plate and covered the entire passenger side of the firewall. I put a small fan in the cowl duct so air is always blowing from the cowl into the car. For heat, I'm using a small electric heater.
#4
Supreme Member
iTrader: (14)
Join Date: Aug 2006
Location: Central NJ
Posts: 12,650
Likes: 0
Received 44 Likes
on
42 Posts
Car: 86 Trans Am, 92 Firebird
Engine: 408 sbc, 3.1L of raw power
Transmission: TKO600, T5
Axle/Gears: Moser 9", 3:70 trutac, 3:23 torsion
Re: fabrication of a/c delete box
If you want to experiment with some fiberglass you can cut down the stock a.c. box and reform it with fiberglass. I did that years ago.
#5
Supreme Member
#7
Supreme Member
Re: fabrication of a/c delete box
yes. thats what the 3" pipe is for. i'm not near my car right now, or i'd get better pics.
Trending Topics
#8
Junior Member
Thread Starter
Join Date: Dec 2013
Location: Massachusetts
Posts: 34
Likes: 0
Received 0 Likes
on
0 Posts
Car: 88 Camaro
Engine: 305 TBI
Transmission: 700r4
Re: fabrication of a/c delete box
#9
Supreme Member
Re: fabrication of a/c delete box

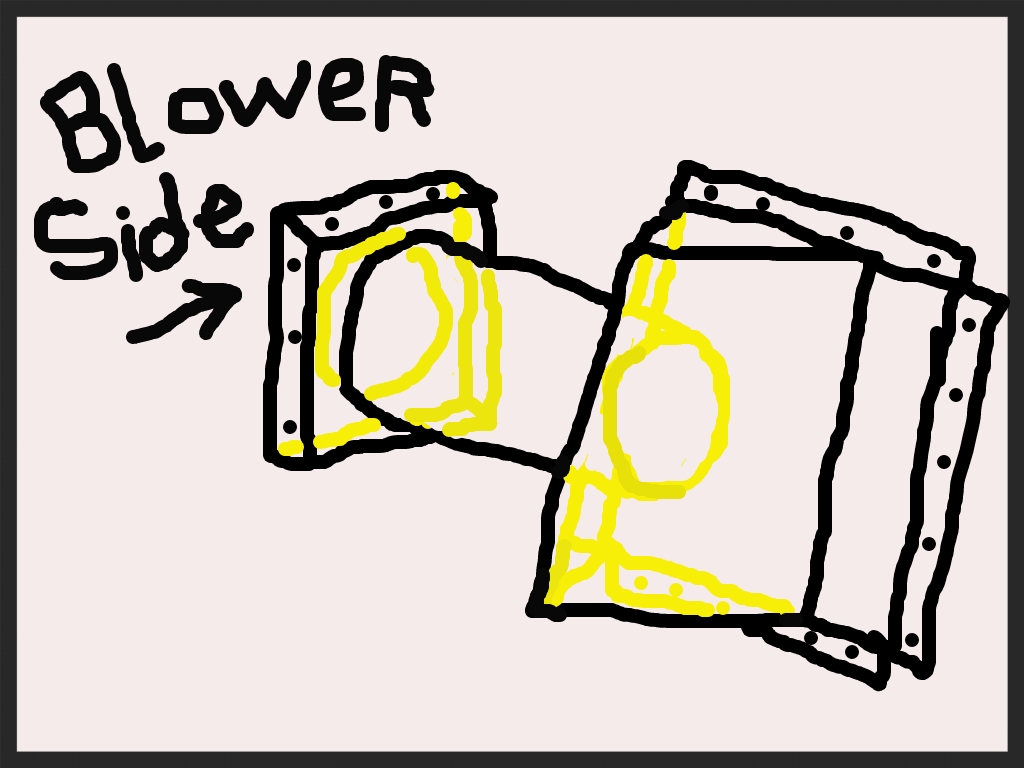

IIRC i made a square metal flange with a 3" circle/cut out for the pipe to slide into. i think the square flange had about 3/4" sides to it, to attach it to the blower. so it comes out of the blower, then through the pipe, then through the homemade delete box. it actually works pretty good. i only use it for defroster when it rains, but i rarely drive in the rain anyway.
#10
Supreme Member
iTrader: (1)
Join Date: Sep 2010
Location: Georgetown TX
Posts: 1,928
Likes: 0
Received 0 Likes
on
0 Posts
Car: Base 91 'bird
Engine: 3.1 v6
Transmission: 4L60
Axle/Gears: 9-bolt 3.27 & PBR
Re: fabrication of a/c delete box
Someone posted a pic of a very neat aluminum sheet metal addition to a trimmed down factory box.
#11
Junior Member
Thread Starter
Join Date: Dec 2013
Location: Massachusetts
Posts: 34
Likes: 0
Received 0 Likes
on
0 Posts
Car: 88 Camaro
Engine: 305 TBI
Transmission: 700r4
#12
Supreme Member
#14
Supreme Member
Re: fabrication of a/c delete box
The Hawks part is a fiberglass version of the factory sheet metal blower motor box
which came on 1LE cars & S10 PUs with heater only.
worth every penny IMHO for the new hawks piece... you can sometimes find the S10 blower motor box on ebay... not that expensive...
I scapped mine after 10 years when I finished the job and deleted the heater core etc.
Food for thought, race cars don't need heat or AC. so if you are deleting the AC why keep the heater are you driving this in the winter?!
which came on 1LE cars & S10 PUs with heater only.
worth every penny IMHO for the new hawks piece... you can sometimes find the S10 blower motor box on ebay... not that expensive...
I scapped mine after 10 years when I finished the job and deleted the heater core etc.
Food for thought, race cars don't need heat or AC. so if you are deleting the AC why keep the heater are you driving this in the winter?!
#15
Junior Member
Join Date: Sep 2012
Location: cortland ny
Posts: 25
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1987 Firebird
Engine: LG4 305
Transmission: 700R4
Re: fabrication of a/c delete box
found some on ebay for 120 looks to be fiberglass think im gunna pick it up looks like a great place to mount my msd box and coil and down the road i dont think ill have such a hard time getting to that last exhast manifold bolt.
i use my car for dd in summer rain or shine so i just need the heat to defrost the window when it rains
i use my car for dd in summer rain or shine so i just need the heat to defrost the window when it rains
#16
Supreme Member
Re: fabrication of a/c delete box
found some on ebay for 120 looks to be fiberglass think im gunna pick it up looks like a great place to mount my msd box and coil and down the road i dont think ill have such a hard time getting to that last exhast manifold bolt.
i use my car for dd in summer rain or shine so i just need the heat to defrost the window when it rains
i use my car for dd in summer rain or shine so i just need the heat to defrost the window when it rains
also why would you delete AC in a car that is you summer time daily driver?! that is when you want A/C?
you may want to re-think that.
I deleted mine completely because it's not a daily driver anymore... I left the heater for years so I could drive on cool autumn days... for summer I had the t-tops.
IF you plan on racing it makes sence to delete it, but really how often are you going to access the exhaust manifold bolts that it will make a difference on a daily driver?
Last edited by FRMULA88; 01-03-2014 at 08:14 PM.
#17
Junior Member
Join Date: Sep 2012
Location: cortland ny
Posts: 25
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1987 Firebird
Engine: LG4 305
Transmission: 700R4
Re: fabrication of a/c delete box
i live in central new york theres no such think as hot and humid rain up here the rain is usually cold and the defroster works great when the windows fog up and i drive with the window down whenever i can theres no better ac than the wind and i get to hear that exhaust.
#18
Member
Join Date: Oct 2010
Location: Wilmington, NC
Posts: 322
Likes: 0
Received 0 Likes
on
0 Posts
Car: 3rd gen!
Engine: SBC
Transmission: yes
Axle/Gears: yes
Re: fabrication of a/c delete box
I can do without AC but heat is a must. My 150 watt electric heater is better than nothing.
#20
Member
iTrader: (4)
Join Date: Oct 2007
Location: Colorado
Posts: 323
Likes: 0
Received 0 Likes
on
0 Posts
Car: 87 Trans Am GTA
Engine: 5.7L TPI
Transmission: 700R4
Axle/Gears: 3.27
Re: fabrication of a/c delete box
Was this the one you were talking about:
https://www.thirdgen.org/forums/cool...ac-delete.html
https://www.thirdgen.org/forums/cool...ac-delete.html
#21
Junior Member
Thread Starter
Join Date: Dec 2013
Location: Massachusetts
Posts: 34
Likes: 0
Received 0 Likes
on
0 Posts
Car: 88 Camaro
Engine: 305 TBI
Transmission: 700r4
Re: fabrication of a/c delete box
i made my ac delete box with my father last few days budget was about 15 dollars..
#23
Re: fabrication of a/c delete box
Was this the one you were talking about:
https://www.thirdgen.org/forums/cool...ac-delete.html
https://www.thirdgen.org/forums/cool...ac-delete.html
The finished version was covered in Fiberstrand, kind of a fiberglass re-enforced bondo, as the aluminum sheet was very thin and fragile. Painted black you couldn't tell it wasn't factory.
#25
Junior Member
Join Date: Apr 2012
Location: Winnipeg
Posts: 34
Likes: 0
Received 0 Likes
on
0 Posts
Car: 86 Iroc
Engine: 283
Transmission: 700R4
Axle/Gears: 3.73
Re: fabrication of a/c delete box
I deleted my A\C and just picked up a factory heater only piece from the wreckers. had it sandblasted and powder coated. Looks brand new. Easy, no fuss and it fits because its Factory.
#27
Supreme Member
iTrader: (1)
Join Date: Sep 2010
Location: Georgetown TX
Posts: 1,928
Likes: 0
Received 0 Likes
on
0 Posts
Car: Base 91 'bird
Engine: 3.1 v6
Transmission: 4L60
Axle/Gears: 9-bolt 3.27 & PBR
Re: fabrication of a/c delete box
Was this the one you were talking about:
https://www.thirdgen.org/forums/cool...ac-delete.html
https://www.thirdgen.org/forums/cool...ac-delete.html
#28
Senior Member
iTrader: (1)
Join Date: Sep 2003
Location: St. Louis, Missouri
Posts: 988
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1989 Firebird Formula
Engine: 383 Stealth Ram
Transmission: 700R4
Axle/Gears: 3.73 9 bolt Posi
Re: fabrication of a/c delete box
Here is the AC delete box I made a while back. It's a little dusty in the pic. Keep in mind it was the first time I ever used fiberglass so have pity
#29
Supreme Member
Join Date: Mar 2008
Location: CT
Posts: 1,549
Likes: 0
Received 1 Like
on
1 Post
Car: 86 T/A, 83 Z/28
Engine: 5.0 TPI, 350 2 X 4 bbl
Transmission: 4 speed auto, 5 speed manual
Axle/Gears: 3.23 posi, 3.73 std
Re: fabrication of a/c delete box
I actually also made my own out of a sheet of 20 ga steel. Fortunately I had factory piece from one of my other cars to copy. Really not to hard if you can weld (really a great practice project).
This is a little over simplified as the part has some curves and baffles but just imagine a flat piece of sheet metal, cut out the raised part, then weld the part you cut out back to the sheet with a roughly 3" or so inch strip of metal as a stand off. 20 ga steel is easy to bend by hand and will give you nice a nice radius just like the factory piece. Then I just welded on some nuts to eliminate the sheet metal screws and some 1/8" rod around the base's edge to give it a little more strength and sort of a factoryish rolled look (actually the factory part has the edges folded up). In the end it looked pretty much like the factory part except the corners were a bit sharper (which I thought actually looked kinda nice).
This is a little over simplified as the part has some curves and baffles but just imagine a flat piece of sheet metal, cut out the raised part, then weld the part you cut out back to the sheet with a roughly 3" or so inch strip of metal as a stand off. 20 ga steel is easy to bend by hand and will give you nice a nice radius just like the factory piece. Then I just welded on some nuts to eliminate the sheet metal screws and some 1/8" rod around the base's edge to give it a little more strength and sort of a factoryish rolled look (actually the factory part has the edges folded up). In the end it looked pretty much like the factory part except the corners were a bit sharper (which I thought actually looked kinda nice).
