3D printed parts
Anybody know of any small parts that could be designed and 3d printed? I enjoy modeling things and have made some stuff for thirdgens. There are also great things that people have designed such as the interior panel screws. Below are some of the things that I have designed.
https://www.thingiverse.com/thing:3657284
https://www.thingiverse.com/thing:3612044
https://www.thingiverse.com/thing:3657284
https://www.thingiverse.com/thing:3612044
The following users liked this post:
ElevatedMentor (07-01-2019)
#4
Senior Member
Re: 3D printed parts
I have a request. The 4 wing pads for the 91-92 z28.

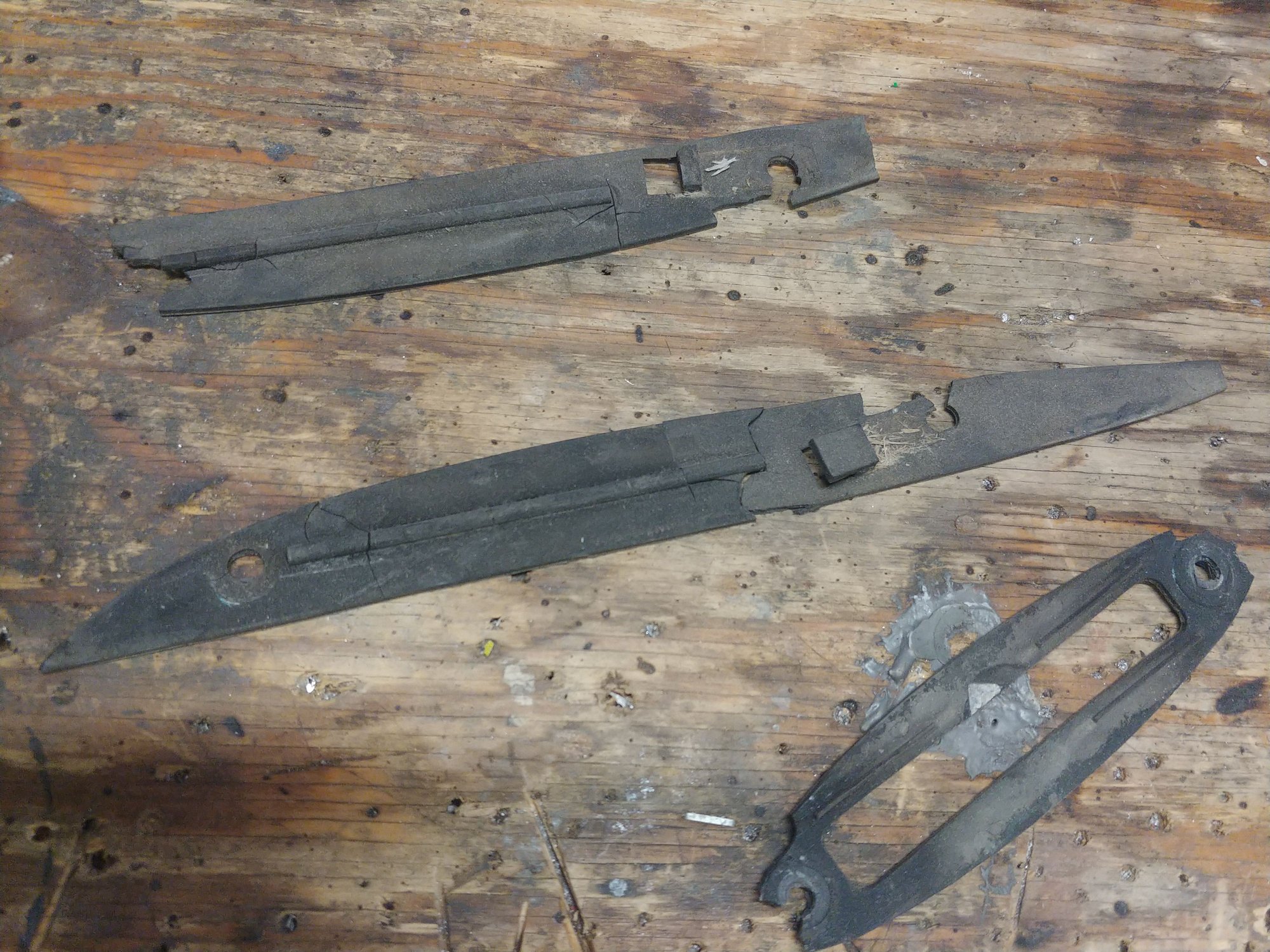

They are 1/8 plastic and pretty much turn to dust but are a must to keep the spoiler off the rear quarters. Should be easy to print.
They are 1/8 plastic and pretty much turn to dust but are a must to keep the spoiler off the rear quarters. Should be easy to print.
#5
Member
Thread Starter
Join Date: Feb 2015
Location: Cambridge City, IN
Posts: 265
Likes: 0
Received 12 Likes
on
9 Posts
Car: 1991 RS
Engine: 355
Transmission: TH350
Axle/Gears: 4.11
Re: 3D printed parts
Intresting! I have a 91 rs but it has a z28 spoiler on it. Would it attach to the spoiler, and then touch the quarters when the hatch is closed? If you have any pictures, it will help.
#6
Supreme Member
iTrader: (11)
Join Date: Aug 2013
Location: MICHIGAN
Posts: 4,635
Received 751 Likes
on
577 Posts
Car: 1988 Trans Am
Engine: L03
Transmission: 700R4
Axle/Gears: 10 Bolt 2.73 Open
Re: 3D printed parts
Someone (I thought cehbra) had started a repro Performance Sound badge for the dash, but I can't seem to find that thread, or the file on thingiverse.
#7
Supreme Member
iTrader: (11)
Join Date: Sep 1999
Location: NJ
Posts: 4,345
Received 298 Likes
on
234 Posts
Car: 92 Firebird
Engine: 4.8 LR4
Transmission: T56
Axle/Gears: 3.45 9 Bolt
Re: 3D printed parts
The little seat belt guide retainer things. They are little ***** that hold the ends of the guide together to keep the belt in the loop. There was a thread of someone making them, but I can't find it now.
Trending Topics
#11
Senior Member
#13
Member
iTrader: (11)
Re: 3D printed parts
https://www.thirdgen.org/forums/body...-z28-high.html
This thread has some further info on the isolator pads.
This thread has some further info on the isolator pads.
#14
Supreme Member
iTrader: (2)
Re: 3D printed parts
I have a bunch of the firebird ones sitting around, I'll look at one of the wings later (I have 2 or 3 with the pads still on them in the basement) but I remember them being 1/16-1/8" thick plastic with 2 bolt holes and a drain hole through it. They also have a lip that goes around the wing base covering the bottom of it roughly the thickness of the pad under the base.
If this is how the Z28 wings ones were if anyone can get me an _accurate_* rubbing of the base of the wings or the originals and send them to me or a scan of them at a set DPI (let's say anything over 150) and some information about heights I could mock them up in CAD and print a few.
* accuracy is key. I could work off of a _good_ picture and "make it 8.5" long" and make it exactly 8.5" long but I suspect that to make things look right they'd have to be within .5-1mm, about 1/50-1/25" or .02-.04". At this point, rubbing with some information what the condition of the bottom edge was like scanned at a reasonable DPI is going to be about as accurate as we'll get online. If someone sent me some to duplicate I'd throw them on my flatbed scanner, import the scans into CAD software at the orignal size and then trace them/use them as a pattern in the CAD software to build up the new ones. I posted a similar process cutting out a modified alternator bracket to make a cs144 alternator (larger case, larger mounting dimensions) mount where I had an original alternator mounted, I started by taking my existing bracket and throwing it on a scanner to get a pattern for the parts that fit/I wanted to keep and drew up the rest.
If this is how the Z28 wings ones were if anyone can get me an _accurate_* rubbing of the base of the wings or the originals and send them to me or a scan of them at a set DPI (let's say anything over 150) and some information about heights I could mock them up in CAD and print a few.
* accuracy is key. I could work off of a _good_ picture and "make it 8.5" long" and make it exactly 8.5" long but I suspect that to make things look right they'd have to be within .5-1mm, about 1/50-1/25" or .02-.04". At this point, rubbing with some information what the condition of the bottom edge was like scanned at a reasonable DPI is going to be about as accurate as we'll get online. If someone sent me some to duplicate I'd throw them on my flatbed scanner, import the scans into CAD software at the orignal size and then trace them/use them as a pattern in the CAD software to build up the new ones. I posted a similar process cutting out a modified alternator bracket to make a cs144 alternator (larger case, larger mounting dimensions) mount where I had an original alternator mounted, I started by taking my existing bracket and throwing it on a scanner to get a pattern for the parts that fit/I wanted to keep and drew up the rest.
The following users liked this post:
1986BANDIT (01-01-2020)
#15
Supreme Member
iTrader: (2)
Re: 3D printed parts
It also occurs to me that if these things originally had a lip on them, some of you might want them with the lip to make them look as close to stock as possible and some of you might want them without to get a cleaner look (though if that's what you're after the easy answer almost anyone could do is make a pattern and cut it out of a sheet of plastic, maybe sand the sides a little to make it perfect)...
The following users liked this post:
1986BANDIT (01-01-2020)
#17
Member
iTrader: (11)
Re: 3D printed parts
You’re absolutely right sir, my apologies. I’m a UPS guy and have been getting home after dark for the past couple weeks. What type of paper/media should I do the rubbings on? There are studs that extend from the legs of the spoiler, should I punch accurate holes in the paper/media and then trace the legs? Just trying to figure out how to get the most accurate representation to make your process easier. I do have an extra spoiler that is sitting in my garage.
#19
Member
iTrader: (1)
Join Date: Nov 2004
Posts: 147
Likes: 0
Received 1 Like
on
1 Post
Car: 1988 IROC Convertible
Engine: 305
Transmission: 5 Speed
Axle/Gears: G92/3.45
Re: 3D printed parts
Anybody know of any small parts that could be designed and 3d printed? I enjoy modeling things and have made some stuff for thirdgens. There are also great things that people have designed such as the interior panel screws. Below are some of the things that I have designed.
https://www.thingiverse.com/thing:3657284
https://www.thingiverse.com/thing:3612044
https://www.thingiverse.com/thing:3657284
https://www.thingiverse.com/thing:3612044
Last edited by 88IROCDT; 06-14-2019 at 10:33 AM.
#20
Supreme Member
Join Date: Jul 2000
Location: Tomball, TX
Posts: 1,787
Likes: 0
Received 20 Likes
on
16 Posts
Car: 89 TTA
Engine: Turbo 3.8
Transmission: 200R4
Re: 3D printed parts
Those isolators looks like they would be pretty simple to model. You could print them out of a UV stable nylon or something similar.
I've done some 3d modeling/printing on my C6 Corvette. I've been running one I printed out of ABS for almost a year now.
Example:Console Latch
I bought a 3rd gen a couple days ago after not having one for 15 years, so I imagine I'll be looking into the parts that are easily to model and print if I need to fix some things.
I've done some 3d modeling/printing on my C6 Corvette. I've been running one I printed out of ABS for almost a year now.
Example:Console Latch
I bought a 3rd gen a couple days ago after not having one for 15 years, so I imagine I'll be looking into the parts that are easily to model and print if I need to fix some things.
#21
Supreme Member
iTrader: (2)
Re: 3D printed parts
You’re absolutely right sir, my apologies. I’m a UPS guy and have been getting home after dark for the past couple weeks. What type of paper/media should I do the rubbings on? There are studs that extend from the legs of the spoiler, should I punch accurate holes in the paper/media and then trace the legs? Just trying to figure out how to get the most accurate representation to make your process easier. I do have an extra spoiler that is sitting in my garage.
Those isolators looks like they would be pretty simple to model. You could print them out of a UV stable nylon or something similar.
I've done some 3d modeling/printing on my C6 Corvette. I've been running one I printed out of ABS for almost a year now.
Example:Console Latch
I bought a 3rd gen a couple days ago after not having one for 15 years, so I imagine I'll be looking into the parts that are easily to model and print if I need to fix some things.
I've done some 3d modeling/printing on my C6 Corvette. I've been running one I printed out of ABS for almost a year now.
Example:Console Latch
I bought a 3rd gen a couple days ago after not having one for 15 years, so I imagine I'll be looking into the parts that are easily to model and print if I need to fix some things.
#22
Member
Thread Starter
Join Date: Feb 2015
Location: Cambridge City, IN
Posts: 265
Likes: 0
Received 12 Likes
on
9 Posts
Car: 1991 RS
Engine: 355
Transmission: TH350
Axle/Gears: 4.11
Re: 3D printed parts
I don't have a convertible, so I wouldn't have anything to measure from. However, as 83 Crossfire TA is saying, you scan them or do something similar.
#23
Supreme Member
Join Date: Jul 2000
Location: Tomball, TX
Posts: 1,787
Likes: 0
Received 20 Likes
on
16 Posts
Car: 89 TTA
Engine: Turbo 3.8
Transmission: 200R4
Re: 3D printed parts
Whatever you can get the most accurate representation of it with. The better/more accurate the dimensions are the better the part will be.
Any pics of the actual part? It seems to be that people are just modeling parts and putting them up on tingiverse to try to collect a few $. You see lots of parts that have never been made. In this case I wonder what orientation it would be printed in to look right and be strong where it needs to be, and mostly just what the finished part turned out like.
Any pics of the actual part? It seems to be that people are just modeling parts and putting them up on tingiverse to try to collect a few $. You see lots of parts that have never been made. In this case I wonder what orientation it would be printed in to look right and be strong where it needs to be, and mostly just what the finished part turned out like.
#26
Member
Thread Starter
Join Date: Feb 2015
Location: Cambridge City, IN
Posts: 265
Likes: 0
Received 12 Likes
on
9 Posts
Car: 1991 RS
Engine: 355
Transmission: TH350
Axle/Gears: 4.11
Re: 3D printed parts
I have been in the process of designing some key chains that I thought would be cool. Pretty much just traced the side shot of a Camaro.
#27
Re: 3D printed parts
there's a tiny gear in the odometer of the firebirds that turns to dust so the odometer stops but everything else works. I've tried to pick one up a junk yard but it just falls apart as soon as I tried to swap it to my 140mph stock cluster. oddly I've never found a replacement or anyone even talk about this part. always thought it would be something I'd try to 3d print if I ever got one.
those under aero wing pad would be good to have
those under aero wing pad would be good to have
#28
Supreme Member
iTrader: (11)
Join Date: Aug 2013
Location: MICHIGAN
Posts: 4,635
Received 751 Likes
on
577 Posts
Car: 1988 Trans Am
Engine: L03
Transmission: 700R4
Axle/Gears: 10 Bolt 2.73 Open
Re: 3D printed parts
there's a tiny gear in the odometer of the firebirds that turns to dust so the odometer stops but everything else works. I've tried to pick one up a junk yard but it just falls apart as soon as I tried to swap it to my 140mph stock cluster. oddly I've never found a replacement or anyone even talk about this part. always thought it would be something I'd try to 3d print if I ever got one.
https://www.thirdgen.org/forums/inte...ml#post6258810
#29
Re: 3D printed parts
I have not, haven't checked into it for a few years. I'll read up, thanks for the link.
#30
Member
iTrader: (2)
Re: 3D printed parts
Side question: what modelling software are you using? Fusion 360?
Last edited by RunawayRadio; 06-27-2019 at 02:04 PM.
#31
Member
iTrader: (2)
Re: 3D printed parts
Cehbra took a crack at it awhile back, but i can't remember where he go to with it. I started making them a few months ago along with double din trim plates in ABS, but some of the text is tricky to pull off on an FDM printer. I think it can be done with a couple small changes though.
#32
Member
Thread Starter
Join Date: Feb 2015
Location: Cambridge City, IN
Posts: 265
Likes: 0
Received 12 Likes
on
9 Posts
Car: 1991 RS
Engine: 355
Transmission: TH350
Axle/Gears: 4.11
Re: 3D printed parts
I actually print quite a few keychains as promo items in the car community here in Quebec, among a bunch of third gen stuff.. If you're using the wheels as the clip point, make sure they're thick enough to hold up to abuse. Even PLA will come apart in short order if not.
Side question: what modelling software are you using? Fusion 360?
Side question: what modelling software are you using? Fusion 360?
#33
Member
iTrader: (2)
Re: 3D printed parts
Actually when I started modeling, my piece of junk computer at the time wouldn't keep up with a cad program. So I resorted to a browser based program. Its called OnShape. Almost identical to Solidworks. I am a college student right now, so I hopped up on the student subscription. But I have been looking into getting a better program, since I got a better computer. I am most familiar with Solidworks, so I was hoping to find something similar without having to pay all that money.
#34
Member
iTrader: (1)
Re: 3D printed parts
I think that was my thread...not sure where it went. I've been making these for awhile and they seem to hold up pretty well. Flip me a PM if you want some.
Cehbra took a crack at it awhile back, but i can't remember where he go to with it. I started making them a few months ago along with double din trim plates in ABS, but some of the text is tricky to pull off on an FDM printer. I think it can be done with a couple small changes though.
Cehbra took a crack at it awhile back, but i can't remember where he go to with it. I started making them a few months ago along with double din trim plates in ABS, but some of the text is tricky to pull off on an FDM printer. I think it can be done with a couple small changes though.
I'm in the process of printing it in fine detail plastic and paint it, I'll let you know how it turns out.
The following users liked this post:
scooter (07-01-2019)
#35
Junior Member
Join Date: Jun 2019
Posts: 1
Likes: 0
Received 1 Like
on
1 Post
Car: 1988 IROC-Z
Engine: 355 4 bolt TPI
Transmission: Built 700R4 with shift kit
Axle/Gears: 3.42 Posi
Re: 3D printed parts
I've spent a little time designing and 3D printing some parts. So far i've made an ashtray panel with switches and usb for aftermarket radios, a gauge pod that mounts in place of that light under the middle air vents, and a few other little parts such as some monting brackets and a MAF housing for Map conversions. Here is some pictures of the ashtray panel and gauge pod models.
The following users liked this post:
RunawayRadio (07-01-2019)
#36
Member
iTrader: (2)
Re: 3D printed parts
I actually updated that Performance Sound badge some days ago, it's here: https://www.thingiverse.com/thing:3702904
I'm in the process of printing it in fine detail plastic and paint it, I'll let you know how it turns out.
I'm in the process of printing it in fine detail plastic and paint it, I'll let you know how it turns out.
#38
Supreme Member
iTrader: (11)
Join Date: Aug 2013
Location: MICHIGAN
Posts: 4,635
Received 751 Likes
on
577 Posts
Car: 1988 Trans Am
Engine: L03
Transmission: 700R4
Axle/Gears: 10 Bolt 2.73 Open
Re: 3D printed parts
For our Pontiac Club chapter newletter, we use the Good Times font for the header. Looks very much like, if not identical to, the PONTIAC font.
#39
Supreme Member
iTrader: (9)
Re: 3D printed parts
Sorry to be off topic but do any of you have insight / recommendations on how to get started with 3D printing?
I’m an architect and am familiar with autocad. I haven’t modeled anything in 3D with cad but I at least have the background of with envisioning things in 3 dimension. I’d love to learn how to make some items for my car but have no idea where to start. Is there a good forum or books to review before trying to figure out what programs and printer to use?
Thanks for any input. Feel free to PM me if this is too off topic and you don’t want to derail the thread.
I’m an architect and am familiar with autocad. I haven’t modeled anything in 3D with cad but I at least have the background of with envisioning things in 3 dimension. I’d love to learn how to make some items for my car but have no idea where to start. Is there a good forum or books to review before trying to figure out what programs and printer to use?
Thanks for any input. Feel free to PM me if this is too off topic and you don’t want to derail the thread.
#40
Member
iTrader: (1)
Re: 3D printed parts
Sorry to be off topic but do any of you have insight / recommendations on how to get started with 3D printing?
I’m an architect and am familiar with autocad. I haven’t modeled anything in 3D with cad but I at least have the background of with envisioning things in 3 dimension. I’d love to learn how to make some items for my car but have no idea where to start. Is there a good forum or books to review before trying to figure out what programs and printer to use?
Thanks for any input. Feel free to PM me if this is too off topic and you don’t want to derail the thread.
I’m an architect and am familiar with autocad. I haven’t modeled anything in 3D with cad but I at least have the background of with envisioning things in 3 dimension. I’d love to learn how to make some items for my car but have no idea where to start. Is there a good forum or books to review before trying to figure out what programs and printer to use?
Thanks for any input. Feel free to PM me if this is too off topic and you don’t want to derail the thread.
www.autodesk.com/products/fusion-360
There are many tutorials on youtube to get you started easily.
#41
Member
iTrader: (2)
Re: 3D printed parts
Sorry to be off topic but do any of you have insight / recommendations on how to get started with 3D printing?
I’m an architect and am familiar with autocad. I haven’t modeled anything in 3D with cad but I at least have the background of with envisioning things in 3 dimension. I’d love to learn how to make some items for my car but have no idea where to start. Is there a good forum or books to review before trying to figure out what programs and printer to use?
Thanks for any input. Feel free to PM me if this is too off topic and you don’t want to derail the thread.
I’m an architect and am familiar with autocad. I haven’t modeled anything in 3D with cad but I at least have the background of with envisioning things in 3 dimension. I’d love to learn how to make some items for my car but have no idea where to start. Is there a good forum or books to review before trying to figure out what programs and printer to use?
Thanks for any input. Feel free to PM me if this is too off topic and you don’t want to derail the thread.
I'd rather not derail the spirit of this thread, so feel free to send me a PM and i can answer some of those questions for you.
Last edited by RunawayRadio; 07-02-2019 at 09:42 AM.
#42
Supreme Member
iTrader: (2)
Re: 3D printed parts
I actually updated that Performance Sound badge some days ago, it's here: https://www.thingiverse.com/thing:3702904
I'm in the process of printing it in fine detail plastic and paint it, I'll let you know how it turns out.
I'm in the process of printing it in fine detail plastic and paint it, I'll let you know how it turns out.
#43
Member
iTrader: (2)
Re: 3D printed parts
Looks like a nicely modeled part, I've always wondered why that one is a popular one for people asking for reproductions. Honestly, I doubt that one will print well, I've had real problems printing fonts that are inset into a part, although a lot of the problems seem to be slicer related, not a printer limitation.
#46
Member
Thread Starter
Join Date: Feb 2015
Location: Cambridge City, IN
Posts: 265
Likes: 0
Received 12 Likes
on
9 Posts
Car: 1991 RS
Engine: 355
Transmission: TH350
Axle/Gears: 4.11
Re: 3D printed parts

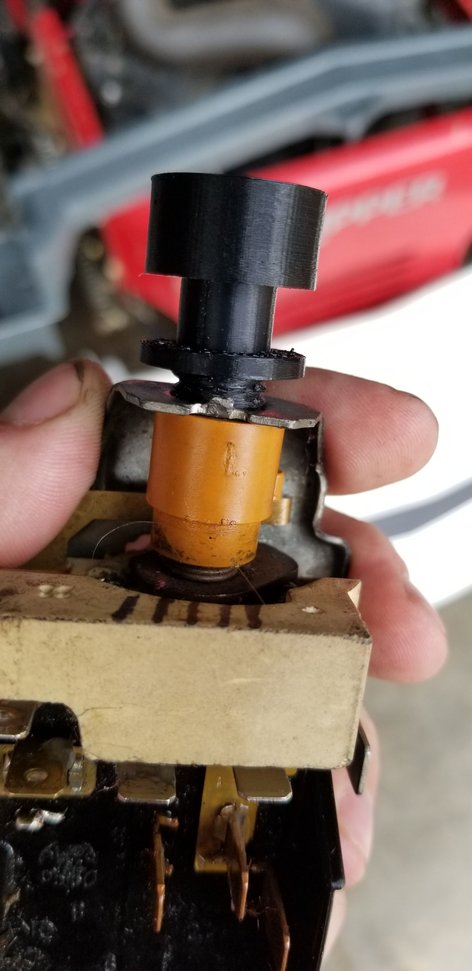

I finally got the time to print out the headlight switch nut. Turned out pretty good and it actually works
#47
Supreme Member
Join Date: Jun 2002
Location: North East GA
Posts: 2,221
Likes: 0
Received 44 Likes
on
40 Posts
Car: 1989 Firebird
Engine: 5.7 LS1
Transmission: T56
Re: 3D printed parts
Would like an RC/model car body of a formula, there is a knight rider on thinkverse but having a true to factory body would be cool.
I'm on the verge of buying one of the hobbyist CNC/laser engraver combo machines for a number of reasons.
I've thought about a ring that would go between the door panel and the arm rest that would hold down the covering of the arm rest to prevent it from pealing up if that makes sense.
The ***** on the AC panel but I doubt they would print smooth enough.
I have a 3d printed radio bezel already in my car
I'm on the verge of buying one of the hobbyist CNC/laser engraver combo machines for a number of reasons.
I've thought about a ring that would go between the door panel and the arm rest that would hold down the covering of the arm rest to prevent it from pealing up if that makes sense.
The ***** on the AC panel but I doubt they would print smooth enough.
I have a 3d printed radio bezel already in my car
#49
Junior Member
Join Date: Jun 2019
Location: Canyon TX
Posts: 57
Received 9 Likes
on
8 Posts
Car: 1992 RS
Engine: L03 / MSD / 2½" "hacksaw" catback
Transmission: 4L60
Axle/Gears: 2.73
Re: 3D printed parts
I found 2nd-gen taillight nuts on Thingiverse. I haven't had a chance to look at them closely yet, but does anyone know how or whether this can be modified for 3rd gen?
https://www.thingiverse.com/thing:3503126
(or if it's already a match?)
Thanks!
https://www.thingiverse.com/thing:3503126
(or if it's already a match?)
Thanks!
Last edited by Moonlight137; 08-02-2019 at 03:02 PM. Reason: Additional question
#50
Member
Thread Starter
Join Date: Feb 2015
Location: Cambridge City, IN
Posts: 265
Likes: 0
Received 12 Likes
on
9 Posts
Car: 1991 RS
Engine: 355
Transmission: TH350
Axle/Gears: 4.11
Re: 3D printed parts
Anybody know the dimensions for the guides for the power pull down? I'm just making them to stay in the same spot and not have the pull down feature.
