LS1 Swap/ Now I can't figure out the windshield wiper motor wiring
#1
LS1 Swap/ Now I can't figure out the windshield wiper motor wiring
I was wondering if anyone knew of a definitive solution to wiring up the stock windshield wiper motor after an LS1 swap. I have an 1986 IROC. I did an LS1/4l60e, dash, fuel tank, wiring harness, interior swap from a 99 TA. I did a search on here and saw someone suggested switching the windshield wiper motor switch (the part in the steering column that the multi-function lever connects to) to one from an IROC. I never saw for sure if this would work. I was wondering if anyone had experience or suggestions for wiring up the stock 86 wiper motor to the newer wiring harness. Thanks.
#2
Supreme Member
iTrader: (24)
Join Date: Jun 2005
Location: NC
Posts: 7,883
Likes: 0
Received 58 Likes
on
42 Posts
Car: 92 Firebird
Engine: Supercharged 6.0
Transmission: T56
Axle/Gears: 8.8 3.73
Re: LS1 Swap/ Now I can't figure out the windshield wiper motor wiring
If you've got all the 4th gen wiring, why not switch to a later 3rd gen wiper and use that directly?
#3
Member
iTrader: (1)
Join Date: Oct 2005
Posts: 268
Likes: 0
Received 0 Likes
on
0 Posts
Car: 86 Turbo Camaro
Engine: 427LSX
Transmission: 4L80E
Axle/Gears: 9" 3:25
Re: LS1 Swap/ Now I can't figure out the windshield wiper motor wiring
I used a 89 Nissan Maxima Windshield wiper motor... Wired it in just to run on the low setting but it takes up NO room and is a direct bolt in .... except for one bolt hole you need to drill and put bolt/nut on.
~Scott
~Scott
#4
Supreme Member
iTrader: (24)
Join Date: Jun 2005
Location: NC
Posts: 7,883
Likes: 0
Received 58 Likes
on
42 Posts
Car: 92 Firebird
Engine: Supercharged 6.0
Transmission: T56
Axle/Gears: 8.8 3.73
Re: LS1 Swap/ Now I can't figure out the windshield wiper motor wiring
O-rly
Would have LOVED to know that before I rebuilt my engine mounts moving my whole powertain forward to clear my wiper
Would have LOVED to know that before I rebuilt my engine mounts moving my whole powertain forward to clear my wiper
#5
Member
iTrader: (1)
Join Date: Oct 2005
Posts: 268
Likes: 0
Received 0 Likes
on
0 Posts
Car: 86 Turbo Camaro
Engine: 427LSX
Transmission: 4L80E
Axle/Gears: 9" 3:25
Re: LS1 Swap/ Now I can't figure out the windshield wiper motor wiring
I'm not sure if you can see it very well in this video but I can also take some pictures of it at home this weekend if you need me to...
It bolts right in pretty much and is 1/4 of the size of that monster GM put in there...
My V6 would not fit in there!!! I doubt this LS would have fit with stock wiper motor.
Why did they make it so huge? Have to wipe away 12lb snow? Lol
It bolts right in pretty much and is 1/4 of the size of that monster GM put in there...
My V6 would not fit in there!!! I doubt this LS would have fit with stock wiper motor.
Why did they make it so huge? Have to wipe away 12lb snow? Lol
#6
Re: LS1 Swap/ Now I can't figure out the windshield wiper motor wiring
Thanks, guys. Sounds like both those ideas are easy enough. I truly appreciate your responses.
-Adam
-Adam
#7
Supreme Member
iTrader: (4)
Re: LS1 Swap/ Now I can't figure out the windshield wiper motor wiring
I used a 4th gen washer bottle, so I was able to remove the pump, which bought a decent amount of room back there. I ran power wires for the 4th gen pump up into the original pump cavity, and I planned to shave the housing cover and finish it off that way. But this nissan idea has me curious.
J.
Trending Topics
#9
Supreme Member
iTrader: (24)
Join Date: Jun 2005
Location: NC
Posts: 7,883
Likes: 0
Received 58 Likes
on
42 Posts
Car: 92 Firebird
Engine: Supercharged 6.0
Transmission: T56
Axle/Gears: 8.8 3.73
Re: LS1 Swap/ Now I can't figure out the windshield wiper motor wiring
What a difference
Nissan Maxima
Late model 3rd gen
Looks like it would have cleared my fuel rail too. Gahhhhh
Think Ill swap it anyways so I can leave the wiper attached when swapping clutches. Ill look into the wiring. Thanks Scott
Nissan Maxima
Late model 3rd gen
Looks like it would have cleared my fuel rail too. Gahhhhh
Think Ill swap it anyways so I can leave the wiper attached when swapping clutches. Ill look into the wiring. Thanks Scott
#10
Member
iTrader: (2)
Join Date: Mar 2010
Location: IOWA
Posts: 166
Likes: 0
Received 0 Likes
on
0 Posts
Car: 89 IROCZ
Engine: Forged 347 LS1
Transmission: Built 4L60E with 4k stall
Axle/Gears: 4th gen w/ 3.42 gears
Re: LS1 Swap/ Now I can't figure out the windshield wiper motor wiring
Do any of you guys have a wiring diagram of how you wired in the maxima wiper motor?
#12
Member
iTrader: (1)
Join Date: Oct 2005
Posts: 268
Likes: 0
Received 0 Likes
on
0 Posts
Car: 86 Turbo Camaro
Engine: 427LSX
Transmission: 4L80E
Axle/Gears: 9" 3:25
Re: LS1 Swap/ Now I can't figure out the windshield wiper motor wiring
Honestly It was a freak accident... Lol...
I had a 89 Maxima that was my daily driver... I put a stock GN turbo on it for fun.. then chaned it to a TA49 which is one above that... stock GN IC with in/outlet changed... Drove it from 181,000mi when I turbod it to 245,000 it went 13.40@108mph on 11psi with a 2.4 60'... Got 24mpg in town and 31mpg highway. Was a fun 1000.00 car.
ANYWAY... had a parts car here and looked at the wiper motor and said.. humm...
so Put it on fire wall and lined it up. Soooooo Close!
For wires... Well.. I turned my key on ... found the power wire on the camaro harness and put it to one of the wires on the Maxima motor till it moved... then made it perminate... I didn't go bonkers... I'm confident if you spent some actual time at the wires from the 3'd gen to the max you can make it all work like stock... I just wanted it to work on low for when it rains.
Sorry it wasn't very technical on that part hahaha...
~Scott
I had a 89 Maxima that was my daily driver... I put a stock GN turbo on it for fun.. then chaned it to a TA49 which is one above that... stock GN IC with in/outlet changed... Drove it from 181,000mi when I turbod it to 245,000 it went 13.40@108mph on 11psi with a 2.4 60'... Got 24mpg in town and 31mpg highway. Was a fun 1000.00 car.
ANYWAY... had a parts car here and looked at the wiper motor and said.. humm...
so Put it on fire wall and lined it up. Soooooo Close!
For wires... Well.. I turned my key on ... found the power wire on the camaro harness and put it to one of the wires on the Maxima motor till it moved... then made it perminate... I didn't go bonkers... I'm confident if you spent some actual time at the wires from the 3'd gen to the max you can make it all work like stock... I just wanted it to work on low for when it rains.
Sorry it wasn't very technical on that part hahaha...
~Scott
#13
#14
Member
iTrader: (1)
Join Date: Oct 2005
Posts: 268
Likes: 0
Received 0 Likes
on
0 Posts
Car: 86 Turbo Camaro
Engine: 427LSX
Transmission: 4L80E
Axle/Gears: 9" 3:25
Re: LS1 Swap/ Now I can't figure out the windshield wiper motor wiring
Sorry.. did get the car back a couple weeks ago...
Here's the pictures... Looks like I cut the stock nissan arm and welded it to my 3d gen arm... motor pretty much just bolts in stock location.
Here's the pictures... Looks like I cut the stock nissan arm and welded it to my 3d gen arm... motor pretty much just bolts in stock location.
#15
Junior Member
Join Date: Apr 2010
Location: Premont Tx
Posts: 23
Likes: 0
Received 0 Likes
on
0 Posts
Car: 91 camaro rs
Engine: 355 sbc
Transmission: muncie m22
Axle/Gears: 10 bolt limited slip 373's
Re: LS1 Swap/ Now I can't figure out the windshield wiper motor wiring
Would the Nissan wiper motor work with a 4th gen column? I've already tried to wire the 3rd gen motor with the 4th gen harness and I'm getting what everyone else did, the motor only works on high and the wipers only move a few inches. I'm want to know if the same will happen with the Nissan motor.
#16
Member
Join Date: Nov 2001
Location: Midvale, UT
Posts: 482
Likes: 0
Received 2 Likes
on
2 Posts
Car: 1991 RS
Engine: L03
Transmission: T5
Axle/Gears: 4.11
Re: LS1 Swap/ Now I can't figure out the windshield wiper motor wiring
Hi all, sorry to revive this post, but I am now in the same position as the OP. I've got a 1991 Camaro RS with a 4th Gen T/A Steering column. so I'm going to have to fish my third gen wiper switch out of the old column and disassemble my new column (again) to fix this?
#17
Senior Member
iTrader: (1)
Join Date: Sep 2005
Location: Windsor, Ontario
Posts: 654
Likes: 0
Received 10 Likes
on
10 Posts
Car: 1987 Trans Am
Re: LS1 Swap/ Now I can't figure out the windshield wiper motor wiring
Found this diagram for maxima wiper wiring. Maybe it will help someone. I'm working on it now.
#21
Re: LS1 Swap/ Now I can't figure out the windshield wiper motor wiring

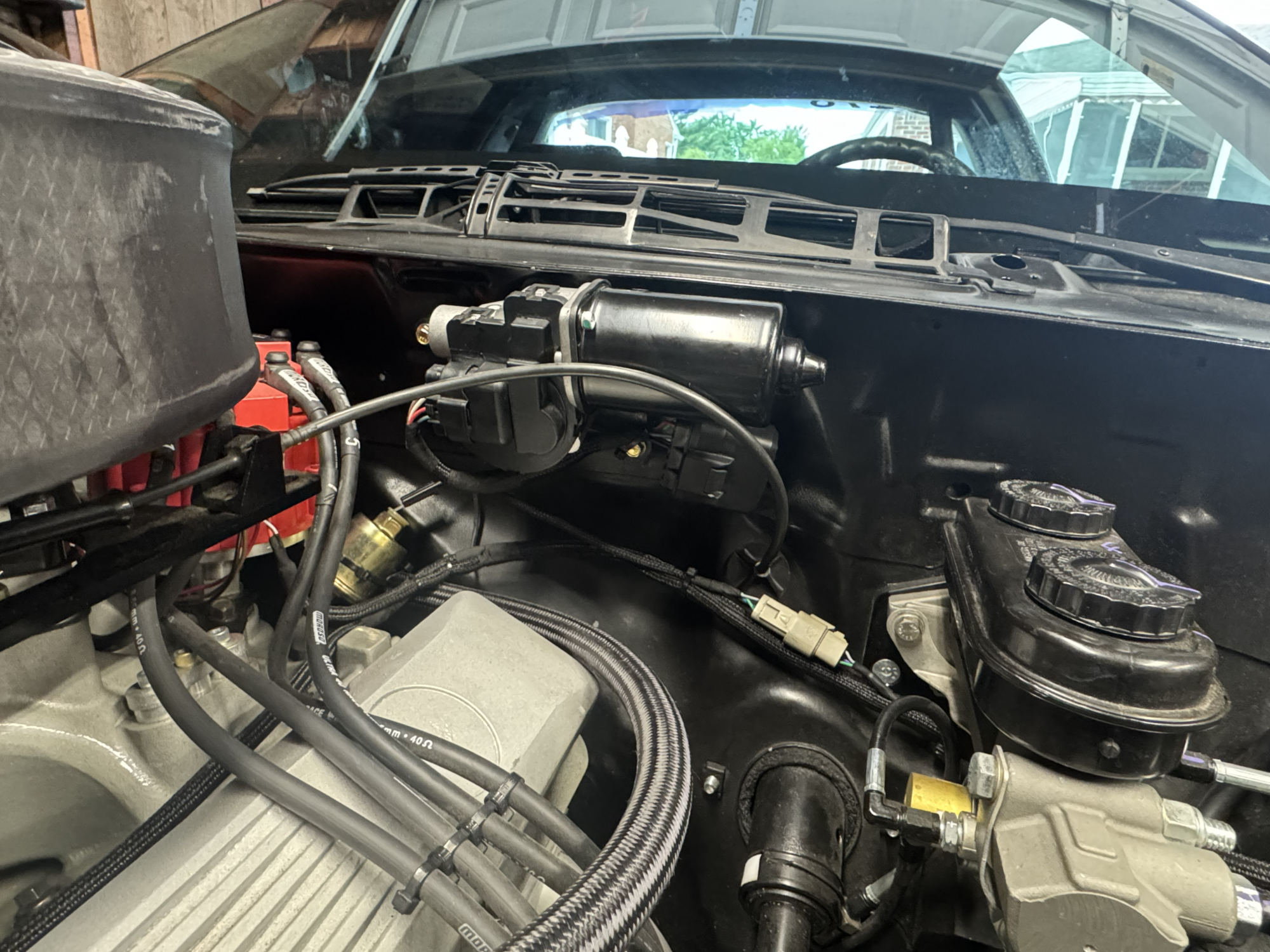

Anyone have updated photos of the Maxima wiper motor installed? A lot of the photos on this thread are no longer showing. Also, does it also have a wiper fluid pump on it?
Last edited by Firebat; 03-31-2019 at 08:25 AM.
#22
Junior Member
Re: LS1 Swap/ Now I can't figure out the windshield wiper motor wiring
This might be helpful:
