1983 Tube Chassis Drag Build
In the fall of 2017 I started to build a tube chassis for the 1983 Camaro I purchased off Craigslist. I started with kit from Chassis Engineering that was owned by two other people who were in over there head once they started the project. They cut and tacked 5 tubes together and quit. I took over the project knowing there was some tubing was missing. I purchased some more raw materials and an SFI spec rule book. What follows is my build
#6
Junior Member
Thread Starter
Join Date: Feb 2018
Location: Buffalo Ny
Posts: 68
Likes: 0
Received 5 Likes
on
3 Posts
Car: 1983 Camaro
Engine: 598 tall deck chevy
Transmission: Powerglide
Axle/Gears: Nine inch. 4:30
Re: 1983 Tube Chassis Drag Build
Here we are today trying to figure out how to build the front of this car. The wheel base was 101 inches stock for an 83’ Camaro, which is the same as a Mustang Gt. I couldn’t leave it that way, so I figured out how to stretch the wheelbase to 105 1/2 inches and Increase the stability.
#7
Moderator
Join Date: Jul 1999
Location: 51°N 114°W, 3500'
Posts: 17,110
Likes: 0
Received 120 Likes
on
101 Posts
Car: 87 IROC L98
Engine: 588 Alcohol BBC
Transmission: Powerglide
Axle/Gears: Ford 9"/31 spline spool/4.86
Re: 1983 Tube Chassis Drag Build
Not bad at all. Nice to have a place large enough to do all that and tools/equipment to do all that.
Looks like at least 24.4C but probably 25.2C
Stretch the nose although you may want to find out what the specs are for a fiberglass nose first.
As much as I can dream, I could never pull something like that off. Just doing a back half was a huge project.
Looks like at least 24.4C but probably 25.2C
Stretch the nose although you may want to find out what the specs are for a fiberglass nose first.
As much as I can dream, I could never pull something like that off. Just doing a back half was a huge project.
Trending Topics
#9
Junior Member
Re: 1983 Tube Chassis Drag Build
Looking good my man!!! it has plenty of bars in it it should be very stable and stiff for some horse power.
#10
Junior Member
Thread Starter
Join Date: Feb 2018
Location: Buffalo Ny
Posts: 68
Likes: 0
Received 5 Likes
on
3 Posts
Car: 1983 Camaro
Engine: 598 tall deck chevy
Transmission: Powerglide
Axle/Gears: Nine inch. 4:30
Re: 1983 Tube Chassis Drag Build
Thanks for the compliments, yeah it’s a lot of work for sure, but it’s coming together, I’m started building it to a 25.4b spec in 2017 so I have to change my rear motor mount braces to meet the 2018 c spec revisions.
#12
Supreme Member
iTrader: (25)
Join Date: Sep 2005
Location: NJ
Posts: 1,814
Received 280 Likes
on
218 Posts
Car: 1987 IROC-Z
Engine: 406 on N20 w/ EFI
Transmission: P.B. 700R4
Axle/Gears: 12 bolt w/ 3.91
Re: 1983 Tube Chassis Drag Build
this is freakin awesome. i love these types of builds. keep us all updated.
#13
Supreme Member
iTrader: (4)
Join Date: Oct 1999
Location: GO PACK GO
Posts: 4,211
Likes: 0
Received 2 Likes
on
2 Posts
Car: 83Z28 HO
Engine: Magnacharged Dart Little M 408
Transmission: G Force 5 speed
Axle/Gears: Moser 9" w/Detroit Trutrac
Re: 1983 Tube Chassis Drag Build
So how do you make up for the stretched wheel base of 105 1/2 inches as opposed to the stock 101 inches of the stock body?
#14
Junior Member
Thread Starter
Join Date: Feb 2018
Location: Buffalo Ny
Posts: 68
Likes: 0
Received 5 Likes
on
3 Posts
Car: 1983 Camaro
Engine: 598 tall deck chevy
Transmission: Powerglide
Axle/Gears: Nine inch. 4:30
Re: 1983 Tube Chassis Drag Build

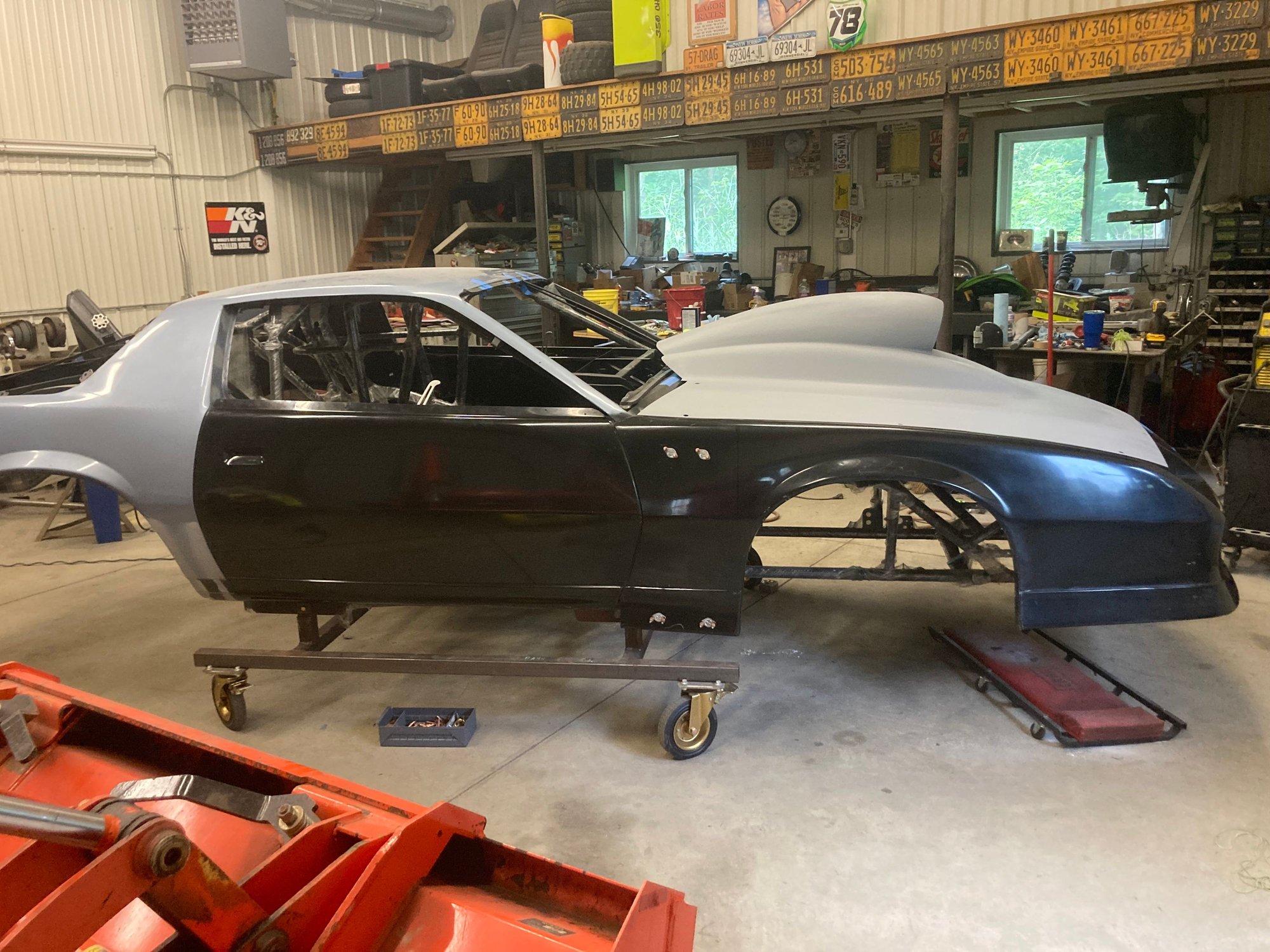

I have a harwood front end that has a stretch in the front fenders, between the wheel well opening and the door seam. Plus moving the body in relationship to the chassis and putting the front axle a fraction forward of wheel well center , Gives me 105.5
#15
Supreme Member
iTrader: (4)
Join Date: Oct 1999
Location: GO PACK GO
Posts: 4,211
Likes: 0
Received 2 Likes
on
2 Posts
Car: 83Z28 HO
Engine: Magnacharged Dart Little M 408
Transmission: G Force 5 speed
Axle/Gears: Moser 9" w/Detroit Trutrac
Re: 1983 Tube Chassis Drag Build
You've obviously done your homework on this! It's looking awesome!
#17
Junior Member
Thread Starter
Join Date: Feb 2018
Location: Buffalo Ny
Posts: 68
Likes: 0
Received 5 Likes
on
3 Posts
Car: 1983 Camaro
Engine: 598 tall deck chevy
Transmission: Powerglide
Axle/Gears: Nine inch. 4:30
Re: 1983 Tube Chassis Drag Build
Absolutely the hardest part of the chassis to get straight and square
#18
Moderator
Join Date: Jul 1999
Location: 51°N 114°W, 3500'
Posts: 17,110
Likes: 0
Received 120 Likes
on
101 Posts
Car: 87 IROC L98
Engine: 588 Alcohol BBC
Transmission: Powerglide
Axle/Gears: Ford 9"/31 spline spool/4.86
Re: 1983 Tube Chassis Drag Build
As much as I'd love one, it would be cheaper to buy someone elses tube chassis car (providing it has a current chassis cert), than it would be for me to build one. I did my own back half and full cage and that alone was a lot of work. A full tube chassis could cut around 500-1000 pounds off my car. Love to have around 2300 pound race weight.
#19
Junior Member
Thread Starter
Join Date: Feb 2018
Location: Buffalo Ny
Posts: 68
Likes: 0
Received 5 Likes
on
3 Posts
Car: 1983 Camaro
Engine: 598 tall deck chevy
Transmission: Powerglide
Axle/Gears: Nine inch. 4:30
Re: 1983 Tube Chassis Drag Build
It would be cheaper to buy a chassis car used, but I’m 6’4 and it’s hard to find anything that would be safe for my size. I enjoy working on the car when I have time. I looked at some used cars and they would require changing the cage and replacing worn out parts. It takes more time than money to do what I have done so far. We will see in the end if it’s worth it. Still have a lot to do.
#20
Junior Member
Thread Starter
Join Date: Feb 2018
Location: Buffalo Ny
Posts: 68
Likes: 0
Received 5 Likes
on
3 Posts
Car: 1983 Camaro
Engine: 598 tall deck chevy
Transmission: Powerglide
Axle/Gears: Nine inch. 4:30
Re: 1983 Tube Chassis Drag Build
Making headway on the chassis. Just pulled it off the table so I can weld underneath.
Off the table and upside down. Time to weld the bottom
Off the table and upside down. Time to weld the bottom
#22
Junior Member
Thread Starter
Join Date: Feb 2018
Location: Buffalo Ny
Posts: 68
Likes: 0
Received 5 Likes
on
3 Posts
Car: 1983 Camaro
Engine: 598 tall deck chevy
Transmission: Powerglide
Axle/Gears: Nine inch. 4:30
Re: 1983 Tube Chassis Drag Build
Making progress, had to change tubing around rear transmission mount to satisfy spec changes and make some more foot room.

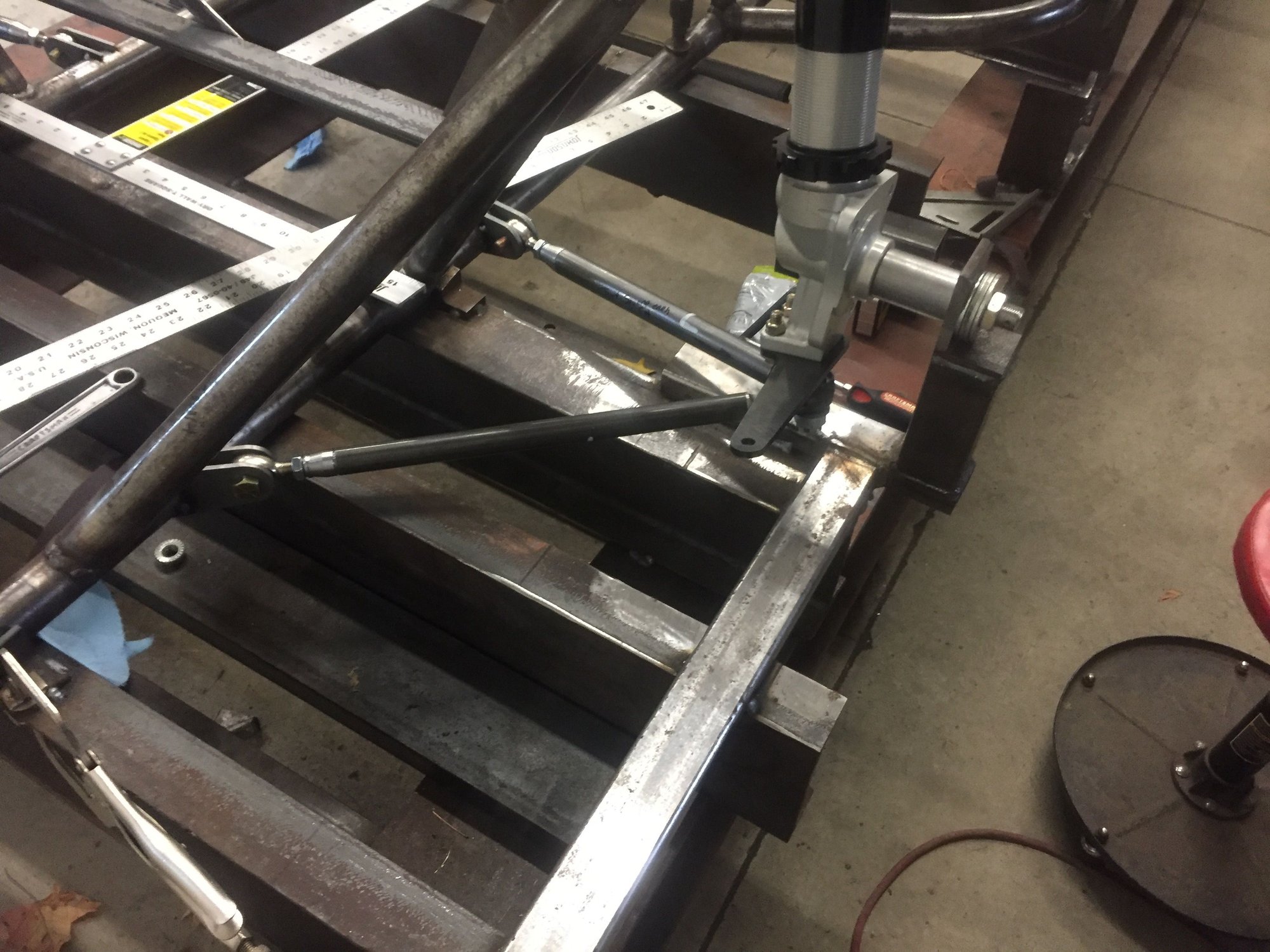

Lower control arms and mounts done.
Moving on to the rear.
#23
Junior Member
Thread Starter
Join Date: Feb 2018
Location: Buffalo Ny
Posts: 68
Likes: 0
Received 5 Likes
on
3 Posts
Car: 1983 Camaro
Engine: 598 tall deck chevy
Transmission: Powerglide
Axle/Gears: Nine inch. 4:30
Re: 1983 Tube Chassis Drag Build
Brackets came out really good and tied in rear tubing nicely
Bought some new 4 link brackets, they were laser cut, but the holes were sloppy, so I made my own!!!
Making progress, everything fits good
This car is going to be a little heavy
#26
Junior Member
Thread Starter
Join Date: Feb 2018
Location: Buffalo Ny
Posts: 68
Likes: 0
Received 5 Likes
on
3 Posts
Car: 1983 Camaro
Engine: 598 tall deck chevy
Transmission: Powerglide
Axle/Gears: Nine inch. 4:30
Re: 1983 Tube Chassis Drag Build

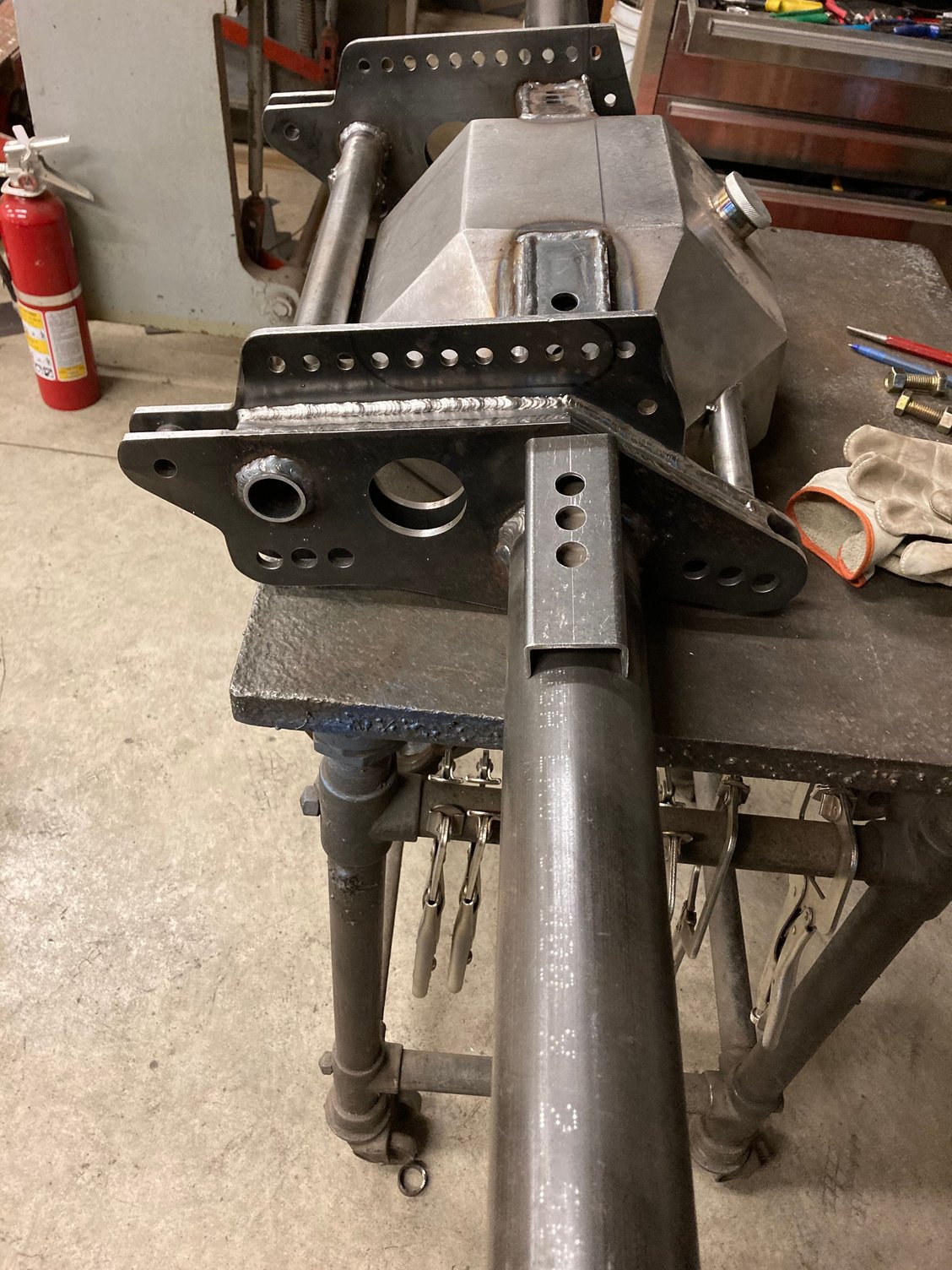

Made some brackets from 1/4 inch plate
Welded them to housing on a 2 degree angle
Fabricated back brace from 1/8

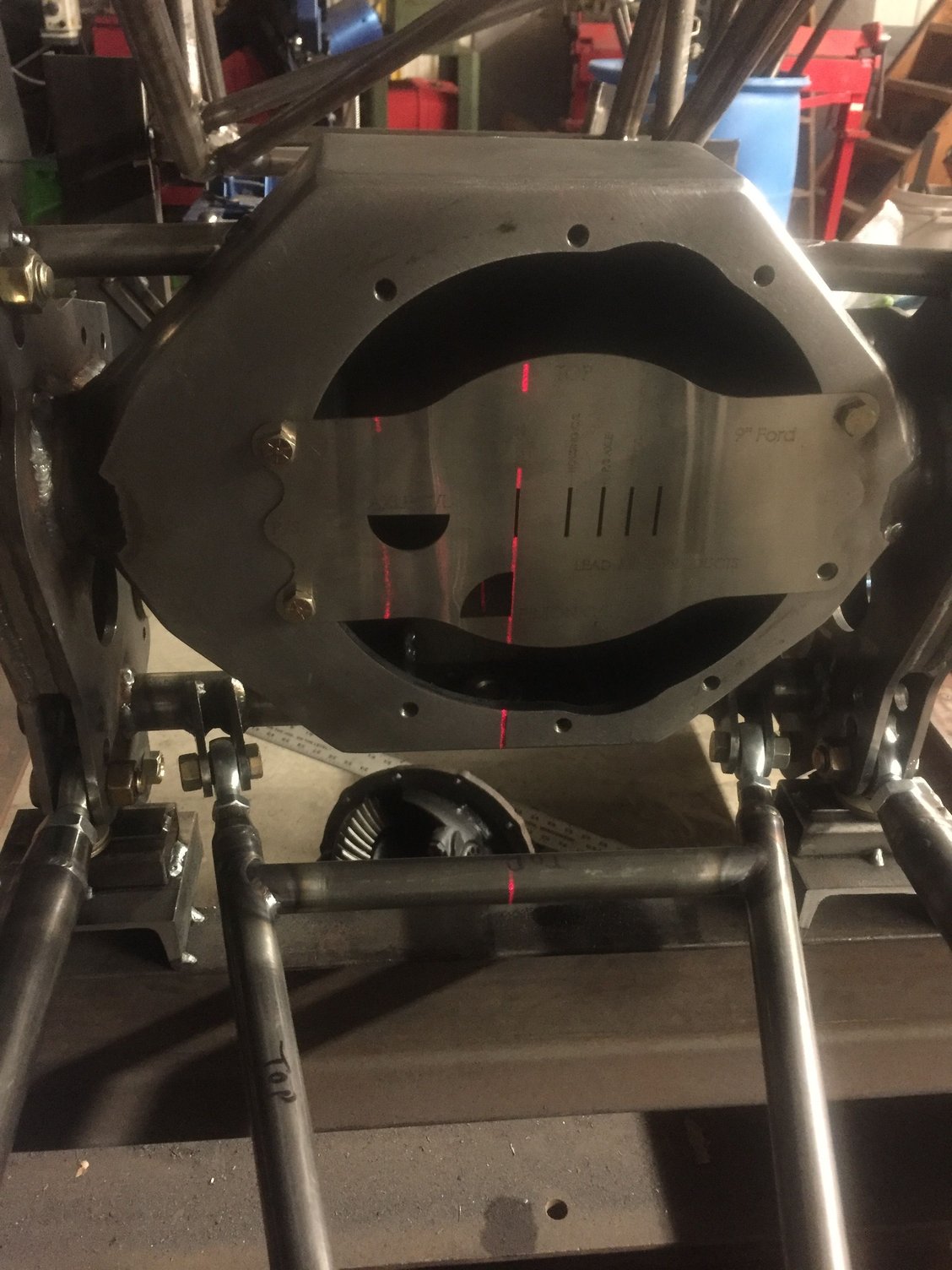

Lazer says it’s centered . Wishbone in background
Welded the brackets together first
#32
Supreme Member
iTrader: (11)
Join Date: Aug 2013
Location: MICHIGAN
Posts: 4,637
Received 751 Likes
on
577 Posts
Car: 1988 Trans Am
Engine: L03
Transmission: 700R4
Axle/Gears: 10 Bolt 2.73 Open
Re: 1983 Tube Chassis Drag Build
Really hard to compare anything here to stock, but is the engine set back compared to factory placement? It looks to be completely (or nearly) behind the front axle centerline.
#33
Junior Member
Thread Starter
Join Date: Feb 2018
Location: Buffalo Ny
Posts: 68
Likes: 0
Received 5 Likes
on
3 Posts
Car: 1983 Camaro
Engine: 598 tall deck chevy
Transmission: Powerglide
Axle/Gears: Nine inch. 4:30
Re: 1983 Tube Chassis Drag Build
The front of the block is actually 1.5 inches ahead of the front axle centerline. However, the front axle centerline is moved 4 inches ahead for a 105 inch wheelbase. Compared to a friend’s third gen with a bbc and a stock transmission location , I’m about 1 to 1.5 inch closer to the windshield base.
The following users liked this post:
DynoDave43 (07-05-2020)
#34
Moderator
Join Date: Jul 1999
Location: 51°N 114°W, 3500'
Posts: 17,110
Likes: 0
Received 120 Likes
on
101 Posts
Car: 87 IROC L98
Engine: 588 Alcohol BBC
Transmission: Powerglide
Axle/Gears: Ford 9"/31 spline spool/4.86
Re: 1983 Tube Chassis Drag Build
Wish I had the space and the tooling to do all that.
#35
Junior Member
Thread Starter
Join Date: Feb 2018
Location: Buffalo Ny
Posts: 68
Likes: 0
Received 5 Likes
on
3 Posts
Car: 1983 Camaro
Engine: 598 tall deck chevy
Transmission: Powerglide
Axle/Gears: Nine inch. 4:30
Re: 1983 Tube Chassis Drag Build
Got the radiator and fuel cells mounted.
Getting complicated
Trying to size my wheels with a mock up wheel from a friends car
#36
Junior Member
Thread Starter
Join Date: Feb 2018
Location: Buffalo Ny
Posts: 68
Likes: 0
Received 5 Likes
on
3 Posts
Car: 1983 Camaro
Engine: 598 tall deck chevy
Transmission: Powerglide
Axle/Gears: Nine inch. 4:30
Re: 1983 Tube Chassis Drag Build
Test fitting front wheels and tires
Welding in driver side floor pans. I made them out of 22 gauge, bead rolled and hammer formed around the tubes
#37
Junior Member
Thread Starter
Join Date: Feb 2018
Location: Buffalo Ny
Posts: 68
Likes: 0
Received 5 Likes
on
3 Posts
Car: 1983 Camaro
Engine: 598 tall deck chevy
Transmission: Powerglide
Axle/Gears: Nine inch. 4:30
Re: 1983 Tube Chassis Drag Build
Finished driver side floor and seat
Hopefully cut this right
It fits
Powder coated
The following 2 users liked this post by Phonedude:
bluegrassz (04-05-2021), Clemson327 (04-05-2021)
