I'm putting all the emissions stuff back on the car and I need a routing for all of the A.I.R. stuff. I think I got the diverter valve routed ok., but what goes to the other side of the engine and what goes down to the cat. I've had mine off for about 8 months and can't remember the routing.

Thanks.

Bill



Ya ever think about asking ADS to put it back on for ya? Or would that cost too much extra? When I took mine off it was more like grap and rip, not map for later re-instalation....

Bruce (90RS305)



I thought about that. I just wanted to do it myself if I could.



Hi Azvolfan-
I took a bunch of pics of my engine bay before yanking the motor. PM an e-mail and I will send what you need-
As far as the tube that goes down to the cat, there is only one way and it is tough-
Best-
S-D



You got a pm coming your way.

Thanks for the help.



Hey swerve,

I'll be in Chicago next week. What part of Chi-town you live in?



This may help some.





Here is a link to an old FAQ post I made about our AIR systems.

https://www.thirdgen.org/techbb2/sho...hreadid=228712



That's what I needed. Thanks Shifty. Camaro goes in for the 3.42 posi today @ 1 pm.

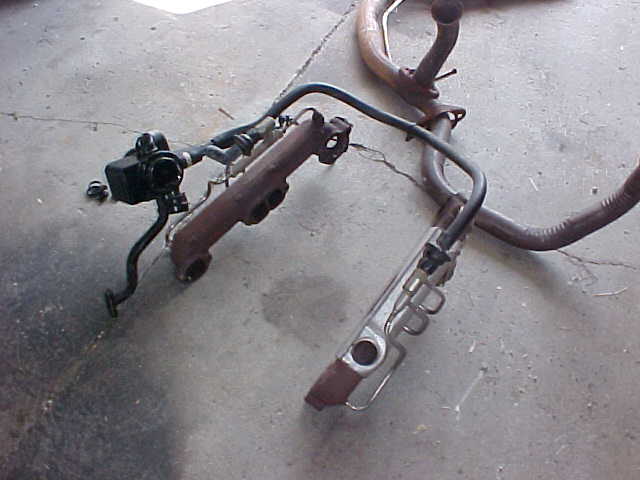

The off engine pics probably take care of your concerns? Here are a couple I was able to dig up-

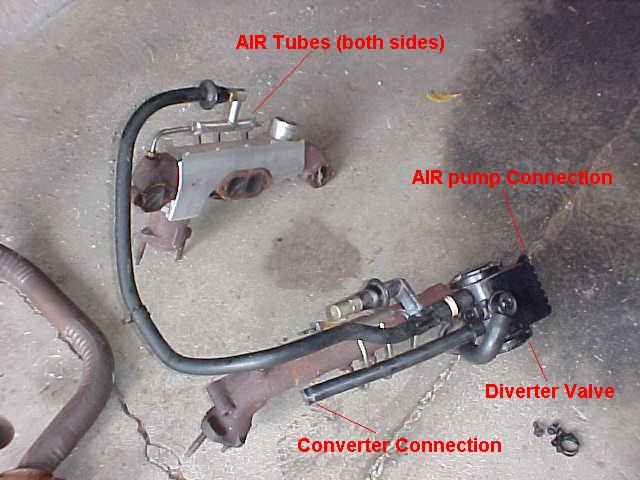

another



Shifty's pics can't be beat!
Best-
S-D
