Where does this connect?
#1
Junior Member
Thread Starter
Join Date: Nov 2013
Posts: 34
Received 0 Likes
on
0 Posts
Engine: 305 5.0 TBI
Transmission: 700-R4
Where does this connect?
I'm trying to figure out where this port on my air cleaner, actually connects to. I out lined the port with a yellow box.
Does anyone know what this connects to? and maybe a picture ?
Does anyone know what this connects to? and maybe a picture ?
#2
Senior Member
iTrader: (8)
Join Date: Aug 2011
Location: Texas
Posts: 661
Likes: 0
Received 7 Likes
on
7 Posts
Car: 91 Firebird/88 Firebird/91 Formula
Engine: V6 3.1/V8 5.0/V8 5.0
Transmission: 4L60/700R4/4L60
Axle/Gears: 3.23/2.73/2.73
Re: Where does this connect?
Connects to the opening in the valve cover.
#3
Supreme Member
Join Date: Apr 2006
Location: Northern, CA
Posts: 4,482
Likes: 0
Received 8 Likes
on
8 Posts
Car: 1989 Iroc-Z Camaro
Engine: TBI,5.0
Transmission: Automatic 700R4
Axle/Gears: Eaton Posi,3.42,LPW Ultimate Cover
Re: Where does this connect?
Yes, there should be a rubber grommet in the valve cover hole that the end of that pipe pushes into.
Put a little engine oil on it first to help slide it in.
Its very easy to push the rubber grommet into the valve cover if your not carful.
Put a little engine oil on it first to help slide it in.
Its very easy to push the rubber grommet into the valve cover if your not carful.
#4
Junior Member
Thread Starter
Join Date: Nov 2013
Posts: 34
Received 0 Likes
on
0 Posts
Engine: 305 5.0 TBI
Transmission: 700-R4
Re: Where does this connect?
Ok awesome!
Does anyone know what that tube is called?

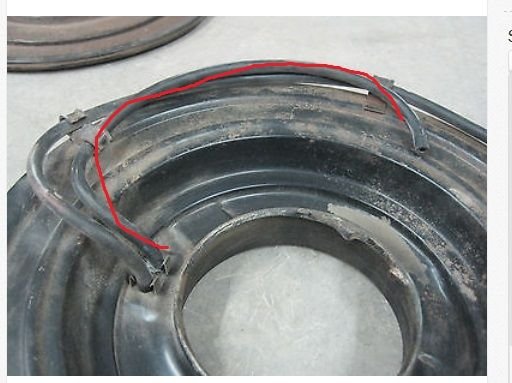

also, Does anyone know where this tube connects to that i have outlined in red?
