HELP..vacuum diagram
Does anyone know where I can find a vacuum hose diagram for a LB9 engine? I have a very small hard plastic vacuum hose just hanging by the engine top and I can't find where it use to go...
Member
Joined: Jul 2000
Posts: 163
Likes: 0
From: Ft. Worth,Tx.
I believe there are two, one will come from a port on the bottom of the throttle body and go, I believe, to the EGR solenoid. The other should go from that solenoid to the EGR valve. I have the same engine but I basically built it up from scratch so I am not tatally sure that this is the exact factory routing.
------------------
"84Z28/'91 305TPI comp cam flowmaster TB coolant bypass/shutoff valve to heater core MAT relocated Ram-Air(home-made) gutted air-box IROC ground effects/wheels GY245/50's 700R4 superior shift kit/ corvette servo(excellent shift kit BTW) Rebuilt engine and transplanted it myself. Love this engine!
LOW performance people should drive low performance vehicles!
------------------
"84Z28/'91 305TPI comp cam flowmaster TB coolant bypass/shutoff valve to heater core MAT relocated Ram-Air(home-made) gutted air-box IROC ground effects/wheels GY245/50's 700R4 superior shift kit/ corvette servo(excellent shift kit BTW) Rebuilt engine and transplanted it myself. Love this engine!
LOW performance people should drive low performance vehicles!
Moderator
Joined: Jan 2000
Posts: 19,651
Likes: 309

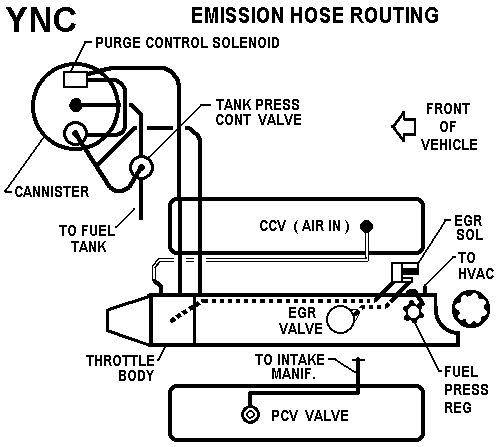

Maybe this will help:
------------------
