Re: Vacuum Lines Diagrams!!! I GOT THEM ALL!!!!!

Its on the left side.
Duane's 91 Z/28 is offline
Old 06-18-2013, 01:11 AM
  #102
Supreme Member
Thread Starter
iTrader: (17)

Chevy86 IROC-Z's Avatar

Join Date: May 2009
Location: Far West
Posts: 4,793
Car: 1986 Camaro Z28 IROC-Z
Engine: 350 Tuned Port Injection, for now.
Transmission: 700R4
Axle/Gears: Posi - 3.23
Re: Vacuum Lines Diagrams!!! I GOT THEM ALL!!!!!

Originally Posted by mcsslover1987 View Post
Its on the left side.
Lets make this easier. Driver side or passengerside.
I can take a picture for you tomorrow if youse like.
Chevy86 IROC-Z is offline
Old 06-18-2013, 08:17 AM
  #103
Senior Member
iTrader: (1)

Duane's 91 Z/28's Avatar

Join Date: Sep 2005
Location: Yreka, in the State of Jefferson
Posts: 817
Car: 1991 red Z/28
Engine: 350 TPI
Transmission: T5 swap
Axle/Gears: 3.42
Re: Vacuum Lines Diagrams!!! I GOT THEM ALL!!!!!

Originally Posted by Chevy86 IROC-Z View Post
Lets make this easier. Driver side or passengerside.
I can take a picture for you tomorrow if youse like.
driver side Yes I would love a pic of where the hose runs under and to the throttle body )

Last edited by Duane's 91 Z/28; 06-18-2013 at 08:21 AM.
Duane's 91 Z/28 is offline
Old 06-18-2013, 10:46 AM
  #104
Supreme Member
Thread Starter
iTrader: (17)

Chevy86 IROC-Z's Avatar

Join Date: May 2009
Location: Far West
Posts: 4,793
Car: 1986 Camaro Z28 IROC-Z
Engine: 350 Tuned Port Injection, for now.
Transmission: 700R4
Axle/Gears: Posi - 3.23
Re: Vacuum Lines Diagrams!!! I GOT THEM ALL!!!!!

Originally Posted by mcsslover1987 View Post
driver side Yes I would love a pic of where the hose runs under and to the throttle body )
Sure. No problem. All that is underthere is a T connector. The middle tube on the connector fits over the TB nipple and the outer ends go to the canister and the EGR Solenoid. But no problem. When I get out of work, I'll post up a picture.
Chevy86 IROC-Z is offline
Old 06-18-2013, 10:59 AM
  #105
Member

carattini's Avatar

Join Date: Jan 2009
Location: North Carolina
Posts: 284
Car: Pontiac 89 GTA
Engine: 350 TPI 5.7L V8
Re: Vacuum Lines Diagrams!!! I GOT THEM ALL!!!!!

Originally Posted by eseibel67 View Post

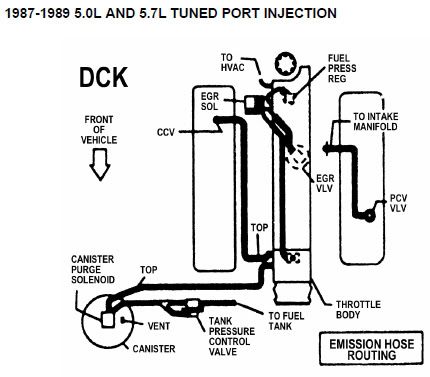

Second last one on your list, if you could please sir:

1987-1989 5.0L AND 5.7L TUNED PORT INJECTION

Yes this is my GTA
carattini is offline
Old 06-18-2013, 11:05 AM
  #106
Member

carattini's Avatar

Join Date: Jan 2009
Location: North Carolina
Posts: 284
Car: Pontiac 89 GTA
Engine: 350 TPI 5.7L V8
Re: Vacuum Lines Diagrams!!! I GOT THEM ALL!!!!!

Originally Posted by Chevy86 IROC-Z View Post
Here it is....
Thank you so much
carattini is offline
Old 06-18-2013, 11:12 AM
  #107
Supreme Member
Thread Starter
iTrader: (17)

Chevy86 IROC-Z's Avatar

Join Date: May 2009
Location: Far West
Posts: 4,793
Car: 1986 Camaro Z28 IROC-Z
Engine: 350 Tuned Port Injection, for now.
Transmission: 700R4
Axle/Gears: Posi - 3.23
Re: Vacuum Lines Diagrams!!! I GOT THEM ALL!!!!!

Originally Posted by carattini View Post
Thank you so much
Yessir!!
Chevy86 IROC-Z is offline
Old 06-22-2013, 02:18 AM
  #108
Junior Member

KayTeesFirebird's Avatar

Join Date: Jun 2013
Location: San Diego
Posts: 3
Car: Firebird
Engine: Tuned Port Injection T.B.I
Transmission: 700RA Borg-Warner
Axle/Gears: Positioned Limited Slip
Re: Vacuum Lines Diagrams!!! I GOT THEM ALL!!!!!

Do you have the vacuum diagram for a 87' 5.0 V8 fuel injected Firebird ?!
KayTeesFirebird is offline
Old 06-22-2013, 10:25 AM
  #109
Supreme Member
Thread Starter
iTrader: (17)

Chevy86 IROC-Z's Avatar

Join Date: May 2009
Location: Far West
Posts: 4,793
Car: 1986 Camaro Z28 IROC-Z
Engine: 350 Tuned Port Injection, for now.
Transmission: 700R4
Axle/Gears: Posi - 3.23
Re: Vacuum Lines Diagrams!!! I GOT THEM ALL!!!!!

Originally Posted by KayTeesFirebird View Post
Do you have the vacuum diagram for a 87' 5.0 V8 fuel injected Firebird ?!
I think Camaro's and Firebirds had the same engines. With that said, the first page.
Chevy86 IROC-Z is offline
Old 06-23-2013, 12:47 AM
  #110
Junior Member

KayTeesFirebird's Avatar

Join Date: Jun 2013
Location: San Diego
Posts: 3
Car: Firebird
Engine: Tuned Port Injection T.B.I
Transmission: 700RA Borg-Warner
Axle/Gears: Positioned Limited Slip
Re: Vacuum Lines Diagrams!!! I GOT THEM ALL!!!!!

Yeah think everything is basically similar but yeah I got it it idles great just fluctuates from 700-800 RMP . Thank you though been hunting for I couldn't find it for the life of anyone lol .
KayTeesFirebird is offline
Old 06-23-2013, 12:51 AM
  #111
Supreme Member
Thread Starter
iTrader: (17)

Chevy86 IROC-Z's Avatar

Join Date: May 2009
Location: Far West
Posts: 4,793
Car: 1986 Camaro Z28 IROC-Z
Engine: 350 Tuned Port Injection, for now.
Transmission: 700R4
Axle/Gears: Posi - 3.23
Re: Vacuum Lines Diagrams!!! I GOT THEM ALL!!!!!

Right on man.
Chevy86 IROC-Z is offline
Old 06-23-2013, 05:32 PM
  #112
Senior Member
iTrader: (1)

Duane's 91 Z/28's Avatar

Join Date: Sep 2005
Location: Yreka, in the State of Jefferson
Posts: 817
Car: 1991 red Z/28
Engine: 350 TPI
Transmission: T5 swap
Axle/Gears: 3.42
Re: Vacuum Lines Diagrams!!! I GOT THEM ALL!!!!!

Any chance on taking that pic of the line that runs under the throttle body (and behind the alternator) over to the charcoal cannister?
Duane's 91 Z/28 is offline
Old 06-23-2013, 08:29 PM
  #113
Supreme Member
Thread Starter
iTrader: (17)

Chevy86 IROC-Z's Avatar

Join Date: May 2009
Location: Far West
Posts: 4,793
Car: 1986 Camaro Z28 IROC-Z
Engine: 350 Tuned Port Injection, for now.
Transmission: 700R4
Axle/Gears: Posi - 3.23
Re: Vacuum Lines Diagrams!!! I GOT THEM ALL!!!!!

Originally Posted by mcsslover1987 View Post
Any chance on taking that pic of the line that runs under the throttle body (and behind the alternator) over to the charcoal cannister?
Yup. Give me a couple of minutes. Sorry man. I forgot. I'll get them up right now.
Chevy86 IROC-Z is offline
Old 06-23-2013, 08:41 PM
  #114
Supreme Member
Thread Starter
iTrader: (17)

Chevy86 IROC-Z's Avatar

Join Date: May 2009
Location: Far West
Posts: 4,793
Car: 1986 Camaro Z28 IROC-Z
Engine: 350 Tuned Port Injection, for now.
Transmission: 700R4
Axle/Gears: Posi - 3.23
Re: Vacuum Lines Diagrams!!! I GOT THEM ALL!!!!!

Originally Posted by mcsslover1987 View Post
Any chance on taking that pic of the line that runs under the throttle body (and behind the alternator) over to the charcoal cannister?
Name:  null_zpsfee75fa2.jpg
Views: 6055
Size:  128.7 KB
Chevy86 IROC-Z is offline
Old 06-23-2013, 08:43 PM
  #115
Supreme Member
Thread Starter
iTrader: (17)

Chevy86 IROC-Z's Avatar

Join Date: May 2009
Location: Far West
Posts: 4,793
Car: 1986 Camaro Z28 IROC-Z
Engine: 350 Tuned Port Injection, for now.
Transmission: 700R4
Axle/Gears: Posi - 3.23
Re: Vacuum Lines Diagrams!!! I GOT THEM ALL!!!!!

Name:  null_zps71419d8e.jpg
Views: 6083
Size:  144.0 KB
Name:  null_zps411ba383.jpg
Views: 6029
Size:  100.9 KB
Name:  null_zps0483c963.jpg
Views: 6097
Size:  108.6 KB
Name:  null_zps459ee99c.jpg
Views: 6317
Size:  100.1 KB
Name:  null_zps052e2c89.jpg
Views: 6546
Size:  103.2 KB
Chevy86 IROC-Z is offline
Old 06-23-2013, 11:26 PM
  #116
Senior Member
iTrader: (1)

Duane's 91 Z/28's Avatar

Join Date: Sep 2005
Location: Yreka, in the State of Jefferson
Posts: 817
Car: 1991 red Z/28
Engine: 350 TPI
Transmission: T5 swap
Axle/Gears: 3.42
Re: Vacuum Lines Diagrams!!! I GOT THEM ALL!!!!!

Thank you so much for taking them and your time. I didnt realize it went way back there to that. I thought it went just to the throttle body.
Duane's 91 Z/28 is offline
Old 06-24-2013, 12:07 AM
  #117
Supreme Member
Thread Starter
iTrader: (17)

Chevy86 IROC-Z's Avatar

Join Date: May 2009
Location: Far West
Posts: 4,793
Car: 1986 Camaro Z28 IROC-Z
Engine: 350 Tuned Port Injection, for now.
Transmission: 700R4
Axle/Gears: Posi - 3.23
Re: Vacuum Lines Diagrams!!! I GOT THEM ALL!!!!!

Originally Posted by mcsslover1987 View Post
Thank you so much for taking them and your time. I didnt realize it went way back there to that. I thought it went just to the throttle body.
No problem man. That part that the far end of the hose connects to is called the EGR Solenoid.
Chevy86 IROC-Z is offline
Old 07-02-2013, 12:24 PM
  #118
Junior Member

Join Date: Jun 2013
Location: AZ
Posts: 5
Car: 88 Camaro POJ
Engine: 350
Re: Vacuum Lines Diagrams!!! I GOT THEM ALL!!!!!

You have one for 88 camaro 5.7 w/ carb
magwired is offline
Old 07-02-2013, 09:43 PM
  #119
Supreme Member
Thread Starter
iTrader: (17)

Chevy86 IROC-Z's Avatar

Join Date: May 2009
Location: Far West
Posts: 4,793
Car: 1986 Camaro Z28 IROC-Z
Engine: 350 Tuned Port Injection, for now.
Transmission: 700R4
Axle/Gears: Posi - 3.23
Re: Vacuum Lines Diagrams!!! I GOT THEM ALL!!!!!

Originally Posted by magwired View Post
You have one for 88 camaro 5.7 w/ carb
Chevy86 IROC-Z is offline
Old 07-02-2013, 09:43 PM
  #120
Supreme Member
Thread Starter
iTrader: (17)

Chevy86 IROC-Z's Avatar

Join Date: May 2009
Location: Far West
Posts: 4,793
Car: 1986 Camaro Z28 IROC-Z
Engine: 350 Tuned Port Injection, for now.
Transmission: 700R4
Axle/Gears: Posi - 3.23
Re: Vacuum Lines Diagrams!!! I GOT THEM ALL!!!!!

Search on page 1
Chevy86 IROC-Z is offline
Old 07-02-2013, 10:17 PM
  #121
Junior Member

Join Date: Jun 2013
Location: AZ
Posts: 5
Car: 88 Camaro POJ
Engine: 350
Re: Vacuum Lines Diagrams!!! I GOT THEM ALL!!!!!

Not in there chief
magwired is offline
Old 07-02-2013, 10:25 PM
  #122
Sponsor
iTrader: (81)

Tuned Performance's Avatar

Join Date: Dec 2004
Location: Mile High Country !!!
Posts: 11,653
Car: 1967 Camaro, 91 z28
Engine: Lb9
Transmission: M20
Axle/Gears: J65 pbr on stock posi 10bolt
Re: Vacuum Lines Diagrams!!! I GOT THEM ALL!!!!!

Name:  1987-198850LCarb.jpg
Views: 10346
Size:  71.4 KB
Same as a 350
Tuned Performance is offline
Old 07-02-2013, 10:29 PM
  #123
Supreme Member
Thread Starter
iTrader: (17)

Chevy86 IROC-Z's Avatar

Join Date: May 2009
Location: Far West
Posts: 4,793
Car: 1986 Camaro Z28 IROC-Z
Engine: 350 Tuned Port Injection, for now.
Transmission: 700R4
Axle/Gears: Posi - 3.23
Re: Vacuum Lines Diagrams!!! I GOT THEM ALL!!!!!

Yes it is. Look on post #28.
Chevy86 IROC-Z is offline
Old 07-02-2013, 10:29 PM
  #124
Supreme Member
Thread Starter
iTrader: (17)

Chevy86 IROC-Z's Avatar

Join Date: May 2009
Location: Far West
Posts: 4,793
Car: 1986 Camaro Z28 IROC-Z
Engine: 350 Tuned Port Injection, for now.
Transmission: 700R4
Axle/Gears: Posi - 3.23
Re: Vacuum Lines Diagrams!!! I GOT THEM ALL!!!!!

Last picture on #28.
Chevy86 IROC-Z is offline
Old 07-02-2013, 10:57 PM
  #125
Junior Member

Join Date: Jun 2013
Location: AZ
Posts: 5
Car: 88 Camaro POJ
Engine: 350
Re: Vacuum Lines Diagrams!!! I GOT THEM ALL!!!!!

Ahh gotcha thanks
magwired is offline
Old 07-02-2013, 10:59 PM
  #126
Supreme Member
Thread Starter
iTrader: (17)

Chevy86 IROC-Z's Avatar

Join Date: May 2009
Location: Far West
Posts: 4,793
Car: 1986 Camaro Z28 IROC-Z
Engine: 350 Tuned Port Injection, for now.
Transmission: 700R4
Axle/Gears: Posi - 3.23
Re: Vacuum Lines Diagrams!!! I GOT THEM ALL!!!!!

Originally Posted by magwired View Post
Ahh gotcha thanks
My fault. I should if notes the 5.0 is the same as a 5.7. But my bro TunedPerformance caught it.
Chevy86 IROC-Z is offline
Old 07-07-2013, 03:33 PM
  #127
Junior Member

Join Date: Jul 2013
Posts: 1
Re: Vacuum Lines Diagrams!!! I GOT THEM ALL!!!!!

I have a 1992 camaro Rs with a 305 engine nand a 4 speed trans. a vacuun line on the nrear of the carb has disconnected and I' not sure where to reconnect it and to what.
Almac3 is offline
Old 07-07-2013, 04:46 PM
  #128
Supreme Member
Thread Starter
iTrader: (17)

Chevy86 IROC-Z's Avatar

Join Date: May 2009
Location: Far West
Posts: 4,793
Car: 1986 Camaro Z28 IROC-Z
Engine: 350 Tuned Port Injection, for now.
Transmission: 700R4
Axle/Gears: Posi - 3.23
Re: Vacuum Lines Diagrams!!! I GOT THEM ALL!!!!!

Originally Posted by Almac3 View Post
I have a 1992 camaro Rs with a 305 engine nand a 4 speed trans. a vacuun line on the nrear of the carb has disconnected and I' not sure where to reconnect it and to what.
Go to page 1 and look for your diagram. Itll probably be marked as a 305 or 350.
Chevy86 IROC-Z is offline
Old 07-07-2013, 04:46 PM
  #129
Supreme Member
Thread Starter
iTrader: (17)

Chevy86 IROC-Z's Avatar

Join Date: May 2009
Location: Far West
Posts: 4,793
Car: 1986 Camaro Z28 IROC-Z
Engine: 350 Tuned Port Injection, for now.
Transmission: 700R4
Axle/Gears: Posi - 3.23
Re: Vacuum Lines Diagrams!!! I GOT THEM ALL!!!!!

Originally Posted by Almac3 View Post
I have a 1992 camaro Rs with a 305 engine nand a 4 speed trans. a vacuun line on the nrear of the carb has disconnected and I' not sure where to reconnect it and to what.
Carb or TBI?
Chevy86 IROC-Z is offline
Old 07-07-2013, 05:24 PM
  #130
Junior Member

Join Date: Jun 2013
Location: AZ
Posts: 5
Car: 88 Camaro POJ
Engine: 350
Re: Vacuum Lines Diagrams!!! I GOT THEM ALL!!!!!

Pcv on the valve cover
magwired is offline
Old 08-02-2013, 06:17 PM
  #131
Ndb
Junior Member

Join Date: May 2012
Posts: 27
Re: Vacuum Lines Diagrams!!! I GOT THEM ALL!!!!!

On a 1992 5.7 tpi there is a vaccum diffuser that is suppose to connect to throttle body and then connects to two different places , do you know where the other two ends connect?
Ndb is offline
Old 08-03-2013, 12:42 PM
  #132
Supreme Member
Thread Starter
iTrader: (17)

Chevy86 IROC-Z's Avatar

Join Date: May 2009
Location: Far West
Posts: 4,793
Car: 1986 Camaro Z28 IROC-Z
Engine: 350 Tuned Port Injection, for now.
Transmission: 700R4
Axle/Gears: Posi - 3.23
Re: Vacuum Lines Diagrams!!! I GOT THEM ALL!!!!!

Originally Posted by Ndb View Post
On a 1992 5.7 tpi there is a vaccum diffuser that is suppose to connect to throttle body and then connects to two different places , do you know where the other two ends connect?
Diffuser? Do you have a picture?
Chevy86 IROC-Z is offline
Old 08-03-2013, 01:24 PM
  #133
Ndb
Junior Member

Join Date: May 2012
Posts: 27
Re: Vacuum Lines Diagrams!!! I GOT THEM ALL!!!!!

It was with the pieces when I got car and didn't know where it went,
A repair manual shows it but not what all it connects to
The side tees into throttle body then the little end heads to toward back of engine and bigger connection goes toward front but I do not know what they actually connect to . The manual show pic to disconnect it when removing throttle body, the vacuum diagrams don't even mention it
Attached Thumbnails Vacuum Lines Diagrams!!! I GOT THEM ALL!!!!!-image.jpg
Ndb is offline
Old 08-03-2013, 03:22 PM
  #134
Supreme Member
Thread Starter
iTrader: (17)

Chevy86 IROC-Z's Avatar

Join Date: May 2009
Location: Far West
Posts: 4,793
Car: 1986 Camaro Z28 IROC-Z
Engine: 350 Tuned Port Injection, for now.
Transmission: 700R4
Axle/Gears: Posi - 3.23
Re: Vacuum Lines Diagrams!!! I GOT THEM ALL!!!!!

I think that's a check valve. The only thing the I have on my 86 IROC is a T, which connects to the EVAP, to the throttlebody, to the EGR solenoid.
Chevy86 IROC-Z is offline
Old 08-03-2013, 03:45 PM
  #135
Ndb
Junior Member

Join Date: May 2012
Posts: 27
Re: Vacuum Lines Diagrams!!! I GOT THEM ALL!!!!!

The book calls it a damping valve ,my car is a 1991 trams am GTA, 5.7 tpi.
Ndb is offline
Old 08-10-2013, 10:40 AM
  #136
Junior Member

petacrazy's Avatar

Join Date: Mar 2013
Location: Saint Cloud fl
Posts: 2
Car: 1992 camaro
Engine: 5.0
Re: Vacuum Lines Diagrams!!! I GOT THEM ALL!!!!!

Originally Posted by Chevy86 IROC-Z View Post
I just collected ALL vacuum lines from 82 - 92 TG F-Bodies!!!! If anyone needs one, drop a line requesting one (along with year, model, engine size, and tranny) and Ill post it up as soon as possible. Models covered with vacuum lines are:

1982-1984 2.5L TBI
1985-1986 2.5L TBI
1982 2.8L CARBURETED
1983 2.8L CARBURETED
1984 2.8L CARBURETED; EXCEPT CANADA
1984 2.8L CARBURETED; CANADA
1985 2.8L FUEL INJECTED
1986-1989 2.8L FUEL INJECTED
1990-1992 3.1L FUEL INJECTED
1982 5.0L CARBURETED
1983 5.0L CARBURETED
1984 5.0L CARBURETED; EXCEPT CANADA
1984 5.0L CARBURETED; CANADA
1985 5.0L CARBURETED; EXCEPT CANADA
1985 5.0L CARBURETED; CANADA
1986 5.0L CARBURETED; EXCEPT CANADA
1986 5.0L CARBURETED; CANADA
1987-1988 5.0L CARBURETED
5.0L CROSS-FIRE FUEL INJECTION
1988-1992 5.0L THROTTLE BODY INJECTION; MANUAL TRANSMISSION
1988-1992 5.0L THROTTLE BODY INJECTION; AUTO TRANS.
1985-1986 5.0L TUNED PORT INJECTION
1987-1989 5.0L AND 5.7L TUNED PORT INJECTION
1990-1992 5.0L AND 5.7L TUNED PORT INJECTION
1992 5.0 automatic get you get a chance. Thanks so much!!!!!
petacrazy is offline
Old 08-10-2013, 10:41 AM
  #137
Junior Member

petacrazy's Avatar

Join Date: Mar 2013
Location: Saint Cloud fl
Posts: 2
Car: 1992 camaro
Engine: 5.0
Re: Vacuum Lines Diagrams!!! I GOT THEM ALL!!!!!

1992 5.0 automatic. When you get a chance thanks!!
petacrazy is offline
Old 08-10-2013, 11:33 AM
  #138
Supreme Member
Thread Starter
iTrader: (17)

Chevy86 IROC-Z's Avatar

Join Date: May 2009
Location: Far West
Posts: 4,793
Car: 1986 Camaro Z28 IROC-Z
Engine: 350 Tuned Port Injection, for now.
Transmission: 700R4
Axle/Gears: Posi - 3.23
Re: Vacuum Lines Diagrams!!! I GOT THEM ALL!!!!!

Originally Posted by petacrazy View Post
1992 5.0 automatic. When you get a chance thanks!!
There are 3 diagrams for a 90. Everything I have is posted in page #1.
Chevy86 IROC-Z is offline
Old 09-07-2013, 09:23 AM
  #139
Junior Member

Join Date: Dec 2012
Posts: 2
Re: Vacuum Lines Diagrams!!! I GOT THEM ALL!!!!!

Do you have a diagram for the vacuum line for the heater control valve in a 1990 IROC Z 5.7 liter?
ejm3932 is offline
Old 09-07-2013, 03:10 PM
  #140
Supreme Member
Thread Starter
iTrader: (17)

Chevy86 IROC-Z's Avatar

Join Date: May 2009
Location: Far West
Posts: 4,793
Car: 1986 Camaro Z28 IROC-Z
Engine: 350 Tuned Port Injection, for now.
Transmission: 700R4
Axle/Gears: Posi - 3.23
Re: Vacuum Lines Diagrams!!! I GOT THEM ALL!!!!!

Originally Posted by ejm3932 View Post
Do you have a diagram for the vacuum line for the heater control valve in a 1990 IROC Z 5.7 liter?
I probably do. I have to look through my GM Service Manual and of through the digital service manual.
Chevy86 IROC-Z is offline
Old 09-07-2013, 03:37 PM
  #141
Sponsor
iTrader: (81)

Tuned Performance's Avatar

Join Date: Dec 2004
Location: Mile High Country !!!
Posts: 11,653
Car: 1967 Camaro, 91 z28
Engine: Lb9
Transmission: M20
Axle/Gears: J65 pbr on stock posi 10bolt
Re: Vacuum Lines Diagrams!!! I GOT THEM ALL!!!!!

Originally Posted by ejm3932 View Post
Do you have a diagram for the vacuum line for the heater control valve in a 1990 IROC Z 5.7 liter?
The back manifold vacuum port on the passengers side plenum is the hvac vacuum. Vacuum goes to your mode selector in the dash and in heat mode vacuum goes to the heater control valve allowing the valve to open and coolant to flow through the heater core.
Tuned Performance is offline
Old 09-07-2013, 06:56 PM
  #142
Member
iTrader: (2)

Join Date: Oct 2010
Location: Des Moines, Iowa
Posts: 169
Car: 1991 Camaro RS yellow
Engine: was '91 V6, now '89 5.7/355 TPI
Transmission: 4 speed automatic
Axle/Gears: Moser 3.73 with zexel posi
Re: Vacuum Lines Diagrams!!! I GOT THEM ALL!!!!!

Thanks. Very useful for my rebuild.
James Sutton is offline
Old 09-07-2013, 07:13 PM
  #143
Supreme Member
Thread Starter
iTrader: (17)

Chevy86 IROC-Z's Avatar

Join Date: May 2009
Location: Far West
Posts: 4,793
Car: 1986 Camaro Z28 IROC-Z
Engine: 350 Tuned Port Injection, for now.
Transmission: 700R4
Axle/Gears: Posi - 3.23
Re: Vacuum Lines Diagrams!!! I GOT THEM ALL!!!!!

Originally Posted by Tuned Performance View Post
The back manifold vacuum port on the passengers side plenum is the hvac vacuum. Vacuum goes to your mode selector in the dash and in heat mode vacuum goes to the heater control valve allowing the valve to open and coolant to flow through the heater core.
Chevy86 IROC-Z is offline
Old 11-12-2013, 09:04 AM
  #144
Junior Member

Join Date: Oct 2013
Location: Jacksonville, Florida
Posts: 49
Car: 1988 Formula 5.7
Engine: 350
Transmission: 700R4
Re: Vacuum Lines Diagrams!!! I GOT THEM ALL!!!!!

Nice find, still helping us in 2013.
Thanks for posting that
BlackJet is offline
Old 02-12-2014, 12:28 PM
  #145
Junior Member

Join Date: Feb 2014
Posts: 1
Re: Vacuum Lines Diagrams!!! I GOT THEM ALL!!!!!

I need a diagram for a 1988 5.7 TPI. The set up was totally disassembled when I bought it.
Thanks
M Harris is offline
Old 02-12-2014, 12:30 PM
  #146
Sponsor
iTrader: (81)

Tuned Performance's Avatar

Join Date: Dec 2004
Location: Mile High Country !!!
Posts: 11,653
Car: 1967 Camaro, 91 z28
Engine: Lb9
Transmission: M20
Axle/Gears: J65 pbr on stock posi 10bolt
Re: Vacuum Lines Diagrams!!! I GOT THEM ALL!!!!!

Look on the previous pages, its there !
Tuned Performance is offline
Old 02-12-2014, 01:27 PM
  #147
Junior Member

Join Date: Apr 2010
Posts: 7
Re: Vacuum Lines Diagrams!!! I GOT THEM ALL!!!!!

I am interested. I also would like a wiring diagram (I reviewed my manual, but not complete or accurate). Mine is a 1985 Firebird Trans Am, 5.0 TPI auto trans.

Just editing my post, saw that you posted them all here. Thanks!

Thanks,

Ron

Last edited by rayount; 02-12-2014 at 01:32 PM.
rayount is offline
Old 02-12-2014, 02:02 PM
  #148
Sponsor
iTrader: (81)

Tuned Performance's Avatar

Join Date: Dec 2004
Location: Mile High Country !!!
Posts: 11,653
Car: 1967 Camaro, 91 z28
Engine: Lb9
Transmission: M20
Axle/Gears: J65 pbr on stock posi 10bolt
Re: Vacuum Lines Diagrams!!! I GOT THEM ALL!!!!!

Originally Posted by rayount View Post
I am interested. I also would like a wiring diagram (I reviewed my manual, but not complete or accurate). Mine is a 1985 Firebird Trans Am, 5.0 TPI auto trans.

Just editing my post, saw that you posted them all here. Thanks!

Thanks,

Ron
http://www.austinthirdgen.org/?pid=19
The 1226870 schematic can be found on chevythunder.com
Tuned Performance is offline
Old 02-12-2014, 02:28 PM
  #149
Junior Member

Join Date: Apr 2010
Posts: 7
Re: Vacuum Lines Diagrams!!! I GOT THEM ALL!!!!!

Dude - you rock! Thanks
rayount is offline
Old 02-12-2014, 10:56 PM
  #150
Supreme Member
Thread Starter
iTrader: (17)

Chevy86 IROC-Z's Avatar

Join Date: May 2009
Location: Far West
Posts: 4,793
Car: 1986 Camaro Z28 IROC-Z
Engine: 350 Tuned Port Injection, for now.
Transmission: 700R4
Axle/Gears: Posi - 3.23
Re: Vacuum Lines Diagrams!!! I GOT THEM ALL!!!!!

Thanks Tuned Performance for updating. You the man!!!!
Chevy86 IROC-Z is offline

Thread Tools
Search this Thread
Quick Reply: Vacuum Lines Diagrams!!! I GOT THEM ALL!!!!!


Advertising
Featured Sponsors
Vendor Directory

Contact Us - Advertising - Cookie Policy - Privacy Statement - Terms of Service

© 2019 MH Sub I, LLC dba Internet Brands

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.

  • Ask a Question
    Get answers from community experts
Question Title:
Description:
Your question will be posted in:
