Tech / General Engine Is your car making a strange sound or won't start? Thinking of adding power with a new combination? Need other technical information or engine specific advice? Don't see another board for your problem? Post it here!

Found under valve cover

Old 02-02-2019, 05:45 AM
  #1
Member
Thread Starter
iTrader: (1)

Join Date: Sep 2008
Location: Accord NY
Posts: 131
Car: 90 IROC 27K owned since new
Engine: 5.7
Transmission: 700R4
Axle/Gears: 3.73
Found under valve cover

1990 5.7 TPI
Heads were swapped with ZZ3 heads 25 years ago.They were modified by Ray Bohacz and installed by him when he had the shop in NJ.

Found these when I pulled the valve covers during intake removal to change gaskets.these were on the pass. side but nothing on the driver side.



Look like valve seal parts to me.

Still haven't pulled the intake base to see if there are any more pieces in the lifter valley.

Last edited by BigBlock73; 02-02-2019 at 06:17 AM.
BigBlock73 is offline
Old 02-02-2019, 07:39 AM
  #2
Moderator

Vader's Avatar

Join Date: Jan 2000
Posts: 18,519
Re: Found under valve cover

I'd agree. They look like the clamp bands from valve seals. Fortunately, they are probably too big to make it through the oil pickup screen - Probably.
Vader is offline
Old 02-02-2019, 09:10 AM
  #3
Supreme Member
iTrader: (1)

Join Date: Sep 2005
Posts: 21,170
Car: Yes
Engine: Usually
Transmission: Sometimes
Axle/Gears: Behind me somewhere
Re: Found under valve cover

Agreed.

I'd suggest popping the springs off and finding the source. Maybe refreshing the seals & springs while you're there. And of course, verifying that the retainers aren't smashing into the seals and destroying them, due to too much lift for the height of the guides. Then if that's an issue, maybe put some LSx springs on there such as PAC1218 with Comp 787 retainers. Although those heads look like they're already cut out for 1.45" springs, in which case you'd need locators as well, and maybe offset keepers.
sofakingdom is offline
Old 02-03-2019, 05:44 AM
  #4
Member
Thread Starter
iTrader: (1)

Join Date: Sep 2008
Location: Accord NY
Posts: 131
Car: 90 IROC 27K owned since new
Engine: 5.7
Transmission: 700R4
Axle/Gears: 3.73
Re: Found under valve cover


Had some time and finished pulling the intake.
Defiantly was leaking on the passenger side front coolant passage.
Also found that the gasket was distorted between the ports.

This project has really bloomed into a big job.

Going to replace the valve stem seals.
I haven't done this before.
Need to purchase new seals and a valve spring removal tool.
Suggestions?

BigBlock73 is offline
Old 02-03-2019, 06:10 AM
  #5
Moderator

Vader's Avatar

Join Date: Jan 2000
Posts: 18,519
Re: Found under valve cover

The stud-mounted cam/lever spring compressors seem to work well if you're not planning to pull heads - Provided you have clearance for the tool. Braided nylon rope stuffed through the spark plug hole is a reasonably safe way to retain valves without fear of losing air pressure in a compressor type retention scheme.
Vader is offline
Old 02-03-2019, 11:00 AM
  #6
Supreme Member
iTrader: (8)

DynoDave43's Avatar

Join Date: Aug 2013
Location: MICHIGAN
Posts: 3,217
Car: 1988 Trans Am
Engine: L03
Transmission: 700R4
Axle/Gears: 10 Bolt 2.73 Open
Re: Found under valve cover

Originally Posted by BigBlock73 View Post

Had some time and finished pulling the intake.
Defiantly was leaking on the passenger side front coolant passage.
Also found that the gasket was distorted between the ports.

This project has really bloomed into a big job.

Going to replace the valve stem seals.
I haven't done this before.
Need to purchase new seals and a valve spring removal tool.
Suggestions?
Yikes!

I'm going to be following this, to learn a little bit more about SBC diagnostics.

Anxious to see what you find as a cause of the stem seal failures.

Any idea about the intake gasket failures between the ports (happened at install?) and coolant passage?
DynoDave43 is offline
Old 02-03-2019, 12:13 PM
  #7
Supreme Member
iTrader: (1)

Join Date: Sep 2005
Posts: 21,170
Car: Yes
Engine: Usually
Transmission: Sometimes
Axle/Gears: Behind me somewhere
Re: Found under valve cover

The gasket failure looks installation-related to me. Maybe not "installer" related, that is to say it wasn't necessarily that somebody screwed up, but definitely related to the installation.

Looks like the top surface of the intake pulled the top of the gasket downwards as the bolts were tightened, which caused the part over the septum between the ports to bulge out. THe most common failure of that sort that I've seen is when that happens across the bottom, and the ports are then exposed to the crankcase.

That (FelPro 120x) is prone to that sort of thing and therefore not my personal favorite type of gasket to use. For a stock-ish sort of application like the photo, I prefer the MS90314. They're just all-around more robust.
sofakingdom is offline
Old 02-03-2019, 01:15 PM
  #8
Member
Thread Starter
iTrader: (1)

Join Date: Sep 2008
Location: Accord NY
Posts: 131
Car: 90 IROC 27K owned since new
Engine: 5.7
Transmission: 700R4
Axle/Gears: 3.73
Re: Found under valve cover

Thinking about getting the first pic.
Any known issue with getting to all the springs on the pass.side with AC.?

Whats a good valve stem seal to ?



BigBlock73 is offline
Old 02-03-2019, 01:53 PM
  #9
Supreme Member
iTrader: (142)

John in RI's Avatar

Join Date: Aug 1999
Location: RI
Posts: 4,015
Car: 1984 Camaro Berlinetta
Engine: LT1
Transmission: T56 6-speed
Axle/Gears: 4.11 LS1 Rear End
Re: Found under valve cover

Looks like the gasket failed because it never sealed - but why ? Was the gasket to thin in that spot ( Bad Quality out of the box )? Maybe a low spot in the head,... or low spot on the intake ?? I'd be sure to check the Head and Intake before re-mounting the intake again.

The smaller spring removal tool is the one I always use,..... Made by Craftsman, Buy it once.

Craftsman Overhead Valve Spring Compressor, NOS, made in USA - Part # 47704
https://www.ebay.com/itm/Craftsman-O...DEXI:rk:4:pf:0





John in RI is offline
Old 02-03-2019, 02:10 PM
  #10
Supreme Member
iTrader: (1)

Join Date: Sep 2005
Posts: 21,170
Car: Yes
Engine: Usually
Transmission: Sometimes
Axle/Gears: Behind me somewhere
Re: Found under valve cover

The simple claw-&-screw type spring compressor won't work on double springs, if that's what you've got. I have one of those also but haven't used it in years.

Worse yet, it tends to scratch the springs, which can lead to failure.

I'd suggest getting the first one.

AC is no big deal. If it's in the way, take it off. But I doubt it will be. A bigger problem will be, interference with the handle, esp near the rear of the motor; not enough room to move it in all the directions it needs to go.
sofakingdom is offline
Old 02-03-2019, 03:13 PM
  #11
Member
Thread Starter
iTrader: (1)

Join Date: Sep 2008
Location: Accord NY
Posts: 131
Car: 90 IROC 27K owned since new
Engine: 5.7
Transmission: 700R4
Axle/Gears: 3.73
Re: Found under valve cover

BigBlock73 is offline
Old 02-03-2019, 04:46 PM
  #12
Supreme Member
iTrader: (1)

Join Date: Sep 2005
Posts: 21,170
Car: Yes
Engine: Usually
Transmission: Sometimes
Axle/Gears: Behind me somewhere
Re: Found under valve cover

They're fine, assuming that's the size of your guides. Personally I prefer the 503 or 510 (Teflon) but those are OK too. Price is about the same. Measure before buy.
sofakingdom is offline
Old 02-03-2019, 05:05 PM
  #13
Member
Thread Starter
iTrader: (1)

Join Date: Sep 2008
Location: Accord NY
Posts: 131
Car: 90 IROC 27K owned since new
Engine: 5.7
Transmission: 700R4
Axle/Gears: 3.73
Re: Found under valve cover

Heads were brand new that are ported and springs changed.Valves are the ones that came with them.
Guides should be the original ZZ3 ones.
Time is hard to come by for me,I would buy multiple sizes to not have to wait to measure.

Last edited by BigBlock73; 02-03-2019 at 05:43 PM.
BigBlock73 is offline
Old 02-03-2019, 05:52 PM
  #14
Supreme Member
iTrader: (1)

Join Date: Sep 2005
Posts: 21,170
Car: Yes
Engine: Usually
Transmission: Sometimes
Axle/Gears: Behind me somewhere
Re: Found under valve cover

Stock GM heads won't have .530", or .500", guides.

That might even be the problem you have there... if those are "triple" springs (double w/ damper) then the inner might have rubbed against the clippy part of the seal, if they're the stock .575" or whatever it is.

Measure before buy.

You can take one apart easily enough with almost no tools at all. Bring a piston to TDC; stuff the cyl as full as you can with about 3/8" nylon rope; whap the retainer with about a 5/8" socket and a nice BFH; and watch carefully where the keepers sproing off to. They can launch quite a ways. Once you get some springs off, measure. Chances are, you'll want to replace the keepers anyway, but it never hurts to keep all your parts accounted for during tear-down.
sofakingdom is offline
Old 02-04-2019, 12:38 AM
  #15
Supreme Member
iTrader: (142)

John in RI's Avatar

Join Date: Aug 1999
Location: RI
Posts: 4,015
Car: 1984 Camaro Berlinetta
Engine: LT1
Transmission: T56 6-speed
Axle/Gears: 4.11 LS1 Rear End
Re: Found under valve cover

Best thing I've ever found to stuff the cylinder with is an old spark plug wire.......



John in RI is offline
Old 02-04-2019, 06:34 AM
  #16
Moderator

Vader's Avatar

Join Date: Jan 2000
Posts: 18,519
Re: Found under valve cover

Originally Posted by sofakingdom View Post
The simple claw-&-screw type spring compressor won't work on double springs, if that's what you've got. I have one of those also but haven't used it in years.
Worse yet, it tends to scratch the springs, which can lead to failure.
That discussion jest recently happened: https://www.thirdgen.org/forums/tech...al-theory.html

It seems that opinions vary, but I would avoid that type for my own use.
Vader is offline
Old 02-04-2019, 06:36 AM
  #17
Moderator

Vader's Avatar

Join Date: Jan 2000
Posts: 18,519
Re: Found under valve cover

Originally Posted by John in RI View Post
Best thing I've ever found to stuff the cylinder with is an old spark plug wire.......

There's an interesting thought. I may have to try that in the future, and possibly save a couple old wires for the purpose.
Vader is offline
Old 02-04-2019, 07:33 PM
  #18
Member
Thread Starter
iTrader: (1)

Join Date: Sep 2008
Location: Accord NY
Posts: 131
Car: 90 IROC 27K owned since new
Engine: 5.7
Transmission: 700R4
Axle/Gears: 3.73
Re: Found under valve cover

Ordered the proform compressor.
Might be a couple of weeks before I get time to pull one of the springs off.

What should I be looking for and measuring?
I'll be sure to take a bunch of pictures.
BigBlock73 is offline
Old 02-08-2019, 10:24 AM
  #19
Member
Thread Starter
iTrader: (1)

Join Date: Sep 2008
Location: Accord NY
Posts: 131
Car: 90 IROC 27K owned since new
Engine: 5.7
Transmission: 700R4
Axle/Gears: 3.73
Re: Found under valve cover

[img]blob:https://www.thirdgen.org/bce9936e-1b26-4178-99d7-4be88f0c3fb8[/img]
BigBlock73 is offline
Old 02-08-2019, 10:30 AM
  #20
Member
Thread Starter
iTrader: (1)

Join Date: Sep 2008
Location: Accord NY
Posts: 131
Car: 90 IROC 27K owned since new
Engine: 5.7
Transmission: 700R4
Axle/Gears: 3.73
Re: Found under valve cover


Found some time and pulled a couple of springs.
Looks like they squeezed them with pliers and cracked the retaining spring.

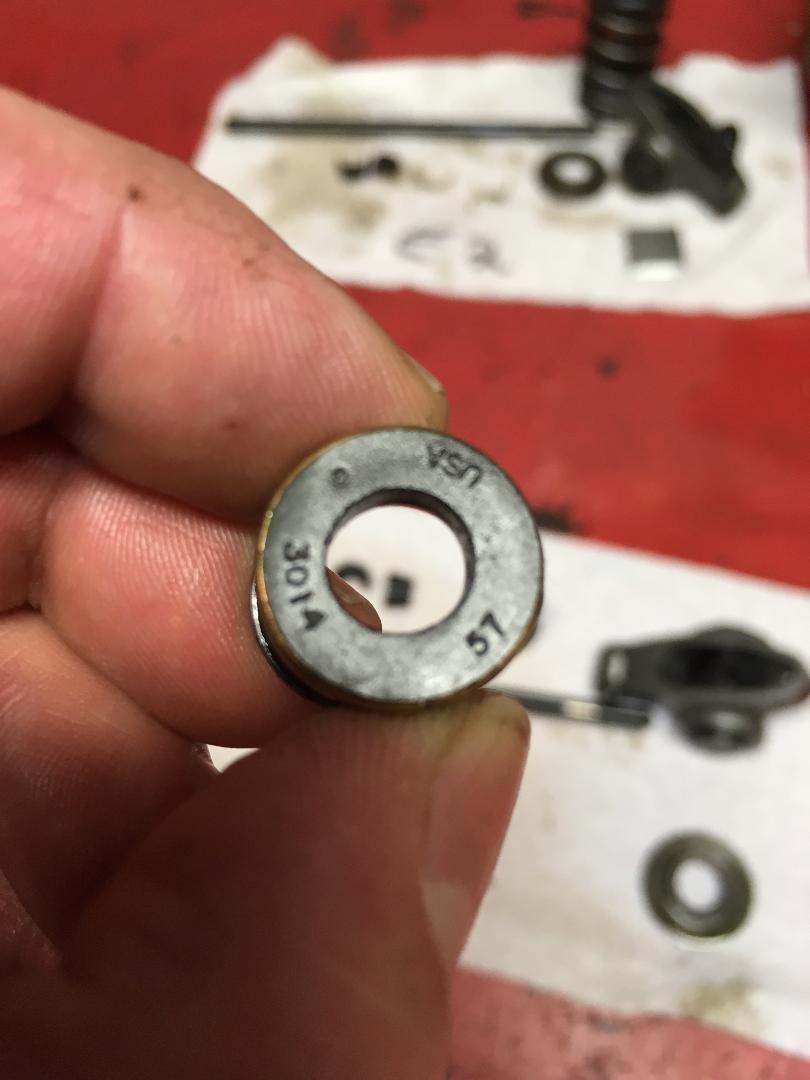

Not finding anything when I google the numbers on the seal..
Plenty of room between seal and spring.

BigBlock73 is offline
Old 02-08-2019, 04:07 PM
  #21
Member
Thread Starter
iTrader: (1)

Join Date: Sep 2008
Location: Accord NY
Posts: 131
Car: 90 IROC 27K owned since new
Engine: 5.7
Transmission: 700R4
Axle/Gears: 3.73
Re: Found under valve cover

Valve-.344
Guide- .550
BigBlock73 is offline
Old 02-08-2019, 04:49 PM
  #22
Supreme Member
iTrader: (1)

Join Date: Sep 2005
Posts: 21,170
Car: Yes
Engine: Usually
Transmission: Sometimes
Axle/Gears: Behind me somewhere
Re: Found under valve cover

Not sure what seals those are, at .550". Obviously if the guides are.550", a .530" seal won't work.

Might be time to look at a guide cutter tool. Comp 4732 arbor and 4726 or 4715 cutter for .530" or .500" guide respectively.
sofakingdom is offline
Old 02-09-2019, 04:51 PM
  #23
Member
Thread Starter
iTrader: (1)

Join Date: Sep 2008
Location: Accord NY
Posts: 131
Car: 90 IROC 27K owned since new
Engine: 5.7
Transmission: 700R4
Axle/Gears: 3.73
Re: Found under valve cover

Someone recommended these.


11/32" X .520"-.565", Valve Seals Viton Flex Body Type Universal


BigBlock73 is offline
Old 02-10-2019, 09:36 AM
  #24
Supreme Member
iTrader: (1)

Join Date: Sep 2005
Posts: 21,170
Car: Yes
Engine: Usually
Transmission: Sometimes
Axle/Gears: Behind me somewhere
Re: Found under valve cover

Those are likely the same as what you have now.

Personally I have a deep distrust for anything that comes from Alex's. I have a hard time feeling warm or fuzzy about somebody whose claim to fame is popularizing a hack job. Yes I know, plenty of people have used his stuff and got good results; somehow that doesn't inspire trust in me though. But hey, if they fit, and you can put em on without damaging em, and you feel comfortable with em, it's your choice.

Frankly, I'd still recommend pulling the heads, popping the valves out, and using the cutter listed above, so you can put on the better parts. Might not be a bad idea to check out what springs are on there as well; if they're K-Motion or the like, or show signs of any wear or deterioration, might want to replace those at the same time. There are few things that can cause hard-to-diagnose problems and just general mystery performance issues, than ineffective valve springs.

What is the OD of those springs? What is their installed height? What hardware did the shop use to accomplish it?
sofakingdom is offline
Old 02-10-2019, 02:39 PM
  #25
Supreme Member
iTrader: (2)

Join Date: Jun 2005
Location: Fairfield, CA
Posts: 1,177
Car: 91camaro rs,2014 silverado 5.3L
Engine: 5.7Lcarb,5.3L
Transmission: 700-r4, 6L80
Axle/Gears: strange 3.73's
Re: Found under valve cover

Originally Posted by John in RI View Post
Looks like the gasket failed because it never sealed - but why ? Was the gasket to thin in that spot ( Bad Quality out of the box )? Maybe a low spot in the head,... or low spot on the intake ?? I'd be sure to check the Head and Intake before re-mounting the intake again.

The smaller spring removal tool is the one I always use,..... Made by Craftsman, Buy it once.

Craftsman Overhead Valve Spring Compressor, NOS, made in USA - Part # 47704
https://www.ebay.com/itm/Craftsman-O...DEXI:rk:4:pf:0





you already bought one, but autozone will rent this tool for free. just pay a deposit and get it back when you return the tool.
91 camaro racer is offline
Old 02-11-2019, 03:53 PM
  #26
Member
Thread Starter
iTrader: (1)

Join Date: Sep 2008
Location: Accord NY
Posts: 131
Car: 90 IROC 27K owned since new
Engine: 5.7
Transmission: 700R4
Axle/Gears: 3.73
Re: Found under valve cover

The pro tool compressor is very impressive.
Only took off two springs so far and it works very well.
At the price, I can't imagine the screw type,with the possibility of damaging the springs,being even considered.
BigBlock73 is offline
Old 02-12-2019, 07:25 AM
  #27
Moderator

Vader's Avatar

Join Date: Jan 2000
Posts: 18,519
Re: Found under valve cover

Agreed - Good move. With a little adjustment of position, there aren't many places it can't be used except transverse engines, or in a van.
Vader is offline
Old 03-10-2019, 07:38 AM
  #28
Member
Thread Starter
iTrader: (1)

Join Date: Sep 2008
Location: Accord NY
Posts: 131
Car: 90 IROC 27K owned since new
Engine: 5.7
Transmission: 700R4
Axle/Gears: 3.73
Re: Found under valve cover

Valve stem seal replacement complete.
The Alex's seals worked.
Had called Felpro and spoke to there tech. and ordered the ones he recommended.They were to small.

All of the springs that hadn't broken had a nick were the ones that broke.
Looked at the receipt for the work on the heads and new seals were not listed.Can only assume the installer did something to them that caused the nick.

All broken pieces were found and accounted for.
BigBlock73 is offline
Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
gtoger
TPI
2
04-19-2018 08:40 AM
nakota2k
Tech / General Engine
21
01-24-2015 03:55 PM
michael_0u812
Tech / General Engine
7
07-06-2011 01:46 AM
Squeeks83
Tech / General Engine
4
01-21-2003 06:47 PM
89RSOwner
V6
0
10-25-2002 03:59 PM


Thread Tools
Search this Thread
Quick Reply: Found under valve cover


Advertising
Featured Sponsors
Vendor Directory

Contact Us - Advertising - Cookie Policy - Privacy Statement - Terms of Service

© 2019 MH Sub I, LLC dba Internet Brands

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.

  • Ask a Question
    Get answers from community experts
Question Title:
Description:
Your question will be posted in:
