Exhaust Ports to AIR Pedes connection

Of the two metal inlet pipes on the AIR pedes, one receives the rubber pipe from the converter and the other must receive the rubber pipes from the exhaust ports on each side of the engine; so basically I have to concoct a "T" or "Y" shaped connector so I can connect two separate pipes from the exhaust ports into one pipe on the AIR pedes, correct?

Old

Nov 1, 2019 | 03:15 PM

#2

Senior Member

Joined: Feb 2019

Posts: 786

Likes: 198

From: SW Missouri

Car: 1989 Trans Am

Engine: sp357

Transmission: TKX

Re: Exhaust Ports to AIR Pedes connection

Images courtesy of ShiftyCapone.

https://www.thirdgen.org/forums/atta...006s-text-.jpg

Last edited by WildCard600; Nov 1, 2019 at 03:18 PM.

Old

Nov 2, 2019 | 02:59 AM

#3

Thread Starter

Member

Joined: Mar 2009

Posts: 133

Likes: 2

From: 10K miles away from home (SF, CA)

Car: 1991 CHEVROLET CAMARO Z28

Engine: 6 LITER after rebuilding :)

Transmission: 700 R4

Axle/Gears: 3.23 / 9:7:1

Re: Exhaust Ports to AIR Pedes connection

Thank you very much for the information.

Old

Nov 2, 2019 | 06:35 PM

#4

Senior Member

Joined: Feb 2019

Posts: 786

Likes: 198

From: SW Missouri

Car: 1989 Trans Am

Engine: sp357

Transmission: TKX

Re: Exhaust Ports to AIR Pedes connection

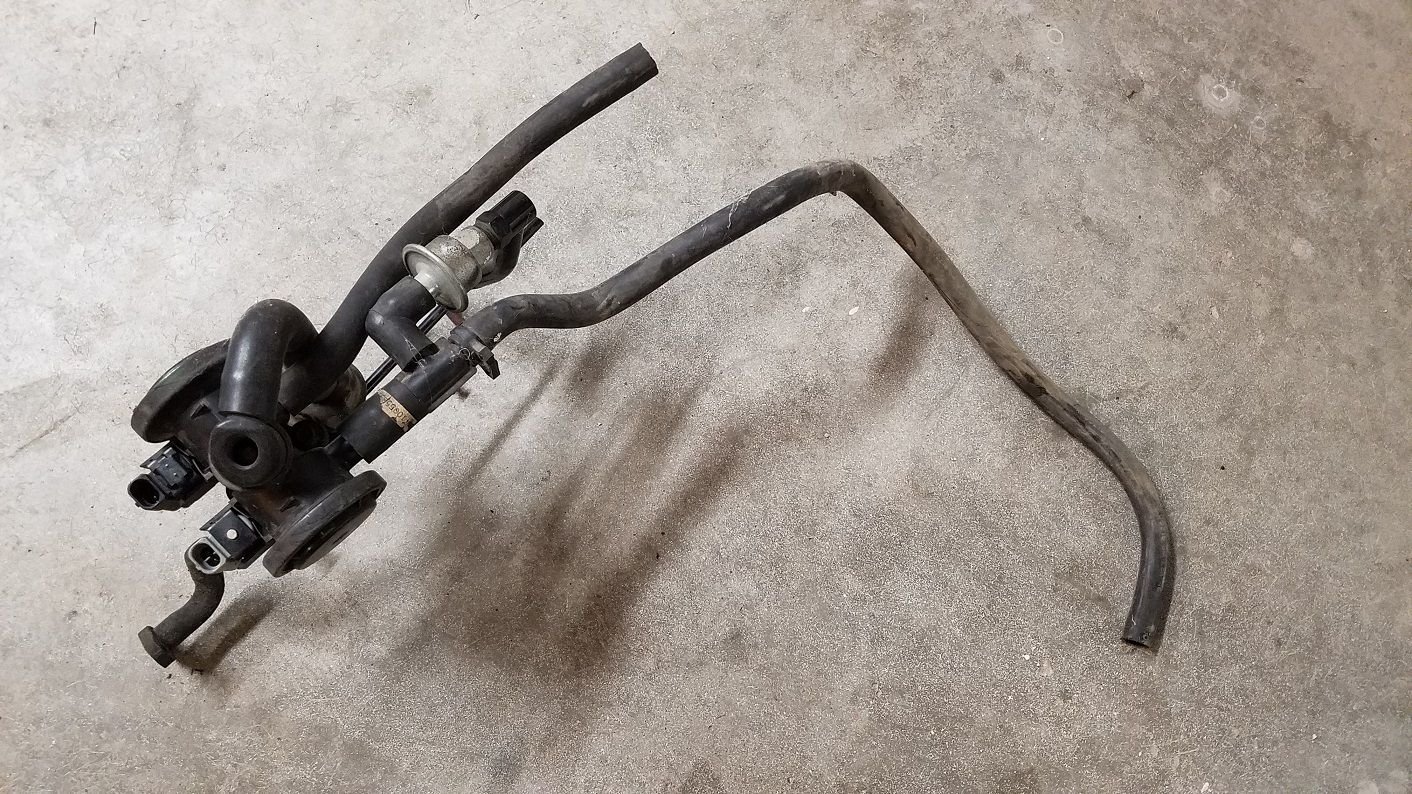

Dug mine out of the scrap pile for a couple of higher res pics. Couldn't find the passenger side AIR pipe but you get the idea. -

Old

Nov 2, 2019 | 08:41 PM

#5

Supreme Member

Joined: Sep 1999

Posts: 3,047

Likes: 826

From: Colorado USA

Car: '83 Firebird (T/A Clone)

Engine: 350 with L-69 components

Transmission: 700R-4, 2000 RPM stall converter

Axle/Gears: 10-bolt/3.73 ..

Re: Exhaust Ports to AIR Pedes connection

What a horrible contraption. I'm so glad cars are no longer produced with those...

Old

Nov 3, 2019 | 03:46 AM

#6

Thread Starter

Member

Joined: Mar 2009

Posts: 133

Likes: 2

From: 10K miles away from home (SF, CA)

Car: 1991 CHEVROLET CAMARO Z28

Engine: 6 LITER after rebuilding :)

Transmission: 700 R4

Axle/Gears: 3.23 / 9:7:1

Re: Exhaust Ports to AIR Pedes connection

Perfect

Thanks.
