Got another rare mpfi manifold. Never seen one like it
Thread Starter
Joined: Jun 2000
Posts: 5,364
Likes: 51
From: Enschede, Netherlands
Car: 82 TA 87 IZ L98 88 IZ LB9 88 IZ L98
Engine: 5.7TBI 5,7TPI 5.0TPI, 5,7TPI
Transmission: T5, 700R4, T5, 700R4
Axle/Gears: 3.08, 3.27, 3.45, 3.27
Got another rare mpfi manifold. Never seen one like it
After owning the following
HSR
Super ram
accel hi flo base, runners
Mcfarland short ram
Street & performance multiport (a nicer looking hsr)
Tpis miniram
slp t ram
cb performance modular short ram

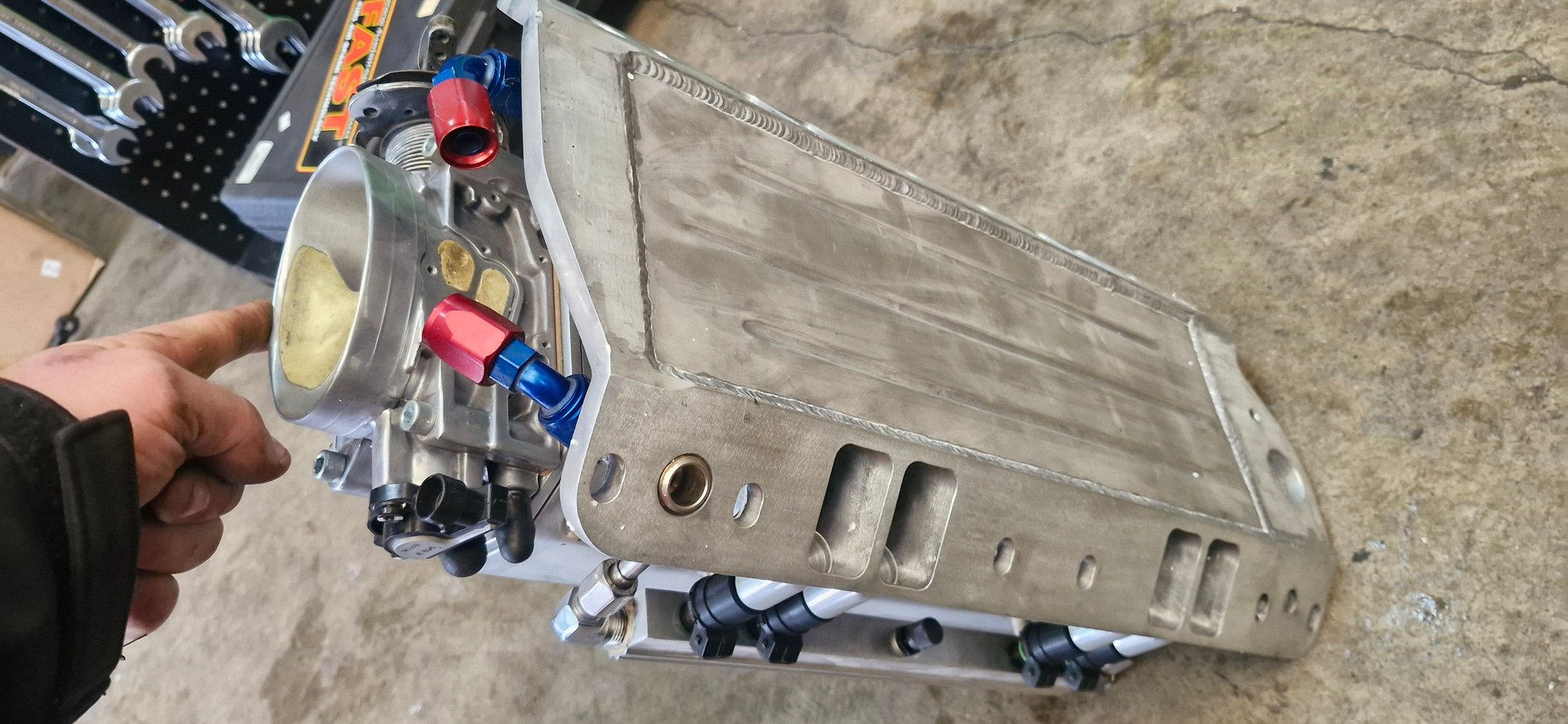

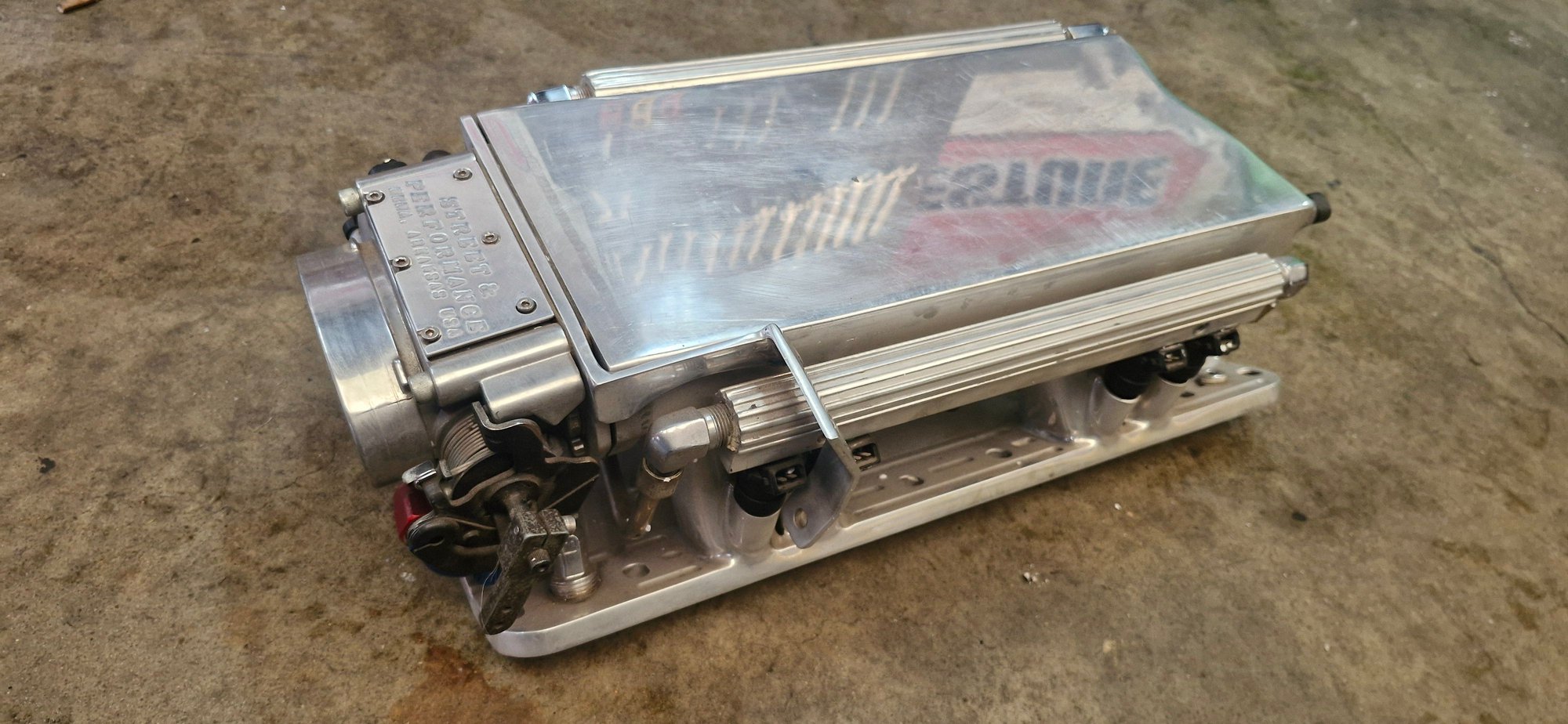

I now found this, a short ram style street & performance intake
HSR
Super ram
accel hi flo base, runners
Mcfarland short ram
Street & performance multiport (a nicer looking hsr)
Tpis miniram
slp t ram
cb performance modular short ram
I now found this, a short ram style street & performance intake
Joined: Dec 2004
Posts: 16,694
Likes: 979
From: Mile High Country !!!
Car: 1967 Camaro, 91 z28
Engine: Lb9
Transmission: M20
Axle/Gears: J65 pbr on stock posi 10bolt
Re: Got another rare mpfi manifold. Never seen one like it

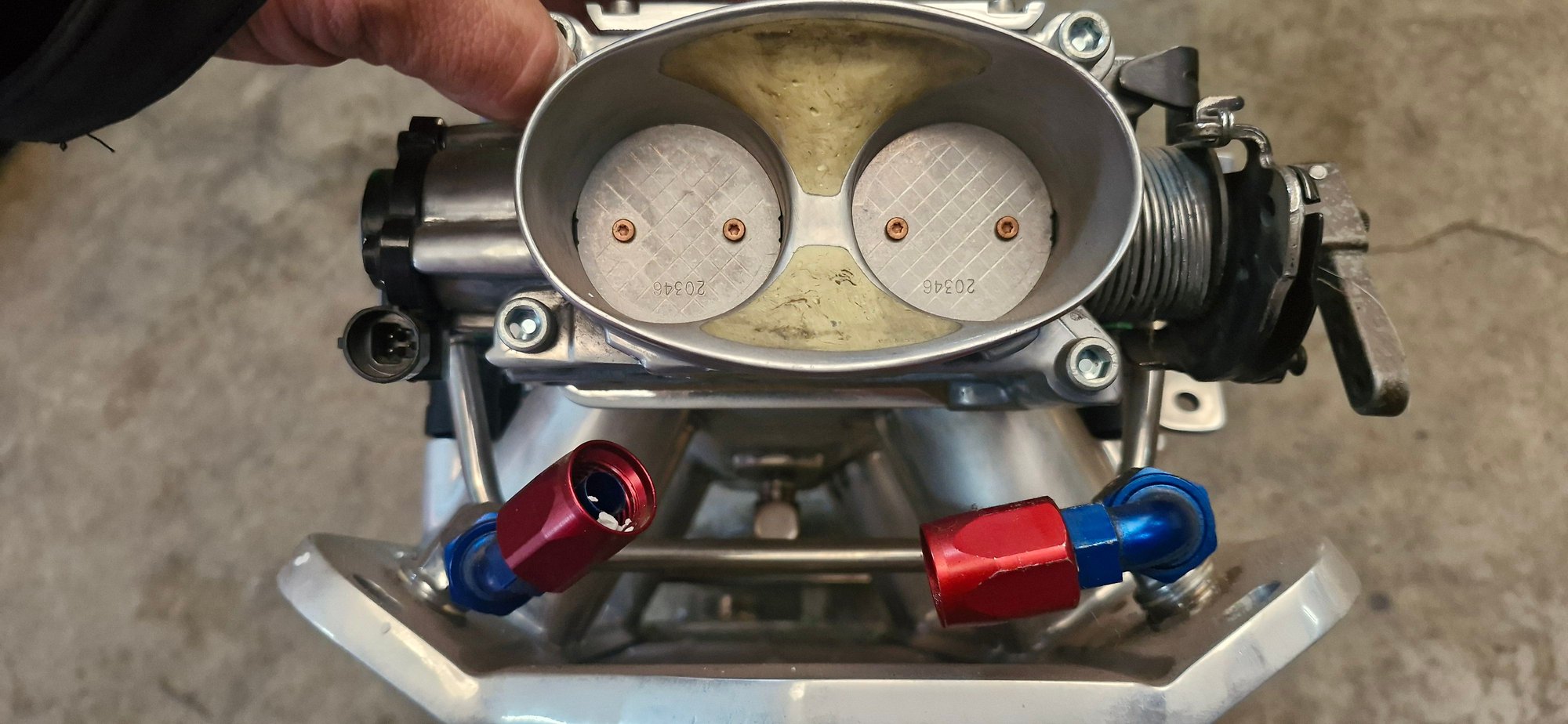

Very cool intake, looks like a lt1 or ramjet 502 throttle body but no iac passage.
Thread Starter
Joined: Jun 2000
Posts: 5,364
Likes: 51
From: Enschede, Netherlands
Car: 82 TA 87 IZ L98 88 IZ LB9 88 IZ L98
Engine: 5.7TBI 5,7TPI 5.0TPI, 5,7TPI
Transmission: T5, 700R4, T5, 700R4
Axle/Gears: 3.08, 3.27, 3.45, 3.27
Re: Got another rare mpfi manifold. Never seen one like it

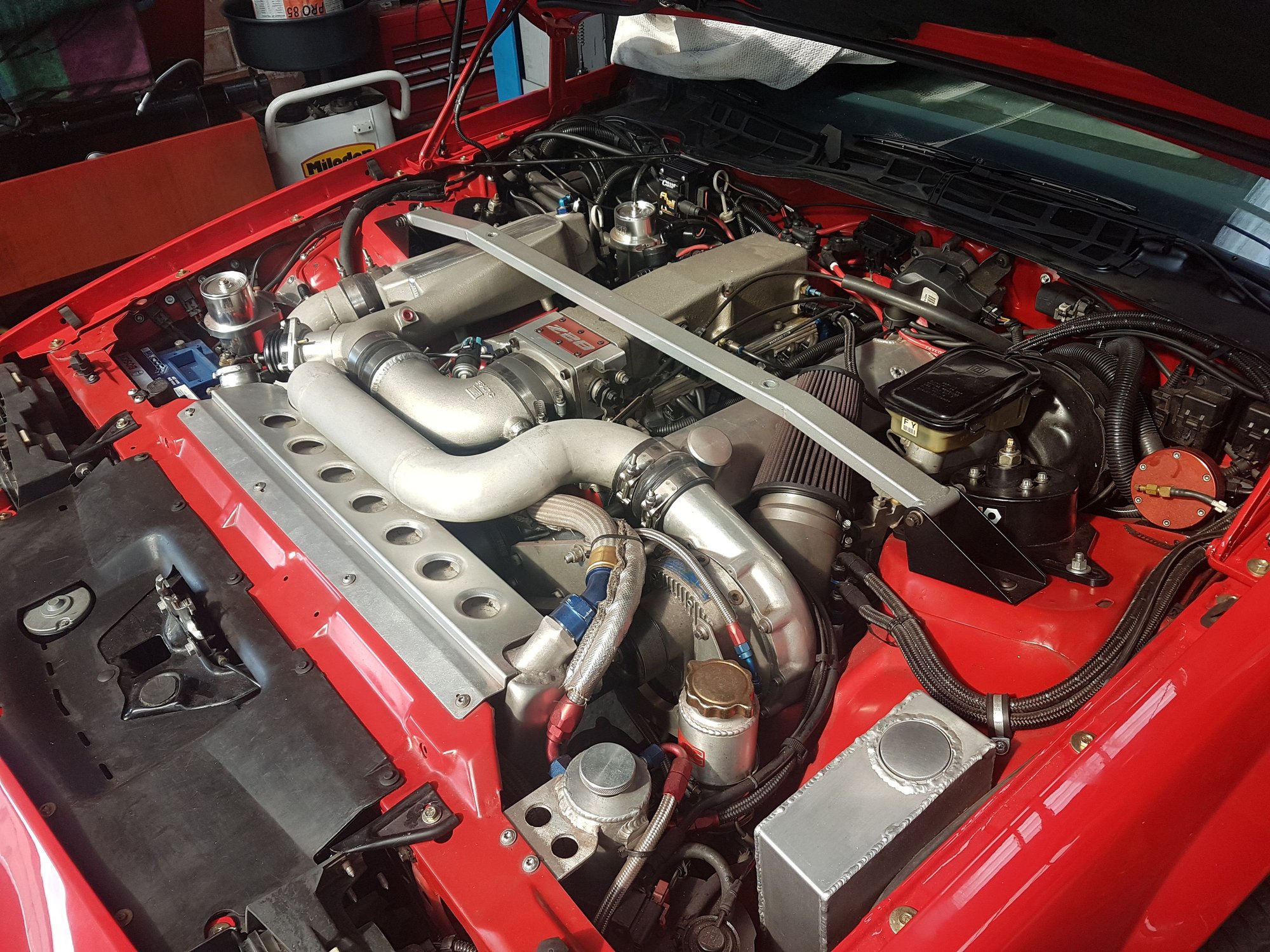

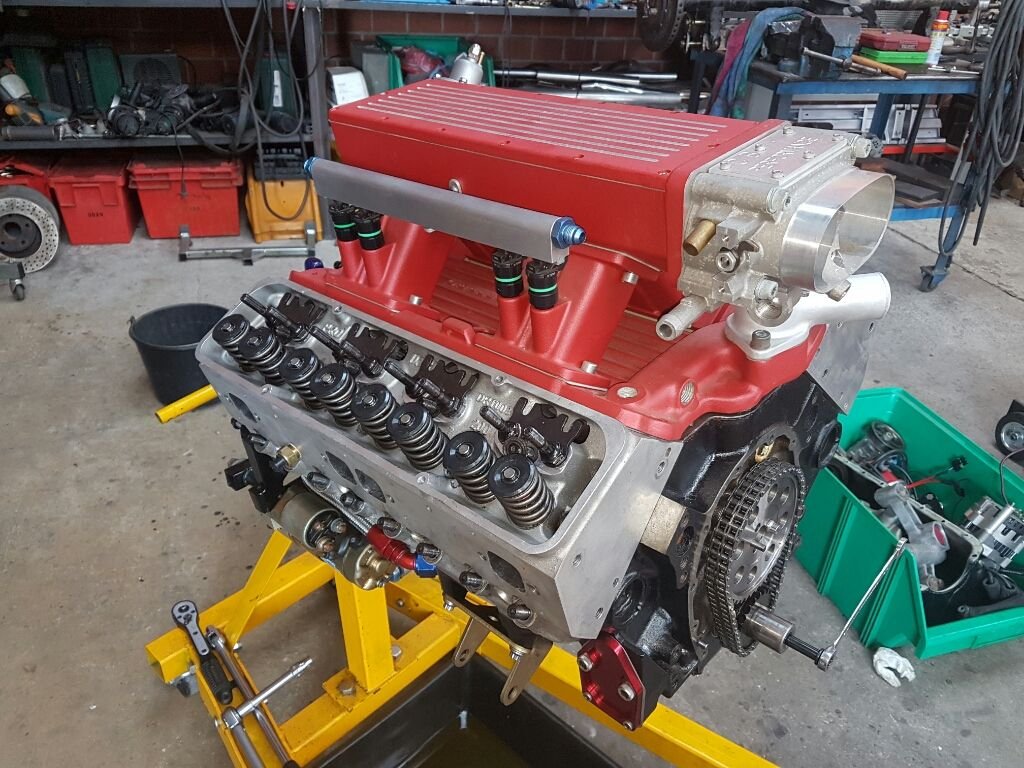

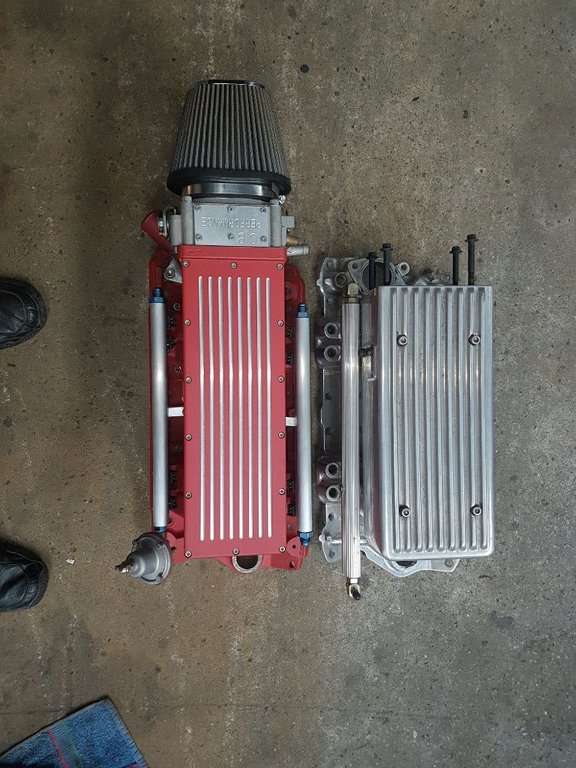

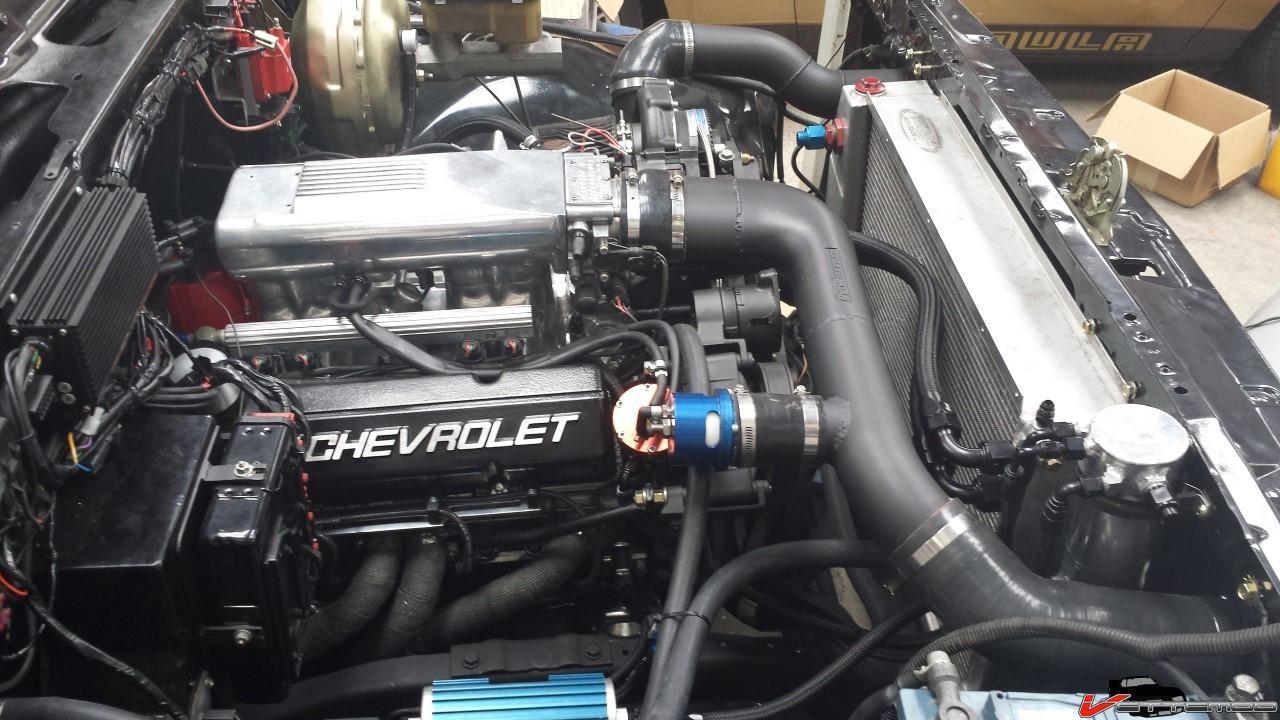

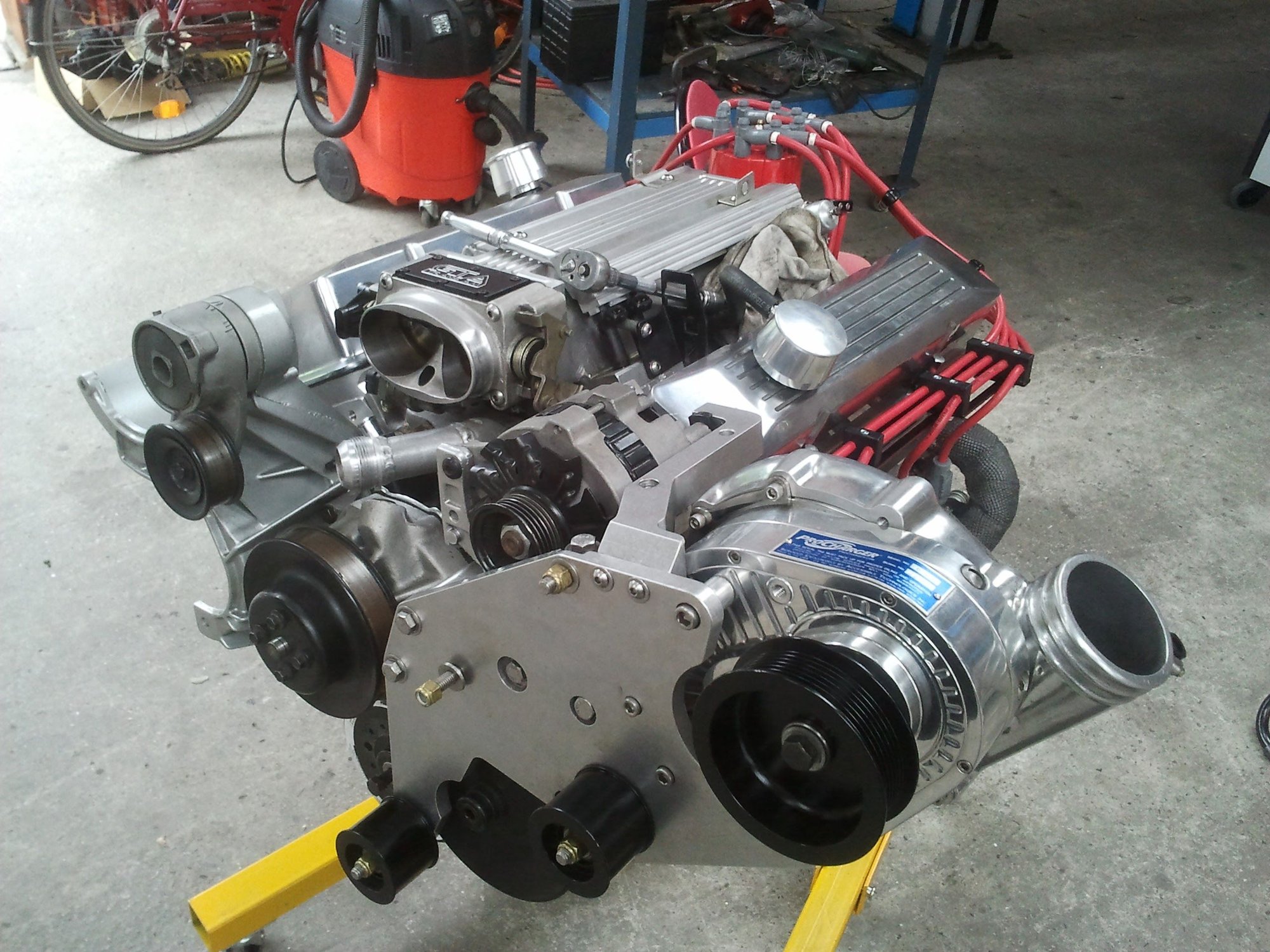

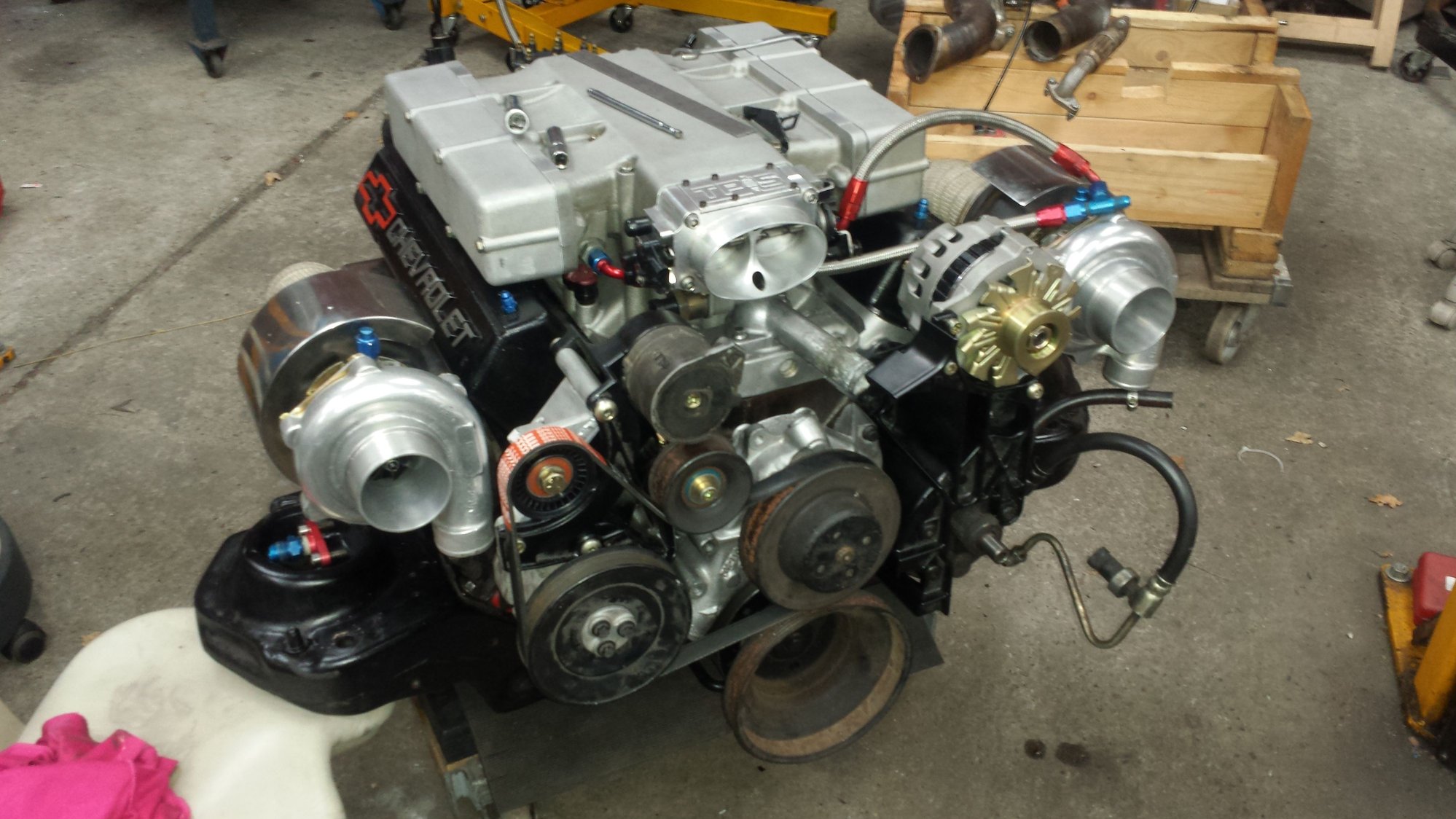

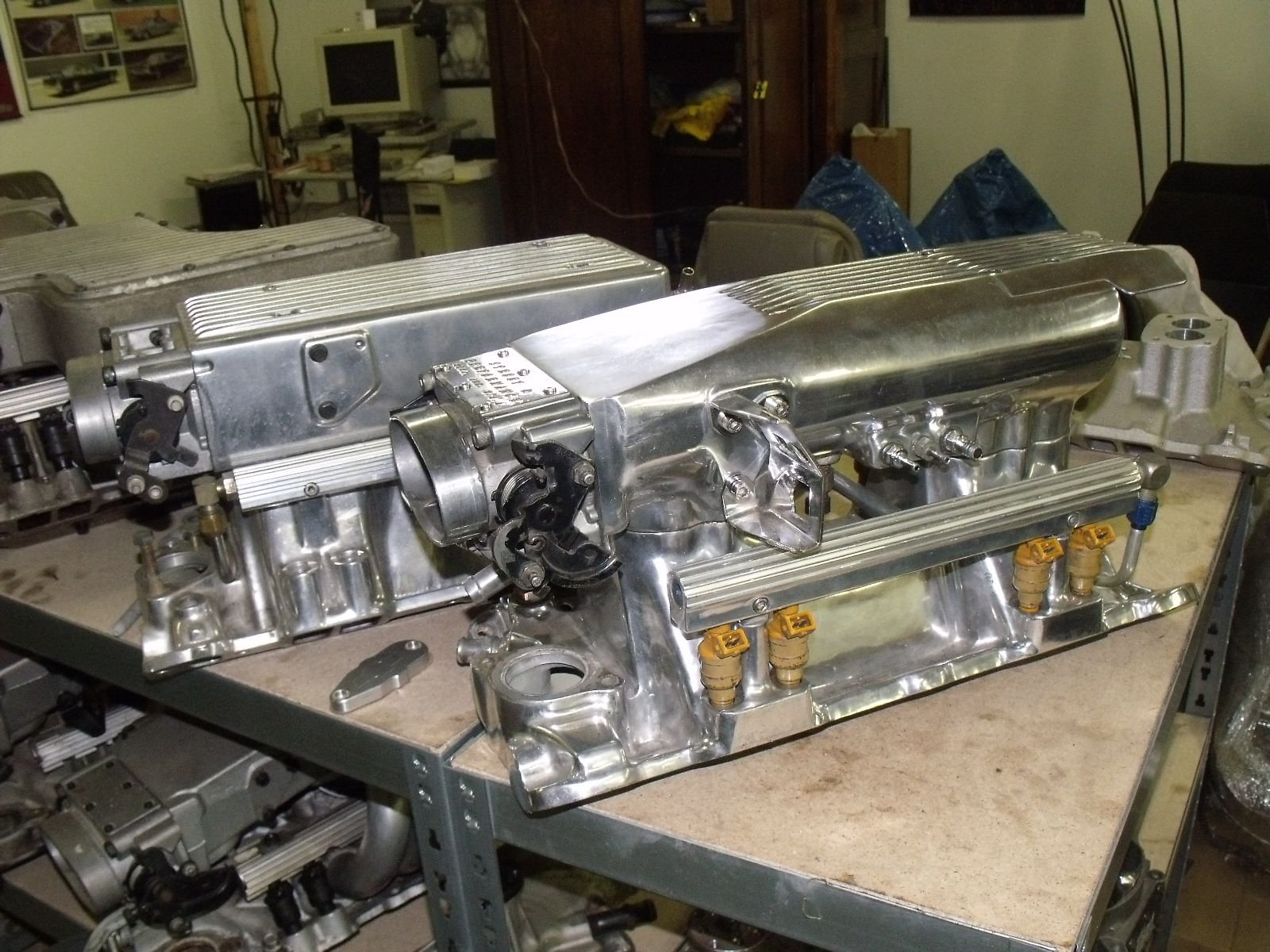

Here's some of the others
Supreme Member
Joined: Oct 2000
Posts: 3,126
Likes: 765
From: Park City, UT
Car: '92 Corvette, '89 1/2-a-'Vette
Engine: LT1, L400
Transmission: ZF6, T5
Axle/Gears: 3.45, 3.31
Re: Got another rare mpfi manifold. Never seen one like it
Cool pix thread!
Love the first post intake...looks fab'd, ground, and polished. Looks sweet.
Love the first post intake...looks fab'd, ground, and polished. Looks sweet.
Joined: Oct 2001
Posts: 12,211
Likes: 1,135
From: Il
Car: 1989-92 FORMULA350 305 92 Hawkclone
Engine: 4++,350 & 305 CIs
Transmission: 700R4 4800 vig 18th700R4 t56 ZF6 T5
Axle/Gears: 3.70 9"ford alum chunk,dana44,9bolt
Re: Got another rare mpfi manifold. Never seen one like it
Love it when you post, some super awesome rarely seen stuff!
Thread Starter
Joined: Jun 2000
Posts: 5,364
Likes: 51
From: Enschede, Netherlands
Car: 82 TA 87 IZ L98 88 IZ LB9 88 IZ L98
Engine: 5.7TBI 5,7TPI 5.0TPI, 5,7TPI
Transmission: T5, 700R4, T5, 700R4
Axle/Gears: 3.08, 3.27, 3.45, 3.27
Trending Topics
Supreme Member
Joined: Oct 2004
Posts: 4,526
Likes: 238
From: Henrietta NY
Car: 1984 Trans Am L69
Engine: Sniper EFI Powered 355
Transmission: WC T5 w/ Steel Support Plate
Axle/Gears: 3.42 10 Bolt Posi
Re: Got another rare mpfi manifold. Never seen one like it
Thats really cool, we need a thread to compare all of them
Joined: Dec 2004
Posts: 259
Likes: 14
From: New Hampshire
Car: '91 Trans Am
Engine: 350 Blueprint Engines Cruiser
Transmission: TKX 5 speed
Axle/Gears: 3:42
Re: Got another rare mpfi manifold. Never seen one like it
excellent thread, thanks for sharing!
Joined: Apr 2010
Posts: 513
Likes: 43
From: New Jersey
Car: 87 Monte Carlo SS
Engine: 89 350TPI Transplant
Transmission: 2004r
Axle/Gears: 3.73
Re: Got another rare mpfi manifold. Never seen one like it
Very cool thread. What is that red intake setup? Never seen it before.
Fred
Fred
Joined: Jan 2005
Posts: 10,403
Likes: 492
From: Hurst, Texas
Car: 1983 G20 Chevy
Engine: 305 TPI
Transmission: 4L60
Axle/Gears: 14 bolt with 3.07 gears
Re: Got another rare mpfi manifold. Never seen one like it
Cool looking manifolds. I have a couple more oddities myself in addition to the Mercruiser dual plane MPFI I run on the G20 van with a 1,000 cfm 4150 throttle body on it. I have both an Ilmor and Indmar marine manifold. I have two uppers for the Indmar, one for a 58mm twin TPI/LT1 style throttle body and one with a 4 bolt 90mm LS. The Indmar offering was once sold by Street & Performance. The Ilmor marine has a Vortec lower that looks like a HSR with larger runners and the upper has somewhat of a batwing look and it has a 90mm 4 bolt LS opening. The Ilmor has two 5/8" barbed fittings in place of a thermostat housing and would require plumbing up a remote thermostat housing. Actually, planning to use that manifold in place of the more normal L31 cross ram marine L31 manifold on my 6.3L SBC powered boat.
Here is the Indmar
Indimar MCX Marine Vortec Intake - Third Generation F-Body Message Boards
Here is the Indmar
Indimar MCX Marine Vortec Intake - Third Generation F-Body Message Boards
Last edited by Fast355; Dec 2, 2024 at 10:40 PM.
Joined: Jan 2005
Posts: 10,403
Likes: 492
From: Hurst, Texas
Car: 1983 G20 Chevy
Engine: 305 TPI
Transmission: 4L60
Axle/Gears: 14 bolt with 3.07 gears
Re: Got another rare mpfi manifold. Never seen one like it

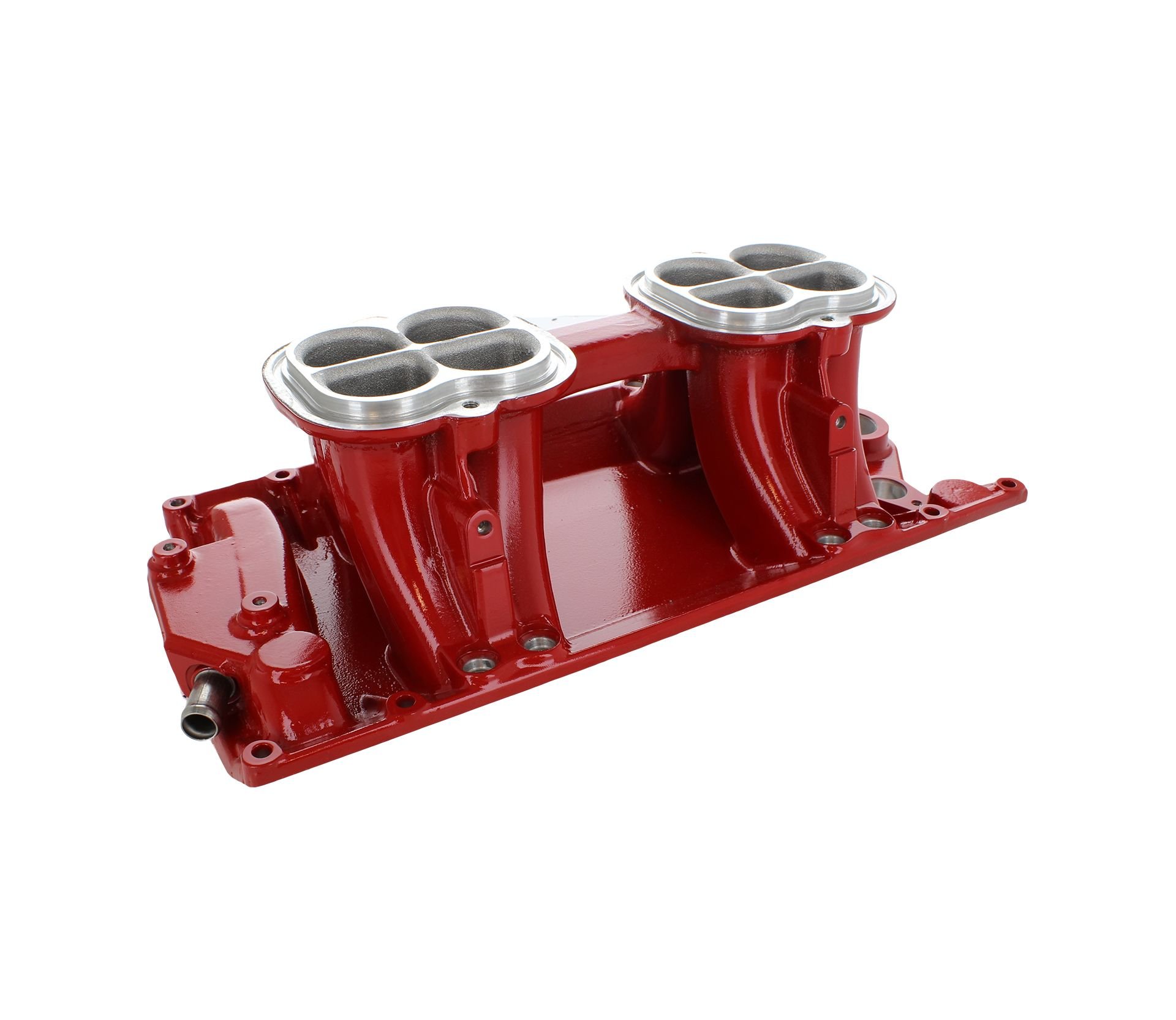

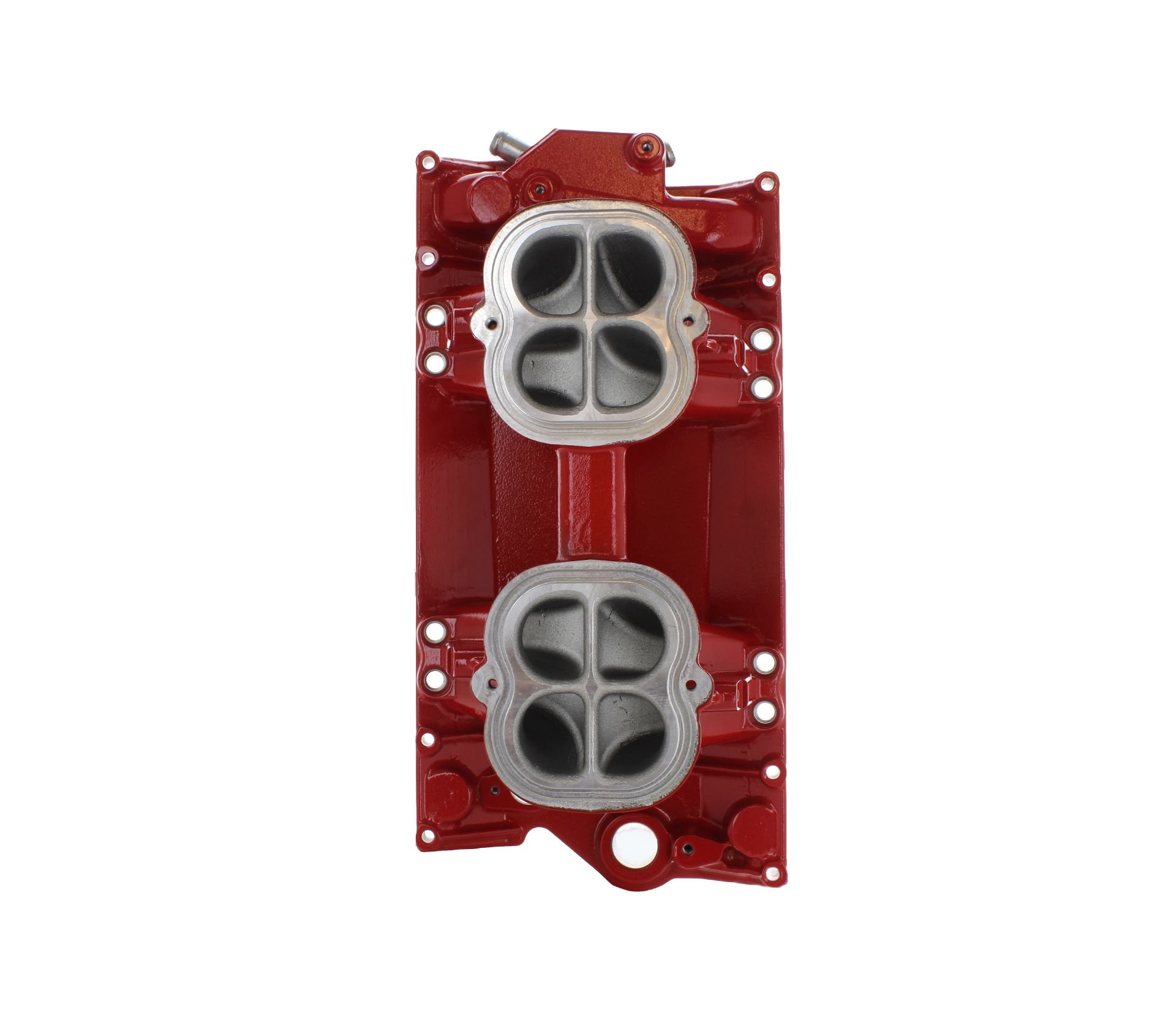

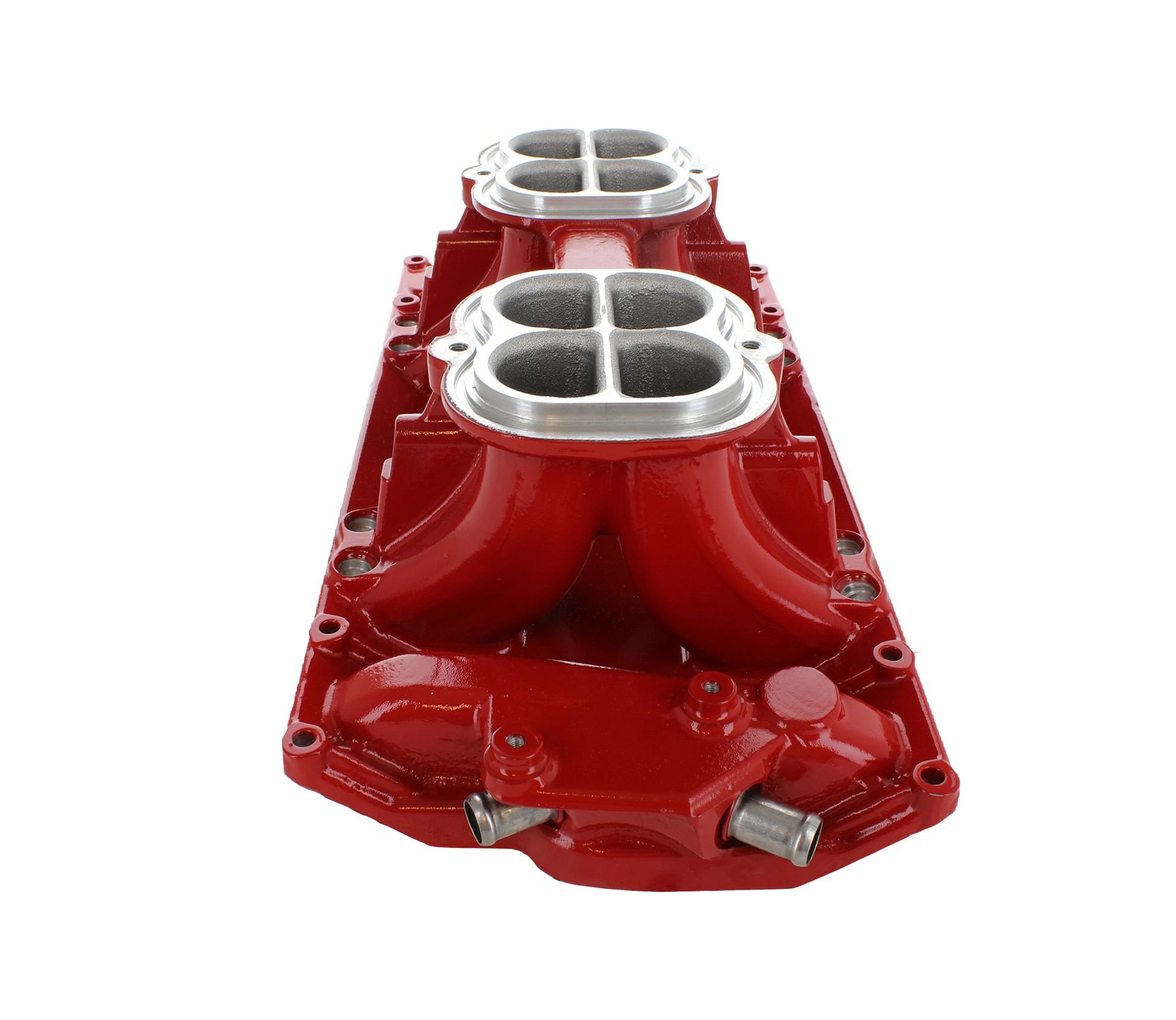

I have a lightly used ilmor manifold in red powder coat identical to this one.
Joined: Aug 2013
Posts: 4,795
Likes: 895
From: MICHIGAN
Car: 1988 Trans Am
Engine: L03
Transmission: 700R4
Axle/Gears: 10 Bolt 2.73 Open
Re: Got another rare mpfi manifold. Never seen one like it
That new one looks Firebird (low hood) friendly Twin_Turbo.
Joined: Jan 2005
Posts: 10,403
Likes: 492
From: Hurst, Texas
Car: 1983 G20 Chevy
Engine: 305 TPI
Transmission: 4L60
Axle/Gears: 14 bolt with 3.07 gears
Joined: Jun 2004
Posts: 194
Likes: 0
From: Cleveland, OH
Car: '70 Chevelle, '63 Corvette
Engine: 383, 327
Transmission: B&M 700r4, Muncie M-21
Re: Got another rare mpfi manifold. Never seen one like it
A lot of eye candy in this thread, thanks for sharing.
