Custom tail panel concept
Stock bumper
No bumper with defuser 1
No bumper with defuser 2

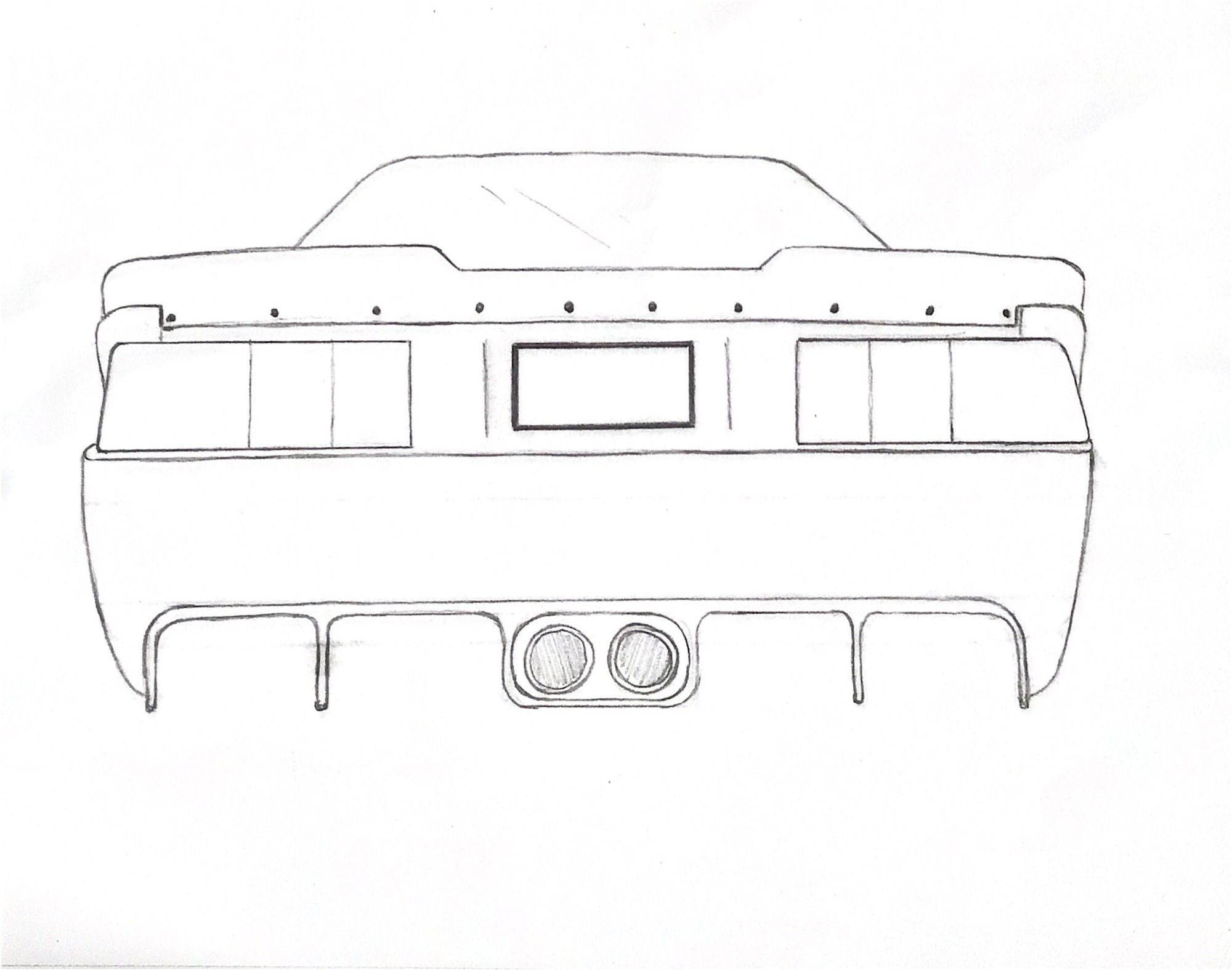

A couple of concept drawings for a shaved rear bumper with defuser. This will be done in fiberglass in two pieces.
Thread Starter
TGO Supporter
Joined: Nov 2003
Posts: 508
Likes: 334
From: Lake Stevens, WA
Car: 84 Z28, 92 C4 suspension F&R, ABS
Engine: 408 LS2, CNC LS3 heads, Comp Cam
Transmission: Magnum F, RTX clutch, Tick shifter
Axle/Gears: DANA 44, Tru Trac, 3:73 gears
Re: Custom tail panel concept
I’ve already started. A 1” X 2” X .120” tube was added to the middle of the rear bumper and 13 pie cuts were made the entire length and welded to match the curve of the back of the car.
I will make a foam mold and fiberglass a cap and defuser.
I will make a foam mold and fiberglass a cap and defuser.
Joined: May 2010
Posts: 536
Likes: 30
From: Texas
Car: 85 Camaro
Engine: 454 RamJet
Transmission: LT1/T56
Axle/Gears: 8.8w/4.10
Re: Custom tail panel concept
I was confused after reading your post title then seeing your drawings. I was thinking you were changing the tail light panel as opposed to the rear bumper design but either way it is an interesting idea. I always liked the way this member changed his rear bumper
REAR BUMPER SHAVE - Third Generation F-Body Message Boards
REAR BUMPER SHAVE - Third Generation F-Body Message Boards
Thread Starter
TGO Supporter
Joined: Nov 2003
Posts: 508
Likes: 334
From: Lake Stevens, WA
Car: 84 Z28, 92 C4 suspension F&R, ABS
Engine: 408 LS2, CNC LS3 heads, Comp Cam
Transmission: Magnum F, RTX clutch, Tick shifter
Axle/Gears: DANA 44, Tru Trac, 3:73 gears
Re: Custom tail panel concept

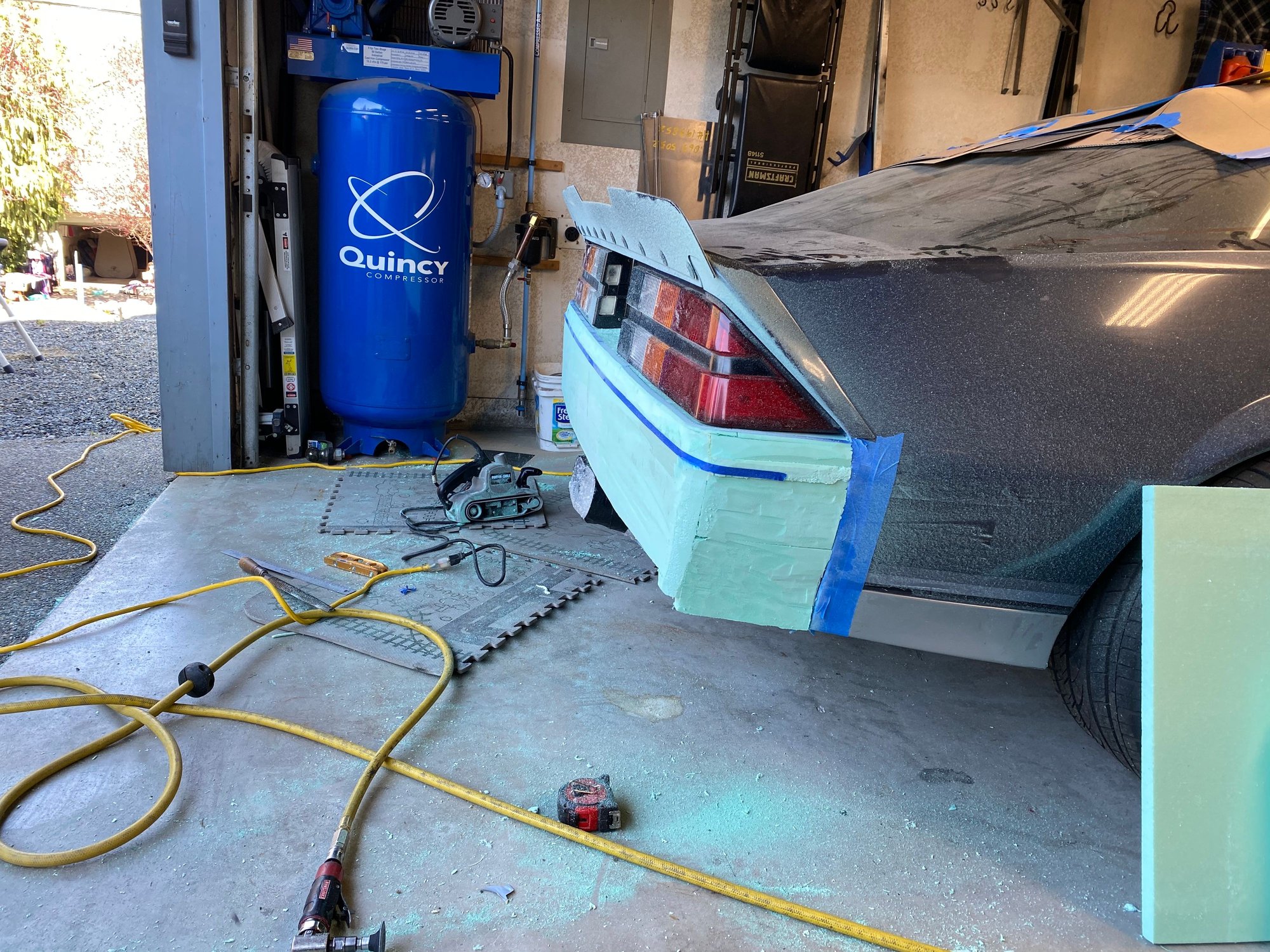

Beginnings for the fiberglass mold
Not the final shape yet
I’ve begun the mock-up process for the fiberglass mold. It will be a male buck so that multiple pieces can be made in case I need a replacement.
Trending Topics
Thread Starter
TGO Supporter
Joined: Nov 2003
Posts: 508
Likes: 334
From: Lake Stevens, WA
Car: 84 Z28, 92 C4 suspension F&R, ABS
Engine: 408 LS2, CNC LS3 heads, Comp Cam
Transmission: Magnum F, RTX clutch, Tick shifter
Axle/Gears: DANA 44, Tru Trac, 3:73 gears
Re: Custom tail panel concept
New rear bumper in fiberglass. Defuser in the process of being made.
Joined: Sep 2004
Posts: 5,906
Likes: 240
From: Chicagoland Suburbs
Car: 1989 Trans Am GTA
Engine: LT1, AFR 195cc, 231/239 LE cam.
Transmission: M28 T56
Axle/Gears: 3.23 10bolt waiting to explode.
Re: Custom tail panel concept
At first, since it said "Tail Panel" I somehow got stuck in a loop looking at the tail lights and thinking "those are stock?!?! Whats different?"
Then I noticed the bumper. lol.
I lik eit. I've always liked Center Exits though.
Then I noticed the bumper. lol.
I lik eit. I've always liked Center Exits though.
Thread Starter
TGO Supporter
Joined: Nov 2003
Posts: 508
Likes: 334
From: Lake Stevens, WA
Car: 84 Z28, 92 C4 suspension F&R, ABS
Engine: 408 LS2, CNC LS3 heads, Comp Cam
Transmission: Magnum F, RTX clutch, Tick shifter
Axle/Gears: DANA 44, Tru Trac, 3:73 gears
Re: Custom tail panel concept
Final update to this thread. Rear bumper is installed and awaiting for the taillights and the diffuser.
Thread Starter
TGO Supporter
Joined: Nov 2003
Posts: 508
Likes: 334
From: Lake Stevens, WA
Car: 84 Z28, 92 C4 suspension F&R, ABS
Engine: 408 LS2, CNC LS3 heads, Comp Cam
Transmission: Magnum F, RTX clutch, Tick shifter
Axle/Gears: DANA 44, Tru Trac, 3:73 gears
Re: Custom tail panel concept
After installing the taillights, I think it really extenuates the modifications to the rear bumper. It gives more of a prospective of the flush look that I had in mind when I started this project.
Thread Starter
TGO Supporter
Joined: Nov 2003
Posts: 508
Likes: 334
From: Lake Stevens, WA
Car: 84 Z28, 92 C4 suspension F&R, ABS
Engine: 408 LS2, CNC LS3 heads, Comp Cam
Transmission: Magnum F, RTX clutch, Tick shifter
Axle/Gears: DANA 44, Tru Trac, 3:73 gears
Re: Custom tail panel concept
Concept Drawing

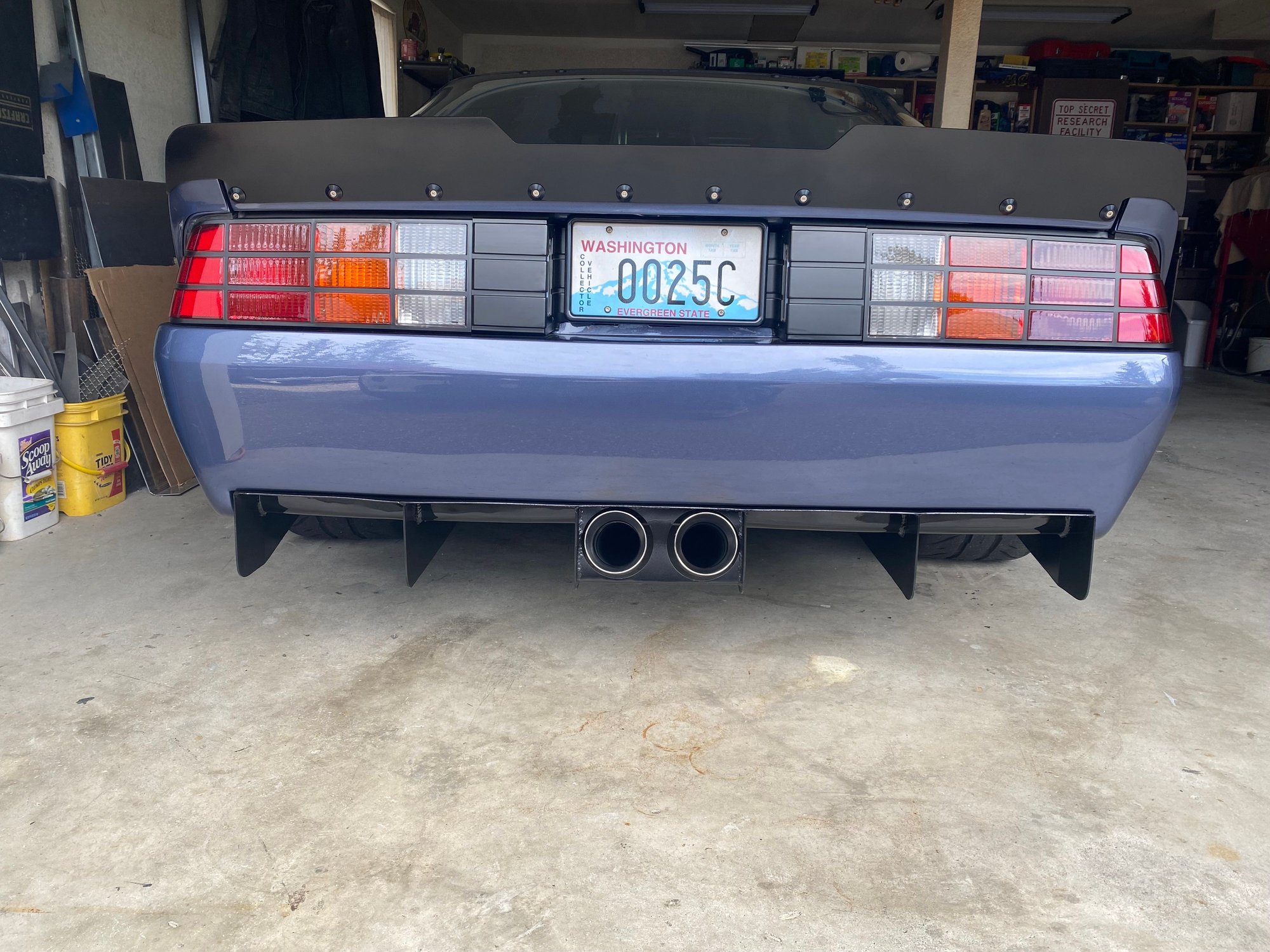

Final product
Finished diffuser installed. This completes the back of the car just as I had imagined it.
Joined: Dec 2001
Posts: 9,937
Likes: 636
From: Chicagoland
Car: 1989 IROC-Z. Original owner
Engine: LB9. Dual Cats. Big Cam
Transmission: World Class T-5
Axle/Gears: BW 3.45
Re: Custom tail panel concept
Awesome! Thanks for posting the link on ThirdGen Expo.
