How to identify brake combo valve
Anybody know a trick how to identify which brake combo valve I have?

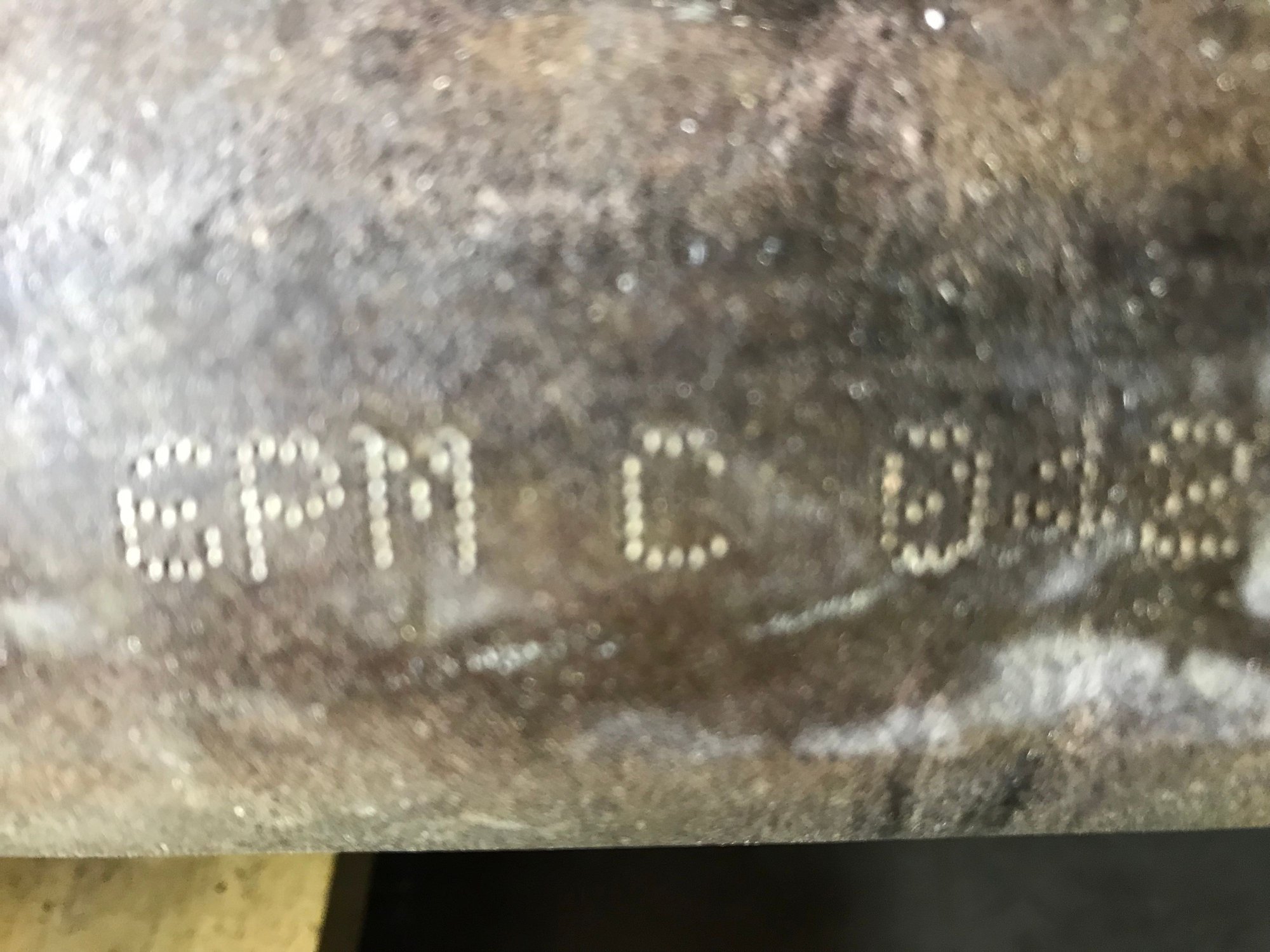

There is a code stamped in the side of it. Kind of hard to read what it says because it's been stamped twice. My guess is NB 35 KH2378
There is a code stamped in the side of it. Kind of hard to read what it says because it's been stamped twice. My guess is NB 35 KH2378
#2
COTM Editor
Thread Starter
iTrader: (22)
Join Date: Mar 2001
Posts: 9,892
Likes: 0
Received 1,855 Likes
on
1,270 Posts
Car: '89 Firebird
Engine: 7.0L
Transmission: T56
Re: How to identify brake combo valve
An 86-89 4-wheel disc brake line kit screws into all the fittings so I'm guessing that rules out the possibility of a gen 2 design.
Last edited by QwkTrip; 02-06-2019 at 12:57 AM.
#3
COTM Editor
Thread Starter
iTrader: (22)
Join Date: Mar 2001
Posts: 9,892
Likes: 0
Received 1,855 Likes
on
1,270 Posts
Car: '89 Firebird
Engine: 7.0L
Transmission: T56
Re: How to identify brake combo valve
Still hoping to become more enlightened about this before I do anything with this combination valve.
Here's the back story. Years ago I bought a used four-wheel disc combination valve. Problem is that I don't know how to confirm what it really is. I'm fairly confident I have a pre-'89 combo valve. But I'm still not sure how to tell the difference between drum vs. disc.
But maybe that doesn't really matter. The end game here is to convert this sucker to 1LE specs. I'm not sure what are the differences and hardware I need to do that. If it is just a matter of changing spring rate for rear line then I know how to do that. But I suspect the 1LE might be more than just a spring rate change.
Anybody have knowledge of this?
Here's the back story. Years ago I bought a used four-wheel disc combination valve. Problem is that I don't know how to confirm what it really is. I'm fairly confident I have a pre-'89 combo valve. But I'm still not sure how to tell the difference between drum vs. disc.
But maybe that doesn't really matter. The end game here is to convert this sucker to 1LE specs. I'm not sure what are the differences and hardware I need to do that. If it is just a matter of changing spring rate for rear line then I know how to do that. But I suspect the 1LE might be more than just a spring rate change.
Anybody have knowledge of this?
#4
COTM Editor
Thread Starter
iTrader: (22)
Join Date: Mar 2001
Posts: 9,892
Likes: 0
Received 1,855 Likes
on
1,270 Posts
Car: '89 Firebird
Engine: 7.0L
Transmission: T56
Re: How to identify brake combo valve
Been having an offline conversation with Drew who is always helpful and full of knowledge. Seems the first 2 letters in the code signify what kind of valve it is. NB might be from an '87 IROC with four-wheel discs using the Delco-Moraine iron calipers.
Now the question is whether there is any difference between the Gen 1 design and the later 1LE Gen 2 design, other than tube nut sizes, and perhaps the rear valve spring.
Now the question is whether there is any difference between the Gen 1 design and the later 1LE Gen 2 design, other than tube nut sizes, and perhaps the rear valve spring.
#5
Supreme Member
iTrader: (25)
Join Date: Sep 2005
Location: NJ
Posts: 1,814
Received 280 Likes
on
218 Posts
Car: 1987 IROC-Z
Engine: 406 on N20 w/ EFI
Transmission: P.B. 700R4
Axle/Gears: 12 bolt w/ 3.91
Re: How to identify brake combo valve
I wrote back to you on my prop-valve thread, but just in case you didn't see it..
.. I can take detailed photos of the prop valve assembly in the aftermarket Ed Miller 1LE prop valve setup I have had in my car..
...AND I can take photos of the disc/drum prop valve (and its internals) that was on my car when it left the factory in 1987.
gimmie a day or so and i'll get it done
.. I can take detailed photos of the prop valve assembly in the aftermarket Ed Miller 1LE prop valve setup I have had in my car..
...AND I can take photos of the disc/drum prop valve (and its internals) that was on my car when it left the factory in 1987.
gimmie a day or so and i'll get it done
#6
COTM Editor
Thread Starter
iTrader: (22)
Join Date: Mar 2001
Posts: 9,892
Likes: 0
Received 1,855 Likes
on
1,270 Posts
Car: '89 Firebird
Engine: 7.0L
Transmission: T56
Re: How to identify brake combo valve
This is kind of humorous because we've got two threads with ideas going in opposite directions and we're helping each other through the questions. I'm giving some thought to going where you've been and you're giving thought of going where I've been.
Maybe that means we should both just get different brakes!
Maybe that means we should both just get different brakes!
Last edited by QwkTrip; 02-16-2019 at 10:59 PM.
#7
Supreme Member
Join Date: Jun 2015
Location: Austin, TX
Posts: 1,906
Received 176 Likes
on
135 Posts
Car: 90 Formula / T-tops
Engine: 305 TPI
Transmission: MD8
Re: How to identify brake combo valve
Broadcast code will tell you the info you are looking for. click link, then click on photo to see page. scroll down. http://www.gmpartswiki.com/getpage?pageid=129796
