Heater core hose routing
#1
Supreme Member
Thread Starter
iTrader: (1)
Join Date: Dec 2000
Location: Cincinnati,Ohio
Posts: 2,341
Received 151 Likes
on
111 Posts
Car: 1991 BandittII Firebird
Engine: 5.7 HSR
Transmission: 700R4
Axle/Gears: 3.27 9 bolt
Heater core hose routing
I need some help figuring out what to do with the heater core hose routing. I'm in the process of cleaning up the engine bay of the unwanted and unneeded such as the A/C system, factory engine oil cooler, heater core diverter valve, ect. I want to rout the heater core hoses from the heater core then to the radiator and the water pump. Pictures of your set up (or someone else's) part numbers and where you got your part would all be very helpful.
#3
Senior Member
iTrader: (5)
Join Date: Jan 2009
Location: Golden, CO
Posts: 887
Likes: 0
Received 11 Likes
on
9 Posts
Car: 87 IROC
Engine: L31 350
Transmission: T56
Axle/Gears: 4.10 D44
Re: Heater core hose routing
I am subscribed hoping someone chimes in. I am looking to move the supply hose from over the valve cover, to down near the frame rail like the steel return line. Unfortunately, that is a really tight spot between headers and the AC suitcase, and doesn't lend itself to an easy solution.
If/when I get something done, I'll post it up.
If/when I get something done, I'll post it up.
#5
Supreme Member
iTrader: (167)
Re: Heater core hose routing
There is a stock thirdgen V6 heater pipe set-up that I've used a few times. I think it was from a 85-87 MPFI ?? A short curved hose connects each of the heater lines to the steel pipes and then they get run along the pass frame rail and you can custom run them from there to anywhere you want. I cut the pipes to fit and never had a leak or a heat problem. ( could be shielded. )

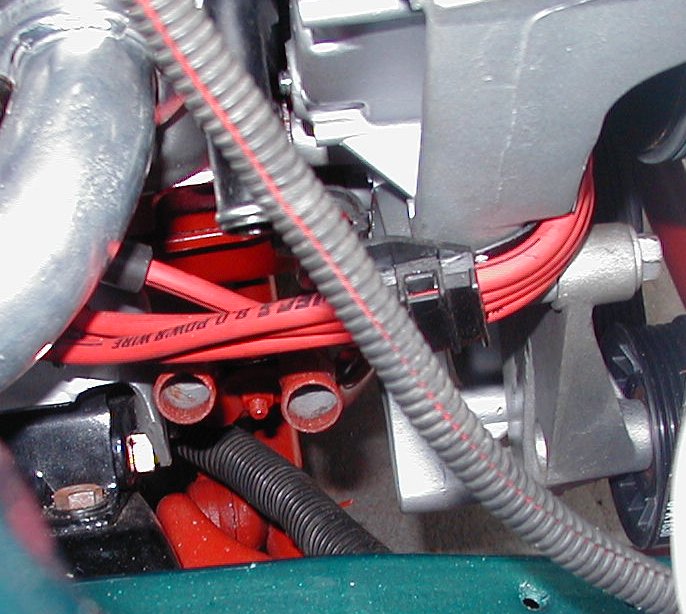

I used the factory oil cooler too
I used the factory oil cooler too
Trending Topics
#8
Senior Member
iTrader: (8)
Join Date: Aug 2011
Location: Texas
Posts: 661
Likes: 0
Received 7 Likes
on
7 Posts
Car: 91 Firebird/88 Firebird/91 Formula
Engine: V6 3.1/V8 5.0/V8 5.0
Transmission: 4L60/700R4/4L60
Axle/Gears: 3.23/2.73/2.73
Re: Heater core hose routing
Don't know if it will help, but throwing it out there.
#9
Supreme Member
Thread Starter
iTrader: (1)
Join Date: Dec 2000
Location: Cincinnati,Ohio
Posts: 2,341
Received 151 Likes
on
111 Posts
Car: 1991 BandittII Firebird
Engine: 5.7 HSR
Transmission: 700R4
Axle/Gears: 3.27 9 bolt
Re: Heater core hose routing
This diagram could be really helpful antares57. I'm gonna have to check to see if these parts are still available for GM. Where did you come across this diagram? Now it's got me thinking what other OEM parts can be used from either the V-6 cars LT1's or the LS1's. I would like to run both heater core hoses down to the frame rail and then one to the top of the water pump and the other going to the radiator.
#10
Senior Member
iTrader: (8)
Join Date: Aug 2011
Location: Texas
Posts: 661
Likes: 0
Received 7 Likes
on
7 Posts
Car: 91 Firebird/88 Firebird/91 Formula
Engine: V6 3.1/V8 5.0/V8 5.0
Transmission: 4L60/700R4/4L60
Axle/Gears: 3.23/2.73/2.73
Re: Heater core hose routing
The diagram came out of a 1982-1992_Pontiac_F-GM_Parts_and_Illustration_Catalog dated Sep 1992 which I believe was on the same link as the '88 Firebird Service Manual when I first joined the forum. No reference to it now and "Google" doesn't get any hits. Good reference document.
#11
Supreme Member
iTrader: (167)
Re: Heater core hose routing
Good reference document.
The diagram shown as "W/C41" was used on all 85-86 TPI cars,.... They didn't use a diverter valve those years on the TPI so the frame rail coolant pipe didn't have a 3rd port on the top.
That coolant pipe - and the V6 pipes - is a PITA to install / remove with the heater box and manifolds/headers installed. I always make it a point to install that thing FIRST before installing an engine when re-building !
As a temporary 'fix' you could simply remove the diverter from your 87+ set-up and cap the 3rd coolant port that leads to the diverter valve. Be advised,..... rubber Coolant 'caps' like the one You would use in this case generally last 1 driving season before they need to be replaced. ( I just replaced the one on my Berlinetta last week because it sprung a pin-hole !! )
#13
Senior Member
iTrader: (5)
Join Date: Jan 2009
Location: Golden, CO
Posts: 887
Likes: 0
Received 11 Likes
on
9 Posts
Car: 87 IROC
Engine: L31 350
Transmission: T56
Axle/Gears: 4.10 D44
Re: Heater core hose routing
#2 - that hose is the one I want to move (5/8").
#3 - bypass the TB, and extend this hose direct from the manifold to move the heater valve down toward the frame rail.
#8 - the pipe (3/4") is tight with headers, but it can be done. Too bad there isn't room for a second (5/8") pipe!
ETA - 84 1LE's picture with the LS swap and LS style heater hoses staying above the header and following the heater box is probably the best workable solution. Those LS hose assembly's are running $50 on eBay. I already found a question mark (?) shaped hose in 5/8" like the third gen factory 3/4" hose, to keep the closer to the firewall. Now I just have to find some thin 5/8" hard line...
Last edited by MoJoe; 03-11-2016 at 07:18 AM.
#15
TGO Supporter
Join Date: Sep 2000
Location: So.west IN
Posts: 6,775
Likes: 0
Received 26 Likes
on
23 Posts
Car: 87 Formula/ 00 Xtreme
Engine: TPI 305/ v6
Transmission: struggling t-5/ 4l60E
Axle/Gears: 3.08/ 3.23
Re: Heater core hose routing
I used aluminum tube from RuralKing and made some hard lines to run mine.
Some various prebent hoses picked from Azone stock and cut to fit. Not quite finished but, will get back to it eventually, once i have a second functioning hand.
Some various prebent hoses picked from Azone stock and cut to fit. Not quite finished but, will get back to it eventually, once i have a second functioning hand.
#16
Senior Member
iTrader: (5)
Join Date: Jan 2009
Location: Golden, CO
Posts: 887
Likes: 0
Received 11 Likes
on
9 Posts
Car: 87 IROC
Engine: L31 350
Transmission: T56
Axle/Gears: 4.10 D44
Re: Heater core hose routing
@deadbird - great job with the tubes! Not bad on hiding the wiring, and the hidden power center too!
