If You Converted to a Serpentine System
A few years ago I added a GM kit (12497698) to my 350 HO Deluxe. The review can be found below:
https://www.thirdgen.org/forums/afte...rsion-kit.html
Though the kit seemly provided everything I needed, to include a brace on the pass side of the compressor, I was aways troubled by an annoying sound/vibration when the compressor kicked on. Long story short. At a recent bone yard trip, I found a 90-92 Camaro with a surprise (at least for me), a second compressor brace, which runs from the driver's side of the compressor to just below the thermostat housing. Today, after the install I was rewarded with a silent compressor. The donor car provided all that was required. I simply swapped one bolt for another. I picked up a "belt guard" too. Pics below.
JamesC
https://www.thirdgen.org/forums/afte...rsion-kit.html
Though the kit seemly provided everything I needed, to include a brace on the pass side of the compressor, I was aways troubled by an annoying sound/vibration when the compressor kicked on. Long story short. At a recent bone yard trip, I found a 90-92 Camaro with a surprise (at least for me), a second compressor brace, which runs from the driver's side of the compressor to just below the thermostat housing. Today, after the install I was rewarded with a silent compressor. The donor car provided all that was required. I simply swapped one bolt for another. I picked up a "belt guard" too. Pics below.
JamesC
Last edited by JamesC; 08-16-2018 at 03:51 PM.
#3
Supreme Member
iTrader: (1)
Re: If You Converted to a Serpentine System
Yeah I have all those parts on my converted 86 because I stole the stock serp. system from a 90-92. Got the whole mess for $150 including all accessories. The GM kit apparently wasn't as complete as pulling the whole system out of a factory equipped car.
I did have to drill and tap a hole into the passenger head/water jacket for one of the serp. system bracket. But that was no big deal. Little loctite 545 on the threads.
GD
I did have to drill and tap a hole into the passenger head/water jacket for one of the serp. system bracket. But that was no big deal. Little loctite 545 on the threads.
GD
#5
Re: If You Converted to a Serpentine System
JamesC
EDIT: BTW, IIRC, the TPI car's hose support was incorporated into the upper radiator mount.
Last edited by JamesC; 08-22-2018 at 07:26 AM.
#6
Supreme Member
iTrader: (8)
Join Date: Oct 2001
Location: Il
Posts: 11,697
Received 748 Likes
on
507 Posts
Car: 1989-92 FORMULA350 305 92 Hawkclone
Engine: 4++,350 & 305 CIs
Transmission: 700R4 4800 vig 18th700R4 t56 ZF6 T5
Axle/Gears: 3.70 9"ford alum chunk,dana44,9bolt
Re: If You Converted to a Serpentine System
Yeah, on a TPI car the hose can get close to that belt guard or whatever you want to call it. Depends a bit on how the hose was installed on the Tstat neck too.
#7
Supreme Member
iTrader: (11)
Join Date: Sep 1999
Location: NJ
Posts: 4,345
Received 298 Likes
on
234 Posts
Car: 92 Firebird
Engine: 4.8 LR4
Transmission: T56
Axle/Gears: 3.45 9 Bolt
Re: If You Converted to a Serpentine System
Forgot I had the parts manual CD on this PC

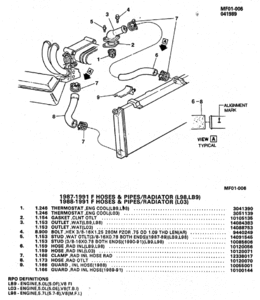

Parts book says
1.166 Guard , INL HOSE (1988) 10055001
1.166 Guard ,RAD INL HOSE (1989-91) 10100144
Same for 92, 82-86 was similar to the first line
Trending Topics
#9
Supreme Member
iTrader: (58)
Re: If You Converted to a Serpentine System
From reading the GMPP PDF for the serpentine setup, it sounds like they wanted the kit to work with as many cars as possible. I'd expect they left certain pieces out that likely wouldn't have a corresponding mounting point on some cars. In other words, they probably didn't figure most of their customers would be using an intake that would work with the brace so it was deemed redundant. Just a guess.
#10
Senior Member
iTrader: (9)
Join Date: Jul 2003
Location: DFW
Posts: 582
Received 200 Likes
on
142 Posts
Car: 90 Formula 350
Engine: 350
Transmission: 700r4
Axle/Gears: Dana 44 3.54
Re: If You Converted to a Serpentine System
related to this swap, if going from the 2-3 V-belts and one serp on 87 LG4 to this does W/P need to be changed also? IIRC it'll run opposite direction?
while back looking on Rock Auto they had different parts numbers
while back looking on Rock Auto they had different parts numbers
Last edited by zman1969; 08-22-2018 at 11:07 AM.
#11
Supreme Member
iTrader: (11)
Join Date: Sep 1999
Location: NJ
Posts: 4,345
Received 298 Likes
on
234 Posts
Car: 92 Firebird
Engine: 4.8 LR4
Transmission: T56
Axle/Gears: 3.45 9 Bolt
Re: If You Converted to a Serpentine System
Serpentine setups use a reverse rotation water pump, yes. You would need to change the pump too
#12
Re: If You Converted to a Serpentine System
The serp setup on my 88 had that metal piece just like you have installed in your picture.
Forgot I had the parts manual CD on this PC
Parts book says
1.166 Guard , INL HOSE (1988) 10055001
1.166 Guard ,RAD INL HOSE (1989-91) 10100144
Same for 92, 82-86 was similar to the first line
Forgot I had the parts manual CD on this PC
Parts book says
1.166 Guard , INL HOSE (1988) 10055001
1.166 Guard ,RAD INL HOSE (1989-91) 10100144
Same for 92, 82-86 was similar to the first line
Thanks for the info,
JamesC
