Bad wired EGR to ECM?

Old 11-08-2018, 12:39 PM
  #1
Junior Member
Thread Starter

Firebird2011's Avatar

Join Date: May 2016
Location: Rome, Italy
Posts: 73
Likes: 0
Received 0 Likes on 0 Posts
Car: Pontiac Firebird Formula
Engine: 3.1 LH0
Transmission: 700R4
Axle/Gears: Automatic
Bad wired EGR to ECM?





Hi guys, I found this thing around the EGR zone. The dark blue wire grounded to the
firewall?

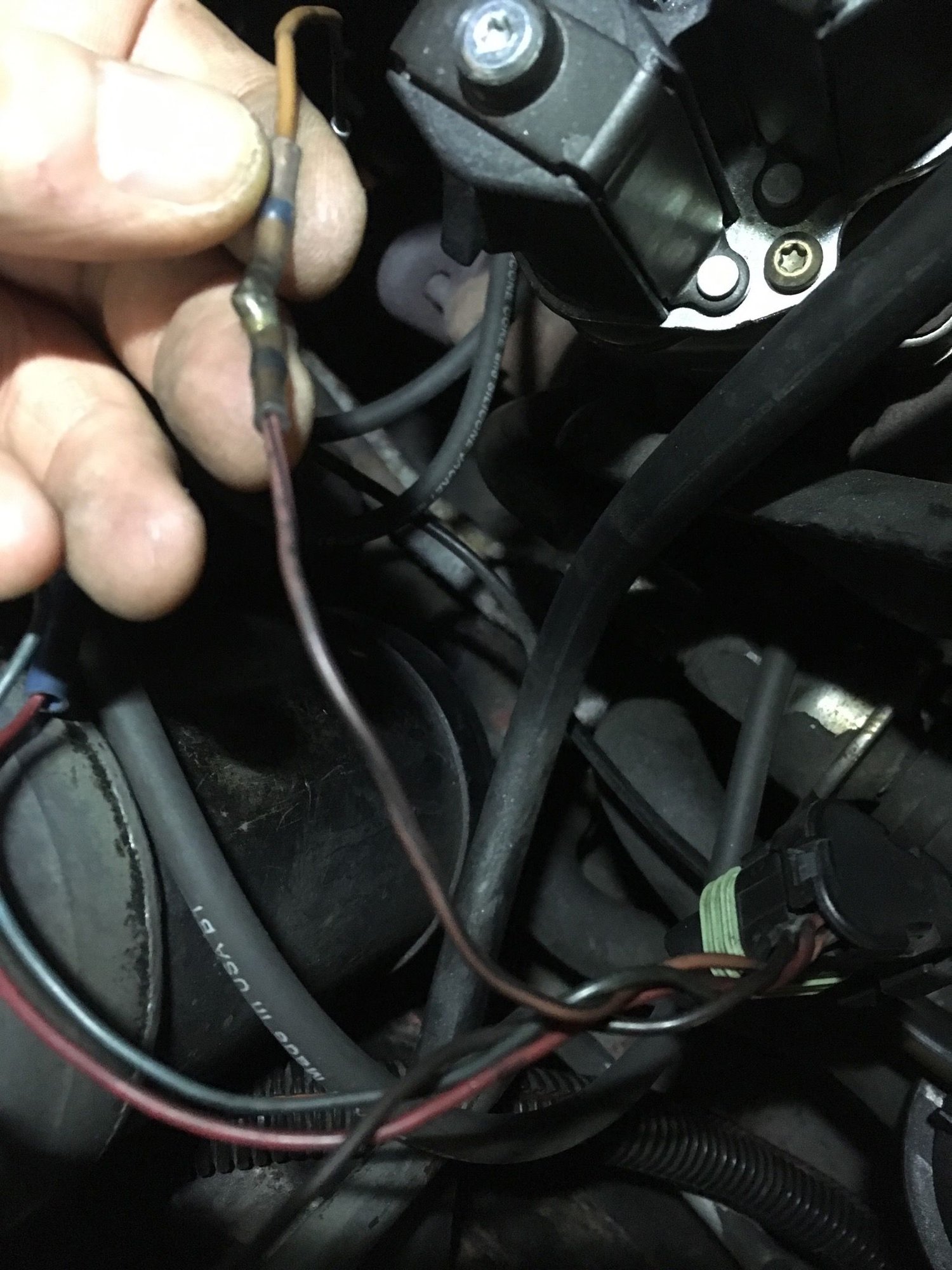

Furthermore, I found this brown wire soldered to the pink/black one that goes to EGR connector. Can you tell me what kind of functions do that two wires? I just want to restore the original wiring messed up by the old owner...

Itís a 1990 Firebird, 3.1 Lh0

Thank you guys!
Firebird2011 is offline
Old 11-08-2018, 12:51 PM
  #2
Sponsor
iTrader: (81)

Tuned Performance's Avatar

Join Date: Dec 2004
Location: Mile High Country !!!
Posts: 11,835
Likes: 0
Received 0 Likes on 0 Posts
Car: 1967 Camaro, 91 z28
Engine: Lb9
Transmission: M20
Axle/Gears: J65 pbr on stock posi 10bolt
Re: Bad wired EGR to ECM?

Pink/blk is power to the ccp/ air and egr solenoid.
http://austinthirdgen.org/mkportal/m...ine_wiring.gif
Tuned Performance is offline
Old 11-08-2018, 12:53 PM
  #3
Sponsor
iTrader: (81)

Tuned Performance's Avatar

Join Date: Dec 2004
Location: Mile High Country !!!
Posts: 11,835
Likes: 0
Received 0 Likes on 0 Posts
Car: 1967 Camaro, 91 z28
Engine: Lb9
Transmission: M20
Axle/Gears: J65 pbr on stock posi 10bolt
Re: Bad wired EGR to ECM?

Dark blue might be the fan pressure switch. Does the fan run with the key on ?
Tuned Performance is offline
Old 11-08-2018, 05:00 PM
  #4
Junior Member
Thread Starter

Firebird2011's Avatar

Join Date: May 2016
Location: Rome, Italy
Posts: 73
Likes: 0
Received 0 Likes on 0 Posts
Car: Pontiac Firebird Formula
Engine: 3.1 LH0
Transmission: 700R4
Axle/Gears: Automatic
Re: Bad wired EGR to ECM?

Thanks for your reply, the fan stays off with key on. The EGR seems always to be off too, in every condition, but I hear a clicking noise from it
Firebird2011 is offline
