No power to starter...
OK, the yellow wire from the ignition switch on top of the steering column, across the drivers legs, and down the drivers side kick panel, then under the carpet and would come up as a tan and white wire into the gear selector switch...right?
Whats happening is when we turn to "start", we get power on the yellow wire all the way to where it drops under the carpet...then no power at the tan and white wire on the gear selector switch...so where does it run from where it disappears under the carpet?
We have power to accessories, and the fuel pump is kicking on, even the radio comes on...the brake light on the dash comes on...but when we turn the key to start, we get no attempt to start...
Any ideas?
IF there were a problem with VATS the car WOULD at least try to start, right?
Is there an interlock relay were missing?
Whats happening is when we turn to "start", we get power on the yellow wire all the way to where it drops under the carpet...then no power at the tan and white wire on the gear selector switch...so where does it run from where it disappears under the carpet?
We have power to accessories, and the fuel pump is kicking on, even the radio comes on...the brake light on the dash comes on...but when we turn the key to start, we get no attempt to start...
Any ideas?
IF there were a problem with VATS the car WOULD at least try to start, right?
Is there an interlock relay were missing?
#2
Member
Thread Starter
Join Date: Jun 2005
Location: Livingston, TN
Posts: 284
Likes: 0
Received 0 Likes
on
0 Posts
Car: 91 Z28
Engine: 350
Transmission: 700r4
Axle/Gears: Stock
Where is the starter enable relay located?
91 z28
An *EARLY* 91 (manufactured in June of 90)...and would it be located in the same place on a 90? (just in case some of the wiring on this early 91 might be kinda 90ish...already had an issue with the trunk release solenoid where they changed it mid-production)
We have traced power all the way across to the passenger side, to the Pass-Key module (right next to the computer), the purple and white wire (on the PassKey module) has power when we try to start it, but we cant trace where its supposed to go from there (Starter enable relay?).
We suspect the starter enable relay might be bad?
Thanks again!
91 z28
An *EARLY* 91 (manufactured in June of 90)...and would it be located in the same place on a 90? (just in case some of the wiring on this early 91 might be kinda 90ish...already had an issue with the trunk release solenoid where they changed it mid-production)
We have traced power all the way across to the passenger side, to the Pass-Key module (right next to the computer), the purple and white wire (on the PassKey module) has power when we try to start it, but we cant trace where its supposed to go from there (Starter enable relay?).
We suspect the starter enable relay might be bad?
Thanks again!
#3
TGO Supporter
Join Date: Sep 2000
Location: So.west IN
Posts: 6,775
Likes: 0
Received 26 Likes
on
23 Posts
Car: 87 Formula/ 00 Xtreme
Engine: TPI 305/ v6
Transmission: struggling t-5/ 4l60E
Axle/Gears: 3.08/ 3.23
Is the 'security' lamp going out when you turn it to the 'run' position ? It should within a second or two.

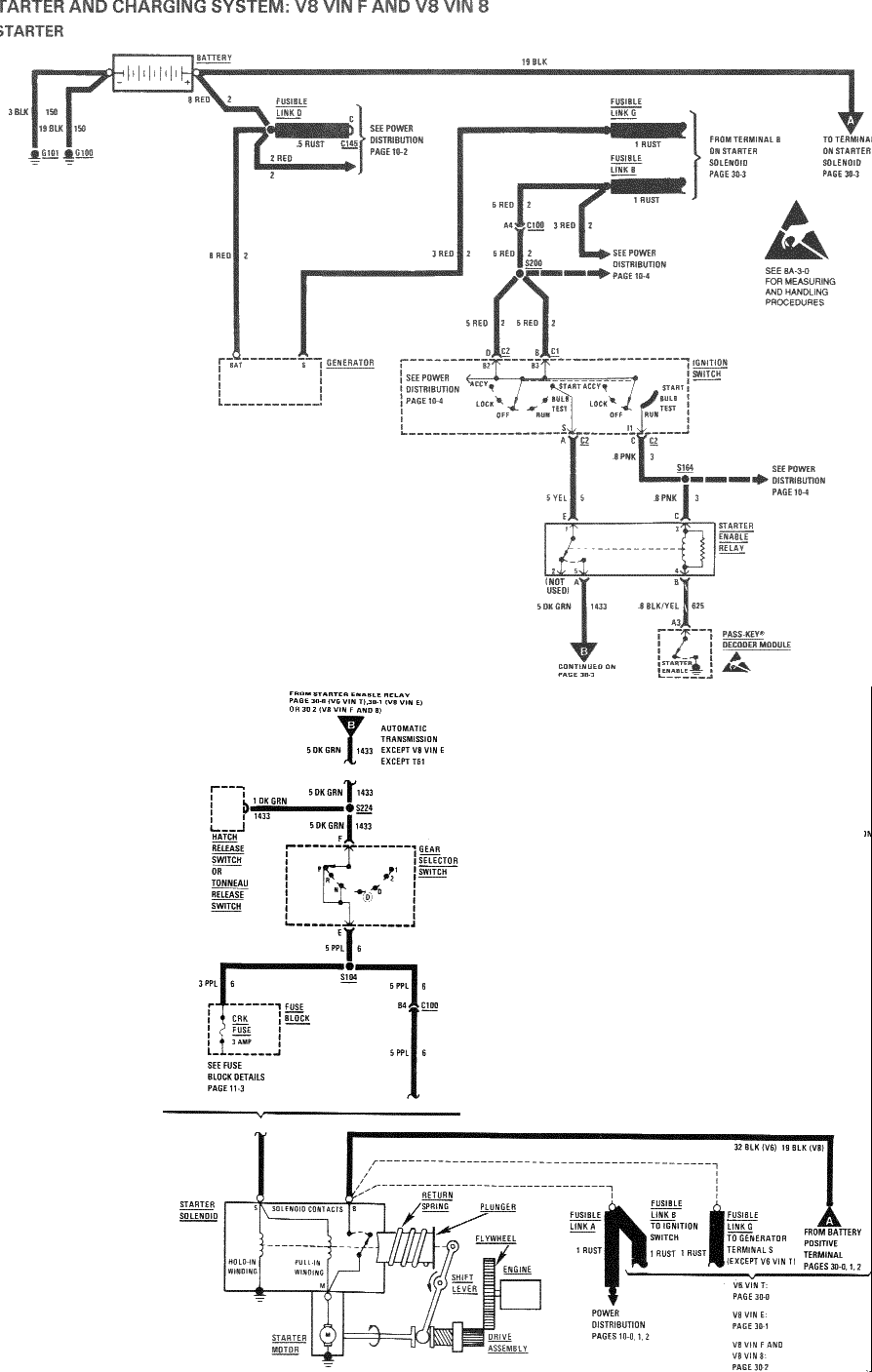

This might help a little...
