Help identifying plugs

What are these plugs for and is there a link or someone have the diagram for these connections.
Its the main harness that connects to the internal harness, sorry I dont know the name of the connectors.

Attached Thumbnails

Feb 20, 2012 | 09:16 PM

6SIX6

Supreme Member

iTrader: (35)

Joined: Aug 2006

Posts: 1,470

Likes: 1

From: Mississauga,Ont,Canada

Car: 89 IROC

Engine: LSX 6.0 370, TU2 Cam, Fast intake

Transmission: T56 w/ lots of goodies

Axle/Gears: 8.8, Posi, 4.10, 31 Spline

Re: Help identifying plugs

The first picture looks like the connectors ( Black Ones ) for the harness to the rear which is the C208. The white one I think is for cruise control

Second pic the clear one looks like the plug that goes behind the gauges, C1 I think. the grey one might be for the antenna relay

Its hard to guess what they are without knowing where they are located in the car

Feb 21, 2012 | 02:50 PM

John in RI

Supreme Member

iTrader: (170)

Joined: Aug 1999

Posts: 5,266

Likes: 463

From: RI

Car: 1984 Camaro Berlinetta

Engine: LT1

Transmission: T56 6-speed

Axle/Gears: 4.11 LS1 Rear End

Re: Help identifying plugs

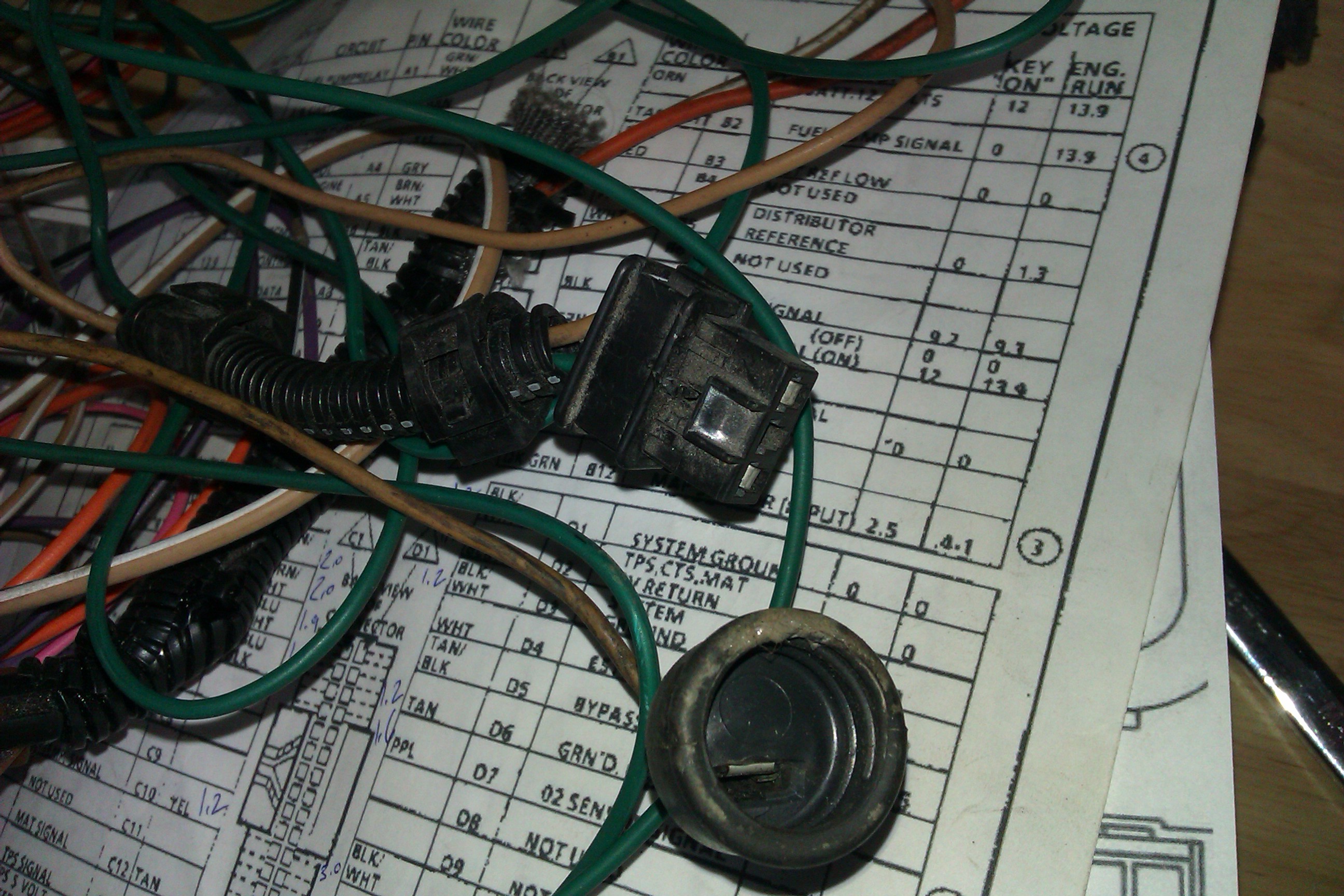

Picture 1 shows the dash harness BLACK C207 connector,...... I forgot what the WHITE one is for ( Fuel Injection ?)

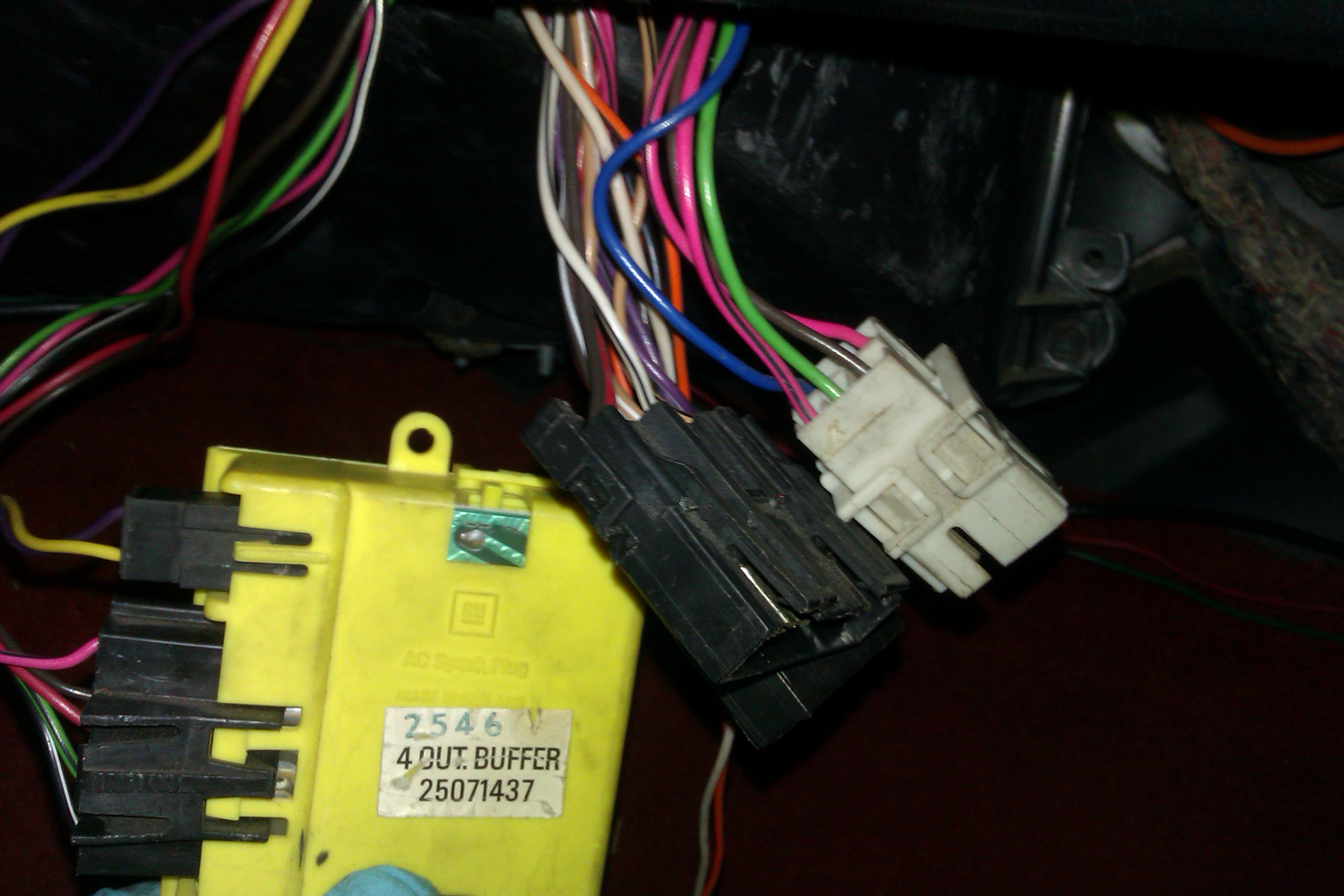

Picture 2 shows The ECM harness C207 Connector. I forgot what the GREY one is for ( Fuel injection ?)

You might have already guessed,..... the WHITE plugs in pic 2 connect into the BLACK plugs in pic 1. AND The GREY plug in pic 2 connects to the WHITE plug in pic 1. VERY common for these plugs to be disconnected after a Carb swap.

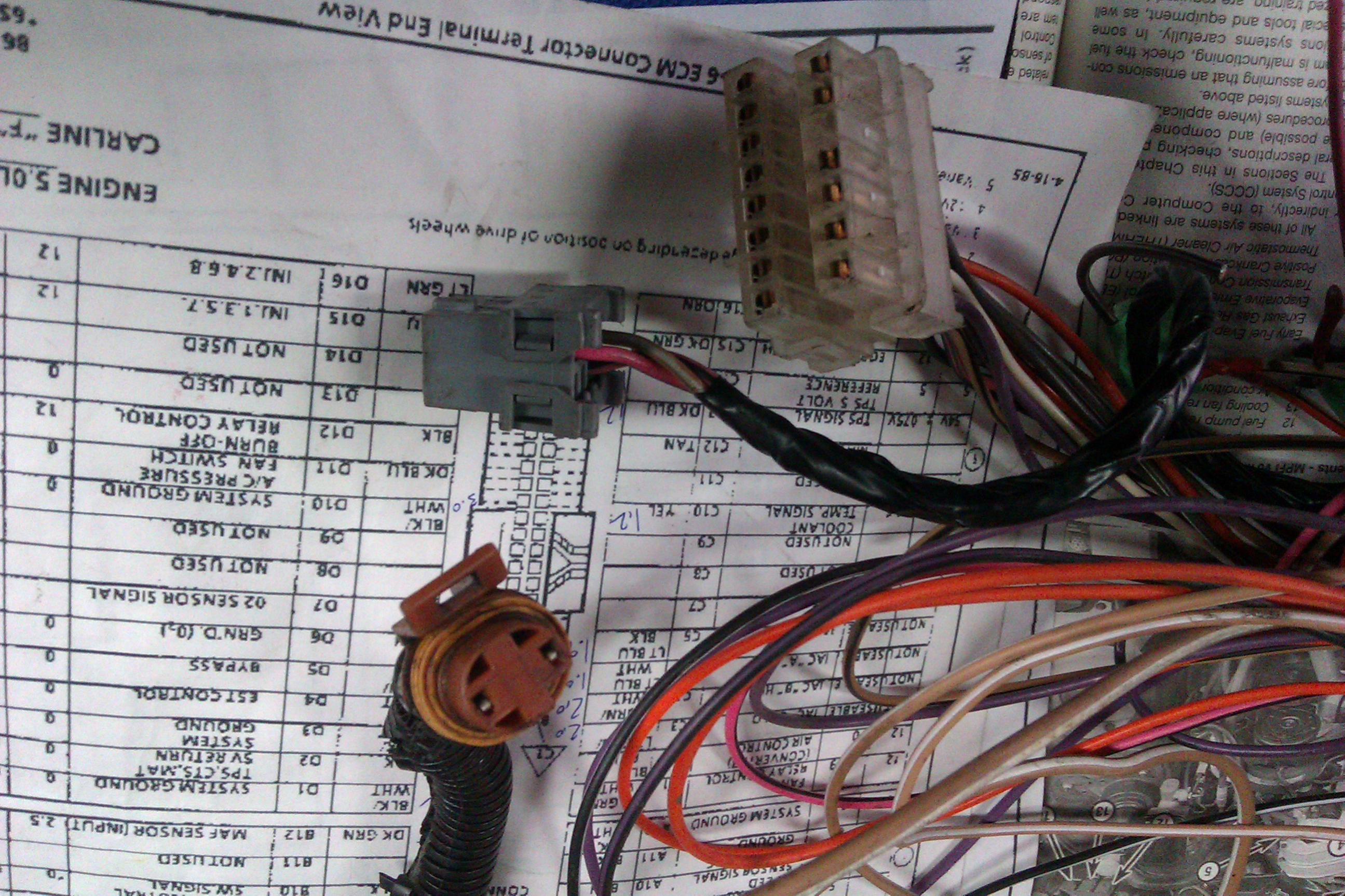

The round connector in pic 3 is for the oil pressure gauge. I'm not sure about the BLACK 2 pin plug,.......... maybe to the wiper motor ?
