Trick Flow 195 Alum Heads + Springs + 1.6 Rockers
Thread Starter
Joined: May 2001
Posts: 5,244
Likes: 14
From: Sac, CA
Car: '89 GTA
Axle/Gears: 3.27/9-bolt
Trick Flow 195 Alum Heads + Springs + 1.6 Rockers

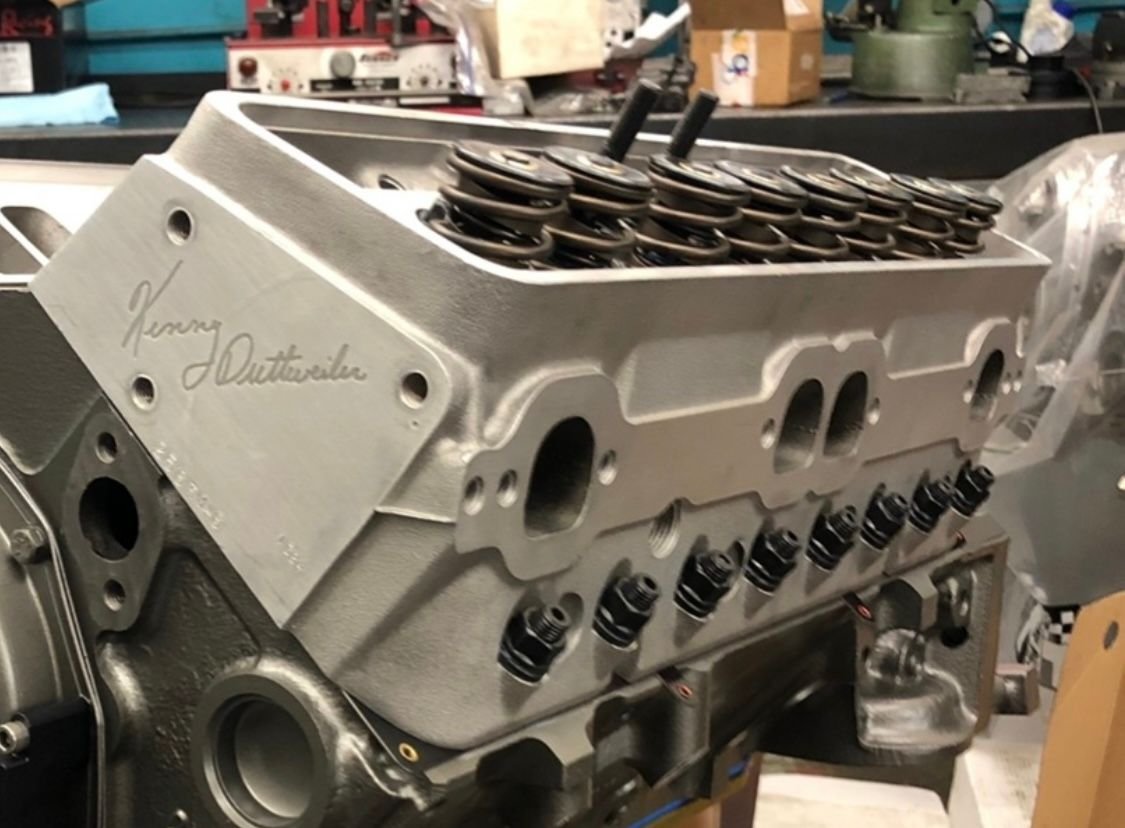

Trick Flow Super 23 195 Cylinder Heads for Small Block Chevrolet TFS-30400006-CNC - Kenny Duttweiler Special Edition
- Pair of Cylinder Heads, Super 23 195, Alum., Assembled, 64cc CNC Chamber, 195cc Intake, Chevy 1987-95
- COMP 1.6 Roller Rockers
- COMP Valve Springs, Dual, 1.460 in / 441 outside diameter
**SOLD**
Manufacturer's Part Number:
TFS-30400006-CNC
Combustion Chamber Volume (cc):
64cc
Intake Runner Volume (cc):
195cc
Exhaust Runner Volume (cc):
75cc
Cylinder Head Style:
Assembled
Cylinder Head Material:
Aluminum
Intake Valve Diameter (in.):
2.020 in.
CNC-Machined Combustion Chamber:
Yes
Intake Port Location:
Standard
Exhaust Port Shape:
D-port
Exhaust Port Location:
Standard
Spark Plug Style:
Angle
Intake / Exhaust Valve Angle:
23
Last edited by OUTATIME GTA; May 19, 2023 at 09:03 PM.
Member
Joined: Feb 2006
Posts: 168
Likes: 5
From: SoCal / Central Coast
Car: 1987 Chevy El Camino
Engine: 357 CID w/Lingerfelter Super Ram
Transmission: 700-R4
Axle/Gears: GN 8.5 342's
Re: Trick Flow 195 Alum Heads + Springs + 1.6 Rockers
How do these compare to the AFR's?
Thread Starter
Joined: May 2001
Posts: 5,244
Likes: 14
From: Sac, CA
Car: '89 GTA
Axle/Gears: 3.27/9-bolt
Re: Trick Flow 195 Alum Heads + Springs + 1.6 Rockers
Plenty of comparison threads out there and different style heads between the two manufacturers. I tried to list some of the key specs to help.
Last edited by OUTATIME GTA; Apr 14, 2023 at 10:32 AM.
Joined: Jun 2001
Posts: 8,028
Likes: 93
From: DC Metro Area
Car: 87TA 87Form 71Mach1 93FleetWB 04Cum
Re: Trick Flow 195 Alum Heads + Springs + 1.6 Rockers
How many miles on them?
What spring package is on them/what height/rate... are they set up for?
Are the comp 1.6 rockers pro magnums? What size studs? What guide plates are installed?
What spring package is on them/what height/rate... are they set up for?
Are the comp 1.6 rockers pro magnums? What size studs? What guide plates are installed?
Thread Starter
Joined: May 2001
Posts: 5,244
Likes: 14
From: Sac, CA
Car: '89 GTA
Axle/Gears: 3.27/9-bolt
Re: Trick Flow 195 Alum Heads + Springs + 1.6 Rockers
How many miles on them?
What spring package is on them/what height/rate... are they set up for?
Are the comp 1.6 rockers pro magnums? What size studs? What guide plates are installed?
What spring package is on them/what height/rate... are they set up for?
Are the comp 1.6 rockers pro magnums? What size studs? What guide plates are installed?
- About 10K miles / 10+ years old
- COMP valve springs #987-16 + new COMP valve locks/shims/retainers
- COMP Pro Magnum 1.6 RR (don't have the part # offhand)
Senior Member
Joined: Mar 2003
Posts: 851
Likes: 3
From: vacaville,ca
Car: 1988 camaro z28,1997 camaro lt1
Engine: 355 afr 195 heads,tpis big mouth
Transmission: 700r-4 built by me 3-4 z pack
Axle/Gears: 3.42
Re: Trick Flow 195 Alum Heads + Springs + 1.6 Rockers
I need to sell my afr heads and get these
Trending Topics
Thread Starter
Joined: May 2001
Posts: 5,244
Likes: 14
From: Sac, CA
Car: '89 GTA
Axle/Gears: 3.27/9-bolt
Re: Trick Flow 195 Alum Heads + Springs + 1.6 Rockers

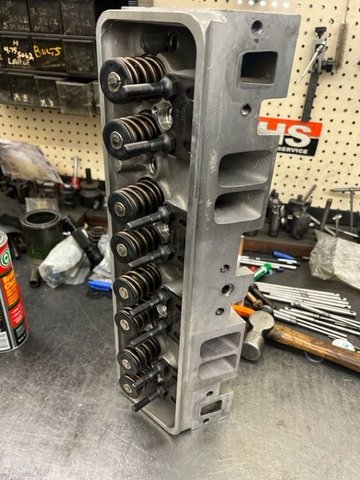

Additional pictures added (as of today)
Few additional details as requested:
Few additional details as requested:
- Springs are 1.840" installed / 130lbs on seat / 345 at 600 lift
- They are clean and machine shop put them through the jet wash
- Vacuum checked and seal great, no valve leak down
- There is 1 ding where I lost a piston couple years ago, but only cosmetic
- 2021 -- COMP guide plates and 3/8 ARP rocker studs
- 2021 - COMP springs, locks and retainers
- 2021 - Guides changed to manganese bronze
- 2021 - 2.02/1.6 black fully nitrated heavy duty valves
Joined: Oct 2001
Posts: 12,229
Likes: 1,156
From: Il
Car: 1989-92 FORMULA350 305 92 Hawkclone
Engine: 4++,350 & 305 CIs
Transmission: 700R4 4800 vig 18th700R4 t56 ZF6 T5
Axle/Gears: 3.70 9"ford alum chunk,dana44,9bolt
Re: Trick Flow 195 Alum Heads + Springs + 1.6 Rockers
That's a nice set of cyl heads!
Junior Member
Joined: Oct 2021
Posts: 6
Likes: 2
From: Dripping Springs, TX
Car: 1992 B4C
Re: Trick Flow 195 Alum Heads + Springs + 1.6 Rockers
FYI, for the price range, these heads are comparable to AFR 1006 and only beat by AFR Street Eliminator (full CNC) heads, which cost a bit more.
