I want to see all kinds of setups



http://www.abrinoperformanceengineer...member%205.jpg


http://www.abrinoperformanceengineer...s/DCP01155.JPG


http://www.abrinoperformanceengineer...s/DCP01140.JPG



wow thats an awesome looking undercarriage!!!



That doesn't look much like the bottom of a thirdgen



Maybe the other project will suffice then.........

click to enlarge











there is more on my site.... Under: A.P.E. / Operation Ralley Stroker....

Enjoy...



Nothing special but here goes...



Sure had me fooled, looks great



looks like one of thes tires need alittle air in it. cool system thoe. wish i had it on my RS!



deadbird - Few questions for ya

1. Did you need a special crossmember for that setup?

2. That passenger pipe clearance looks REAL tight by the panhard bar brace - how does the suspension travel affect it?

3. How long are those mufflers?

Also, did you fab up that yourself, or have a shop do it? I want to try this myself after seeing this and Willie's setup. What kind of bends did you use?



Not mine



]

Marc.. A few answers for ya

1. Honestly, I didn't need a special x-member but, I chose to modify mine to assure I'd have at least or better ground clearance than aftermarket 3" header/y-pipe/exhaust combos. I based front/mid ground clearance off the Edelbrock TES/y-pipe setup I had on the car prior to the Hooker/dual change.
Here's what I did to my x-member to assure max ground clearance...
http://www.deadbird.org/anews/xm02.jpg

2. No matter what angle I take the picture at, it will always look tighter than it really is (added pic below). While it's not as good as the pass side, the drivers side had 2" of clearance at it's tightest point w/about 1" more I can move it up if interference is an issue. The pipe (as appears above) doesn't actully run over the panhard bar but instead, wraps the spring a clears over the outmost point of the panhard mount (the 2" clearance). In all honesty, I laid under the car for a long period of time before deciding that if my suspension compresses suddenly more than 2".. I'm going be worrying about something other than the exhaust rubbing (that would be a hell of a bump).


3. The mufflers are exactly 14½" long and are made by me. I could not find a muffler that fit my location and moderatly low noise tone requiements. They are straight through and here's all they consist of (acoustic dampening fiberglass packing/insulation not shown in pic)..
http://www.deadbird.org/anews/du03.jpg

I cut, fit and welded all of the exhaust (and x-member) myself because I am (try to be anyways) a frugal person. I used 8- 90° bends and 2- 7' lengths of straigh pipe from JCWhitney. Overall (excluding headers), to make my duals, ran just under $150.



Mufflex...............



Another shot.........Race setup.........



Thanks!

Now I REALLY want to attempt this...



Bump

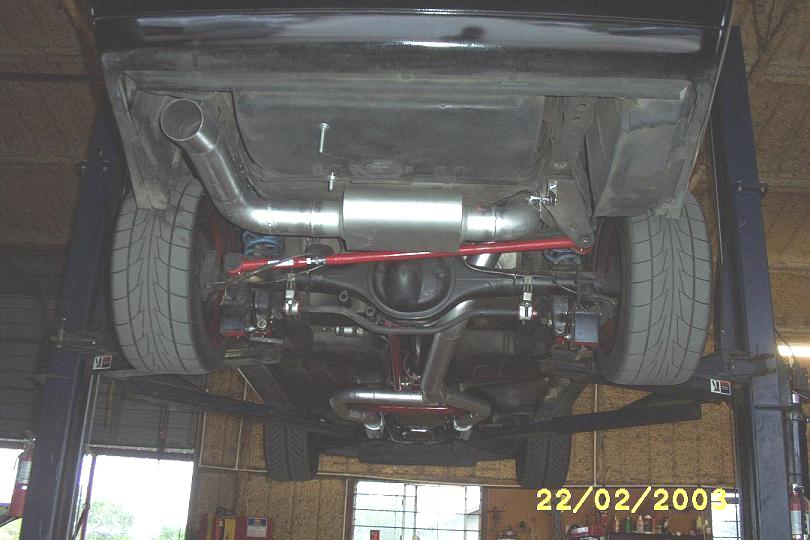

heres mine 2 3inch pipes into one 4inch pipe into a flowmaster
you can see the rest at.
http://datrcom.org





Hooker LT's, 3" pipes into 4" Y collector then back down to 3" Blowmaster exhaust. The y-pipe is dented in for extra clearance under the crossmember... I have not managed to scrape this exhaust on anything



does any have sound clips?



mine has sound clips you can hear them here.
http://www.darcom.org/darcom/darcom/darcom_006.htm



here's my setup, true dual 2" pipes all the way, then flowmaster 40 series dumps.



here's the sound clip for it...


http://www.virtual-underground.com/p...ta_exhaust.wav



new flowmaster kit



not on my car yet..



I'll try to get a sound clip of my car tonight. I've attempted several times but even standing 30+ feet away my crappy digital cameras sound is too sensitive and gets distorted by the "drone" of the Blowmaster



very interested in some more info on your set-up. please send me a PM with as much info as possible.



it has hedman hedders with 3 inch collectors then to 3 inch pipes going around my frame and the spohn torque arm into one 4 inch pipe to one 40 series flowmaster

you can see all about my car at:
http://darcom.org



do you happen to have the part number of those headers? is there anything you would do different if you were to do it agian?



headman hedders part number #68460
this is the best ehaust i have ever had performance wise ,i started out with a stock exhaust witch was a stock 3 inch setup then put a flowmaster,then added edelbroks hedders. then i went with these headman headers with a duel pipes into two dyno max muflers .then to my current setup with is the four inch. every thing incresed with this setup 1/4 mile times and big notice in gas mileage.

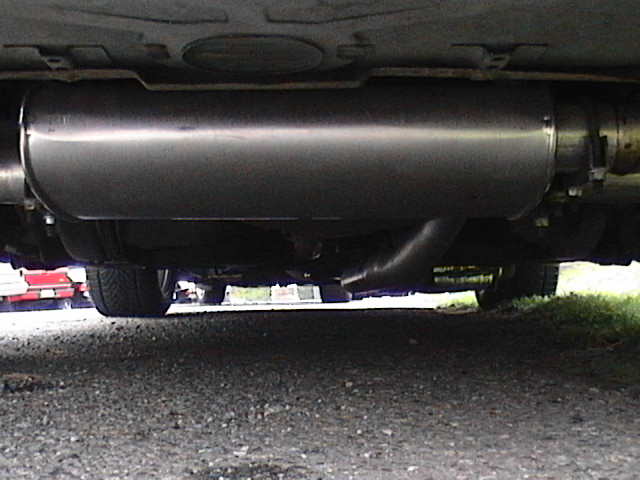

Dynomax 3" setup



Here's my car with the most recent dual setup. I swapped to a T5 though, and couldn't get the header clearance I wanted near the bellhousing so I swapped out the hedman LT's for shorties. The dual setup wouldn't fit at all then, and I wasn't about to do a third dual exhaust setup. I have a 3" hooker cat back minus the cat now



3" duals



I Know it was a bad picture..



crude but effective...



believe it or not it runs faster 1/4`s with the pipes on...



What kind of headers are those?

Justin



greezemonkey's headers are the hooker BBC swap headers


here is some of mine:
http://www.cardomain.com/memberpage/437351/4



yea wish they made them like that for the SBC would make it a lot easier to route the exhaust with the spohn torque arm.

Thanks
Justin



for the guys that have LT headers and a single pipe catback style exhaust, do you make a custom y pipe or does a company sell one that works on our cars??



It would have to be custom.

Justin



mufflex makes a y-pipe to fit the sbc hooker headers, but for the hedmans, your on your own.
