[FL] 3D Printed Parts - Doors
#1
Junior Member
Thread Starter
3D Printed Parts - Doors
Offering up for sale an assortment of 3D Printed parts I had to reverse-engineer to complete my doors. As far as I could tell, these items have been discontinued by GM, without an aftermarket provider. Have stock and can make-to-order pretty quickly. Paypal preferred. Shipping not included in the quoted pricing. Feel free to PM me with any questions or to discuss shipping if you're interested in buying.
GM Part #: 20562754
Description: Window Bushing
Material: ABS, Zinc Plated Steel
Per Car Required: 8 (4x each door)
Price: $3.00/each
GM Part #: 20216825
Description: Front Up Stop
Material: ABS
Per Car Required: 2 (1x each door)
Price: $4.75/each
GM Part #: 20096585
Description: Window Retainer
Material: ABS
Per Car Required: 8 (4x each door)
Price: $1.00/each
GM Part #: 10051002
Description: Rod Retainer
Material: PETG
Per Car Required: 2 (1x each door)
Price: $1.00/each

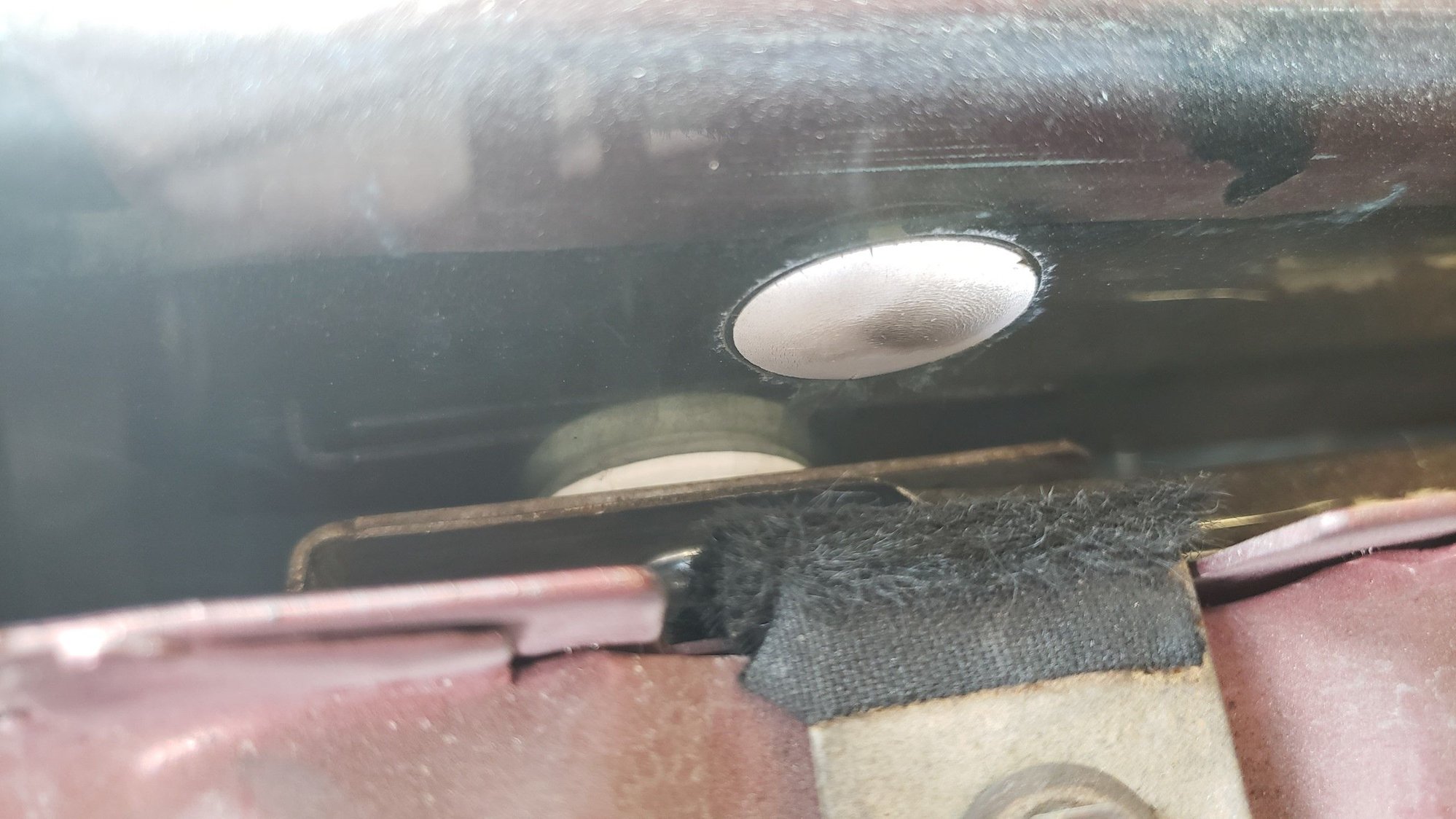

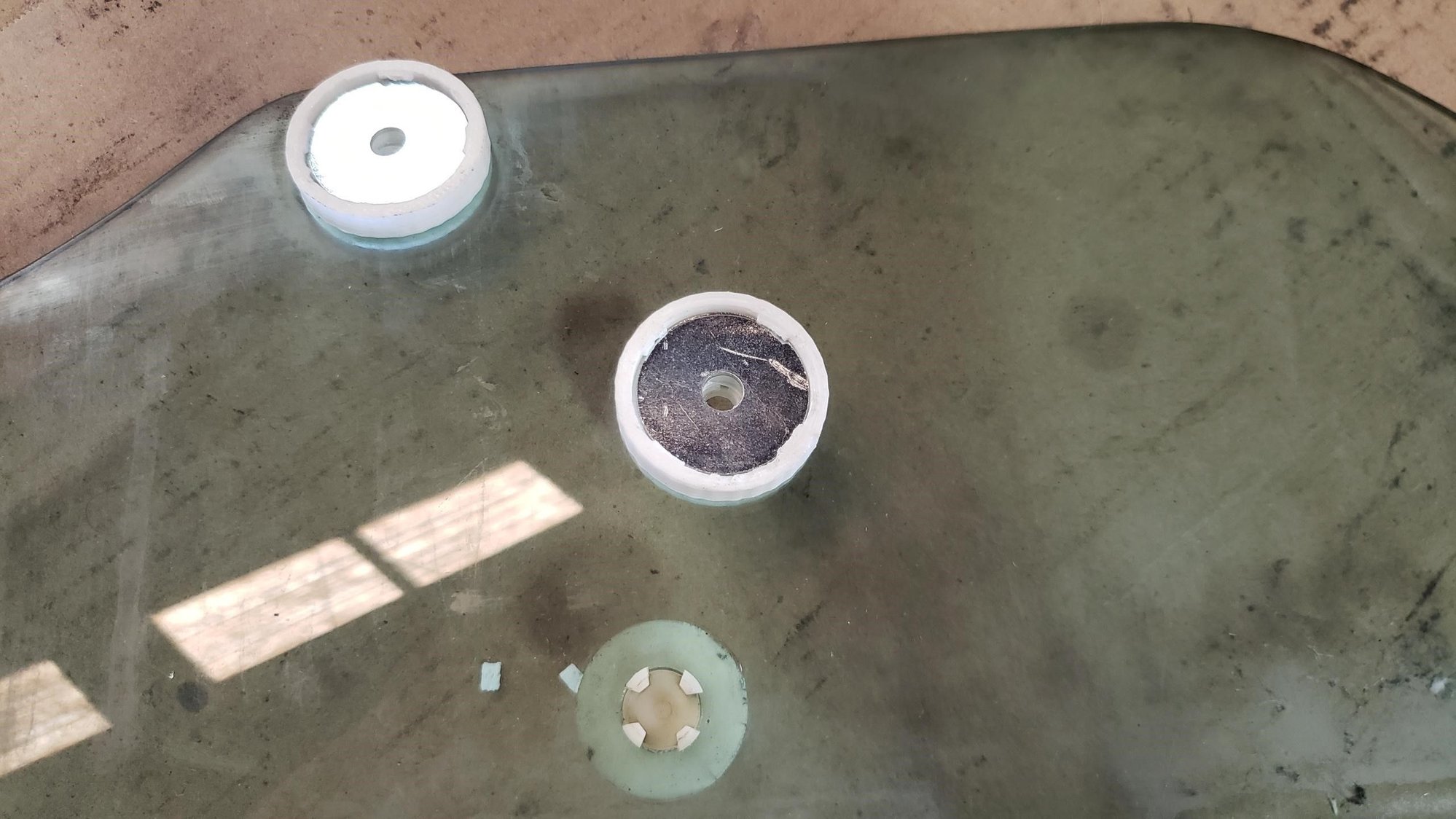

Installed Photos Follow:
GM Part #: 20562754
Description: Window Bushing
Material: ABS, Zinc Plated Steel
Per Car Required: 8 (4x each door)
Price: $3.00/each
Spoiler
GM Part #: 20216825
Description: Front Up Stop
Material: ABS
Per Car Required: 2 (1x each door)
Price: $4.75/each
Spoiler
GM Part #: 20096585
Description: Window Retainer
Material: ABS
Per Car Required: 8 (4x each door)
Price: $1.00/each
Spoiler
GM Part #: 10051002
Description: Rod Retainer
Material: PETG
Per Car Required: 2 (1x each door)
Price: $1.00/each
Spoiler
Installed Photos Follow:
Spoiler
The following 5 users liked this post by MDeRoxtro:
Alexandr_Pant (12-22-2022), Jaysz28 (06-10-2021), LT1/TA (06-11-2021), Saxondale (06-10-2021), scooter (06-09-2021)
#3
Junior Member
Thread Starter
Re: 3D Printed Parts - Doors
Yep, parts would comfortably fit in a small box or padded envelope. Parts are shipping from Mulberry, FL (33860), rates look like:
USPS: $8.45 (small box flat rate, 1-3 business days delivery)
UPS: $9.65 (Ground, 2 business days transit) or $33.25 (Next Day Air)
Fed Ex: $12.65 (Express, ~3 business days), $26.60 (2Day), $72.50 (! Overnight)
Thank you for your interest! Let me know if you need any more info.
USPS: $8.45 (small box flat rate, 1-3 business days delivery)
UPS: $9.65 (Ground, 2 business days transit) or $33.25 (Next Day Air)
Fed Ex: $12.65 (Express, ~3 business days), $26.60 (2Day), $72.50 (! Overnight)
Thank you for your interest! Let me know if you need any more info.
#6
Junior Member
Thread Starter
Re: 3D Printed Parts - Doors
@Benc1 @BOOBYE - Already more interest than I expected to get, lol. I have one complete set ready to ship, and about half of set #2. Should be done printing set #2 later today. Takes about a day for a full set, so I'll keep it rolling. If you want to proceed, feel free to PM, and thank you for your interest.

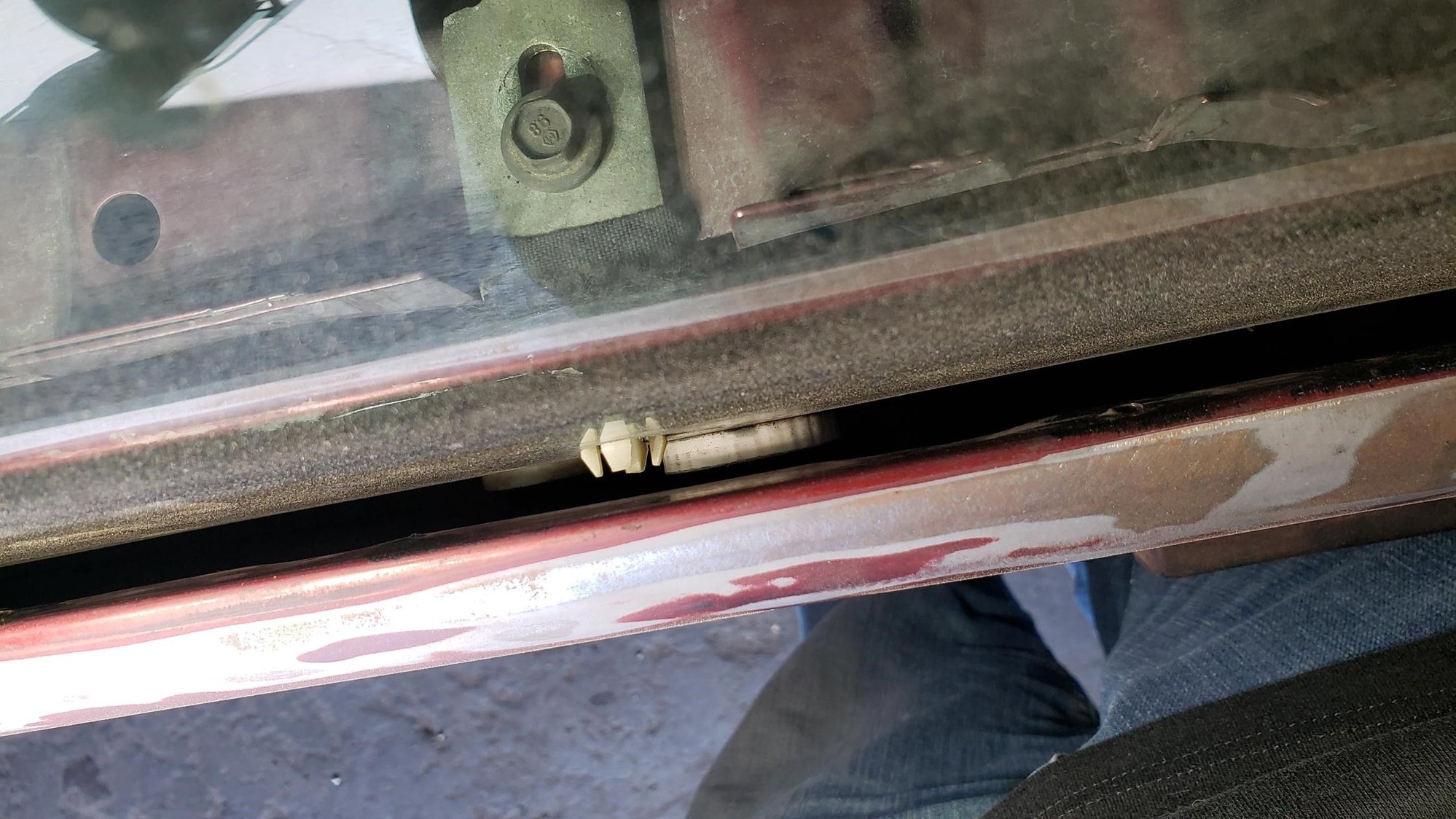

Additional photos of the parts actually secured to the sash channel (factory 1/4" peel rivets) in the door with the window up:
Side note: not sure if anyone needs them, mine didn't need replacing, but I do have the little round guides designed as well. They'd be $0.50/each, but I haven't given them a full test yet:
Additional photos of the parts actually secured to the sash channel (factory 1/4" peel rivets) in the door with the window up:
Spoiler
Side note: not sure if anyone needs them, mine didn't need replacing, but I do have the little round guides designed as well. They'd be $0.50/each, but I haven't given them a full test yet:
Spoiler
#8
Junior Member
Thread Starter
Re: 3D Printed Parts - Doors
First set claimed, PM sent @topduarte . Second set will be done this evening. Thank you!
#12
Junior Member
Thread Starter
Re: 3D Printed Parts - Doors
I'm honored. I'd be happy to sell individual parts - PM sent. If I may ask though, where did you manage to find the up stops? I couldn't find one short of a junkyard. This whole 3D Printing Experiment never would have happened if I located one, lol.
The following users liked this post:
MDeRoxtro (06-15-2021)
#14
Junior Member
Thread Starter
Re: 3D Printed Parts - Doors
Thank you for the kind words, @topduarte ! Couple new sets printed and unclaimed, if anyone else is looking and interested. I made up an installation guide as well (thank you @Abubaca !) - see attached PDF.
#16
Junior Member
Thread Starter
#17
Supreme Member
iTrader: (2)
Join Date: Feb 2005
Location: West Warwick RI, postal code: 02893
Posts: 4,337
Received 55 Likes
on
41 Posts
Car: Building LS3, T56 Z28
Engine: LS3
Transmission: T-56
Axle/Gears: Moser/ 4.11
Re: 3D Printed Parts - Doors
Very cool. May need when I get to that stage of my build.
#19
Junior Member
Thread Starter
Re: 3D Printed Parts - Doors

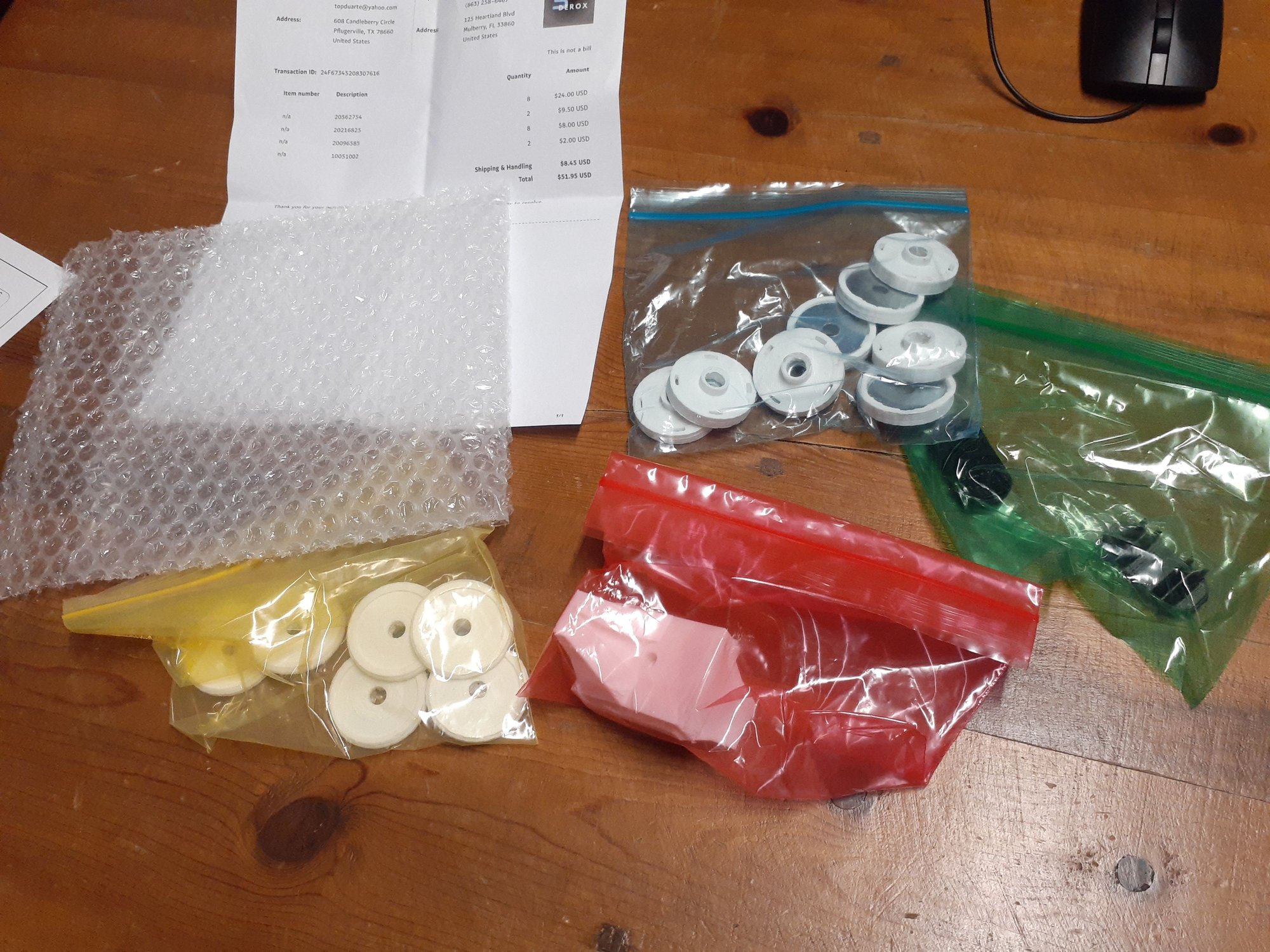

@fishermandude PM sent, thank you! For reference, below is a picture of everything that comes in a complete kit:
Spoiler
#20
Junior Member
iTrader: (3)
Re: 3D Printed Parts - Doors
I will take a complete set. you can send a paypal request to iragibson0@gmail.com
