Turbo Identification
Hey,
Can anyone identify this turbo. It's been in my dad's attic for a while and he said it was from a deseil.
Anyway here are some pics. If you need any views or measurements let me know.
Can anyone identify this turbo. It's been in my dad's attic for a while and he said it was from a deseil.
Anyway here are some pics. If you need any views or measurements let me know.
Trending Topics
Thread Starter
Senior Member
Joined: Oct 2001
Posts: 571
Likes: 0
From: Starkville, MS
Car: 1991 Camaro Z28
Engine: 350
Transmission: 700R4
Originally posted by 83 Crossfire TA

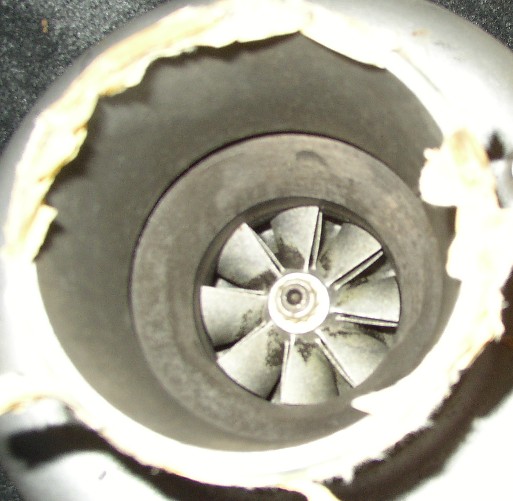

From that angle it could be just about anything... how about some pics of the compressor side?
From that angle it could be just about anything... how about some pics of the compressor side?
Joined: Jun 2001
Posts: 8,028
Likes: 93
From: DC Metro Area
Car: 87TA 87Form 71Mach1 93FleetWB 04Cum
How about from far enough back so you can actually see the housing? Are there any markings on the compressor housing? What are those dimensions from? Useful numbers would be the compressor wheel and turbine wheel diameters, the diameter of the wheel at the inlet on the compressor and the outlet on the turbine are the most useful (accurate numbers, pull the housings off if you have to, the housings make things somewhat deceptive).
From what I’m seeing it looks like some of the oddball turbos used on some of the older mac trucks…
From what I’m seeing it looks like some of the oddball turbos used on some of the older mac trucks…
Joined: Jun 2001
Posts: 8,028
Likes: 93
From: DC Metro Area
Car: 87TA 87Form 71Mach1 93FleetWB 04Cum
What is this groove cut in the inlet? Does it go anywhere? Possibly to a second one at the side of the compressor wheel?
I’ve always wondered what the deal was with some of those housings used on mac trucks and similar turbos… interesting almost looks like it should work like the Holset “map width enhancement” if it connects to a second groove further in.
More details would help… any casting markings on the compressor side or center section?
I’ve always wondered what the deal was with some of those housings used on mac trucks and similar turbos… interesting almost looks like it should work like the Holset “map width enhancement” if it connects to a second groove further in.
More details would help… any casting markings on the compressor side or center section?
Thread Starter
Senior Member
Joined: Oct 2001
Posts: 571
Likes: 0
From: Starkville, MS
Car: 1991 Camaro Z28
Engine: 350
Transmission: 700R4
I took pics of any marks, icons, numbers, etc from the housing. I'm back in MS from Memphis so I won't have any new info till the 15th. After that I'll dissasemble it and get the calipers after it.
Thanks
Thanks
Joined: Jun 2001
Posts: 8,028
Likes: 93
From: DC Metro Area
Car: 87TA 87Form 71Mach1 93FleetWB 04Cum
That’s cool… not trying to be a pain, just that you haven’t really given enough info for anyone to positively identify it yet, and I’m starting to get kind of curious what you actually have there.
Just post here when you get more since it will guarantee that I see it (even if I’m not browsing the forums at the time I’ll get a ‘new reply’ message)
Just post here when you get more since it will guarantee that I see it (even if I’m not browsing the forums at the time I’ll get a ‘new reply’ message)
