Here we go again. 87 Iroc-Z and a Small Turbo.
>>>>>>Since a few people were asking, I'm re upping all the PICS. THIS IS A OLD BUILD. CAR WAS WRECKED<<<<<<
>>>>>>Since a few people were asking, I'm re upping all the PICS. THIS IS A OLD BUILD. CAR WAS WRECKED<<<<<<
>>>>>>Since a few people were asking, I'm re upping all the PICS. THIS IS A OLD BUILD. CAR WAS WRECKED<<<<<<
So finally got motivated to finish this rat trap. Here we go. More pics to follow as i get time. Enjoy
Specs

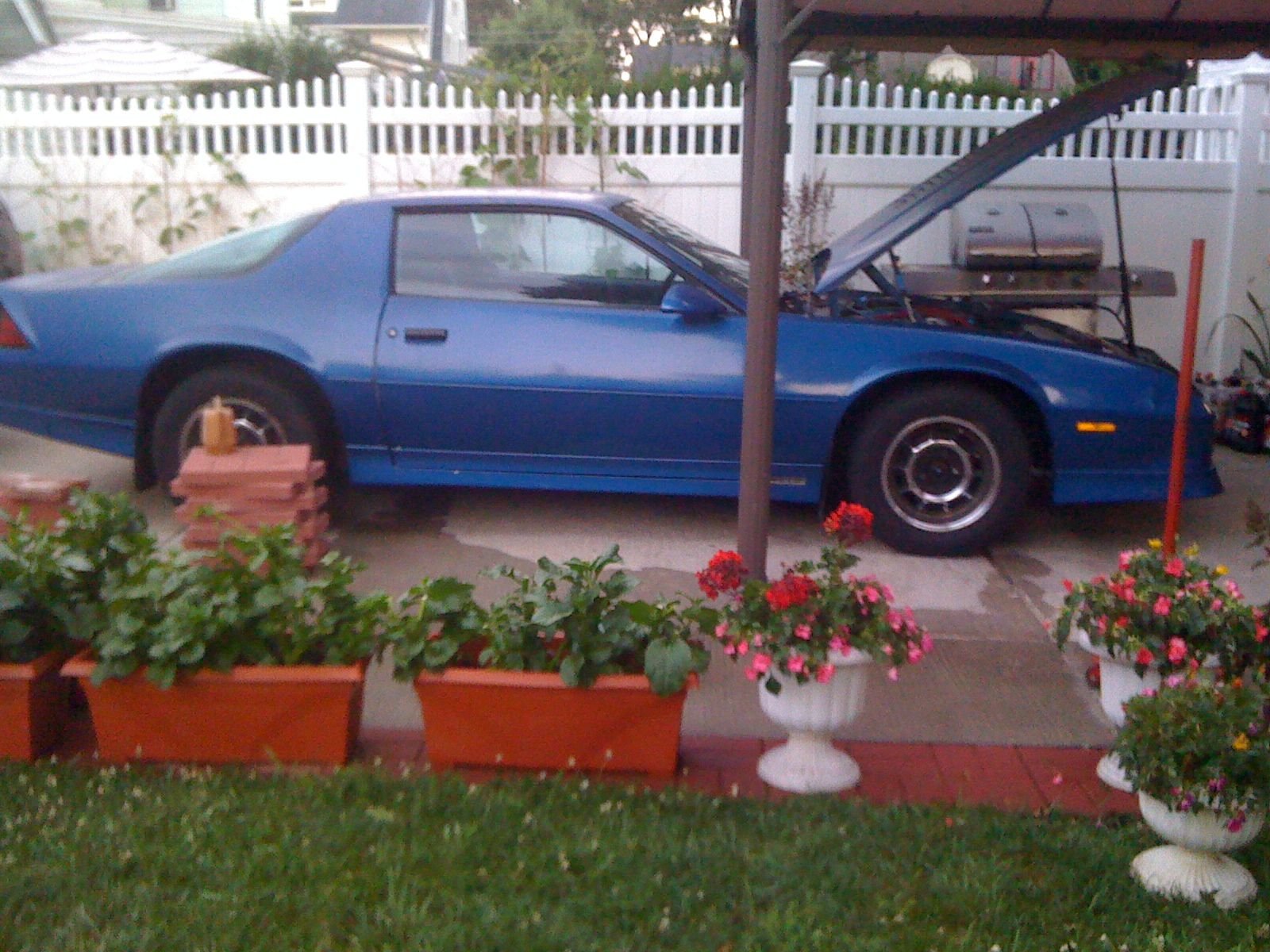

Going on the 305 TPI in my blue pos.
Random T76 Turbo - re-branded china one with a improved compressor back plate. .80 compressor/.81 turbine
Knockoff Tial 46mm Wastegate
Being sent back, Going with the V band mount instead that should have been sent.
Installing a Genuine Tial diaphram after it gets home.
255 lph walbro already installed.
Cold side TBD
1 5/8
2 1/2
4 inch straight and a 2 1/2 straight
From a 4 foot section of 1 5/8 made some chibi collectors. Hope you guys like my wood jig. LOL
>>>>>>Since a few people were asking, I'm re upping all the PICS. THIS IS A OLD BUILD. CAR WAS WRECKED<<<<<<
>>>>>>Since a few people were asking, I'm re upping all the PICS. THIS IS A OLD BUILD. CAR WAS WRECKED<<<<<<
So finally got motivated to finish this rat trap. Here we go. More pics to follow as i get time. Enjoy
Specs
Going on the 305 TPI in my blue pos.
Random T76 Turbo - re-branded china one with a improved compressor back plate. .80 compressor/.81 turbine
Knockoff Tial 46mm Wastegate
Being sent back, Going with the V band mount instead that should have been sent.
Installing a Genuine Tial diaphram after it gets home.
255 lph walbro already installed.
Cold side TBD
1 5/8
2 1/2
4 inch straight and a 2 1/2 straight
From a 4 foot section of 1 5/8 made some chibi collectors. Hope you guys like my wood jig. LOL
Last edited by TwinTurboROC; 12-06-2023 at 09:06 PM.
#2
Senior Member
Thread Starter
Re: Here we go again.
More Cheese and Beef
After the angled cuts
Coming Together
After welding
After smoothing with a file.
And a little 4 inch 180 for exhaust.
After the angled cuts
Coming Together
After welding
After smoothing with a file.
And a little 4 inch 180 for exhaust.
Last edited by TwinTurboROC; 12-06-2023 at 04:06 PM.
#5
Supreme Member
iTrader: (1)
Join Date: Apr 2008
Location: Utah
Posts: 10,401
Likes: 0
Received 2 Likes
on
2 Posts
Car: 89 RS 89 iroc 87 firebird
Engine: 3.1 Turbo/ 355 twin turbo
Transmission: a4 w/ 4500 stall/ a4 / t5
Axle/Gears: strange s60 /w 3:42's
Re: Here we go again. 87 Iroc-Z and a Small Turbo.
nice job on the collectors
just curious would u be willing to sell me 8 or 16 pieces with the cuts on them
just curious would u be willing to sell me 8 or 16 pieces with the cuts on them
#6
Supreme Member
iTrader: (3)
Join Date: Jul 2011
Location: Katy TEXAS (West Houston)
Posts: 1,826
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1992 Camaro RS
Engine: 5.0 TBI L03 V8
Transmission: Rebuilt 700R4 W/ Corvette shift kit
Axle/Gears: 2:73 open
Re: Here we go again. 87 Iroc-Z and a Small Turbo.
Sweet. Nuf said.
Trending Topics
#8
Senior Member
Thread Starter
Re: Here we go again. 87 Iroc-Z and a Small Turbo.
Dave ill see what i can do. I am outa piping atm, and right now im uber busy, but not getting much accomplished. Im finish up the collectors today/tonight and post up some pics later. Was hoping to pull the car apart this weekend and get started on the manifolds but to many car meets this weekend. And with car meets come hot women. So f the car.
Btw, what are your thoughts on studding the head? And yes this motor is staying stock, staying TPI style. I can't wait to spit a rod out the side of the block.
Also, anyone running the new walbro 3950 400lph pump? (pic below) Im waiting to see if i should use that and my current 255 together but the 400 has a Gigantic bottom, and im worried about it not fitting in the tank opening with the 255.
Btw, what are your thoughts on studding the head? And yes this motor is staying stock, staying TPI style. I can't wait to spit a rod out the side of the block.
Also, anyone running the new walbro 3950 400lph pump? (pic below) Im waiting to see if i should use that and my current 255 together but the 400 has a Gigantic bottom, and im worried about it not fitting in the tank opening with the 255.
#9
Supreme Member
iTrader: (1)
Join Date: Apr 2008
Location: Utah
Posts: 10,401
Likes: 0
Received 2 Likes
on
2 Posts
Car: 89 RS 89 iroc 87 firebird
Engine: 3.1 Turbo/ 355 twin turbo
Transmission: a4 w/ 4500 stall/ a4 / t5
Axle/Gears: strange s60 /w 3:42's
Re: Here we go again. 87 Iroc-Z and a Small Turbo.
wow i didnt even relize they made a pump that big yet, i ende dup going with 2 aremotive stealth 340lph pumps
using that walboro with the 255 prolly wont fit int he tank , its hard enough squeezing 2 normal sized pumps in there
head studs wouldnt hurt but they make it a pain int he *** to get the heads on and off in the car if u ever need to replace a head gasket .
if its a stock motor i wouldnt even bother with studs id just go an aditional 5-10FTlbs on the stock bolts
using that walboro with the 255 prolly wont fit int he tank , its hard enough squeezing 2 normal sized pumps in there
head studs wouldnt hurt but they make it a pain int he *** to get the heads on and off in the car if u ever need to replace a head gasket .
if its a stock motor i wouldnt even bother with studs id just go an aditional 5-10FTlbs on the stock bolts
Last edited by project89; 06-15-2012 at 04:23 PM.
#10
Re: Here we go again. 87 Iroc-Z and a Small Turbo.
That 400 is frickin HOT. Can't wait to see how it stacks up to the 340s. Can't wait to see what this build does either. A 76 on a 305 is a ton of head unit, should be able to really lean on that engine and see what it can do!
I hope you're dealing with the "Decent" TPI cam or planning on bumping up. Even with the peanut cam I'd be curious to see how you handled that snail. May surprise me but I'd think it'd be sluggish without some more cam.
I hope you're dealing with the "Decent" TPI cam or planning on bumping up. Even with the peanut cam I'd be curious to see how you handled that snail. May surprise me but I'd think it'd be sluggish without some more cam.
#11
Senior Member
Thread Starter
Re: Here we go again. 87 Iroc-Z and a Small Turbo.
That 400 is frickin HOT. Can't wait to see how it stacks up to the 340s. Can't wait to see what this build does either. A 76 on a 305 is a ton of head unit, should be able to really lean on that engine and see what it can do!
I hope you're dealing with the "Decent" TPI cam or planning on bumping up. Even with the peanut cam I'd be curious to see how you handled that snail. May surprise me but I'd think it'd be sluggish without some more cam.
I hope you're dealing with the "Decent" TPI cam or planning on bumping up. Even with the peanut cam I'd be curious to see how you handled that snail. May surprise me but I'd think it'd be sluggish without some more cam.
As far as the turbo, it "should" spool fast. I went with a smaller housing (.81) so I can take advantage of the TPI system low end. I will probably need to run a LTR or siam runner setup. Thoughts of new valve springs/hydra rev kit are floating around my head. But after a bit of time im gonna push that poor lil 305 to its limits. Honestly i wanna get this thing together so i can do a ground up on my black iroc-z. More pics tomorrow. To tired now to function.
#12
Supreme Member
iTrader: (16)
Re: Here we go again. 87 Iroc-Z and a Small Turbo.
Originally Posted by TwinTurboROC
And yes this motor is staying stock, staying TPI style.
Originally Posted by TwinTurboROC
... anyone running the new walbro 3950 400lph pump? Im waiting to see if i should use that and my current 255 together.
#15
Senior Member
Thread Starter
Re: Here we go again. 87 Iroc-Z and a Small Turbo.
Yeah its ghastly how they are untill you go at them w some porting tools. And even then its just still sad. Until you boost them. Dont look like im gonna get much accomplished today. Top gear UK all day. I got to stop being lazy.
#16
Senior Member
Thread Starter
Re: Here we go again. 87 Iroc-Z and a Small Turbo.
Collectors finished up. The transitions were grounded down a bit.
Last edited by TwinTurboROC; 12-06-2023 at 04:25 PM.
#18
Member
Join Date: Dec 2007
Location: Minnesota
Posts: 475
Likes: 0
Received 2 Likes
on
2 Posts
Car: '88 Iroc
Engine: Single turbo Vortec 5.7, Megasquirt
Transmission: Probuilt 700r4 3000 stall Vigilante
Axle/Gears: Moser 9" 3.25 w/True Trac
Re: Here we go again. 87 Iroc-Z and a Small Turbo.
Those collectors are sweet! Nice job. For the pump setup, I would agree that a 400lph is definitely overkill. But hey, better than not enough. Why add to the 255 you already have when you could just run a 340 or 400 by itself? I have a stealth 340 and it fit and works great for me so far. Can't wait to see the hot side progress.
#19
Re: Here we go again. 87 Iroc-Z and a Small Turbo.
if I had a 400 like that and a set of injs that were big enough to do it I'd skip right to E85. No use playing around in gasoline land.
#20
Senior Member
Thread Starter
Re: Here we go again. 87 Iroc-Z and a Small Turbo.
Draconic, I would do e85, but i hate that you got to go to specific gas stations to get it. Long Island sucks like that. And as of now this is a drive it everywhere car.
Vortec350, I plan on pushing the car ALOT more in the very near future. I may just add another 255 to the mix, but when the 400 is another 40 bucks (as of now), i see no reason why not to run that. I may switch the 255 to boost a pump setup. I'm planning a swing arm to be able to mount the pumps together. Aeromotive... i don't like them anymore. Id rather just dump a Weldon on there. But ill cross that road when it comes. Hot side is done and tacked. Ill upload pics later on this week.
Vortec350, I plan on pushing the car ALOT more in the very near future. I may just add another 255 to the mix, but when the 400 is another 40 bucks (as of now), i see no reason why not to run that. I may switch the 255 to boost a pump setup. I'm planning a swing arm to be able to mount the pumps together. Aeromotive... i don't like them anymore. Id rather just dump a Weldon on there. But ill cross that road when it comes. Hot side is done and tacked. Ill upload pics later on this week.
#21
Senior Member
Thread Starter
Re: Here we go again. 87 Iroc-Z and a Small Turbo.
Don't worry guys, I didn't forget about this. I got a race against one of my buddies in a week or 2, then ill let the cat out of the bag. I just don't want to put everything out there before that.
#23
Senior Member
Thread Starter
Re: Here we go again. 87 Iroc-Z and a Small Turbo.
Ok I got most of the pics of of my phone. More pic to follow as I get time.
Lets start off with a few parts.
So I found out this happened
Had theses laying around. 2 inch summit drop springs.
Had to tie the isolators down
And the stance of the car after the front install. Dropped another half inch to and inch after i rolled it back and forth a few times.
OK now for some parts and goodies.
The correct wastegate (vband mount)
Took it apart to make sure everything is ok. No loose parts or torn diaphrams. Free movement of the piston in its bore etc.
Some super nifty V bands.
Interlocking Flex pipes.
Close up shot of the interlock.
TO ALL TURBO USERS. These are the type of flex pipes you us use BEFORE the turbo. The ones that have double sided steel mesh will eventually burn out if to close to the turbo.
Continuing in the next post.
Lets start off with a few parts.
So I found out this happened
Had theses laying around. 2 inch summit drop springs.
Had to tie the isolators down
And the stance of the car after the front install. Dropped another half inch to and inch after i rolled it back and forth a few times.
OK now for some parts and goodies.
The correct wastegate (vband mount)
Took it apart to make sure everything is ok. No loose parts or torn diaphrams. Free movement of the piston in its bore etc.
Some super nifty V bands.
Interlocking Flex pipes.
Close up shot of the interlock.
TO ALL TURBO USERS. These are the type of flex pipes you us use BEFORE the turbo. The ones that have double sided steel mesh will eventually burn out if to close to the turbo.
Continuing in the next post.
Last edited by TwinTurboROC; 12-06-2023 at 04:35 PM.
#24
Senior Member
Thread Starter
Re: Here we go again. 87 Iroc-Z and a Small Turbo.
OK now on to the manifolds. Remember boys and girls trying to keep my A/C and not make my life miserable with plugs and bolts etc. I don't want a headache build. (as if)
And here are the header flanges. Super warped so i flattned them a bit before starting.
Color in the side with a little black sharpie, and file or grind untill you see metal, rinse lather and repeat. Belt sanders also work wonders here.
And so it begins. Setting up the forward facing side first. Top down view. Started with cylinder 4 first.
Shot from the battery tray area looking back
I then pulled it off the car and started to build up tubes, and test fit as I went along.
View from a more flatter angle so you guys can see the path its going.
Number 6 mocked up and ready to roll.
Notice the crazy angle just to avoid the spark plug for number 4
Another shot
Another
And the payoff
And here are the header flanges. Super warped so i flattned them a bit before starting.
Color in the side with a little black sharpie, and file or grind untill you see metal, rinse lather and repeat. Belt sanders also work wonders here.
And so it begins. Setting up the forward facing side first. Top down view. Started with cylinder 4 first.
Shot from the battery tray area looking back
I then pulled it off the car and started to build up tubes, and test fit as I went along.
View from a more flatter angle so you guys can see the path its going.
Number 6 mocked up and ready to roll.
Notice the crazy angle just to avoid the spark plug for number 4
Another shot
Another
And the payoff
Last edited by TwinTurboROC; 12-07-2023 at 04:53 PM.
#25
Senior Member
Thread Starter
Re: Here we go again. 87 Iroc-Z and a Small Turbo.
So now on to the other nighmares. This was a horror show because of how many things that have to be avoided, while keeping space, while keeping flow... if u wanna call it that.
Cylinder 8 mockup.
Notice the kick back before it starts coming forward.
It's like a jig saw puzzle!!
All mocked up.
Once again another test fit. Looking good so far.
Ok time for cylinder 2 - starting out
Now for that awesome bend
Here comes the pies
All mocked up
Cylinder 8 mockup.
Notice the kick back before it starts coming forward.
It's like a jig saw puzzle!!
All mocked up.
Once again another test fit. Looking good so far.
Ok time for cylinder 2 - starting out
Now for that awesome bend
Here comes the pies
All mocked up
Last edited by TwinTurboROC; 12-07-2023 at 05:01 PM.
#26
Senior Member
Thread Starter
Re: Here we go again. 87 Iroc-Z and a Small Turbo.
Continuing
Here's a shot to show some of the angles needed to "hopefully clear" things.
Passenger side all burnt together - what a pain in the a
MADNESS - hate it or love it?
Another shot - Notice my little red circle in the bottom... looks like i missed a spot to weld.
Clearance with the pass side strut tower brace. IT HAS ABOUT 1/2 inch of clearance, I just couldn't hold the header to the block and take the pic at the same time.
Front 2 plugs. Number 4 has a good amount of space... enough i could run it with just the wire alone, but im put shields on them just in case.
Rear 2 plugs and the stock Head CT switch. The flange pulled a little on this side so im have to re grind it, but i expected as much with the amount of heat I was putting into it.
No space at all.
WAIT A SEC!!!! hopefully I can smuggle a 3.5 inch down pipe here.
Here's a shot to show some of the angles needed to "hopefully clear" things.
Passenger side all burnt together - what a pain in the a
MADNESS - hate it or love it?
Another shot - Notice my little red circle in the bottom... looks like i missed a spot to weld.
Clearance with the pass side strut tower brace. IT HAS ABOUT 1/2 inch of clearance, I just couldn't hold the header to the block and take the pic at the same time.
Front 2 plugs. Number 4 has a good amount of space... enough i could run it with just the wire alone, but im put shields on them just in case.
Rear 2 plugs and the stock Head CT switch. The flange pulled a little on this side so im have to re grind it, but i expected as much with the amount of heat I was putting into it.
No space at all.
WAIT A SEC!!!! hopefully I can smuggle a 3.5 inch down pipe here.
Last edited by TwinTurboROC; 12-07-2023 at 05:07 PM.
#27
Senior Member
Thread Starter
Re: Here we go again. 87 Iroc-Z and a Small Turbo.
And here we go on what I though was gonna be the EASY side. Yeah lol roflcopter. IDK how this managed to turn into a bigger project than anything else.
Setting up tube 7 and the angle and depth.
Brought in cylinder 3 - shots a little blurry but you get the idea.
Semi welded up - Had to do it to see what kind of pulling was gonna happen.
Harsh angles but it had to clear things.
Quick mock up - looks good.
Time for cylinder 7 to get a home.
Another showing a bit of pipe to pipe clearance.
Setting up tube 7 and the angle and depth.
Brought in cylinder 3 - shots a little blurry but you get the idea.
Semi welded up - Had to do it to see what kind of pulling was gonna happen.
Harsh angles but it had to clear things.
Quick mock up - looks good.
Time for cylinder 7 to get a home.
Another showing a bit of pipe to pipe clearance.
Last edited by TwinTurboROC; 09-05-2013 at 03:42 PM.
#28
Senior Member
Thread Starter
Re: Here we go again. 87 Iroc-Z and a Small Turbo.
Moving on
I had to re-make tube 7 because it was to close to the number 5 spark plug for my taste. Here is the before, showing the straight entry into the collector. I cut it off and made a much sharper Y entrance into the collector.
Here's a shot showing tube 1 mocked up (not finished) and the middle welded up, and also you can see the modified tube 7. I had to make this tube about 3 times before i got it to where i like it. Remember I am keeping my stock AC and Needed to RE USE the bracket that supports the AC and power steering. It bolts to the exhaust housing so its a big PITA.
Another shot of tube 1 showing the exit out of the head.
This is a top down view.
All welded up
Notice the sharp cutback towards the block as its going down to the collector
Another from the bottom.
And a lil' close up
Hope your enjoying the horror show so far.
I had to re-make tube 7 because it was to close to the number 5 spark plug for my taste. Here is the before, showing the straight entry into the collector. I cut it off and made a much sharper Y entrance into the collector.
Here's a shot showing tube 1 mocked up (not finished) and the middle welded up, and also you can see the modified tube 7. I had to make this tube about 3 times before i got it to where i like it. Remember I am keeping my stock AC and Needed to RE USE the bracket that supports the AC and power steering. It bolts to the exhaust housing so its a big PITA.
Another shot of tube 1 showing the exit out of the head.
This is a top down view.
All welded up
Notice the sharp cutback towards the block as its going down to the collector
Another from the bottom.
And a lil' close up
Hope your enjoying the horror show so far.
Last edited by TwinTurboROC; 09-05-2013 at 03:49 PM.
#29
Senior Member
Thread Starter
Re: Here we go again. 87 Iroc-Z and a Small Turbo.
I always wonder why I even bother sometimes with the PITA projects.
BTW both headers can be installed and removed without major removal of components. Only spark plug wires and associated V bands. (I also pull the number 3 and 5 plugs because I cave dave install parts, or in short I broke **** installing the header once...LOL)
Both side headers all done. I FEEL HAPPY!!!
Waste gate with some light one it
I can't get over how such a nice knock off this is.
The valve head
Drivers header post collector and V band tacked up (still clears and installs easily) I trimmed the collector and added another bend to it to give me all the clearance I wanted.
Cross over time
Another
OMG TOOLS!!!!! just a lil shot of the 4x6 doing some work.
Oh half way through the build I realized i had enough room DIRECTLY under my passenger side header to run my cross over. But i ended up running it next to the oil pan like i originally planned.
OK also im tired and its like 5 in the morning and I hate cars. More pics to come when I get time to come on the forums for a few hours.
BTW both headers can be installed and removed without major removal of components. Only spark plug wires and associated V bands. (I also pull the number 3 and 5 plugs because I cave dave install parts, or in short I broke **** installing the header once...LOL)
Both side headers all done. I FEEL HAPPY!!!
Waste gate with some light one it
I can't get over how such a nice knock off this is.
The valve head
Drivers header post collector and V band tacked up (still clears and installs easily) I trimmed the collector and added another bend to it to give me all the clearance I wanted.
Cross over time
Another
OMG TOOLS!!!!! just a lil shot of the 4x6 doing some work.
Oh half way through the build I realized i had enough room DIRECTLY under my passenger side header to run my cross over. But i ended up running it next to the oil pan like i originally planned.
OK also im tired and its like 5 in the morning and I hate cars. More pics to come when I get time to come on the forums for a few hours.
Last edited by TwinTurboROC; 09-05-2013 at 03:52 PM.
#32
Member
Re: Here we go again. 87 Iroc-Z and a Small Turbo.
Good work on all those welds! Can't wait to see them all ground down and pretty looking!
#33
Senior Member
Thread Starter
Re: Here we go again. 87 Iroc-Z and a Small Turbo.
Im not gonna grind them down. The entire system is getting wrapped, so only some hi temp pain, wrap, and more paint. Thats why I decided to do almost everything with flux.
#34
Member
Re: Here we go again. 87 Iroc-Z and a Small Turbo.
Gotcha, solid work nonetheless
#35
Supreme Member
iTrader: (1)
Join Date: Apr 2008
Location: Utah
Posts: 10,401
Likes: 0
Received 2 Likes
on
2 Posts
Car: 89 RS 89 iroc 87 firebird
Engine: 3.1 Turbo/ 355 twin turbo
Transmission: a4 w/ 4500 stall/ a4 / t5
Axle/Gears: strange s60 /w 3:42's
Re: Here we go again. 87 Iroc-Z and a Small Turbo.
#36
Senior Member
Thread Starter
Re: Here we go again. 87 Iroc-Z and a Small Turbo.
Hahah. Stop tempting me!! But The this whole project is based around keeping the A/C system, Having access to spark plugs, ease of pulling things on and off the car (hence the v bands) and trying to get the maximum amount of power out of that design while being inexpensive. I have more money in V bands than anything else... cept the turbo.
Im only 1000 $ into the project. Got another $300 to finish it up where its street drivable. Then maybe another 500$ in tuning and injectors. (well another 300 for a boost controller and AEM AFR) I admit though some people who have seen the manifolds like them and keep saying keep them out in the open, but honestly I never intended have them visible.
Im only 1000 $ into the project. Got another $300 to finish it up where its street drivable. Then maybe another 500$ in tuning and injectors. (well another 300 for a boost controller and AEM AFR) I admit though some people who have seen the manifolds like them and keep saying keep them out in the open, but honestly I never intended have them visible.
#37
Supreme Member
iTrader: (1)
Join Date: Apr 2008
Location: Utah
Posts: 10,401
Likes: 0
Received 2 Likes
on
2 Posts
Car: 89 RS 89 iroc 87 firebird
Engine: 3.1 Turbo/ 355 twin turbo
Transmission: a4 w/ 4500 stall/ a4 / t5
Axle/Gears: strange s60 /w 3:42's
Re: Here we go again. 87 Iroc-Z and a Small Turbo.
ill have to tempt u just a lil more cause those would look very very nice coated and not wraped once the welds are cleaned up.
not sure what car ur putting those in but i see u have a black and a blue one in ur sig pic.
they make a turbo black coating, they also make a turbo blue coating, so u could have them match the car
not sure what car ur putting those in but i see u have a black and a blue one in ur sig pic.
they make a turbo black coating, they also make a turbo blue coating, so u could have them match the car
#38
Senior Member
Thread Starter
Re: Here we go again. 87 Iroc-Z and a Small Turbo.
Haha, if you read the first post its for the blue car
I was thinking about hitting it w some hit temp aluminized and heat cycling it a few times if im not gonna wrap it. I could care less about the colored coatings. Im a fan of polished things...and Chrome. Oh and anodized things.
I was thinking about hitting it w some hit temp aluminized and heat cycling it a few times if im not gonna wrap it. I could care less about the colored coatings. Im a fan of polished things...and Chrome. Oh and anodized things.
#39
Supreme Member
iTrader: (1)
Join Date: Apr 2008
Location: Utah
Posts: 10,401
Likes: 0
Received 2 Likes
on
2 Posts
Car: 89 RS 89 iroc 87 firebird
Engine: 3.1 Turbo/ 355 twin turbo
Transmission: a4 w/ 4500 stall/ a4 / t5
Axle/Gears: strange s60 /w 3:42's
Re: Here we go again. 87 Iroc-Z and a Small Turbo.
Haha, if you read the first post its for the blue car
I was thinking about hitting it w some hit temp aluminized and heat cycling it a few times if im not gonna wrap it. I could care less about the colored coatings. Im a fan of polished things...and Chrome. Oh and anodized things.
I was thinking about hitting it w some hit temp aluminized and heat cycling it a few times if im not gonna wrap it. I could care less about the colored coatings. Im a fan of polished things...and Chrome. Oh and anodized things.
i just think those would look way to nice all ground and smoothed out to hide under wrap .
when i built a sheetmetal intake for my v6 car everyone told me not to paint it or clear coat it and it looked badass. i didnt listen and painted it, it looked so much better bare aluminum
#40
Senior Member
Thread Starter
Re: Here we go again. 87 Iroc-Z and a Small Turbo.
well remember this is all just BS mild steel. If it was Stainless I would consider it alot more... I still dont know yet. meh.
#42
Senior Member
Thread Starter
Re: Here we go again. 87 Iroc-Z and a Small Turbo.
Yep. Everything was together for a quick test. Took everything apart for some cleanup and paint. My god that **** spooled faster than I expected. Still got to fab up spacers for the ac bracket. I just started a new job so I don't got much time to upload
Pics and write things. As it stands I haven't touched a computer for a week and a half straight. And my pos iPhone doesn't like to upload pics at all. I still have to order a bov, injectors and an ostrich. Oh yeah and I should get my own wideband to. Sad part is after about a week after that its comming apart for some header wrap and heat shielding. I still have some odds and ends to build like a heat shield for the starter and just regular operational ****. It gets toasty under the hood ATM so I have to also get a turbo blanket. But before any of that I got a mini diy brake bend rig (sheet metal bender I want to build. But as usual no time. I'll try to do a small update this weekend. Till then love peace and chicken grease.
Pics and write things. As it stands I haven't touched a computer for a week and a half straight. And my pos iPhone doesn't like to upload pics at all. I still have to order a bov, injectors and an ostrich. Oh yeah and I should get my own wideband to. Sad part is after about a week after that its comming apart for some header wrap and heat shielding. I still have some odds and ends to build like a heat shield for the starter and just regular operational ****. It gets toasty under the hood ATM so I have to also get a turbo blanket. But before any of that I got a mini diy brake bend rig (sheet metal bender I want to build. But as usual no time. I'll try to do a small update this weekend. Till then love peace and chicken grease.
#43
Supreme Member
iTrader: (33)
Join Date: Jul 2000
Location: Boosted Land
Posts: 5,945
Likes: 0
Received 1 Like
on
1 Post
Car: 92 Z28
Engine: Boosted LSX
Re: Here we go again. 87 Iroc-Z and a Small Turbo.
Nice. Looks good. I remember how much a PITA the D.side was to make when I did a build from scratch.
As others said DONT wrap em. Ceramic coat the headers. You can even do them yourself.
Get a 8oz bottle of silver and a 8oz Bottle of Turbo Black from NIC indistries. They even make air dry that will cure on 1st heat cycle.
As others said DONT wrap em. Ceramic coat the headers. You can even do them yourself.
Get a 8oz bottle of silver and a 8oz Bottle of Turbo Black from NIC indistries. They even make air dry that will cure on 1st heat cycle.
#45
Senior Member
Join Date: Aug 2009
Location: greenfield indiana
Posts: 913
Likes: 0
Received 2 Likes
on
2 Posts
Car: 86' IROC-Z....and 5 other 3rdgens
Engine: 383 hsr
Transmission: built 700r4
Axle/Gears: stock 3.23, 10bolt
Re: Here we go again. 87 Iroc-Z and a Small Turbo.
i dont see any of the pics......did he delete them? or is it this computer lol
#47
Supreme Member
iTrader: (5)
Join Date: Jan 2001
Location: Evansville,IN,USA
Posts: 2,025
Likes: 0
Received 1 Like
on
1 Post
Car: 89' T/A, 00' Firehawk
Engine: 406 Roller
Transmission: TH700R4 w/2800 stall
Axle/Gears: 3.23 Posi
Re: Here we go again. 87 Iroc-Z and a Small Turbo.
Looking great. I am seriously considering turbo'ing my 89 T/A.
One question, how in the heck did you make the headers. I mean the bends and cutting. This is something I have always wanted to do but have been to scared to do it.
One question, how in the heck did you make the headers. I mean the bends and cutting. This is something I have always wanted to do but have been to scared to do it.
#48
Supreme Member
iTrader: (16)
Re: Here we go again. 87 Iroc-Z and a Small Turbo.
Originally Posted by LilJayV10
One question, how in the heck did you make the headers. I mean the bends and cutting. This is something I have always wanted to do but have been to scared to do it...
#49
Supreme Member
iTrader: (5)
Join Date: Jan 2001
Location: Evansville,IN,USA
Posts: 2,025
Likes: 0
Received 1 Like
on
1 Post
Car: 89' T/A, 00' Firehawk
Engine: 406 Roller
Transmission: TH700R4 w/2800 stall
Axle/Gears: 3.23 Posi
Re: Here we go again. 87 Iroc-Z and a Small Turbo.
I guess its one of those things you just have to start messing with till you figure out how it works. How are you cutting such short sections of the pipe, with the stationary band saw you post a pic of?
#50
Supreme Member
iTrader: (2)
Join Date: Jan 2001
Location: Tampa, FL, USA
Posts: 4,149
Likes: 0
Received 2 Likes
on
2 Posts
Car: 93 240SX
Engine: LQ9
Transmission: T56
Axle/Gears: 3.54 R200 IRS
Re: Here we go again. 87 Iroc-Z and a Small Turbo.
If you dont have an adjustability for angle on the saw you're using, you can make a plate that holds things at the correct angle, makes for easy duplication of cuts on making things like merge collectors.
Though for the majority of the header pipes you'd be a lot better off getting a header cut-to-fit kit and then working with that, then if you REALLY have to, do the pie cuts.
Then instead of something like this:
http://i239.photobucket.com/albums/f...x/EPSN4936.jpg
You make something more like this:
http://i239.photobucket.com/albums/f...x/DSCN0998.jpg
http://i239.photobucket.com/albums/f...x/DSCN0997.jpg
