Bad crack in frame around steering box
#1
Junior Member
Thread Starter
Join Date: Mar 2010
Location: California
Posts: 29
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1992 Z28
Engine: 5.7
Transmission: Automatic
Axle/Gears: 3.23
Bad crack in frame around steering box
I got some bad news today and I wanted a second opinion from the guys in this forum. I have a 1992 Z28 and my frame has cracked (again) around the steering box. The cracking is pretty bad. I drove my car to a local welder who looked at the crack and said there was really nothing he could do. The guy I spoke to said I would be putting good money after bad if I attempted to fix it.
I've already had this crack repaired years ago and it has occurred again. I believe the last time the car was repaired the guy had to weld in another section of frame. Way expensive!! I am unsure how to post pics but I would like to if someone can help me out.
Feedback welcomed. Way too late for a "wonderbar" at this point.
Rick
I've already had this crack repaired years ago and it has occurred again. I believe the last time the car was repaired the guy had to weld in another section of frame. Way expensive!! I am unsure how to post pics but I would like to if someone can help me out.
Feedback welcomed. Way too late for a "wonderbar" at this point.
Rick
#2
Supreme Member
iTrader: (8)
Join Date: Jul 2001
Location: New Boston, IL, USA
Posts: 3,204
Likes: 0
Received 6 Likes
on
6 Posts
Car: '90 Formula 350
Engine: 383 SBC
Transmission: ProBuilt S/S 700-R4 & ACT 9" Stall
Axle/Gears: 10 bolt 3.23
Re: Bad crack in frame around steering box
I've never had to weld a sub frame, but like anything it's always good to other opinions. You might be able to get it to a local collision shop for an estimate. They should surely have seen similar damage before and let you know.
Anything can be saved with enough time and money dumped into it. Usually once you get a major issue though like a roof needing to be reskinned after roll over or other major accidents most people will steer you towards getting a 2nd clean pristine car to swap over any parts you want to keep. That's just more logical for major fixes.
There are 2 ways of posting pictures. Go into the advanced post settings and use the paper clip to upload a file or use the little picture with mountains on it to link it from a URL.
Anything can be saved with enough time and money dumped into it. Usually once you get a major issue though like a roof needing to be reskinned after roll over or other major accidents most people will steer you towards getting a 2nd clean pristine car to swap over any parts you want to keep. That's just more logical for major fixes.
There are 2 ways of posting pictures. Go into the advanced post settings and use the paper clip to upload a file or use the little picture with mountains on it to link it from a URL.
#3
Junior Member
Thread Starter
Join Date: Mar 2010
Location: California
Posts: 29
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1992 Z28
Engine: 5.7
Transmission: Automatic
Axle/Gears: 3.23
Re: Bad crack in frame around steering box

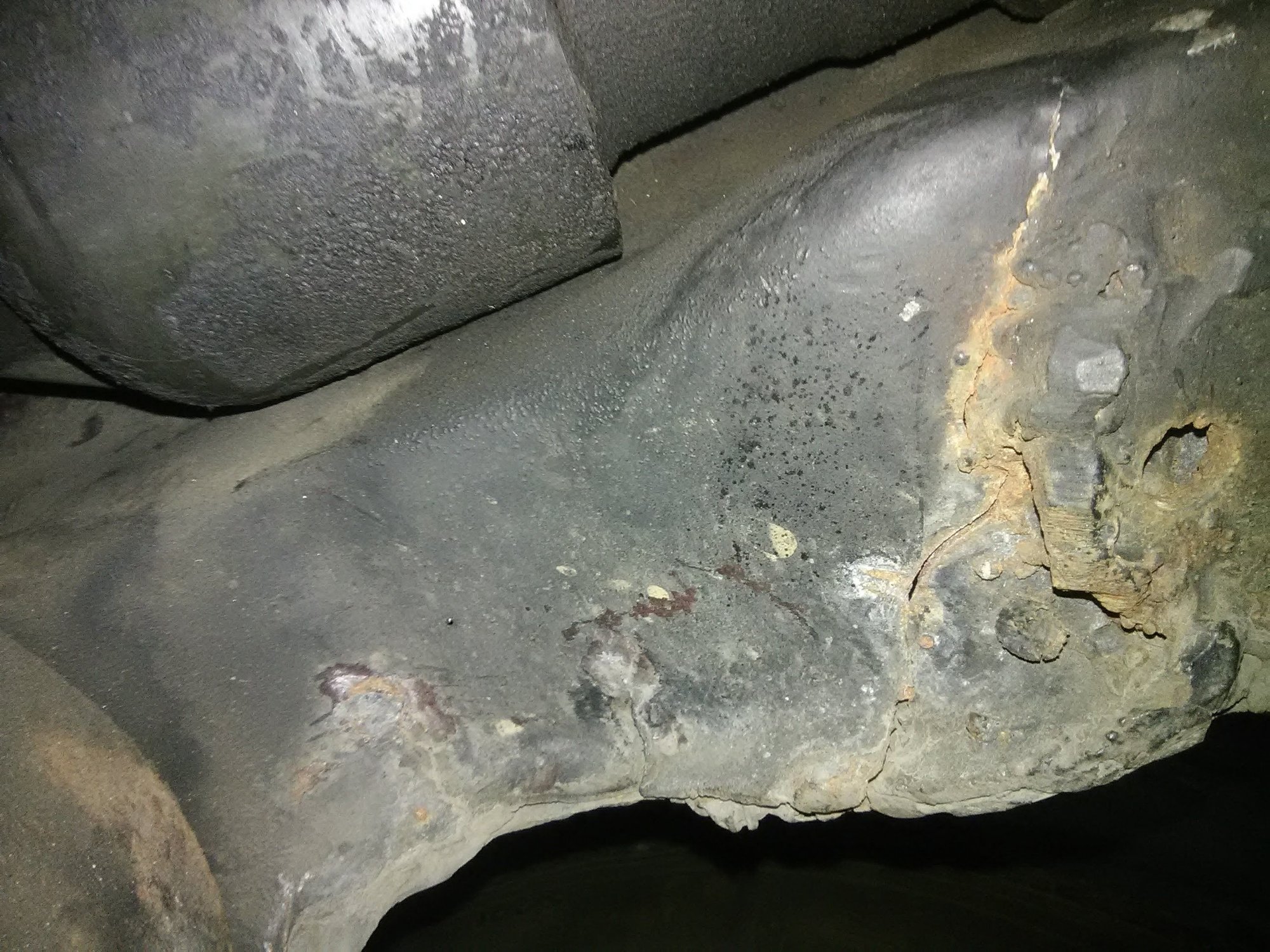

Note sure if this will work. Here a picture of my cracked frame and my Camaro.
