coil mounting bracket intake installation
I am re-installing the intake on the motor, doesn't the coil braket go in the rear passenger 2 intake bolt holes? I don't want to install and torque the manifold and then have to back the rear two bolts out to install the coil mounting bracket. -J
#3
Senior Member
Thread Starter
iTrader: (3)
Join Date: Jul 1999
Location: Long Island, NY
Posts: 844
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1987 GTA
Engine: 645hp/656 ft lb Blown 383
Transmission: 700-R4 3,000 stall
Axle/Gears: 3.55 moser 12-bolt
someone said that there is another braket that goes there too, like a vaccum type bracket that goes under the coil braket. Is that accurate or is it just the coil? anyone have a pic. i have a 87 GTA if that makes any diffreence. thanks -Justin
#4
Senior Member
Join Date: Oct 2001
Location: Starkville, MS
Posts: 571
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1991 Camaro Z28
Engine: 350
Transmission: 700R4
Yes, that's accurate. I guess you could say there are 3 parts. The top part of the bracket is attached to the coil. Then there is the lower part of the bracket that bolts to the intake manifold. This other piece gets sandwitched inbetween the top and bottom brackets.
I'll see if I can find a pic of it.
I'll see if I can find a pic of it.
#5
Senior Member
Thread Starter
iTrader: (3)
Join Date: Jul 1999
Location: Long Island, NY
Posts: 844
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1987 GTA
Engine: 645hp/656 ft lb Blown 383
Transmission: 700-R4 3,000 stall
Axle/Gears: 3.55 moser 12-bolt
yeajh please....I'd like to bolt this thing together, but no untuill i knwo what goes there, cause i don't want to remove the bolts once they are in, since they get torqued in sequence. thanks -J
#6
Supreme Member
Join Date: Feb 2005
Location: Ajax, ON
Posts: 1,054
Likes: 0
Received 1 Like
on
1 Post
Car: 85Z28 87GTA 91GTA 98SS
Engine: SBC, LS-x
Transmission: T-5, 700-R4, T-56
The coil bracket doesn't attach to the bolts that hold the intake onto the engine. It uses small bolts, think they are 10 or 11 mm that go into the intake just a little to the right and foreward of the distrubuter.
#7
Senior Member
Thread Starter
iTrader: (3)
Join Date: Jul 1999
Location: Long Island, NY
Posts: 844
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1987 GTA
Engine: 645hp/656 ft lb Blown 383
Transmission: 700-R4 3,000 stall
Axle/Gears: 3.55 moser 12-bolt
are you sure? cause I had my the two rear intake bolts marked like the also attached the bracket. Someone else said it goes there too. I don't have the 2 small bolts that you are talking about either, unless i lost them....I would make sense though, that it doesn't attach via the intake bolts...but then again what does GM do that makes sence ....anyone have pics? thanks J
Trending Topics
#9
I didn't have that bracket when I did my TPI conversion so I had to fabricate one. Makes it harder to reach the Dist hold down bolt though. The solenoid in the middle is for the EGR. I think HalfInchWrench is talking about non-TPI coil mounting. That pic sure would have helped out when I was trying to figure out how to mount the coil.
#10
Supreme Member
Join Date: Feb 2005
Location: Ajax, ON
Posts: 1,054
Likes: 0
Received 1 Like
on
1 Post
Car: 85Z28 87GTA 91GTA 98SS
Engine: SBC, LS-x
Transmission: T-5, 700-R4, T-56
I just repaced my TPI coil about a week and a half ago. I had to remove the bracket and drill out the rivits holding the origional coil. Could swear they were not the intake hold down bolts. I'd go take a pic but it's raining outside.

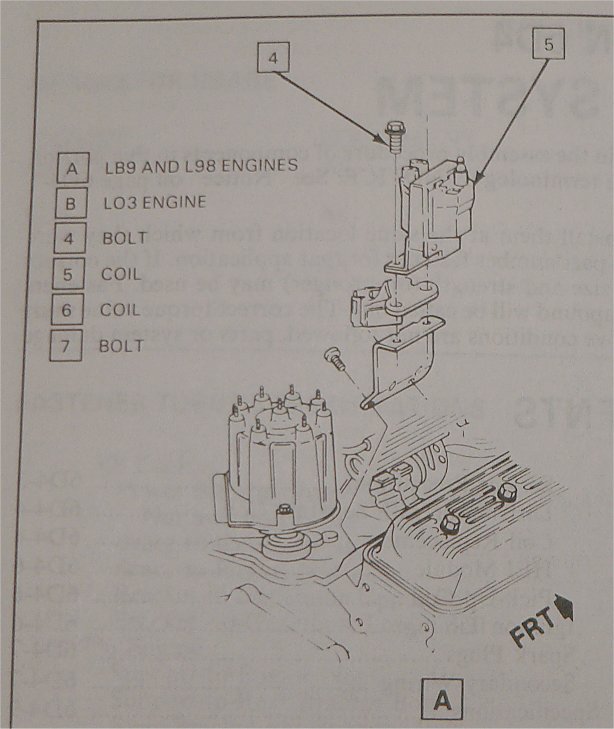

My bolts were straight down, not angled like in the diagram that is posted.
My bolts were straight down, not angled like in the diagram that is posted.
#11
Did yours look like the pic? I made one that looks like that, well, sort of... Does your car have pretty good access to the hold down bolt? I'd like to see it when you get a chance. I remember drilling the rivets on my 4th gen's coil (LT1) to replace the coil too.
#12
Supreme Member
Join Date: Feb 2005
Location: Ajax, ON
Posts: 1,054
Likes: 0
Received 1 Like
on
1 Post
Car: 85Z28 87GTA 91GTA 98SS
Engine: SBC, LS-x
Transmission: T-5, 700-R4, T-56
I just checked a spare intake I have in the house and there are only intake hold down bolt holes and the dist. bolt in that area. Nothing else. The intake I just looked at is an 87, the one in the car is an 88. I doubt if there are differences. That diagram must be right, have no idea how I could remember something so recent wrong. I remember thinking if I lose those little bolts trying to get them in, it's gonna suck finding them and getting them back.
#13
Senior Member
Join Date: Oct 2001
Location: Starkville, MS
Posts: 571
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1991 Camaro Z28
Engine: 350
Transmission: 700R4
Originally posted by HalfInchWrench
I just checked a spare intake I have in the house and there are only intake hold down bolt holes and the dist. bolt in that area. Nothing else. The intake I just looked at is an 87, the one in the car is an 88. I doubt if there are differences. That diagram must be right, have no idea how I could remember something so recent wrong. I remember thinking if I lose those little bolts trying to get them in, it's gonna suck finding them and getting them back.
I just checked a spare intake I have in the house and there are only intake hold down bolt holes and the dist. bolt in that area. Nothing else. The intake I just looked at is an 87, the one in the car is an 88. I doubt if there are differences. That diagram must be right, have no idea how I could remember something so recent wrong. I remember thinking if I lose those little bolts trying to get them in, it's gonna suck finding them and getting them back.
#14
Member
Join Date: Jul 2002
Location: Felton, Pa
Posts: 113
Likes: 0
Received 0 Likes
on
0 Posts
Car: '89 GTA
Engine: 305 TPI
Transmission: T5
Axle/Gears: 3.45
That's what I was thinking too, those 2 little bolts are all you need to remove the coil. And yes, I did lose one years ago and never found it, lol.
#15
Senior Member
Thread Starter
iTrader: (3)
Join Date: Jul 1999
Location: Long Island, NY
Posts: 844
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1987 GTA
Engine: 645hp/656 ft lb Blown 383
Transmission: 700-R4 3,000 stall
Axle/Gears: 3.55 moser 12-bolt
GREAT diagram thanks! I guess that the bracket is really held down with intake bolts....that's kinda weird, but atleast I know now. Thanks a lot! Thirdgen.org rocks!!!!!!!!!!!!!!!!!! thanks guys
#16
Supreme Member
Join Date: Feb 2005
Location: Ajax, ON
Posts: 1,054
Likes: 0
Received 1 Like
on
1 Post
Car: 85Z28 87GTA 91GTA 98SS
Engine: SBC, LS-x
Transmission: T-5, 700-R4, T-56
Originally posted by Black 91 Z28
I think you're thinking of the bolts in the pic labeled "4". They're small and require a size 10 or 11mm socket.
I think you're thinking of the bolts in the pic labeled "4". They're small and require a size 10 or 11mm socket.
Cooper has first hand experence with my fear. Tight down there. I installed the coil bracket while holding the bolt with a socket and extension. The second one I thought would disappear.
#17
Senior Member
Thread Starter
iTrader: (3)
Join Date: Jul 1999
Location: Long Island, NY
Posts: 844
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1987 GTA
Engine: 645hp/656 ft lb Blown 383
Transmission: 700-R4 3,000 stall
Axle/Gears: 3.55 moser 12-bolt
I though I had a ground wire connected to the last intake bolt. it has one of those funny washerswith teeth and I had it marked like that on a diagram that i drew. Does it have to go to that spot on the intake? or can it go to the back of the head or something? if i had to remove that intake bolt to attach the ground at a later date, would that warp the intake or something, since it wouldn't be re-torqued in sequence?
#18
Supreme Member
iTrader: (1)
Join Date: Jun 2001
Location: Tacoma, Wa
Posts: 3,109
Likes: 0
Received 25 Likes
on
17 Posts
Car: '91 TA vert
Engine: turboLSx
Transmission: T56
Axle/Gears: 3.23
Originally posted by Justin 87 GTA
I though I had a ground wire connected to the last intake bolt. it has one of those funny washerswith teeth and I had it marked like that on a diagram that i drew. Does it have to go to that spot on the intake? or can it go to the back of the head or something? if i had to remove that intake bolt to attach the ground at a later date, would that warp the intake or something, since it wouldn't be re-torqued in sequence?
I though I had a ground wire connected to the last intake bolt. it has one of those funny washerswith teeth and I had it marked like that on a diagram that i drew. Does it have to go to that spot on the intake? or can it go to the back of the head or something? if i had to remove that intake bolt to attach the ground at a later date, would that warp the intake or something, since it wouldn't be re-torqued in sequence?
#19
Senior Member
Thread Starter
iTrader: (3)
Join Date: Jul 1999
Location: Long Island, NY
Posts: 844
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1987 GTA
Engine: 645hp/656 ft lb Blown 383
Transmission: 700-R4 3,000 stall
Axle/Gears: 3.55 moser 12-bolt
cool, i mounted the braket, so i guess i'll just ground elsewhere. wish i could attach a pic,...but i don't know how to make them smaller
#20
Supreme Member
iTrader: (1)
Join Date: Jun 2001
Location: Tacoma, Wa
Posts: 3,109
Likes: 0
Received 25 Likes
on
17 Posts
Car: '91 TA vert
Engine: turboLSx
Transmission: T56
Axle/Gears: 3.23
Start Menu > Programs > Accesories > MSPaint...then open file, save as whatever you want will probably shrink it down.
#21
Member
Join Date: Jul 2002
Location: Felton, Pa
Posts: 113
Likes: 0
Received 0 Likes
on
0 Posts
Car: '89 GTA
Engine: 305 TPI
Transmission: T5
Axle/Gears: 3.45
iirc the ground wire goes to the back of the head from the factory, not sure about mounting it to the intake (steel bolt + aluminum intake + electricty = corrosion) it may or may not be an issue.
#22
Senior Member
iTrader: (1)
Join Date: Nov 2001
Location: Irmo, SC
Posts: 689
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1992 Pontiac GTA
Engine: 305TPI
Transmission: 700R4
Axle/Gears: 10-bolt, 2.73
Originally posted by Cooper
That's what I was thinking too, those 2 little bolts are all you need to remove the coil. And yes, I did lose one years ago and never found it, lol.
That's what I was thinking too, those 2 little bolts are all you need to remove the coil. And yes, I did lose one years ago and never found it, lol.
It takes some skill to put those bolts back because there's not a lot of space and you can't see where you are threading. I always "dental floss" those fasteners now, so if dropped they are not lost. I had to remove the coil again recently when I replaced my heater hoses.
Does anyone know why aftermarket coils do not have paint on the core plates? I painted my because the rust was bothering me.
#24
Senior Member
iTrader: (1)
Join Date: Nov 2001
Location: Irmo, SC
Posts: 689
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1992 Pontiac GTA
Engine: 305TPI
Transmission: 700R4
Axle/Gears: 10-bolt, 2.73
Tie dental or sewing floss to the bolt. Tie other end to somehting under the hood. Start the bolt into the threads. Remove floss. Finish tightening bolt.
#25
Junior Member
Join Date: Mar 2005
Location: Cleveland
Posts: 25
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1988 Camaro
Engine: 305 TBI
Transmission: Auto w/ overdrive
My local parts stores dont carry a coil with the correct mounting bracket on them. Do I need to go to a dealer for one? Or do I need to do what HALFINCHWRENCH said above? "I had to remove the bracket and drill out the rivits holding the origional coil."
#26
Senior Member
iTrader: (1)
Join Date: Nov 2001
Location: Irmo, SC
Posts: 689
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1992 Pontiac GTA
Engine: 305TPI
Transmission: 700R4
Axle/Gears: 10-bolt, 2.73
Re-use your stock brackets. The rivets are soft and easy to drill out if you take it slowly. Just match up rivet diameter with drill bit diameter. You will need to purchase some machine screws, washers, and nuts to secure the new ignition coil to the old bracket. Most aftermarket "performance" coils already include that hardware.
#27
Senior Member
Join Date: Mar 2005
Location: Sacramento, California
Posts: 992
Likes: 0
Received 1 Like
on
1 Post
Car: 92 RS
Engine: a slow one
Transmission: a crunchy one
Axle/Gears: a whiny one
I just put an Accel coil on my car (literally, I just came in about 5 minutes ago) and it wasn't the intake bolts that held the bracket down. the bracket had two ears that extended down to a couple bosses that were drilled out for it in the exhaust manifold.
its a 92 3.1 though
its a 92 3.1 though
#28
Member
Join Date: Feb 2005
Location: Long Beach, CA
Posts: 130
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1989 IROC-Z Convertible
Engine: 305
Transmission: Art Carr 700-R4
My '89 TPI has its coil bracket held down by the rear two intake bolts. I really can't think of a worse place to put it either. Adjusting timing involves removing one coil bolt, rotating it slightly, making sure that the egr vacuum switch bracket doesn't rotate otherwise the bolt holes in it won't line up properly. Then, you have to mess around with the distributor hold down bolt, yadda yadda yadda. There's gotta be at least one better way........and I'd bet that plenty of people here have found one.
#29
Supreme Member
iTrader: (1)
Join Date: Jun 2001
Location: Tacoma, Wa
Posts: 3,109
Likes: 0
Received 25 Likes
on
17 Posts
Car: '91 TA vert
Engine: turboLSx
Transmission: T56
Axle/Gears: 3.23
Originally posted by Tony89
My '89 TPI has its coil bracket held down by the rear two intake bolts. I really can't think of a worse place to put it either. Adjusting timing involves removing one coil bolt, rotating it slightly, making sure that the egr vacuum switch bracket doesn't rotate otherwise the bolt holes in it won't line up properly. Then, you have to mess around with the distributor hold down bolt, yadda yadda yadda. There's gotta be at least one better way........and I'd bet that plenty of people here have found one.
My '89 TPI has its coil bracket held down by the rear two intake bolts. I really can't think of a worse place to put it either. Adjusting timing involves removing one coil bolt, rotating it slightly, making sure that the egr vacuum switch bracket doesn't rotate otherwise the bolt holes in it won't line up properly. Then, you have to mess around with the distributor hold down bolt, yadda yadda yadda. There's gotta be at least one better way........and I'd bet that plenty of people here have found one.
#30
Member
Join Date: Feb 2005
Location: Long Beach, CA
Posts: 130
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1989 IROC-Z Convertible
Engine: 305
Transmission: Art Carr 700-R4
I should've been way more clear about this point, sorry for the confusion. It's just that the coil, and the EGR vacuum switch are both in the arc that the dizzy wrench cuts across when loosening and tightening the hold-down bolt. However, non-TPI's may very well be different, I'm just not sure. On my car, you cannot even see the bolt without rotating the coil slightly, and pushing lightly on the vacuum switch.
#31
Supreme Member
iTrader: (1)
Join Date: Jun 2001
Location: Tacoma, Wa
Posts: 3,109
Likes: 0
Received 25 Likes
on
17 Posts
Car: '91 TA vert
Engine: turboLSx
Transmission: T56
Axle/Gears: 3.23
I remember before I swapped to the HSR, the tpi manifold I could just use a dizzy wrench to turn the bolt. Although I only got about 1/32 of a turn in, it was enough to break free and then retighten when needed. Once I got the wrench in the right spot. At least I thought so. It's been awhile since I looked at the old TPI manifold.
#32
Member
Join Date: Feb 2005
Location: Long Beach, CA
Posts: 130
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1989 IROC-Z Convertible
Engine: 305
Transmission: Art Carr 700-R4
You hit the nail on the head with that one
That's pretty much my story, too. My intake is the Edelbrock TPI intake, but the design is pretty much the same in general terms as the stock one. 1/32 of an inch is a pretty accurate estimate of the clearance you have in turning that bolt. The actual coil bracket I leave intact, but I go to the trouble of rotating the coil a little. It takes longer, but I got pretty quick at it. The last time I did it, I upgraded to the MSD stock replacement coil I had sitting around so I suppose it wasn't a total waste.
